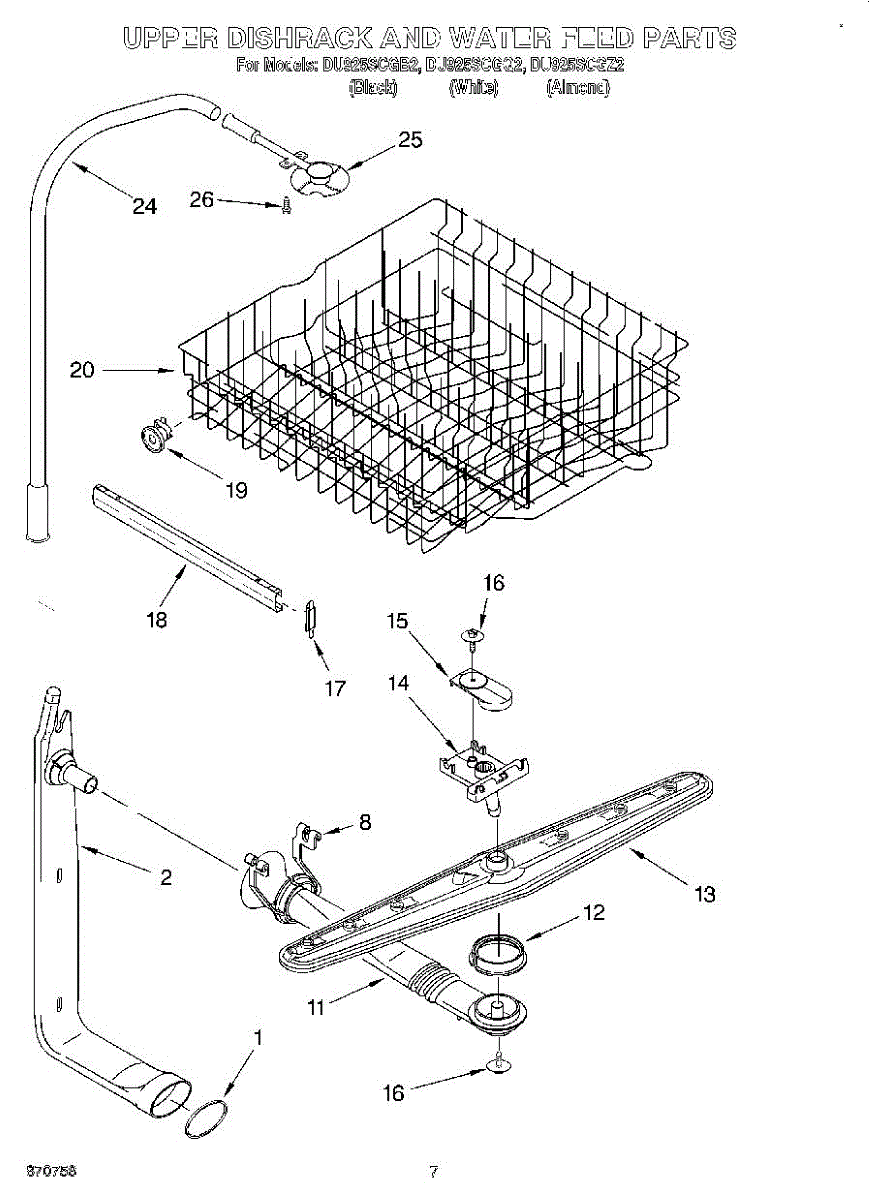

Parts for Whirlpool DU925SCGZ2: 05 - Upper Dishrack And Water Feed Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Water supply tube for dishwashers. Connects water inlet to spray system. Replace if tube is cracked, leaking, kinked, or damaged during service.

Secures the middle wash arm manifold tube in your dishwasher. Replace if cracked, broken, or split from age or heat damage. Installs on manifold tube.

This tube connects the water supply to the middle wash arm of the dishwasher, delivering pressurized water so the spray arm can spin and clean dishes on the upper rack. It runs vertically from the lower area of the tub up to the mid-level spray arm assembly. Replace this tube if the middle spray arm is not spinning, dishes on the upper rack are not getting clean, or if you notice leaks or cracks in the tube.

Ring bearing supports spray arm rotation in dishwashers. Mounts at spray arm base to allow free spinning. Replace if cracked, worn, or missing.

Replaces cracked, worn, or broken spray arms and supply tubes in your dishwasher. Restores water distribution system. Kit includes upper arm and feed tube.

Secures the upper spray arm to the rack in your dishwasher. Replace if cracked, broken, or missing to properly support and position the spray arm.

Mounts the upper spray arm to the water supply manifold in your dishwasher. Replace if cracked, broken, or damaged from impact during rack loading.

The Screw is an OEM part for Whirlpool dishwashers. It secures the spray arm to the dishwasher, ensuring it rotates properly to distribute water evenly throughout the dishwasher during cleaning cycles.

Common causes of a faulty spray arm screw include wear and tear from regular use, corrosion from exposure to water and detergents, or damage from improper installation or removal.

Symptoms of a bad spray arm screw include:

• The spray arm not rotating or functioning correctly
• Loose or wobbly spray arm
• Unusual noises coming from the spray arm during operation
• Poor cleaning performance due to inadequate water distribution

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small plastic clip prevents your dishwasher's upper dish rack from sliding too far forward when pulled out. It stops the rack at the proper position to prevent it from falling out completely. Replace this clip if your upper rack slides out too far or falls off its tracks when loaded with dishes.

The Upper Dishrack Rail is an OEM replacement part for Whirlpool dishwashers. It guides upper racks in and out for easy access to dishes.

Causes of faulty rails can include worn rollers, broken clips, or stress cracks in modules after repeated cycles.

Symptoms of a bad upper dishrack rail include:

• Difficulty inserting or removing the upper rack smoothly
• Off-track movement that impacts washing coverage
• Detached ends or segments that compromise stability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Wheel and bearing assembly for dishwasher upper rack. Mounts to dishrack for smooth gliding on rails. Replace if worn, cracked, or broken wheels.

Upper dishrack assembly for dishwashers. Slides on tracks to hold dishes on the top shelf. Replace if cracked, rusted, broken tines, or no longer stable.

Third level wash arm assembly for dishwashers. Installs on upper feed tube in top rack area. Replace if disc is cracked, washer is missing, or assembly won't stay on shaft.

8-16 thread screw secures panels, brackets, and trim inside refrigerators, dishwashers, and ice makers. Replace if missing, stripped, or damaged.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White.

Color: Almond.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Instruction sheet included. This is a heavy duty spring kit used for heavy doors. Kit includes 2 springs.

Color: Blue. Includes 125 caps used to cover damaged tips on your dishracks. For white order 675679. For gray order 676458. To attach these tine tips you will need to order the dishrack blue touch-up paint W10840471.

Color: White. Size: 13 oz. Spray paint primer. can.

Touch-up paint for repairing chipped, scratched, or rusted dishwasher racks. Brush-on formula restores appearance where coating is worn or missing.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Color: White. Includes 125 caps used to cover damaged tips on your dishracks. For blue order 12022. For grey order 676458. To attach these tine tips you will need to order the dishrack white touch-up paint WP676453.

Color: White. 4oz bottle with brush used for touching up damage to your dishracks. For blue use W10840471. For grey use WP676455. For tips use 675679

Grey vinyl touch-up paint for repairing chipped, rusted, or damaged dishwasher rack coating. 4oz bottle with brush. Restores protective coating.

Gray protective caps cover damaged or rusting dishwasher rack tine tips. 125-pack slides over worn tine ends to restore your dishrack and protect dishes.

High-temperature adhesive secures gaskets, seals, and feet in hot zones. Replace when parts loosen or seals fail. Confirm fit with your model number.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
