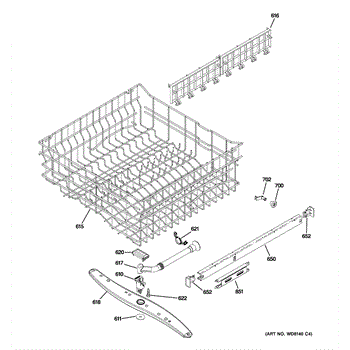

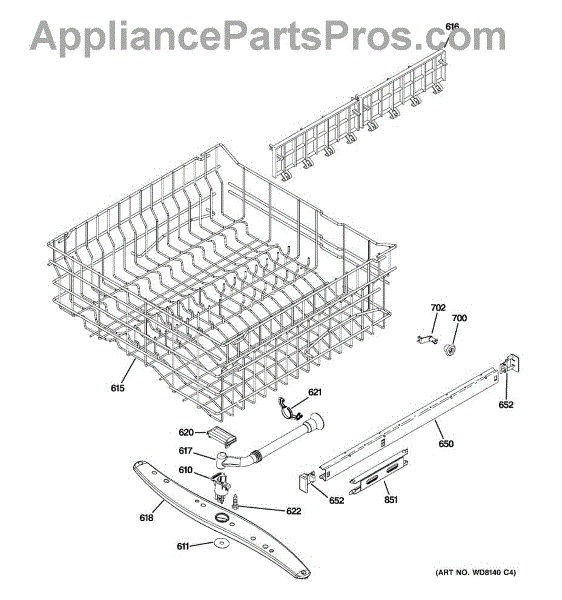

Parts for Ge CDW9380N00SS: 03 - Upper Rack Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This middle spray arm hub secures the dishwasher's middle spray arm to the feed tube and lets it spin smoothly, helping deliver even spray coverage so dishes in the upper rack area get properly cleaned.

• Connects the middle spray arm to the water feed/manifold and serves as its rotating center
• Keeps the arm aligned so jets can distribute water evenly
• Wear or cracks can cause the arm to wobble, fall off, bind, or stop spinning
• Symptoms include poor cleaning on the upper rack and unusual noise from the arm area

• Disconnect power and water supply before servicing
• Remove the middle spray arm per your model's design and note its orientation
• Transfer and reuse any original screws, clips, or washers; install the new hub without overtightening
• Spin the arm by hand to ensure free movement before running a brief test cycle

Specs: B-16 HXW 1/2 SS

This part is an upper dishrack assembly for dishwashers. The purpose of this part is to hold dishes and cookware during the washing process. There are two dish racks per unit, and this particular dishrack goes on the top of the unit. The lower dishrack assembly is sold separately. Over time, the upper dishrack assembly may rust due to the coating breaking down and water corroding the metal. If this happens, the dishrack assembly will become brittle and less structurally sound and will need to be replaced. If the attached rails have broken and will not attach to the sides of the dishwasher and slide appropriately, this part may need to be replaced.This upper dishrack assembly is compatible with dishwashers that are manufactured by the GE and Whirlpool brands. This particular component is an OEM part that is sourced directly from the manufacturer and is sold individually.

This shelf cup is a small replacement cup that secures a refrigerator door shelf in place, restoring shelf stability and preventing items from slipping or the shelf from sagging. It's a direct-fit replacement designed to match the original mounting. What it does:

• Supports and anchors a door shelf or shelf bin to the refrigerator door
• Keeps the shelf level so stored items don't slide or tip
• Replaces cracked, broken, or worn shelf cups that allow shelf movement
• Restores proper alignment and secure seating of the shelf/bin

• Disconnect power only if you must move or tilt the appliance; otherwise remove items from the door and work with the fridge closed
• Remove the affected shelf/bin and detach the old cup
• Press the new shelf cup into place until it seats fully; re-install the shelf/bin and check for secure fit

The Middle Spray Arm is an OEM replacement part for GE dishwashers. It is an internal component responsible for distributing water and washing accessories to dishes located in the center rack of the dishwasher.

Symptoms of a bad middle spray arm include:

• Dirty dishes located in the center rack, even after a full wash cycle
• Noticeably reduced water pressure from the center spray nozzle
• Clogged or blocked spray holes in the arm

Causes of a bad middle spray arm can be normal wear and tear, mineral buildup obstructing spray outlets, or physical damage to the arm itself.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This middle spray arm bracket secures the mid-level spray arm to the upper rack, keeping it centered and aligned so it spins freely and delivers even spray coverage for reliable cleaning performance.

• Supports and stabilizes the middle spray arm beneath the upper rack
• Maintains proper clearance for smooth rotation and spray pattern
• Replace if cracked, warped, or worn
• Common symptoms: middle arm falls off or won't spin, wobbles, scraping noises, or poor cleaning on the upper rack

• Disconnect power to the dishwasher before servicing
• Slide out the upper rack; release tabs or fasteners to remove the old bracket
• Transfer the spray arm to the new bracket and snap or secure it in place
• Spin the arm by hand to ensure free rotation before running a cycle

This middle conduit carrier secures the dishwasher's water feed tube so it stays aligned as the rack moves. Replacing a cracked or missing carrier helps restore reliable spray delivery and consistent cleaning performance.

• Secures and guides the middle water conduit/feed tube on the rack
• Keeps the conduit aligned with the rear water port for consistent spray
• Helps prevent rack binding or rattling from a loose feed tube
• Helps with weak spray or poor cleaning on the upper rack when the carrier is damaged

• Disconnect power and turn off water before servicing
• Pull the rack forward; release the old carrier's tabs or fastener and detach from the feed tube
• Snap or fasten the new carrier in place; ensure the conduit seats fully at the rear port
• Verify smooth rack travel and run a brief test cycle to check operation

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Dishrack Stop is an OEM part for GE dishwashers. It is designed to secure the dishrack within the dishwasher, preventing it from sliding too far out during loading and unloading. This small yet essential component helps ensure smooth and safe operation of the dishrack.

Over time, the dishrack stop can become worn out or damaged due to repeated use or accidental force. Physical damage, such as cracks or breaks, can compromise its ability to hold the dishrack securely in place.

Symptoms of a bad dishrack stop include:

• Dishrack sliding out too far
• Difficulty in moving the dishrack in and out
• Dishrack feeling unstable or wobbly
• Increased risk of the dishrack falling out of the dishwasher

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Upper dishrack roller and axle kit includes: 4 rollers and 4 axles.

Upper dishrack roller and axle kit includes: 4 rollers and 4 axles.

The Cage Roller Bearing Assembly is an OEM component for GE dishwashers. Located within the dishrack framing, it facilitates smooth travel of racks in and out during cycle operations.

Causes of a faulty bearing assembly commonly relate to years of enduring cycle vibrations and intermittent loads from rack movements. Hard water exposure poses an additional risk of mineral deposits increasing friction over time.

Symptoms include:

• Snagging or jamming issues when sliding racks
• Louder than typical operation noises within cycles
• Potential rack misalignments or difficulty extending fully

This genuine GE assembly is also compatible with other GE, Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
