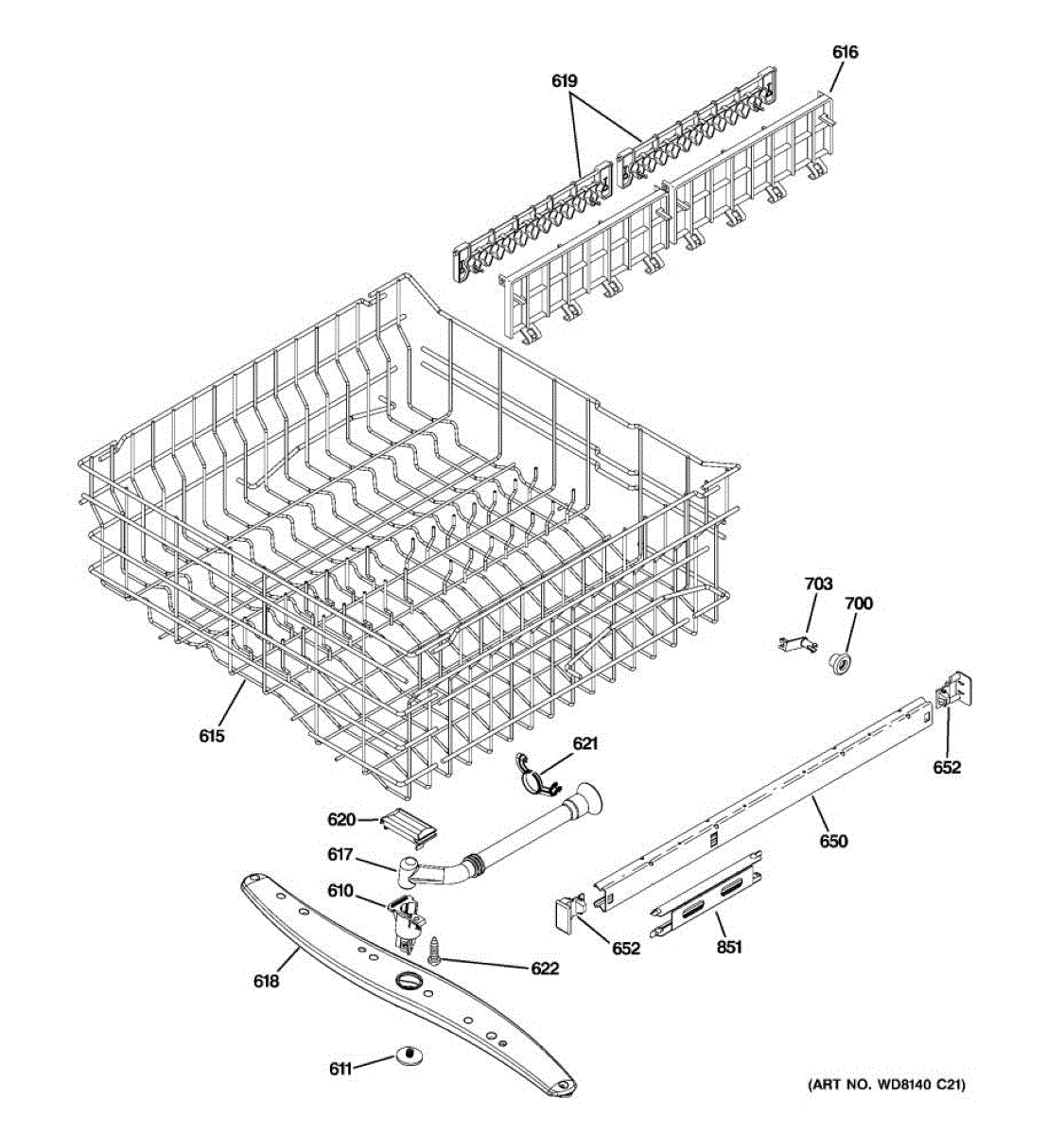

Parts for Ge PDWT100R30BB: 03 - Upper Rack Assembly Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Dishes not getting clean in the upper rack? A worn middle spray arm hub prevents proper rotation and water distribution. DIY fix in 15 minutes.

Secures the spray arm assembly in your dishwasher. Replace if the original screw is stripped, corroded, missing, or no longer holds the arm firmly.

Upper dishrack assembly for dishwashers. Holds dishes and cookware on top rack. Replace if rusted, cracked, or plastic coating is peeling. Includes rollers.

Multi-purpose shelf for dishwasher interior. Replaces broken, cracked, or missing shelves. Adds versatile storage space for small items during wash cycles.

This middle spray arm assembly mounts at the center wash level and distributes pressurized water across both racks. Replacing a damaged or clogged arm restores even spray coverage and helps resolve weak cleaning performance, especially on the upper rack.

• Directs and disperses wash water from the mid-level for thorough coverage
• Rotates to spray dishes on both racks when unobstructed
• Helps when dishes come out dirty, the top rack isn't getting clean, or the arm is cracked/clogged
• Restores proper spray pattern and circulation

• Disconnect power and water supply before servicing the dishwasher
• Open the dishwasher; remove the upper rack if needed. Release the retainer and pull the old mid-level arm off its hub/tube
• Align and press the new arm onto the hub until secure; it spins freely
• Run a test cycle to normal spray and rotation

Secures wine glasses and goblets in your dishwasher rack. Replace broken, cracked, or missing stemware clips to prevent tipping during wash cycles.

Secures the mid-level spray arm to the upper rack for proper alignment and rotation. Replace if cracked, broken, or missing to restore spray coverage.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Secures the middle water feed tube to the upper rack in your dishwasher. Replace if cracked, broken, or missing to keep the conduit properly aligned.

Mounting screw for dishwasher tub assembly. Secures internal components like spray arms and baskets. Replace if stripped, corroded, or missing.

Secures the dishrack and prevents it from sliding out too far during loading. Replace if cracked, broken, or missing to keep your rack stable.

Upper dishrack roller and axle kit includes: 4 rollers and 4 axles.

Upper dishrack roller and axle kit includes: 4 rollers and 4 axles.

Roller bearing cage installs in the dishwasher rack track to support smooth gliding. Replace if cracked, broken, or causing the rack to stick or slide out.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
