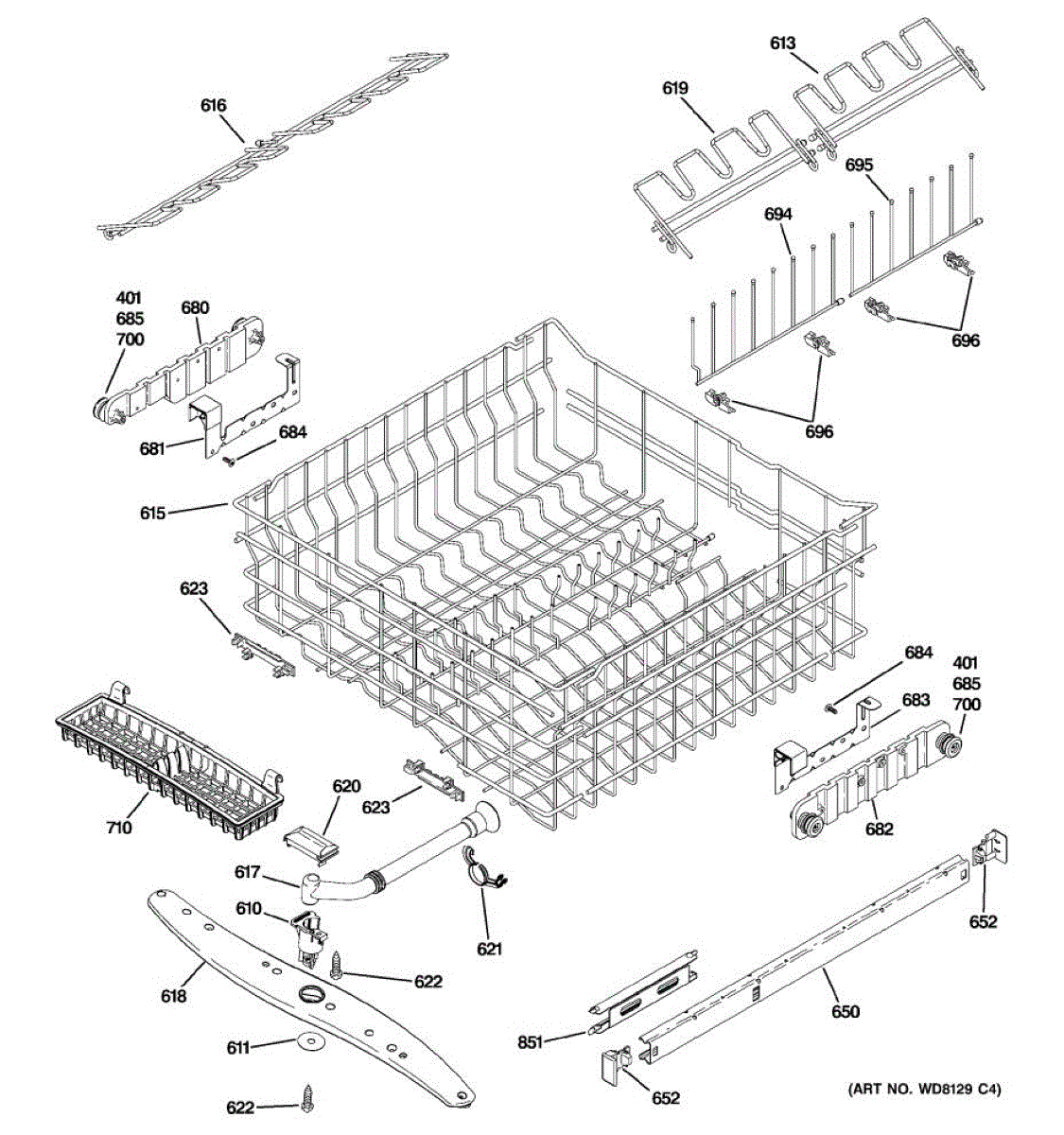

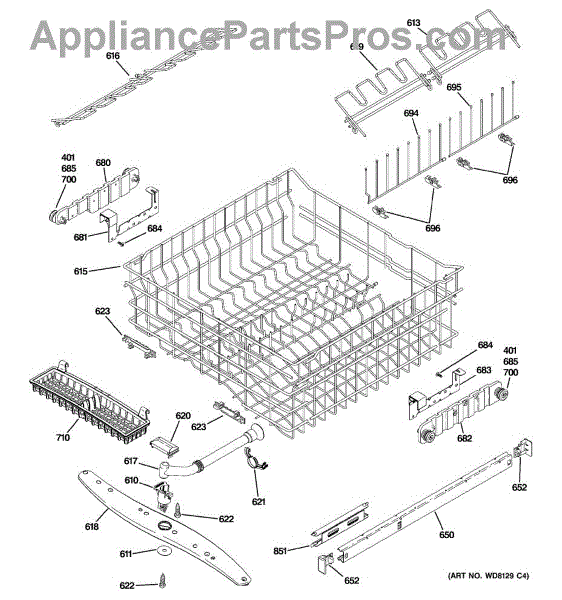

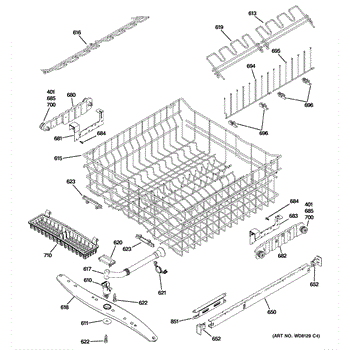

Parts for Ge ZBD0710K03SS: 03 - Upper Rack Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This middle spray arm hub secures the dishwasher's middle spray arm to the feed tube and lets it spin smoothly, helping deliver even spray coverage so dishes in the upper rack area get properly cleaned.

• Connects the middle spray arm to the water feed/manifold and serves as its rotating center
• Keeps the arm aligned so jets can distribute water evenly
• Wear or cracks can cause the arm to wobble, fall off, bind, or stop spinning
• Symptoms include poor cleaning on the upper rack and unusual noise from the arm area

• Disconnect power and water supply before servicing
• Remove the middle spray arm per your model's design and note its orientation
• Transfer and reuse any original screws, clips, or washers; install the new hub without overtightening
• Spin the arm by hand to ensure free movement before running a brief test cycle

Specs: B-16 HXW 1/2 SS

This part is an upper dishrack assembly for dishwashers. The purpose of this part is to hold dishes and cookware during the washing process. There are two dish racks per unit, and this particular dishrack goes on the top of the unit. The lower dishrack assembly is sold separately. Over time, the upper dishrack assembly may rust due to the coating breaking down and water corroding the metal. If this happens, the dishrack assembly will become brittle and less structurally sound and will need to be replaced. If the attached rails have broken and will not attach to the sides of the dishwasher and slide appropriately, this part may need to be replaced.This upper dishrack assembly is compatible with dishwashers that are manufactured by the GE and Whirlpool brands. This particular component is an OEM part that is sourced directly from the manufacturer and is sold individually.

This mid-spray conduit routes wash water from the circulation system to the middle spray arm, delivering consistent coverage to the center rack. Replacing a cracked or clogged conduit can restore washing performance and help prevent leaks inside the tub.

• Directs wash water from the pump to the mid-level spray arm
• Maintains proper flow for the middle wash zone and spray arm rotation
• A damaged or obstructed conduit can cause poor cleaning on upper racks or weak/erratic spray
• Cracks, broken tabs, or loose sealing can lead to leaks from the rear of the tub

• Disconnect power and water; wear gloves to protect hands
• Remove rack(s) as needed, release rear-wall fasteners/clips, and detach the conduit from its connections
• Align and fully seat the new conduit at all docking points until tabs lock securely
• Run a short test cycle to check for leaks and proper spray operation

This middle spray arm bracket secures the mid-level spray arm to the upper rack, keeping it centered and aligned so it spins freely and delivers even spray coverage for reliable cleaning performance.

• Supports and stabilizes the middle spray arm beneath the upper rack
• Maintains proper clearance for smooth rotation and spray pattern
• Replace if cracked, warped, or worn
• Common symptoms: middle arm falls off or won't spin, wobbles, scraping noises, or poor cleaning on the upper rack

• Disconnect power to the dishwasher before servicing
• Slide out the upper rack; release tabs or fasteners to remove the old bracket
• Transfer the spray arm to the new bracket and snap or secure it in place
• Spin the arm by hand to ensure free rotation before running a cycle

This middle conduit carrier secures the dishwasher's water feed tube so it stays aligned as the rack moves. Replacing a cracked or missing carrier helps restore reliable spray delivery and consistent cleaning performance.

• Secures and guides the middle water conduit/feed tube on the rack
• Keeps the conduit aligned with the rear water port for consistent spray
• Helps prevent rack binding or rattling from a loose feed tube
• Helps with weak spray or poor cleaning on the upper rack when the carrier is damaged

• Disconnect power and turn off water before servicing
• Pull the rack forward; release the old carrier's tabs or fastener and detach from the feed tube
• Snap or fasten the new carrier in place; ensure the conduit seats fully at the rear port
• Verify smooth rack travel and run a brief test cycle to check operation

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Left hand side

Right hand side

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Dishrack Stop is an OEM part for GE dishwashers. It is designed to secure the dishrack within the dishwasher, preventing it from sliding too far out during loading and unloading. This small yet essential component helps ensure smooth and safe operation of the dishrack.

Over time, the dishrack stop can become worn out or damaged due to repeated use or accidental force. Physical damage, such as cracks or breaks, can compromise its ability to hold the dishrack securely in place.

Symptoms of a bad dishrack stop include:

• Dishrack sliding out too far
• Difficulty in moving the dishrack in and out
• Dishrack feeling unstable or wobbly
• Increased risk of the dishrack falling out of the dishwasher

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Left hand side

Right hand side

Specs: 8-18 b por 1/2 ss

Specs: 10-16 b rnp 18/25

The comb retainer is the small clip that secures the rack comb/tine row to your dishwasher's rack. It keeps the insert firmly in place so dishes stay upright and wash effectively without the tines coming loose.

• Locks the rack comb/tine insert onto the rack wires to prevent shifting
• Helps keep plates, lids, and cookware upright during cycles
• Restores stability when the original retainer is cracked, worn, or missing
• Common symptoms: comb/tine row loosens or falls off, dishes tip over, or you notice rattling in the rack

• Unplug the dishwasher and shut off the water supply before servicing
• Pull out the rack and note the retainer's orientation for reference
• Release and remove the damaged retainer; align and snap the new retainer securely onto the comb and rack wire
• Confirm the comb/tine row is firmly attached and the rack moves freely before running a cycle

Dishwasher rack tine clip. Used to hold the tines in place within the rack. Color: gray. Measures about 1 inch wide by 1 inch high by 1-1/2 inches deep.

Upper dishrack roller and axle kit includes: 4 rollers and 4 axles.

The Cage Roller Bearing Assembly is an OEM component for GE dishwashers. Located within the dishrack framing, it facilitates smooth travel of racks in and out during cycle operations.

Causes of a faulty bearing assembly commonly relate to years of enduring cycle vibrations and intermittent loads from rack movements. Hard water exposure poses an additional risk of mineral deposits increasing friction over time.

Symptoms include:

• Snagging or jamming issues when sliding racks
• Louder than typical operation noises within cycles
• Potential rack misalignments or difficulty extending fully

This genuine GE assembly is also compatible with other GE, Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
