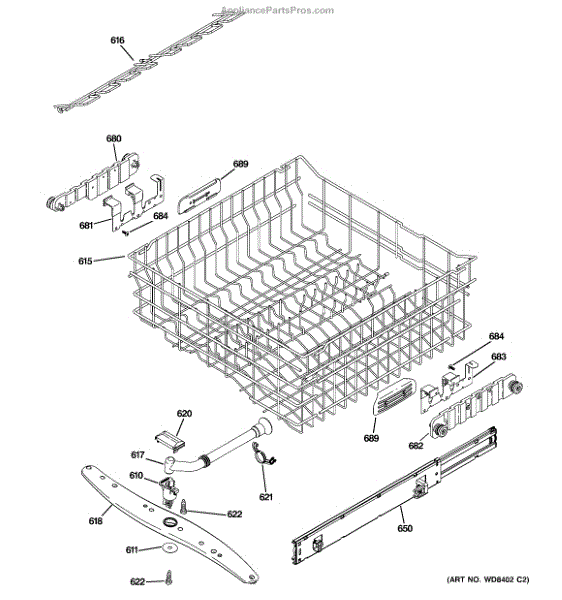

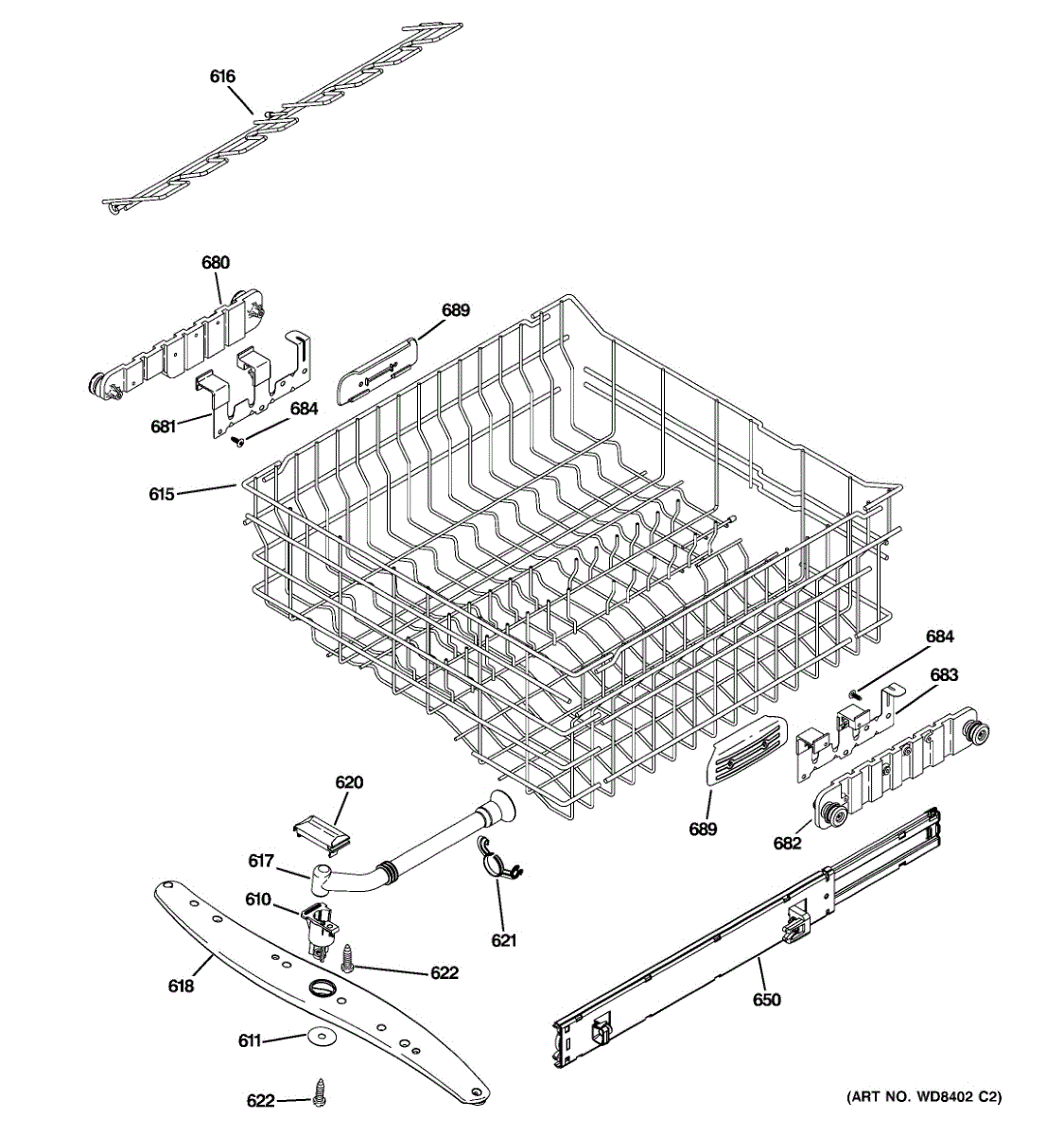

Parts for Ge GHDT168V55SS: Upper Rack Assembly Parts

Parts for Ge GHDT168V55SS: Upper Rack Assembly Parts

Location on Diagram
Part Description
Price & Availability
Best Seller
Product photo
4.9 (421)
By: Whirlpool
Part Number: W10549851

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

More
$9.95

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
610
Best Seller
Product photo
4.8 (13)
By: Ge
Part Number: WD12X10353

Dishes not getting clean in the upper rack? A worn middle spray arm hub prevents proper rotation and water distribution. DIY fix in 15 minutes.

More
$3.95

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
611
Best Seller
Product photo
4.9 (19)
By: Ge
Part Number: WD02X10169

Specs: B-16 HXW 1/2 SS

More
$9.88

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
615
Product photo
4.0 (3)
By: Ge
Part Number: WD28X10413

This is the complete upper dish rack assembly that slides in and out of the dishwasher on rails and holds cups, glasses, and smaller items during the wash cycle. It includes the rack frame and tine structure designed to keep dishes separated for proper water circulation. Replace this assembly if the rack has broken or bent tines, rust spots, or damaged rollers that prevent smooth sliding.

More
$301.65

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
616
By: Ge
Part Number: WD28X10302
$50.54

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
617
Product photo
4.3 (3)
By: Ge
Part Number: WD12X10147

Routes water from the pump to the middle spray arm in your dishwasher. Replace if cracked, clogged, or leaking to restore proper water delivery to the rack.

More
$22.95

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
618
Product photo
5.0 (1)
By: Ge
Part Number: WD22X10066

This middle spray arm assembly mounts at the center wash level and distributes pressurized water across both racks. Replacing a damaged or clogged arm restores even spray coverage and helps resolve weak cleaning performance, especially on the upper rack.

  • Directs and disperses wash water from the mid-level for thorough coverage
  • Rotates to spray dishes on both racks when unobstructed
  • Helps when dishes come out dirty, the top rack isn't getting clean, or the arm is cracked/clogged
  • Restores proper spray pattern and circulation
What's included: 1 middle spray arm assembly Install notes:
  • Disconnect power and water supply before servicing the dishwasher
  • Open the dishwasher; remove the upper rack if needed. Release the retainer and pull the old mid-level arm off its hub/tube
  • Align and press the new arm onto the hub until secure; it spins freely
  • Run a test cycle to normal spray and rotation

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

621
Product photo
By: Ge
Part Number: WD12X10114

Secures the middle water feed tube to the upper rack in your dishwasher. Replace if cracked, broken, or missing to keep the conduit properly aligned.

More
$77.76

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
622
Best Seller
Product photo
4.9 (16)
By: Ge
Part Number: WD02X10067

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

  • Noises or abnormal sounds coming from inside the tub
  • Intermittent error codes related to moving components
  • Detached or misaligned spray arms or filters
  • Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

More
$9.95

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
650
Best Seller
Product photo
4.7 (12)
By: Ge
Part Number: WD30X10039
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Best Seller
Product photo
4.9 (421)
By: Whirlpool
Part Number: W10549851

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

More
$9.95

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
680
By: Ge
Part Number: WD01X10605

Adjustable bracket that secures and stabilizes the dishwasher rack system. Replace if cracked, broken, or missing to restore proper rack positioning.

More
$11.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
681
Product photo
By: Ge
Part Number: WD01X10395

Left-hand lever rack assembly for dishwashers. Installs on the rack mechanism to restore proper lever engagement. Replace if cracked, broken, or worn.

More
$36.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
682
By: Ge
Part Number: WD01X10604

Adjustable bracket that secures and supports your dishwasher rack. Replace if yours is cracked, broken, or missing to restore proper rack positioning.

More
$12.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
682
Product photo
By: Ge
Part Number: WD02X10151

This hex-head screw secures dishwasher panels, brackets, and internal hardware so parts stay tight and rattle-free. Replace missing or stripped fasteners to restore a secure fit and reliable operation.

  • Fastens panels, brackets, and other dishwasher components to the tub or frame
  • Replaces a missing, stripped, or corroded screw that no longer holds securely
  • Helps eliminate vibration and rattling caused by loose hardware
  • Maintains proper alignment and secure mounting of parts during operation
What's included: One screw
  • Disconnect power and shut off water supply before servicing
  • Keep track of fastener locations and orientation for correct reassembly
  • Start threads by hand; use an appropriate nut driver or socket to tighten
  • Tighten snugly—do not overtighten, especially when threading into plastic
Specs: 10-16 thread; 5/8 in length; hex-head screw

More
$13.95

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
683
By: Ge
Part Number: WD01X10396

Right-hand lever rack assembly for dishwashers. Replaces worn or broken lever support components. Restores smooth lever movement and secure latch operation.

More
$40.43

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
684
Product photo
By: Ge
Part Number: WD02X10111

Specs: 8-18 b por 1/2 ss

More
$9.24

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
684
Product photo
By: Ge
Part Number: WD02X10166

This hex washer-head screw is used in dishwashers to secure panels, brackets, and other hardware. Replacing a missing or corroded fastener restores a tight, stable installation and helps stop looseness or vibration during cycles.

  • Fastens dishwasher panels, brackets, trim, or mounts to the cabinet/frame
  • Replaces lost or stripped hardware after service or installation
  • Helps address loose or rattling panels and minor misalignment
  • Stainless steel construction per OEM spec for moisture-prone environments
What's included: Includes 1 screw. Install notes:
  • Disconnect power and water supply before servicing the dishwasher
  • Wear gloves; sheet metal edges can be sharp
  • Start threads by hand to avoid cross-threading; tighten with an appropriate driver
  • Do not overtighten, especially when threading into plastic

More
$9.88

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
689
Product photo
By: Ge
Part Number: WD01X10397
$9.24

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
