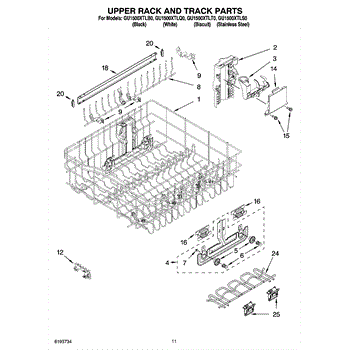

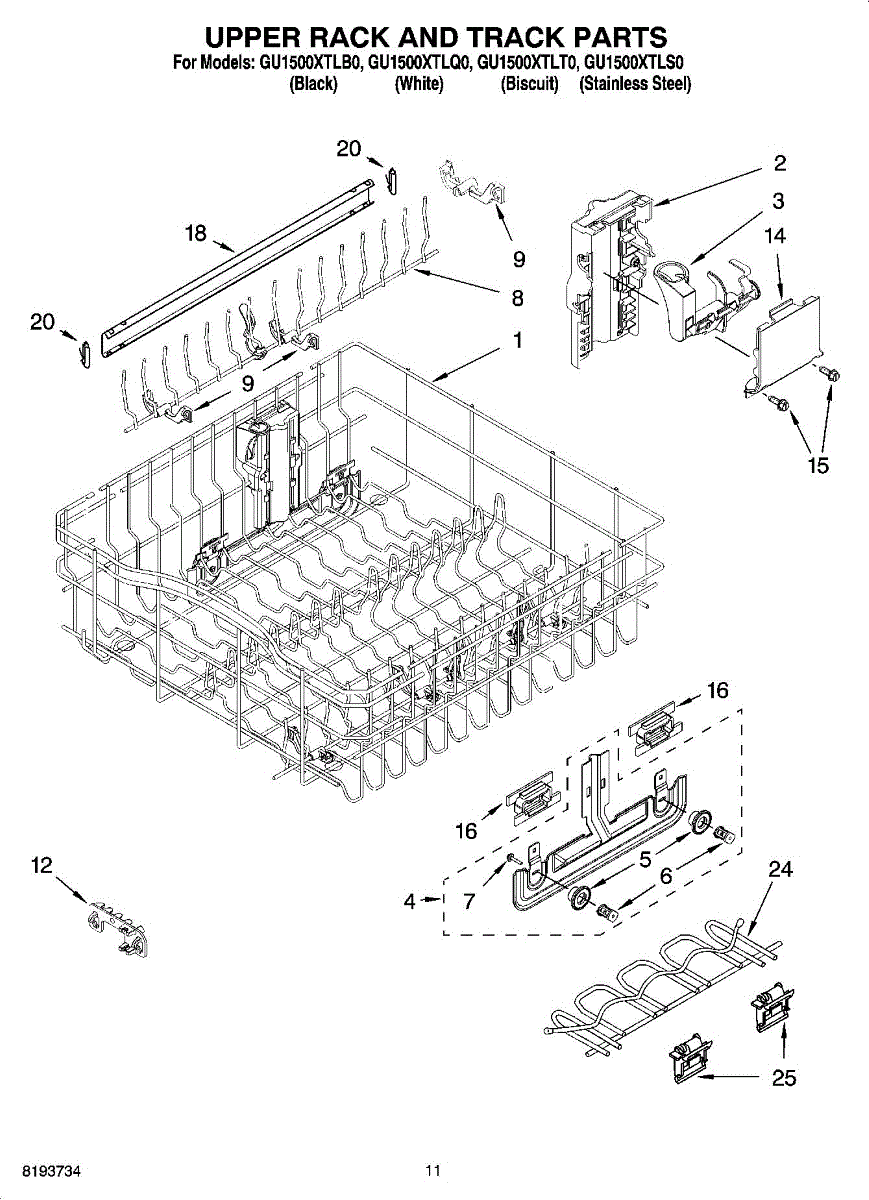

Parts for Whirlpool GU1500XTLT0: 09 - Upper Rack And Track Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Dishrack is an OEM part for Whirlpool dishwashers. This dishrack provides the structure and support needed to hold dishes, glasses, and utensils securely during the washing cycle. It is designed to maximize space and ensure that items are correctly positioned for optimal cleaning.

Causes of a bad dishrack include exposure to harsh detergents, repeated loading and unloading of heavy items, and general wear over many washing cycles.

Symptoms of a bad Dishrack include:

• Rust spots or flakes on the rack
• Broken or bent tines
• Difficulty in sliding the rack in and out
• Dishes not being held securely in place

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Adjuster kit for upper dishrack. Also order retainer part number WP3400918 as needed

Also order retainer part number WP3400918

Also order retainer part number WP3400918 as needed

This adjuster is a replacement door/hinge adjustment component that restores proper door alignment and closing action for compatible appliances. It helps re-establish correct clearance and reduces rubbing, binding, or uneven gaps. What it does:

• Provides the adjustment point for proper door alignment and smooth operation
• Helps correct doors that sit unevenly, rub, or don't seal consistently
• Restores the ability to fine-tune door position after hinge or cabinet repairs
• Reduces noise and wear caused by misaligned doors or panels

• One adjuster as shown

• Turn power off and disconnect the appliance before starting any repair
• Some disassembly of the door, hinge, or trim may be required
• Keep fasteners and small parts organized; verify orientation before final tightening

This dishrack wheel lets the dishwasher rack glide smoothly in and out. Replacing a worn or broken wheel restores easy rack movement and helps keep the rack aligned during loading and unloading.

• Provides rolling support for the dish rack inside the rail/track
• Helps keep the rack level and properly aligned
• Common symptoms include rack hard to slide, wobbling/sagging rack, or a cracked/missing wheel
• Can reduce scraping or clicking noises when moving the rack

• Disconnect power before servicing; remove the rack from the tracks as needed
• Release the old wheel from its axle/retainer; note its orientation
• Snap the new wheel onto the existing axle/retainer and ensure it spins freely
• Reinstall the rack and test for smooth operation

The Adjuster Axle is an OEM part for Whirlpool dishwashers. It plays a crucial role in the height adjustment mechanism of the upper rack, allowing users to customize the rack's position to accommodate different dish sizes. This axle ensures that the adjustment is smooth and stable, providing flexibility in the dishwasher's loading capacity.

You should replace the adjuster axle if it becomes worn out or damaged. Causes of a bad adjuster axle can include wear from frequent adjustments, breakage from overloading the rack, or damage from mishandling.

Symptoms of a bad adjuster axle include:

• Difficulty in adjusting the height of the upper rack
• The rack not staying in the desired position
• Unusual movement or instability of the rack
• The adjuster mechanism not functioning properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components such as panels, brackets, or trim. Use it to replace a missing, stripped, or rusty fastener and restore a secure, rattle-free fit in your appliance assemblies.

• Secures panels, brackets, or hardware to maintain proper alignment
• Helps eliminate vibration, rattling, or loose-feeling parts
• Replaces fasteners that are missing, corroded, or cross-threaded
• Typical signs you need it: loose handle or panel, gaps, or hardware that won't stay tight

• Disconnect power (and shut off gas, if applicable) before servicing
• Match thread type and length to the original fastener for proper fit
• Start threads by hand to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if present

The Adjustable Tine Row is an OEM part for Whirlpool dishwashers. It is designed to provide flexible loading options by allowing users to adjust the position of the tines in the dishwasher rack. This feature accommodates various dish sizes and shapes, enhancing the dishwasher's capacity and versatility.

Over time, the adjustable tine row can wear out or become damaged due to frequent adjustments or the weight of heavy dishes. Causes of a bad adjustable tine row include broken or bent tines, wear from regular use, or damage from overloading the dishwasher rack.

Symptoms of a bad adjustable tine row include:

• Tines not staying in the desired position
• Difficulty adjusting the tines
• Broken or missing tines
• Reduced ability to securely hold dishes in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This upper rack pivot clip secures the tine/pivot on the dishwasher's upper rack so the rack stays aligned and tracks smoothly. Replace a damaged clip to stop the rack from sagging, tilting, or coming off the track. What it does:

• Secures the upper rack tine/pivot to the rack frame for stable operation
• Keeps the upper rack aligned and prevents tilting or sagging during loading
• Helps the upper rack engage and slide smoothly along the rails
• Common replacement when the rack pops off track, pivots unexpectedly, or tines become loose

• Disconnect power to the appliance before beginning any service
• Remove the upper rack to access the pivot area for easier installation
• Align the clip with the tine/pivot and press or snap into place; reuse original fasteners if present
• Handle rack tines carefully — they can be sharp; test rack movement after installation

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This dual positioner assembly helps align and hold the control shaft/knob mechanism so selections register correctly and controls operate smoothly. It replaces a worn or broken positioner to restore reliable selector alignment. What it does:

• Secures and centers the control shaft/knob so detents register properly
• Prevents loose or wandering knobs and helps ensure accurate cycle selection
• Commonly replaced when knobs feel sloppy, skip positions, or controls don't stay set
• Works with the control panel mounting to stabilize selector movement

• Disconnect power to the appliance before starting any work
• Remove the control panel or console to access the positioner per your model's service instructions
• Handle plastic tabs and mounting points carefully to avoid breakage during removal/installation
• Test control function after reassembly to confirm correct alignment and operation

Adjuster kit for upper dishrack. Also order retainer part number WP3400918 as needed

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

The Upper Dishrack Rail is an OEM replacement part for Whirlpool dishwashers. It guides upper racks in and out for easy access to dishes.

Causes of faulty rails can include worn rollers, broken clips, or stress cracks in modules after repeated cycles.

Symptoms of a bad upper dishrack rail include:

• Difficulty inserting or removing the upper rack smoothly
• Off-track movement that impacts washing coverage
• Detached ends or segments that compromise stability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dishwasher Rack Stop Clip is an OEM replacement part for Whirlpool dishwashers. This small but essential component plays a crucial role in ensuring the smooth and secure operation of the dishwasher racks.

Symptoms of needing to replace the dishwasher rack stop clip include:

• Racks rolling out unexpectedly when opening the dishwasher door
• Racks becoming misaligned or sliding out of their tracks
• Difficulty in loading or unloading dishes due to unstable rack positioning

Causes of a faulty rack stop clip can include normal wear and tear over time, accidental impact or damage, or improper installation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

This replacement cupshelf mount clip secures the cup shelf/bin inside the refrigerator door so items stay stable and the shelf functions correctly. Durable plastic clip restores proper shelf alignment and retention. What it does

• Secures the cup shelf/bin to the refrigerator door so the shelf stays in place.
• Helps prevent the door shelf from tilting or falling when loaded.
• Restores proper engagement when the original clip is cracked, broken, or missing.

• One mount cupshelf clip.

• Unload the door shelf/bin before replacing the clip to avoid dropped items.
• Typically snaps into place—align the clip and press until it seats; use a flat tool only if needed.
• Inspect adjacent door components for damage and replace any worn parts for best fit.
