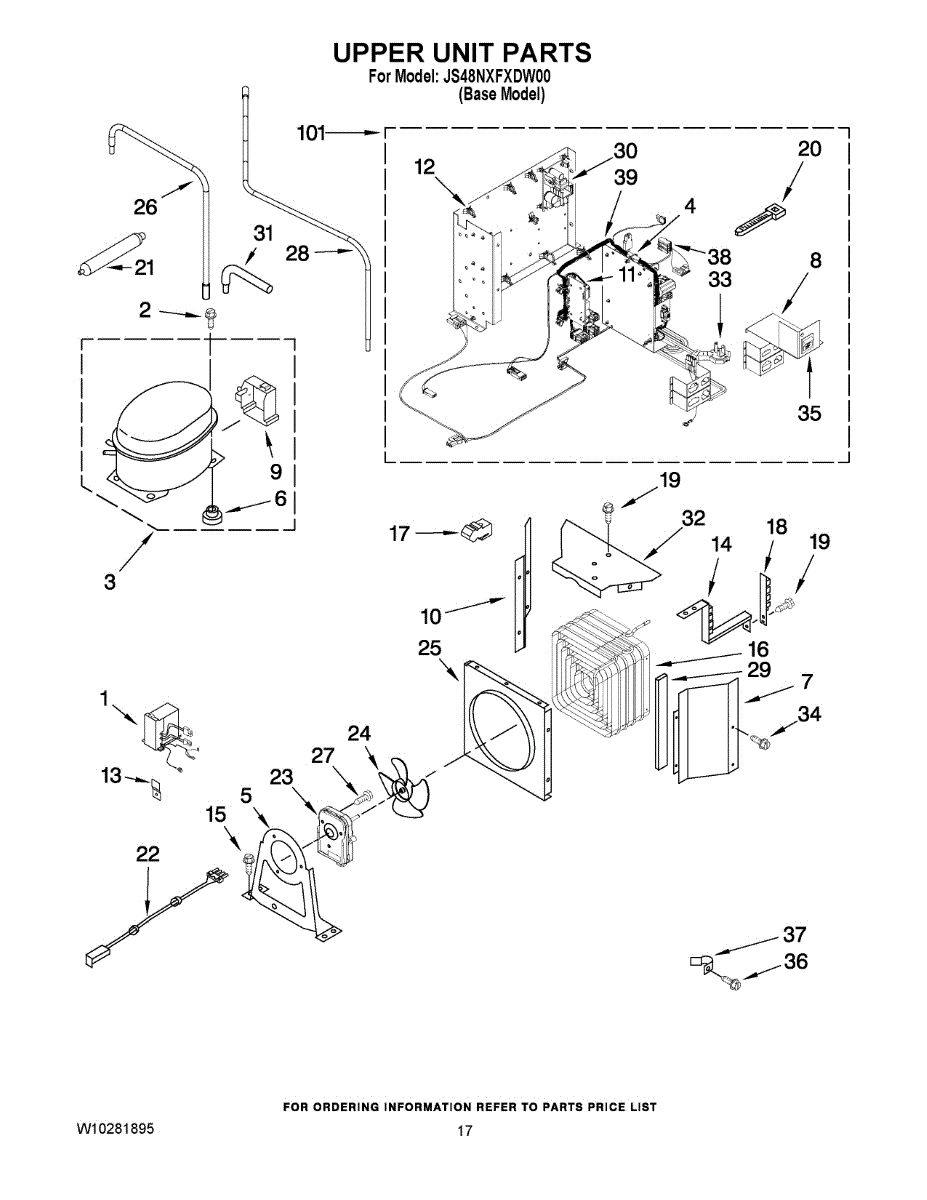

Parts for Maytag JS48NXFXDW00: 11 - Upper Unit Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Fix a refrigerator that won't cool or has inconsistent temperatures with this inverter control board. Moderate DIY repair with step-by-step video guide.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Refrigerator not cooling or running constantly? This compressor circulates refrigerant to restore proper cooling. Professional installation recommended.

Fixes refrigerator that won't cool, has unresponsive controls, or displays error codes. Main control board manages all refrigerator functions and cycles.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Protects the terminal block on your refrigerator compressor by shielding electrical connections. Replace if cracked, broken, or missing for safety.

Fix a refrigerator that won't cool, loses power intermittently, or has an unresponsive control panel. This main electronic control board restores function.

Plastic spacer that mounts between refrigerator door panels or hinges. Replace if cracked, broken, or missing to restore proper door alignment.

Mounting bracket that secures the inverter box inside your refrigerator. Replace if cracked, bent, or missing to properly support the inverter assembly.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

If your refrigerator runs constantly or doesn't cool properly, a clogged or damaged condenser coil may be the cause. This part restores heat dissipation.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Refrigerator not cooling but freezer works? A failed condenser fan motor prevents heat from escaping. DIY repair takes 10-20 minutes with basic tools.

Fix clicking noise, poor cooling, or overheating compressor by replacing a cracked or warped condenser fan blade. Restores airflow across the coil.

Replace the water supply tube in your refrigerator. This tube delivers water to the dispenser and ice maker. Order a new tube if yours is cracked or leaking.

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

Fixes unresponsive display, controls not working, or erratic cycling. This main electronic control board manages user commands and system functions.

This replacement water fill tube routes water to the appliance's dispenser/ice system so you get proper fill and reduced leaks. It restores reliable water delivery when the original tube is cracked or clogged. What it does:

• Directs water from the supply to the dispenser or ice/water mechanism
• Prevents leaks when intact and properly secured
• Helps ensure consistent water flow for ice makers and dispensers
• Worn or damaged tubes can cause pooling, low water delivery, or intermittent filling

• One replacement water fill tube

• Turn off the appliance power and water supply before starting work
• Inspect fittings and seals; replace clamps or gaskets if worn
• Slide tube into place and secure with the original or new clamps for a leak-free connection

Replacement power cord for refrigerators. Connects appliance to wall outlet. Needed when original cord is damaged, frayed, or worn from use.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Refrigerator won't turn on or stays running constantly? This power disconnect switch controls main power to your unit. Easy DIY replacement fix.

Screw: 8-16 x 3/8 inch.

This wire harness routes power and signals between the appliance control and internal components, restoring reliable electrical connections for proper operation. It's a direct-fit electrical connector assembly used where factory wiring has failed or been damaged. What it does

• Provides factory-style connections between control board, motors, switches and sensors
• Replaces damaged, frayed or burnt wiring that can cause intermittent or no operation
• Restores signal and power paths so controls and components can function correctly
• Helps eliminate loose or corroded connector issues that lead to faults or error codes

• One wire harness assembly as shown

• Disconnect power at the breaker or unplug appliance before service
• Match connector shapes and routing to the original harness; avoid stretching or pinching wires
• Secure harness with original clips or fasteners to prevent contact with moving/heating parts

This wire harness is the factory-style electrical assembly that routes power and control signals between components, restoring reliable connections and helping the appliance operate as designed. It's a direct-fit replacement when factory wiring is damaged or worn. What it does:

• Routes power and control signals between the control board, switches, sensors and motors
• Restores lost or intermittent electrical connections that can cause failures
• Commonly replaces burned, frayed, or connector-damaged wiring that leads to no power, intermittent operation, or control errors
• Maintains factory routing and connector fit to reduce wiring strain and abrasion

• Disconnect power before starting work to avoid shock or damage
• Verify matching connector shapes and wire colors; replace only if identical
• Secure harness with existing clips and retainers; avoid loose or pinched wiring

Size: 1/2 inch.

Size: 5/8 inch.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
