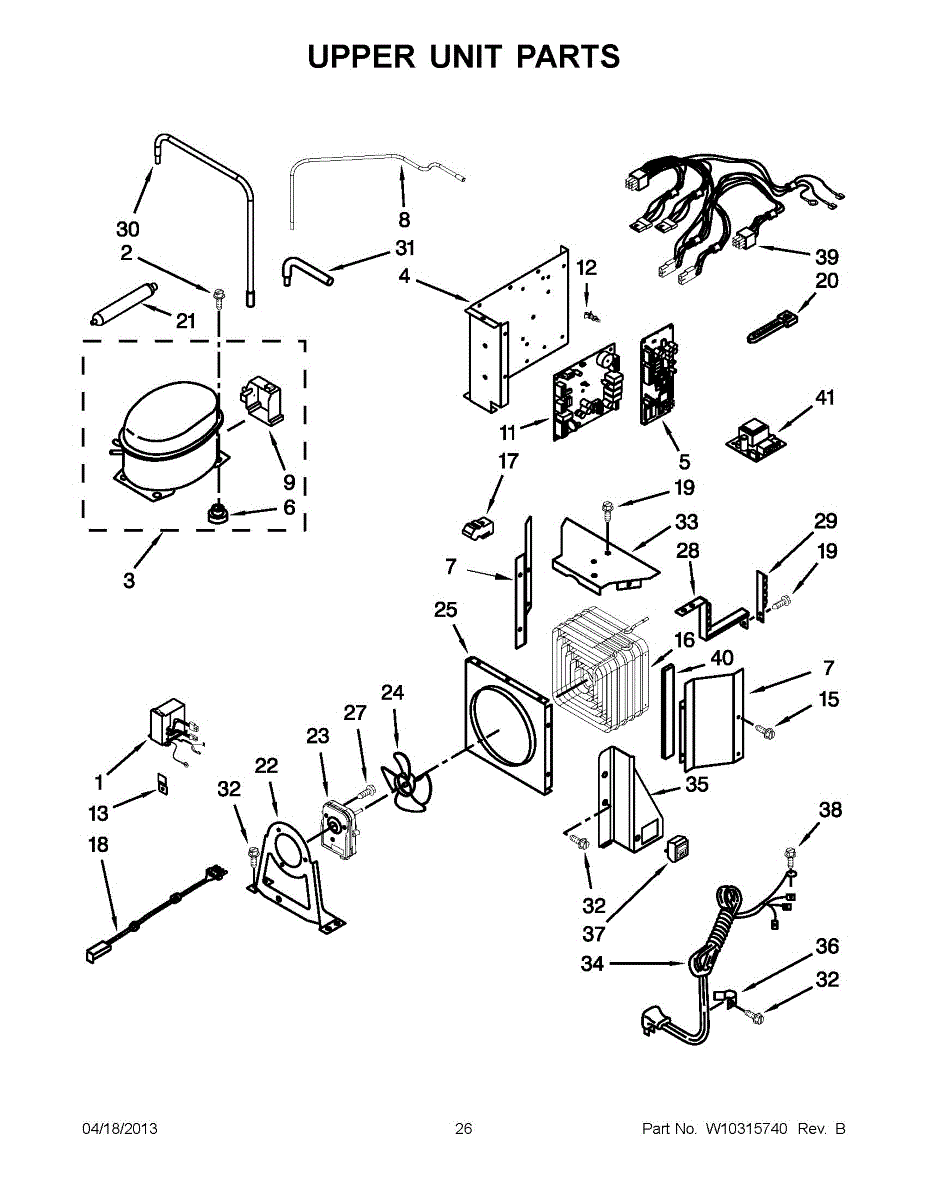

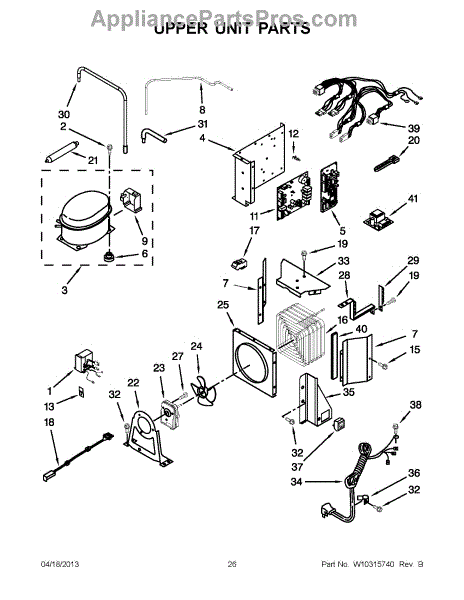

Parts for Kitchenaid KSSC36QTS04: 13 - Upper Unit Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Inverter Board is an OEM replacement part for Whirlpool refrigerators. It is a circuit board that controls the speed and operation of the compressor.

Causes of a faulty board can include liquid damage compromising circuitry over time. Heat fluctuations from cycling compressors may diminish operating lifespan as well.

Symptoms of a problematic inverter board include:

• Fluctuating interior temperatures
• Inoperative fan or cooling module
• Error codes without the ability to reset

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

The Compressor is an OEM component specifically designed for Whirlpool refrigerators. Located inside the refrigerator cabinet, the compressor circulates refrigerant throughout the cooling system, regulating temperatures inside food compartments. Its efficient operation is crucial to food freshness and refrigerator function.

Symptoms of a bad compressor include:

• Elevated interior temperatures unable to be maintained
• Louder than normal buzzing or humming sounds coming from inside
• Frost or ice building up in areas where it typically would not
• Refrigerator lights repeatedly cycling on and off

Causes of compressor failure involve normal wear of internal parts over time, loss of refrigerant allowing components to overwork, or disruption in the flow and pressure of circulating coolant.

This OEM Whirlpool part is compatible with Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This electronic control board is the refrigerator's central control module, coordinating cooling and defrost functions for stable temperatures. Replacing a failing board helps restore proper operation of the compressor, fans, and related circuits.

• Regulates cooling by switching the compressor and fans based on sensor input
• Controls and times the automatic defrost cycle to prevent frost buildup
• Supplies logic and power to temperature controls and indicators
• Can cause no-cool, intermittent cooling, constant running, or unresponsive controls when faulty

• Disconnect power to the refrigerator before servicing
• Handle the board by the edges and use ESD protection if available
• Photograph/label connectors and transfer wiring one at a time
• Some models require control setup or calibration—follow the appliance's service instructions

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This terminal cover protects the appliance's power terminal block by shielding live connections and reducing the risk of accidental contact. It restores a missing or damaged cover so the terminal area is safer and neater. What it does:

• Shields the terminal block to help prevent accidental contact with live electrical connections.
• Helps contain and hide the power cord connection for a cleaner appearance.
• Used when the original cover is cracked, broken, missing, or shows signs of arcing or heat damage.
• Supports safe service access by covering exposed terminals during normal operation.

• Disconnect power at the breaker or unplug the appliance before servicing to avoid shock or injury.
• Access the terminal area; ensure terminals are cool and dry before handling.
• Align cover over the terminal block and secure according to the OEM design; replace any damaged fasteners with correct OEM parts.
• If you see burn marks, melted insulation, or loose terminals, replace or repair the affected wiring/terminal block before installing the cover.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This condenser coil removes heat from the refrigerant so your refrigerator can cool efficiently. Replacing a damaged or clogged condenser restores proper heat dissipation and can reduce excessive run time and poor cooling. What it does

• Releases heat from the sealed refrigeration system so the fridge can maintain set temperatures
• Helps the compressor run less frequently when operating normally
• A cracked, bent, or clogged condenser can cause poor cooling or warm interior temperatures
• Excessive dust or debris on the condenser may lead to higher energy use and longer run cycles

• Disconnect power to the appliance before starting any repair
• Access may require moving the refrigerator and removing the rear or lower access panel
• Coils and edges can be sharp—wear gloves and eye protection

Size: 8-32 x .312 inch.

The Condenser Fan Motor is an OEM part for Whirlpool refrigerators. This motor is responsible for powering the fan that cools the condenser coils, which helps dissipate heat from the refrigerator. Proper functioning of the condenser fan motor is crucial for maintaining the efficiency and cooling performance of the refrigerator.

Causes of a bad condenser fan motor can include wear and tear from regular use, dust and debris buildup, or electrical failures. A faulty fan motor can lead to overheating of the condenser coils, which can cause the refrigerator to operate inefficiently or stop cooling altogether.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator running warmer than usual
• The condenser coils being hot to the touch
• The fan not spinning or making unusual noises
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Due to a manufacturing change, if your original fan motor has a 3-terminal connector, order fan motor W10124096 which includes an adapter harness to convert to the new 4-terminal connector.

This condenser fan blade mounts to the fan motor and pulls air across the condenser coil and compressor. Replacing a cracked or warped blade restores airflow so your refrigerator cools efficiently and the compressor runs at a safe temperature.

• Circulates air through the condenser coil and over the compressor to remove heat
• Helps maintain cooling performance and stable system pressures
• Common symptoms: weak or no airflow at the rear/base, rattling or scraping noises, wobble/vibration, visible cracks or missing fins, warmer-than-normal compartments or hot cabinet sides
• Works with the condenser fan motor and shroud; typically replaced when the hub is stripped or the blade is damaged

• Disconnect power and pull the refrigerator out; remove the rear access cover near the compressor
• Note blade orientation and depth on the motor shaft before removal
• Pull the old blade straight off; press the new blade onto the shaft until fully seated and ensure it spins freely with proper shroud clearance
• Reinstall the cover, restore power, and verify strong, quiet airflow

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

This replacement water fill tube routes water to the appliance's dispenser/ice system so you get proper fill and reduced leaks. It restores reliable water delivery when the original tube is cracked or clogged. What it does:

• Directs water from the supply to the dispenser or ice/water mechanism
• Prevents leaks when intact and properly secured
• Helps ensure consistent water flow for ice makers and dispensers
• Worn or damaged tubes can cause pooling, low water delivery, or intermittent filling

• One replacement water fill tube

• Turn off the appliance power and water supply before starting work
• Inspect fittings and seals; replace clamps or gaskets if worn
• Slide tube into place and secure with the original or new clamps for a leak-free connection

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This Power Disconnect Switch is the refrigerator's on/off service switch. It interrupts incoming power when actuated, allowing safe servicing or resetting of the unit without unplugging it and helping prevent unintended operation when access panels are open. What it does:

• Interrupts electrical power to the unit when switched off or tripped
• Provides a dedicated service disconnect for safe maintenance and resets
• Common symptoms: no power, intermittent shutdowns, or the unit won't stay on unless the switch is held/positioned
• Visual clues: broken actuator or heat-discolored/loose terminals

• Power disconnect switch only

• Disconnect power at the breaker before servicing
• Access the switch location; on many built-in units it's behind the top grille or control panel
• Move wires one at a time to the new switch to maintain correct orientation
• Restore power and verify the switch cleanly turns the unit on and off

Screw: 8-16 x 3/8 inch.

This electronic power supply board converts incoming AC power to the low-voltage DC used by the refrigerator's controls and components. Replacing a failed board restores stable power to the UI, fans, lights, and cooling functions.

• Converts line voltage to regulated low-voltage DC for control electronics
• Distributes power to the main control, display, sensors, fans, and valve/relay circuits
• Common signs include a blank or non-responsive control panel, no interior lights or dispenser, intermittent power/clicking, or the unit not running even though the outlet has power
• Failures may follow electrical surges or shorted loads

• Disconnect power at the breaker or unplug before servicing; capacitors may hold a charge
• Use ESD protection and handle the board by its edges
• Photograph/label all connectors; transfer wires one by one and ensure full seating
• Mount securely and inspect for pinched/shorted wires before restoring power

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/4 inch.
