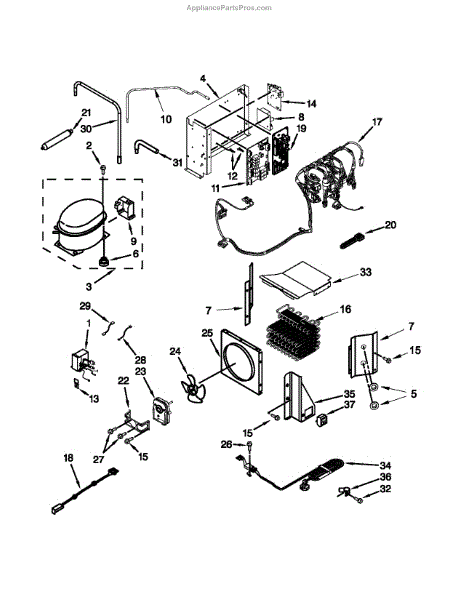

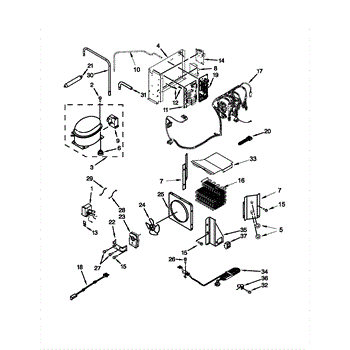

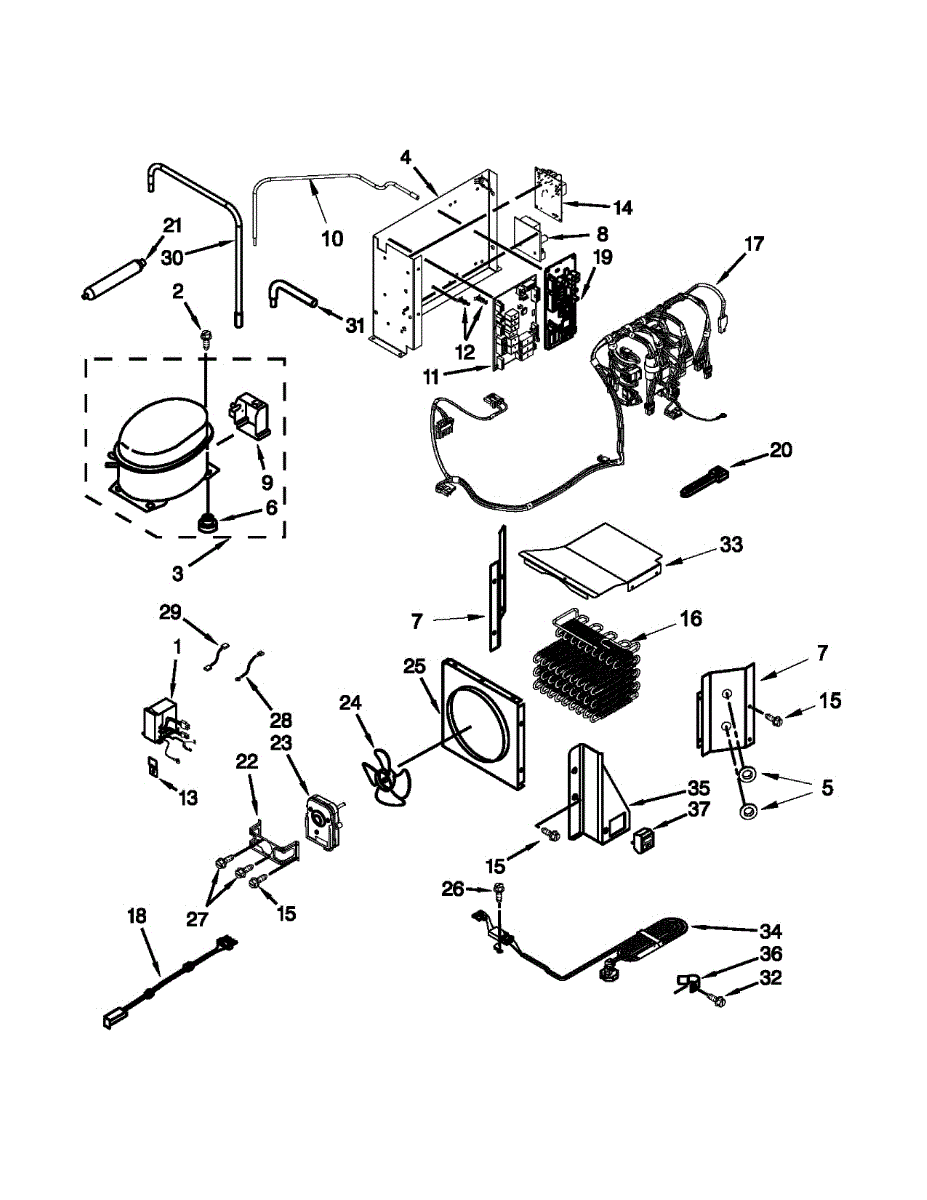

Parts for Jenn-Air JS48PPDUDB20: Upper Unit Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

If your refrigerator's compressor won't run or runs erratically, the inverter box assembly may have failed. This housing protects control electronics.

Rubber grommet for refrigerators and freezers. Protects wires and components from sharp edges. Replace if cracked, worn, or missing for proper fit.

Refrigerator not cooling or running constantly? This compressor circulates refrigerant to restore proper cooling. Professional installation recommended.

Rubber grommet for refrigerator doors, shelves, or water lines. Replace if cracked, torn, loose, or missing to restore proper fit and seal.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Mounting plate for refrigerator assembly. Installs to secure internal components. Replace if cracked, broken, or missing to restore proper fitment.

Mounting plate for refrigerator interior components. Replace if cracked, broken, or warped. Secures parts in proper position inside your fridge.

Fixes refrigerator displays flashing, unit cycling on/off, or fans not running. This power supply board converts AC to DC for controls and components.

Protects the terminal block on your refrigerator compressor by shielding electrical connections. Replace if cracked, broken, or missing for safety.

Water supply tube for refrigerator ice maker or dispenser systems. Replace if cracked, leaking, kinked, or disconnected from the water line assembly.

Fix unresponsive buttons, incorrect cycles, or error codes with this refrigerator electronic control board. Restores cycle control and display functions.

Plastic spacer that mounts between refrigerator door panels or hinges. Replace if cracked, broken, or missing to restore proper door alignment.

Mounting bracket that secures the inverter box inside your refrigerator. Replace if cracked, bent, or missing to properly support the inverter assembly.

Fix a refrigerator that won't cool, loses power intermittently, or has an unresponsive control panel. This main electronic control board restores function.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Fix a refrigerator that won't cool or runs constantly with this condenser coil assembly. Restores efficient heat transfer and reduces compressor runtime.

Fix a refrigerator that won't cool, clicks repeatedly, or has a blank display by replacing the main electronic control board. Moderately difficult repair.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Mounting bracket for refrigerator interior components. Replaces broken, cracked, or missing brackets that secure shelves or bins in place.

Fix a refrigerator that's not cooling properly or running constantly with a new condenser fan motor. This part helps dissipate heat from the system.

Fix clicking noise, poor cooling, or overheating compressor by replacing a cracked or warped condenser fan blade. Restores airflow across the coil.

This is a plastic orifice or shroud piece that directs airflow around the condenser fan motor in the refrigerator. It ensures proper air circulation over the condenser coils for efficient cooling. Replace this part if it is cracked or missing, which can lead to poor cooling performance, the compressor running excessively, or unusual airflow noise from the back of the refrigerator.

Jumper wire for refrigerators. Connects electrical components inside the control system. Replace if wire is damaged, corroded, or missing.

Replace a cracked, kinked, or leaking water dispenser tube in your refrigerator. Installs between the water supply and dispenser assembly. Essential when tube is damaged or worn.

This replacement water fill tube routes water to the appliance's dispenser/ice system so you get proper fill and reduced leaks. It restores reliable water delivery when the original tube is cracked or clogged. What it does:

• Directs water from the supply to the dispenser or ice/water mechanism
• Prevents leaks when intact and properly secured
• Helps ensure consistent water flow for ice makers and dispensers
• Worn or damaged tubes can cause pooling, low water delivery, or intermittent filling

• One replacement water fill tube

• Turn off the appliance power and water supply before starting work
• Inspect fittings and seals; replace clamps or gaskets if worn
• Slide tube into place and secure with the original or new clamps for a leak-free connection

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replacement cover panel for refrigerators. Installs on exterior or interior surfaces. Order when original is cracked, broken, or missing.

Replacement power cord for refrigerators. Installs at the rear panel to supply electricity. Order if your cord is crushed, damaged, or frayed.

Mounting bracket for refrigerator internal components. Replace if your original bracket is cracked, broken, bent, or missing to restore proper support.

Refrigerator won't turn on or stays running constantly? This power disconnect switch controls main power to your unit. Easy DIY replacement fix.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.
