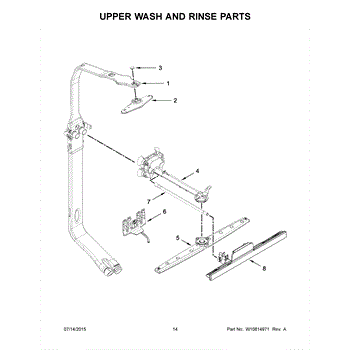

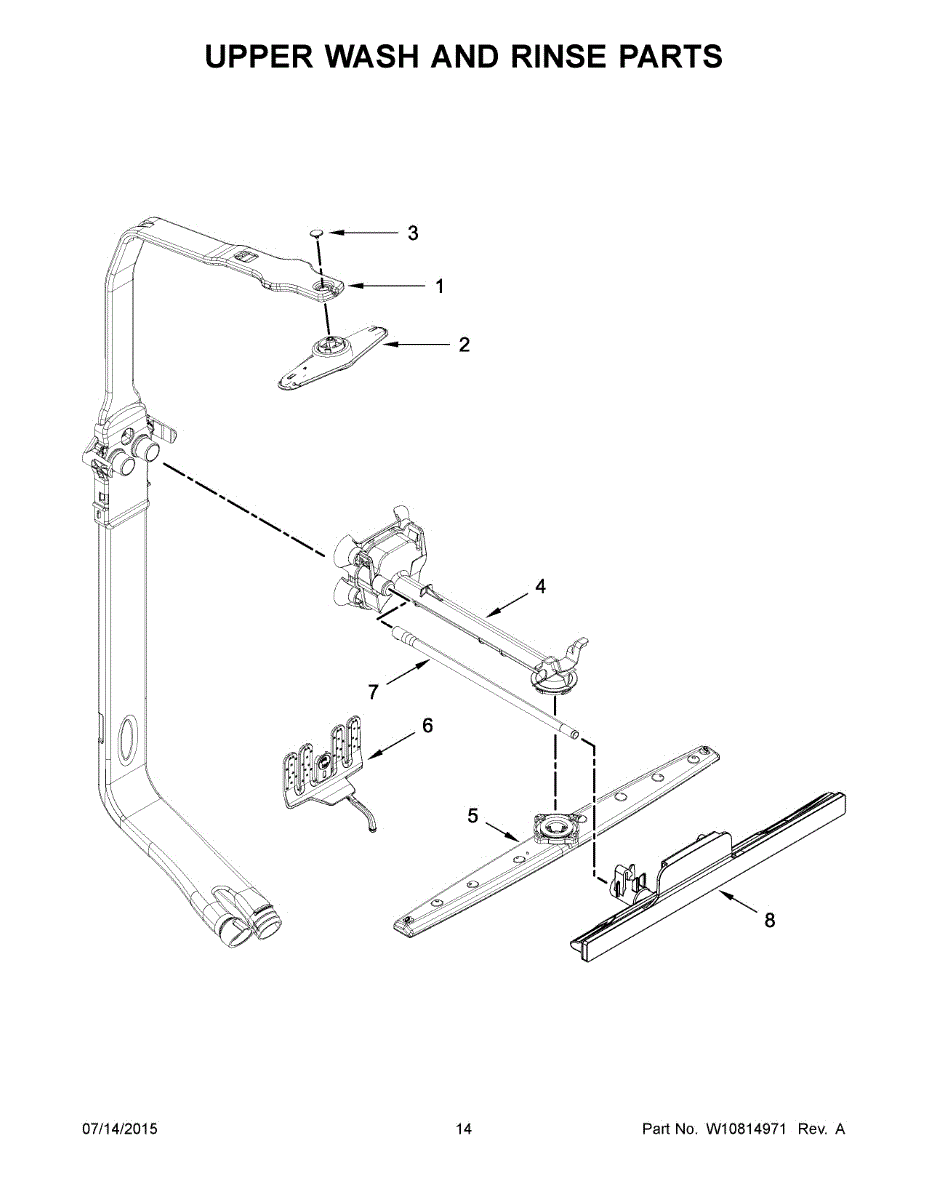

Parts for Whirlpool WDF760SADB2: 08 - Upper Wash And Rinse Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Water Supply Tube is an OEM replacement part for Whirlpool dishwashers. As a connecting component, it works to transport water from the dishwasher pump to the spray arms and manifold. During various wash and rinse cycles, it transports water to the middle and upper spray arms.

Symptoms of a bad supply tube include:

• Water leaks from connections or tube areas
• Reduced pressure at spray arms and manifold outlets
• Inability to fully circulate water through cycles

Over time, cracks can develop, mineral buildup can inhibit flow, or kinks reduce tubing integrity. Choosing a genuine Whirlpool replacement helps maximize water distribution for thorough cleaning.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Upper Spray Arm is an OEM part for Whirlpool dishwashers. It is responsible for distributing water throughout the upper part of the dishwasher during the wash cycle, ensuring dishes are cleaned effectively.

Causes of a bad upper spray arm can include clogging from food particles, mineral deposits from hard water, or physical damage to the spray arm. These issues can impede the spray arm's ability to rotate and distribute water properly.

Symptoms of a bad upper spray arm include:

• Poor cleaning performance on the top rack
• Spray arm not spinning
• Visible damage or clogging of the spray arm holes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the spray arm retainer, use part number WP3400918.

The Retainer is an OEM replacement part for Whirlpool built-in dishwashers. It is a plastic clip located within the lower wash arm assembly. This retainer securely holds the pivot hub bearing and ensures smooth oscillation of the lower wash arm during cycles.

Causes of retainer failure commonly relate to plastic material degradation from regular heat and chemical exposures over many uses. Crack propagation weakens the clips ability to precisely position bearing elements.

Symptoms of an inadequate retainer may include:

• Grinding or scraping noises coming from the wash arm area
• Restricted movement or binding of the lower spray arm assembly
• Potential loose wash arm parts that could interrupt spray patterns

This OEM Whirlpool replacement is also compatible with KitchenAid, Maytag, and some Sears/Kenmore dishwashers.

This manifold channels wash water to the dishwasher's spray system for full coverage. Replacing a cracked or warped manifold restores proper water flow and wash performance while helping prevent leaks at the feed connection.

• Directs recirculated water from the pump to the spray arms/feed tube
• Maintains a sealed path to keep spray pressure consistent
• Damage can cause poor cleaning, weak spray, unusual noise, or internal leaks
• Cracks or broken tabs can leave spray arms misaligned or not spinning

• Disconnect power and turn off the water supply before servicing
• Open the tub; remove the lower rack and spray arm as needed for access
• Transfer any seals/O-rings or clips from the old part; seat all connections fully
• Run a short test cycle and check for leaks before reassembling

The Arm Spray is an OEM part for Whirlpool dishwashers. This component is crucial in the dishwasher's ability to effectively clean dishes, as it distributes water evenly throughout the unit during a wash cycle. Located beneath the upper rack, the arm spray rotates and sprays water at a controlled pressure and angle, ensuring that all dishes, regardless of their placement, are thoroughly washed.

Causes of a bad arm spray include clogging from food particles or mineral deposits from hard water, physical damage that can prevent it from spinning, and wear that reduces the effectiveness of the spray holes.

Symptoms of a bad arm spray include:

• Dishes remain dirty or spotty after washing
• Decreased water pressure in the spray
• Unusual noise during operation as the arm struggles to rotate

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Supply Tube is an OEM part for Whirlpool refrigerators featuring an icemaker and water dispenser. This tube is responsible for transporting water from the external water line inlet to the internal icemaker assembly.

Symptoms of a bad water supply tube include:

• Leaks or water drips behind the refrigerator
• No water flow to the icemaker or dispenser
• Mineral or sediment buildup restricting water flow

Over many years, plastic tubing can develop cracks or weak points from constant flexing during installation/removal from the refrigerator.

This Whirlpool refrigerator part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and select Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
