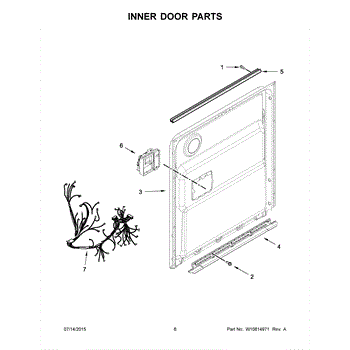

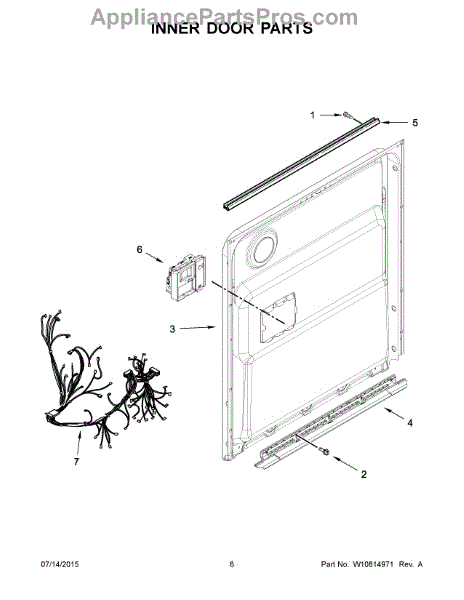

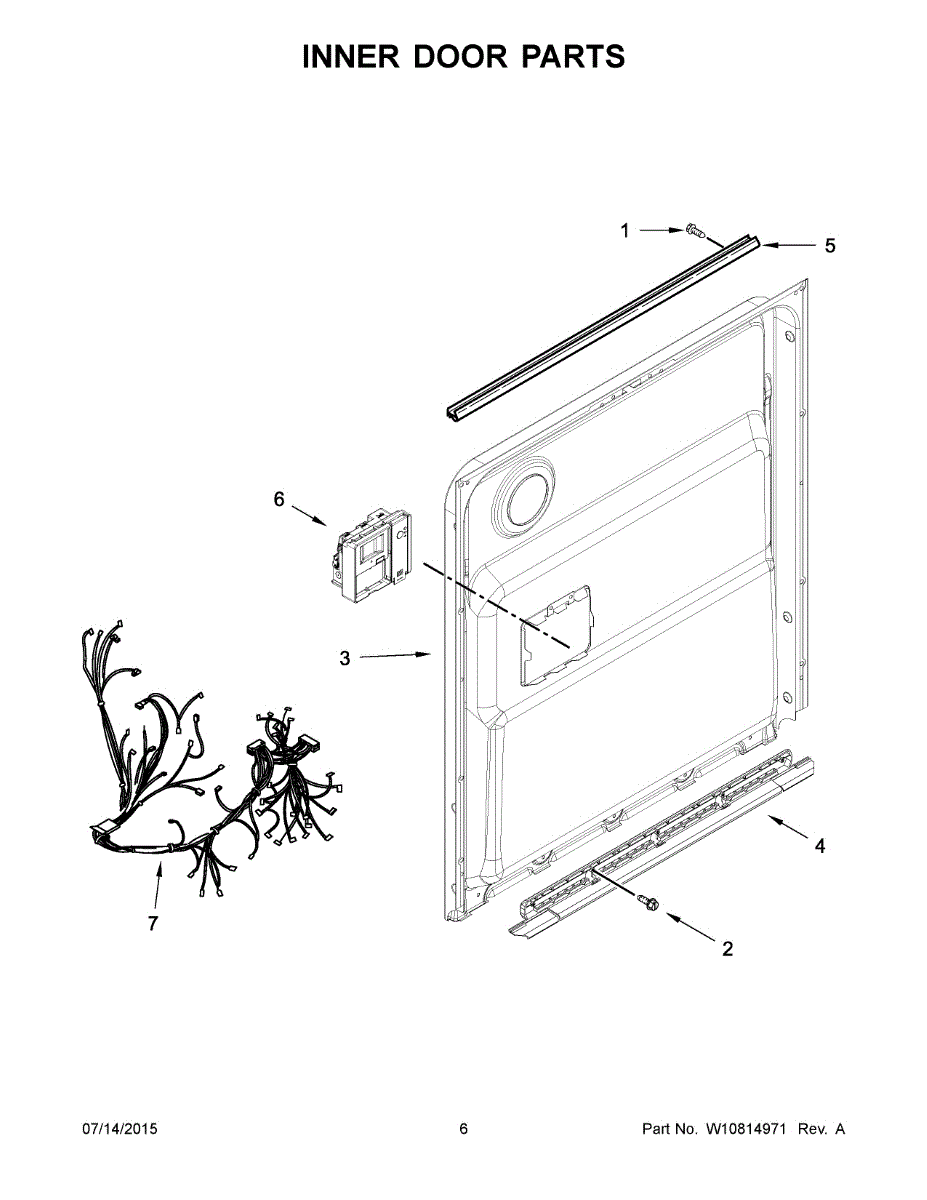

Parts for Whirlpool WDF760SADB2: 04 - Inner Door Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

The Hex-Head Screw is an OEM replacement part for use in Whirlpool dishwashers. This metal screw measures approximately ¾ inch long. Its primary purpose is to secure the dispenser bracket in place, ensuring stable operation. This hex-head screw is designed for use with compatible hexagonal tools. This makes installation and removal straightforward. This part is sold individually and is guaranteed to fit your dishwasher door panel. This screw is compatible with select Whirlpool brand models including Amana, Crosley, Estate, Inglis, Jenn Air, Kenmore, Kitchen Aid, and Maytag.

The Inner Door Panel is an OEM part for Whirlpool dishwashers. It forms the interior protective lining of the dishwasher door.

The inner door panel shields internal door components from moisture, debris, and other interior hazards. It prevents damage to the door mechanism and sealing surfaces from both washing and drying cycles.

Causes may relate to wear over time from repeated openings and closings of the door. Improper handling during cleaning could also result in damage.

Symptoms of a bad inner door panel include:

• Excessive moisture inside the door
• Inability to form a proper seal when closed
• Deterioration or warping of the inner lining
• Leaks or moisture inside the door mechanism

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Lower Door Seal is an OEM replacement part for Whirlpool dishwashers. This seal runs along the bottom edge of the dishwasher door, creating a tight seal against the tub when closed to contain water inside during cycles.  This seal measures approximately 22 inches in length

Causes of lower door seal failure commonly involve repeated compression stresses from opening/closing actions gradually stiffening the flexible gasket material. Drying out and cracking occurs over years of heat exposure as well.

Symptoms of a worn lower door seal include:

• Water leaking out from beneath dishwasher door during cycles
• Difficulty latching door completely from warped seal edges
• Visible cracks, splits or brittleness along the length of the seal
• Gaps allowing water intrusion beneath door perimeter

This versatile OEM part is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, and some Kenmore dishwasher models.

This inner door seal forms a moisture barrier between the dishwasher tub and the door assembly, helping keep wash water and steam contained. Replacing a worn seal can stop drips at the door and protect internal components.

• Seals the joint along the inner door to contain wash water and steam
• Helps prevent door-area leaks or drips during cycles
• Blocks moisture from entering the door cavity where electrical parts reside
• Common signs: water at the bottom/sides of the door, damp control area, visible wear/flattening or tears on the seal

• Disconnect power and turn off water supply before servicing
• Open the door and remove perimeter screws to separate inner/outer door panels
• Remove the old seal; clean the mounting surface and note seal orientation
• Press the new seal firmly into place, reassemble, and run a leak check

The Detergent Dispenser is an OEM part for Whirlpool dishwashers. It plays a crucial role in the dishwasher's operation by dispensing detergent and rinse aid at the precise moments during the wash cycle. This ensures dishes are thoroughly cleaned and dried without residue.

Causes of dispenser failure can range from mechanical issues such as a faulty spring or latch, blockages within the dispenser itself, or electronic problems affecting the timing and release of detergent.

Symptoms of a bad Detergent Dispenser include:

• Failure to dispense detergent properly, leading to dishes not being cleaned effectively.
• Rinse aid leakage, which can result in streaky and spotty dishes.
• The dispenser door sticking or failing to open during the wash cycle.
• Unusual noises coming from the dispenser mechanism.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Harns-Wire is an OEM component specifically designed for Whirlpool brand dishwashers. This harness connects and routes wires between electrical components within the dishwasher like the control console, heating element, circulation pump and other critical systems.

Symptoms of a bad harness include:

• Lights or sensors unexpectedly turning off
• Intermittent or abnormal dishwasher operation
• Appliance not starting or unexpected shutdowns
• Water or heating issues during cycles
• Visible damage or exposed wires

Causes of a bad harness can include wear and tear from regular usage, cracks or cuts in the wire insulation over time, loose/corroded connections or damage from physical strain.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air and some Kenmore models.
