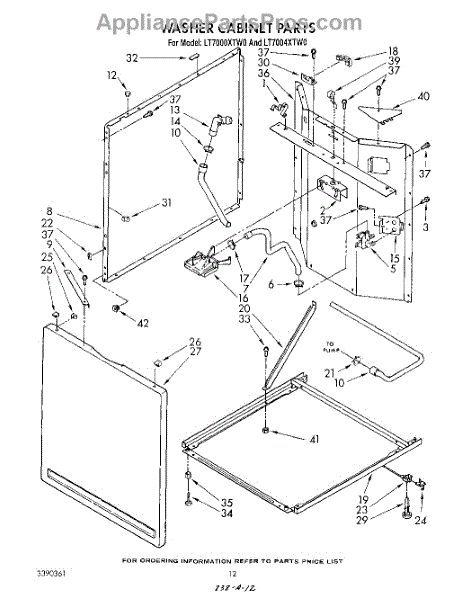

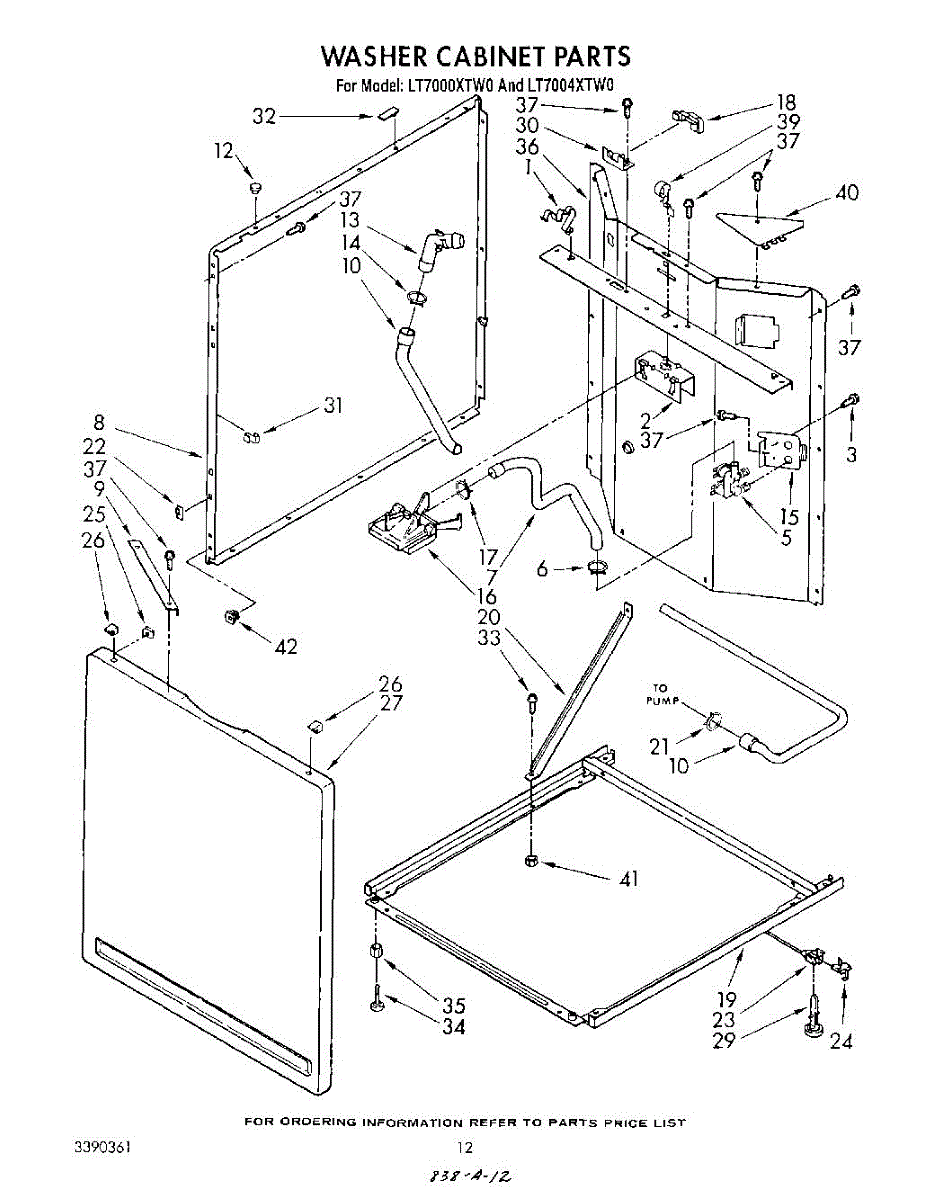

Parts for Whirlpool LT7004XTF0: 08 - Washer Cabinet Parts

10 - 16 x 1/2

The Water Inlet Valve is an OEM part for Whirlpool washing machines. It controls the flow of hot and cold water into the washer. This component is crucial for starting the wash cycle, as it opens to allow water to enter and closes to stop the flow once the appropriate level is reached, ensuring efficient wash performance.

Causes of a bad Water Inlet Valve can include mineral deposits and sediment build-up, which can obstruct the flow of water, or mechanical failure such as a broken solenoid that prevents the valve from opening or closing properly.

Symptoms of a bad Water Inlet Valve include:

• Water not filling the tub at the beginning of the cycle
• Water leaking from the valve
• Washer not starting due to inability to fill
• Unusual noises from the valve area during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement plug button that snaps into place to cover a small access hole or fastener opening. Restores a finished appearance and helps keep dirt, moisture and small objects out of the appliance cavity. What it does:

• Covers exposed holes or mounting openings for a clean, finished look
• Prevents dirt and debris from entering small internal cavities
• Replaces missing, cracked or worn plug buttons that no longer stay seated
• Small, low-profile design to match factory appearance

• Disconnect power to the appliance before servicing
• Typically installs by pressing into the opening until it snaps flush; a small flat screwdriver can assist
• Avoid prying against surrounding trim to prevent cosmetic damage
• Keep small parts away from children and pets

This connector is an insulated electrical harness terminal that joins appliance wiring to restore a secure electrical connection and help prevent intermittent power or arcing. It's a direct-replacement style used on select Whirlpool appliances. What it does:

• Provides a secure, insulated connection between two wires or a wire and a component terminal.
• Helps stop intermittent power, flickering, or loss of function caused by loose or damaged terminals.
• Reduces risk of arcing and overheating at a compromised connection point.
• Matches OEM fit/shape to maintain proper routing and strain relief where applicable.

• Turn off and unplug the appliance (or shut off breaker) before inspecting or replacing electrical parts.
• Inspect surrounding wiring and terminals for heat or corrosion; replace damaged wiring as needed.
• Use proper crimping or terminal tools and secure strain relief; verify firm, no-play connections before restoring power.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Vacuum Break is an OEM part for Whirlpool washing machines, designed to prevent the siphoning of water back into the machine once it has been drained. This part ensures that dirty water does not re-enter the wash drum, maintaining the cleanliness of the wash cycle and protecting the integrity of the clothes being washed.

A malfunctioning Vacuum Break can lead to various issues, including inefficiencies in water use, prolonged or ineffective wash cycles, and even the risk of mildew or odors developing from standing water.

Symptoms of a bad Vacuum Break include:

• Water siphoning back into the tub after the spin cycle
• Unusual noises coming from the washing machine during or after the drain cycle
• Clothes being wetter than usual at the end of the cycle, indicating incomplete draining
• Potential leaks or water buildup at the back of the washing machine

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Dryer Clip is an OEM component for Whirlpool electric and gas dryers. It securely fastens critical ductwork attached to the dryer cabinet. Over extended periods, the constant vibrations produced during tumbling cycles cause microscopic fractures or loosening within the clip material where it grips duct joints.

Causes relate to ordinary fatigue from long-term resonance vibrations concentrated at anchoring points.

Symptoms involve:

• Loose or detached venting/ductwork affecting airflow
• Noticeable leaks emerging at separation interfaces
• Reduced drying effectiveness due to compromised ventilation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This small retaining clip secures a lever mechanism inside the appliance, keeping the linkage aligned so the control operates smoothly. Replacing a bent or missing clip helps restore proper engagement and prevents the mechanism from popping loose. What it does:

• Locks the lever mechanism to its bracket or shaft
• Maintains alignment of moving linkage for consistent operation
• Replaces missing, bent, or broken retainer
• Common symptoms: loose/wobbly lever, mechanism slips out, control doesn't engage reliably

• Clip only

• Disconnect power before servicing
• Access the mechanism per your model's service information and relieve any spring/linkage tension
• Note the original orientation; use needle-nose pliers to seat the new clip fully in the groove
• Test the mechanism for smooth operation before reassembly

This U-type nut clips over a sheet-metal edge to create a durable threaded anchor for a screw. It helps secure panels, trim, and brackets so fasteners hold tight and components stay aligned and rattle-free. What it does:

• Clips onto thin sheet metal to provide captive threads where a standard nut cannot be used
• Holds screws securely to fasten panels, trim pieces, or mounting brackets
• Addresses issues like loose panels, missing/broken clips, or screws that will not tighten
• Helps reduce vibration and rattling from unsecured components

• 1 U-type nut

• Disconnect power and shut off gas/water before servicing
• Position the U-nut over the panel edge with the threaded side aligned to the hole
• Start the screw by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged or corroded hardware to ensure a secure hold

This top front lock secures the front edge of a lift-up range cooktop to the cabinet frame. Replacing a worn lock restores a flush, stable fit so the cooktop stays closed during everyday cooking and cleaning.

• Locks the cooktop down to prevent unintended lifting during use or cleaning
• Maintains alignment so the front edge sits flush and stable
• Reduces vibration and rattling from a loose or misaligned top
• Common symptoms: cooktop won't latch or stay down, front gap, rattling or movement

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Lift the cooktop to access the front frame, remove the old lock, and install the new lock in the same orientation
• Secure with the original fasteners and verify the lock fully engages the mating catch
• Close the cooktop and confirm a flush, stable fit

This rear foot assembly supports the back of the appliance and helps keep it level. Replacing a worn or missing foot restores stability, reduces vibration, and helps prevent the unit from rocking or "walking."

• Supports the rear of the cabinet and maintains proper height
• Provides a stable contact point with the floor for accurate leveling
• Helps reduce vibration, rattling, and movement during operation
• Common signs of failure: rocking/wobbling, excessive vibration, noise from the base, or a visibly worn/missing foot

• Disconnect power before servicing; if applicable, shut off water supply
• Protect the floor and carefully tilt or lay the appliance back with assistance
• Remove the old rear foot and install the new assembly per your model's instructions
• Set the unit back in place, level it, and verify stability

The Front Leveling Foot is an OEM part for Whirlpool washing machines. It is designed to support and stabilize the washer by allowing users to adjust the height and level the appliance on uneven floors. Proper leveling ensures smooth operation and minimizes vibrations and noise during wash cycles.

Causes of a bad Front Leveling Foot can include physical damage from excessive force, wear and tear from frequent adjustments, or corrosion due to exposure to water or laundry chemicals. Over time, these factors can compromise the foot’s ability to maintain stability, leading to operational issues.

Symptoms of a bad Front Leveling Foot include:

• The washing machine rocking or wobbling during operation
• Increased vibration and noise
• The washer being unlevel, affecting wash performance
• Difficulty in adjusting the foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Specs: 10-16 x 1/2 inch.

This back top rail secures and supports the appliance's rear top panel, restoring proper alignment and a finished appearance. It replaces a bent, cracked, or missing rail to help eliminate gaps and loose panels. What it does:

• Provides structural support for the rear edge of the top panel
• Keeps the top panel aligned to prevent rattling or shifting during use
• Restores proper fit and appearance when the original rail is damaged or missing
• Helps the top panel seat correctly against adjacent trim and controls

• Disconnect power (and gas if applicable) before beginning any repair.
• Basic disassembly typically involves removing the top panel or rear access screws; save fasteners for reassembly.
• Avoid overtightening fasteners to prevent damage; use proper tools and support the top while securing the rail.
