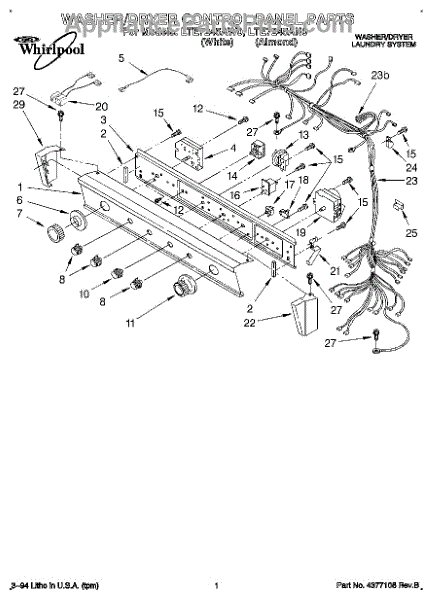

Parts for Whirlpool LTE7245AN0: 01 - Washer / Dryer Control Panel Parts

The Timer is an OEM replacement part for Whirlpool washers. This electronic part is essential for accurately tracking washing cycles and automatically shutting off the washer at the end of the selected time period.

Symptoms of a bad timer include:

• Cycles failing to complete fully and the washer not turning off automatically
• Inaccurate timekeeping causing under or over-washing of clothes
• The dial not rotating smoothly between settings or options

Causes of a bad timer can include normal wear over years of use. The internal timekeeping components can degrade or fail due to repeated power cycling of the washer.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

Color: almond. Measures about 2 inches in diameter.

Color: almond. Measures about 2 inches in diameter.

Almond

White

This fixed-value resistor is an electrical component used in select dryers to limit current in a specific control circuit. It helps the timer or electronic control operate correctly by dropping voltage to safe, design-intended levels.

• Provides precise resistance to reduce voltage/current in the designated dryer circuit
• Supports proper operation of the timer, control board, or end-of-cycle signal (varies by model)
• Failure may present as a timer that won't advance, an inoperative signal/buzzer, or irregular cycle behavior
• Replace if visibly burned/damaged or if testing shows an open or shorted condition

• Disconnect power to the appliance before servicing
• Access the console/wiring harness and note original wire routing
• Make secure, insulated connections and route the resistor/leads exactly as original to avoid heat or chafing
• After installation, run a test cycle to ensure proper operation of the affected function

Color: White.

Color: White.

Restore smooth, accurate cycle selection with this replacement timer knob for your dryer. When the original knob is cracked, stripped, or missing, this part lets you reliably set the timer and choose drying programs again. What it does:

• Attaches to the timer shaft so you can set drying cycles and time
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps resolve issues like the knob spinning freely or not turning the timer
• Provides a clean, factory look in white

• 1 white timer knob

• Disconnect power to the dryer before servicing
• Pull the old knob straight off the timer shaft; use steady, even pressure if tight
• Align the new knob with the keyed shaft and press firmly until fully seated
• The pointer aligns with the control panel cycle markings before use

Restore smooth, accurate cycle selection with this replacement timer knob for your dryer. When the original knob is cracked, stripped, or missing, this part lets you reliably set the timer and choose drying programs again. What it does:

• Attaches to the timer shaft so you can set drying cycles and time
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps resolve issues like the knob spinning freely or not turning the timer
• Provides a clean, factory look in white

• 1 white timer knob

• Disconnect power to the dryer before servicing
• Pull the old knob straight off the timer shaft; use steady, even pressure if tight
• Align the new knob with the keyed shaft and press firmly until fully seated
• The pointer aligns with the control panel cycle markings before use

This screw-washer assembly secures panels, brackets, and other appliance components. The integrated washer spreads load and resists loosening, so replacing a worn or missing fastener restores a tight, reliable fit and helps eliminate rattles.

• Provides fastening with a built-in washer for even clamping and retention
• Replaces missing, stripped, or corroded hardware
• Helps address loose panels/handles and vibration or rattle noises
• Supports proper alignment of covers, brackets, and trim

• Disconnect power and shut off water or gas (as applicable) before servicing
• Match to the original fastener; location and quantity in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten; replace other severely rusted or damaged fasteners in the same area

10 - 16 x 1/2

This dryer temperature selector switch lets you choose between four heat settings for proper fabric care. Replacing a worn switch restores accurate temperature selection so loads dry evenly without overdrying delicate items.

• Controls the dryer's heat level across four selectable settings
• Faulty switch can cause incorrect temperatures or only one setting to work
• May lead to poor drying performance or fabric damage if not functioning
• Restores reliable temperature selection and consistent drying results

• Unplug dryer before servicing; shut off gas if applicable
• Pull control knob straight off to access the switch
• Transfer wires one at a time to the new switch to maintain correct positions
• Ensure switch shaft and flat align with the knob during reassembly

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This 3-cycle dryer timer controls and advances the drying program. Replacing a worn timer restores reliable cycle selection, proper progression, and automatic shut-off so the dryer runs and stops when it should.

• Times and controls up to three drying cycles
• Advances the timer motor to move internal switch contacts
• Routes power to motor/heater per the selected setting and turns the dryer off at cycle end
• Common symptoms: cycle won't advance, timer knob doesn't move, dryer won't shut off, only one cycle works

• Disconnect power before servicing
• Access the control console; note or label wire positions and transfer one at a time to the new timer
• Mount using existing hardware and align the timer shaft with the knob
• Run a test cycle to ensure the timer advances and shuts off properly

This hinge bracket secures a refrigerator door hinge to the cabinet, restoring proper door alignment and support so the door seals and closes reliably. Designed to replace a worn, bent, or broken hinge mounting bracket. What it does:

• Provides a stable mounting point for the door hinge assembly to prevent sagging or drooping
• Restores correct door alignment to improve sealing and reduce cold air loss
• Stops excess movement or rattling at the hinge area
• Helps eliminate door-binding or uneven gaps that keep the door from closing fully

• Unplug the appliance and remove food/items from the door before starting
• Support the door while removing/installing the bracket to avoid damage or injury
• Reuse or replace fasteners as required; tighten securely but avoid over-torquing
• After installation, check door alignment and gasket seal; make minor adjustments as needed

Used for lid switch.

Specs: 10-16 x 1/2 inch.

Specs: 10-16 x 1/2 inch.
