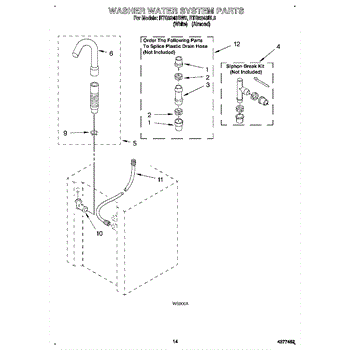

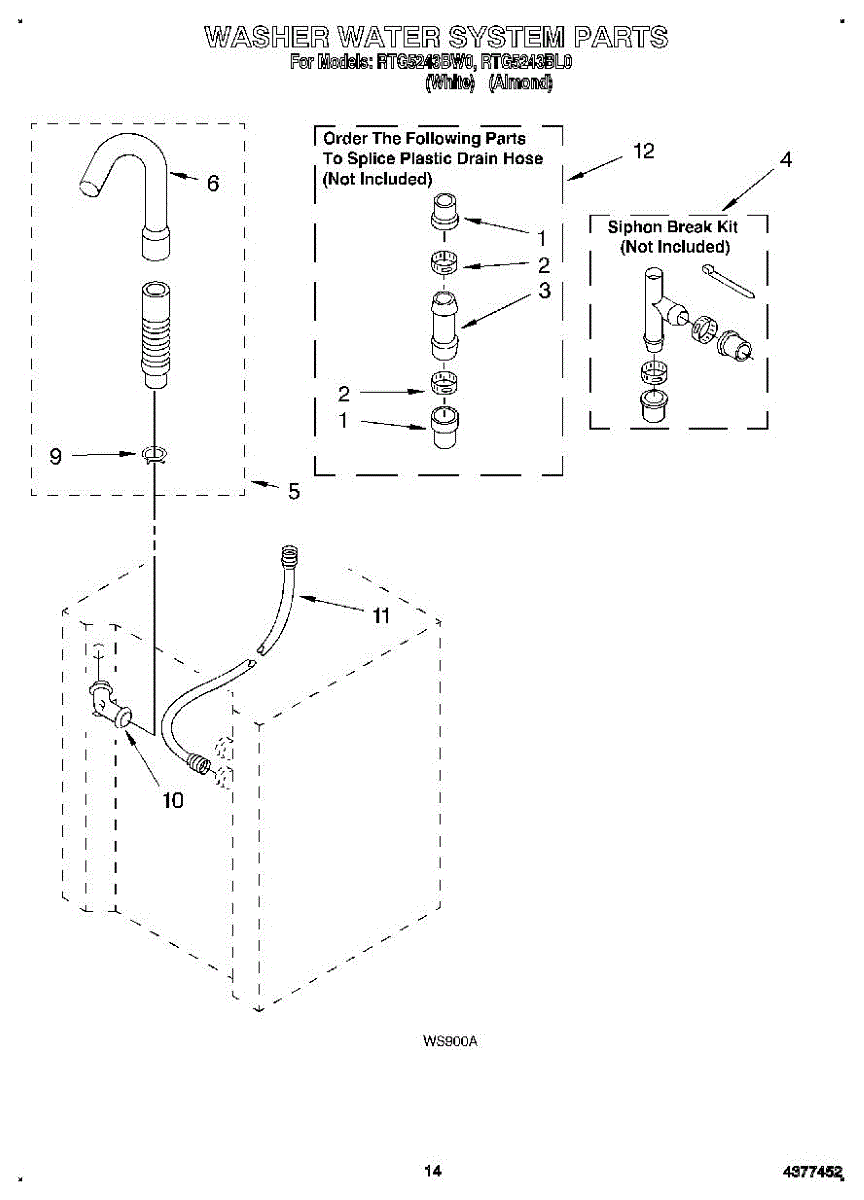

Parts for Roper RTG5243BL0: 11 - Washer Water System Parts

Kit includes 2 sleeves.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This hose coupling connects a flexible appliance hose to the appliance plumbing, restoring a secure water connection and preventing leaks. Ideal when a worn or damaged coupling causes drips or loose hose fit. What it does:

• Provides a secure connection point between an appliance hose and the appliance inlet
• Replaces cracked, broken or corroded couplings that can leak or allow the hose to detach
• Restores proper hose sealing to reduce water drips at the connection
• Compatible with the original inlet connection type and mounting orientation

• Turn off and disconnect appliance power and shut off the water supply before replacing
• Remove the old coupling and clean the mating surfaces; inspect hose and clamps for wear
• Use proper clamps and hand-tighten; avoid over-tightening which can damage fittings

This syphon breaker prevents dirty drain water from being siphoned back into the dishwasher, helping maintain proper draining and protect wash water from contamination. It's a direct-replacement drain air-break for compatible dishwashers. What it does:

• Stops backflow/siphoning from the household drain into the dishwasher
• Helps maintain proper drain performance and prevents wastewater re-entry
• Can reduce odors and cloudy or soiled dishes caused by contaminated wash water
• Works as part of the dishwasher's drain plumbing to preserve wash hygiene

• Disconnect power to the appliance and turn off water supply before servicing
• Replace only with identical part and ensure correct hose routing and secure clamps
• Inspect adjacent drain hoses and connections; replace damaged hoses or clamps as needed

Size: 8 foot long. This external washer drain hose is needed when there is more distance between the washer and the drain. Note: comes with 1.5" diameter clamp but hose is 1.25" in diameter; therefore you may need to order the 1.25" diameter clamp separately: WP356138

Size: 48 inches long. Clamp included. For 21 inch extension use 285702.

For end of drain hose.

This drain hose clamp secures the hose connection to keep water where it belongs during the drain cycle. A tight, reliable clamp helps prevent leaks and hose pull-off from vibration or pressure changes. What it does:

• Secures the drain hose to a pump outlet or drain port to maintain a watertight seal
• Helps prevent the hose from slipping off during operation
• Reduces leaks at the hose connection point
• Common symptoms of a bad clamp: water leaking at the drain hose joint, a loose/detached hose, or a visibly rusted/broken clamp

• 1 clamp

• Disconnect power and turn off the water supply; place a towel to catch residual water
• Access the hose connection, remove the old clamp, and inspect the hose end and fitting; replace the hose if cracked or swollen
• Position the new clamp correctly over the hose and behind the fitting bead; tighten/seat evenly without overtightening
• Reassemble and run a brief drain test to check for leaks

This connector is an insulated electrical harness terminal that joins appliance wiring to restore a secure electrical connection and help prevent intermittent power or arcing. It's a direct-replacement style used on select Whirlpool appliances. What it does:

• Provides a secure, insulated connection between two wires or a wire and a component terminal.
• Helps stop intermittent power, flickering, or loss of function caused by loose or damaged terminals.
• Reduces risk of arcing and overheating at a compromised connection point.
• Matches OEM fit/shape to maintain proper routing and strain relief where applicable.

• Turn off and unplug the appliance (or shut off breaker) before inspecting or replacing electrical parts.
• Inspect surrounding wiring and terminals for heat or corrosion; replace damaged wiring as needed.
• Use proper crimping or terminal tools and secure strain relief; verify firm, no-play connections before restoring power.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

This drain hose coupling kit connects the washer drain hose to the appliance drain outlet, restoring a secure, leak-resistant hose connection and preventing water leaks during drain cycles. What it does:

• Provides a replacement coupling to join the drain hose to the washer drain outlet
• Re-establishes a tight hose connection to reduce leaks and water damage
• Addresses symptoms such as leaking at the drain connection or a loose hose fit
• Compatible with affected Whirlpool top-load washer drain assemblies

• Unplug the appliance before servicing and work on a dry surface
• Remove the old coupling and inspect the hose and outlet for damage before installing
• Ensure the hose is fully seated and secure with the existing or supplied clamp(s)
