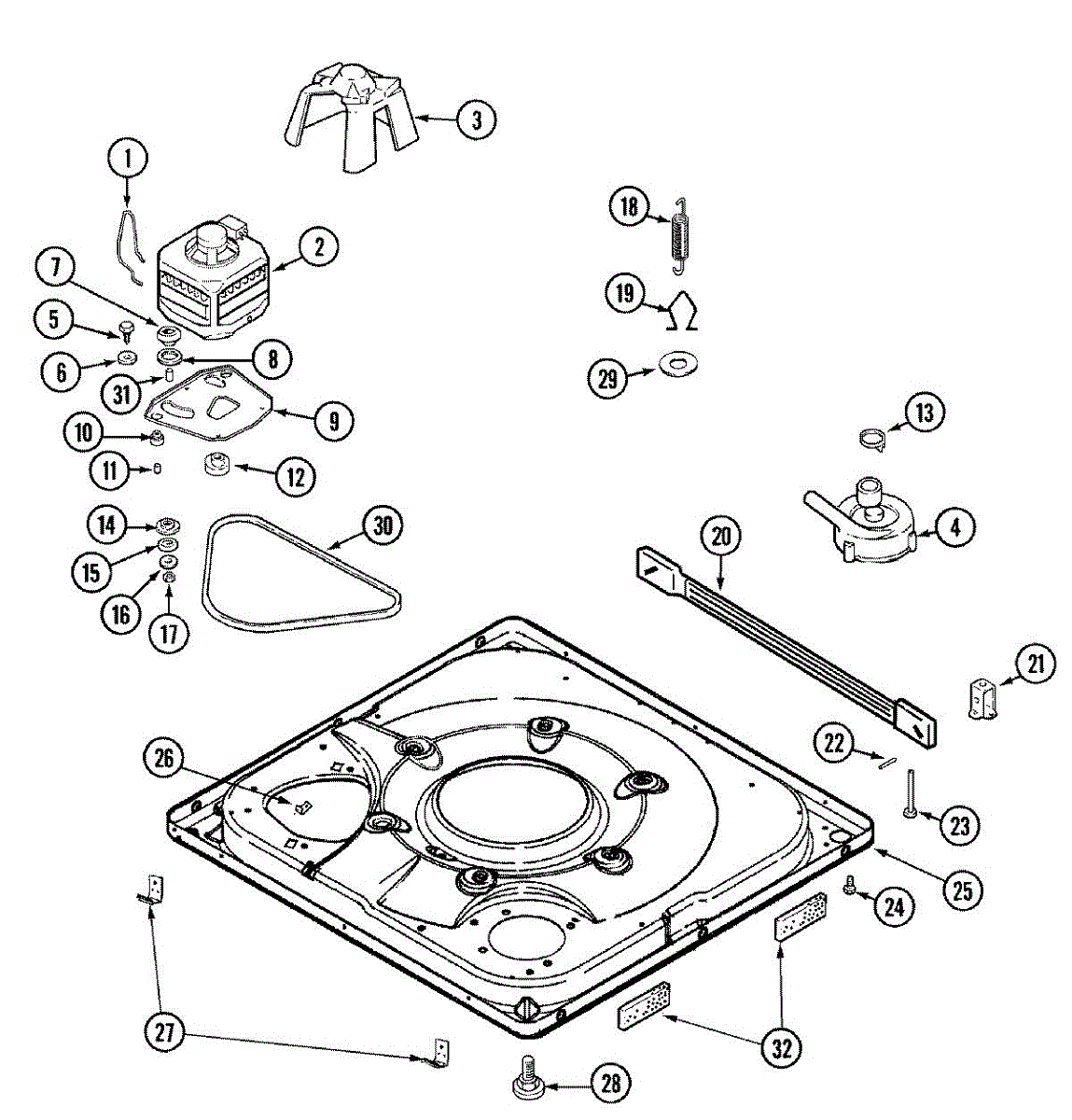

Parts for Maytag MAV9657EWW: 01 - Base Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Motor Spring is an OEM replacement part for Whirlpool top-loading washing machines. This spring applies proper tension to the agitator assembly during wash cycles.

Causes of a bad motor spring can include damage from unintended impacts or fatigue after extended use. Over time, constant movement may cause the spring to weaken.

Symptoms of a bad motor spring include:

• Inadequate cleaning as clothes don't tumble vigorously
• Excessive noise or vibration from the off-balance agitator
• Stalling or failure of the agitator to rotate fully

This OEM Whirlpool replacement is also compatible with some Kenmore, Admiral, Estate, and Roper top-load washer models as well.

The Motor Assembly is an OEM part for Whirlpool washing machines. It drives the agitator and drum, enabling the machine to effectively clean and rinse clothes during the wash cycle. The motor assembly is crucial for the proper operation and performance of the washing machine.

Over time, the motor assembly can wear out or become damaged due to factors such as heavy usage, electrical issues, or mechanical failures. These problems can lead to a malfunctioning motor, affecting the washer's ability to operate correctly.

Symptoms of a bad Motor Assembly include:

• The washer not spinning or agitating
• Unusual noises during operation
• The drum not moving
• The washer failing to start

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 10-24 x 3/8 inch.

This pump sleeve housing is the replacement outer casing that supports and seals the appliance's pump assembly, helping maintain proper water flow and prevent leaks. Fits pump assemblies that use a sleeve-style housing for the impeller and seal. What it does:

• Houses the pump impeller and seals to keep water contained during operation
• Maintains correct alignment between the pump motor and impeller/sleeve
• Prevents leaks that can cause water on the floor or damage to nearby components
• Can reduce pump noise and vibration when cracked or warped housings are replaced

• Disconnect power and turn off water supply before starting any repair
• Remove access panels and disconnect the pump assembly
• Inspect adjoining seals, gaskets, and the impeller; replace any worn components for a reliable repair

The Washer Drain Pump Assembly is an OEM part for Whirlpool washing machines. This component is vital for draining water from the washer drum during the wash and rinse cycles. The pump forces water out of the drum and through the drain hose, ensuring that clothes are cleaned and rinsed effectively.

Symptoms of a failing Washer Drain Pump Assembly include:

• Water not draining from the washer, leaving clothes wet
• Unusual noises during the drain cycle, such as humming or grinding
• Error codes on the washer's display indicating drainage issues
• Water leaks from the pump area or from the washer
• The washer stopping mid-cycle due to drainage problems

Causes of a bad drain pump assembly can include obstructions from debris, wear and tear on the pump motor over time, electrical issues such as short circuits, or damage from improper installation or usage.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: This pump has been redesigned and the mounting plate is no longer required. It now mounts directly to the base of the washer.

Drive motor isolator.

Screw: 8-16 x 3/8 inch.

Motor plate isolator.

Drive motor isolator.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This motor isolator is a rubber mounting that cushions and secures the washer motor, reducing vibration and noise during spin cycles and helping protect the motor and chassis from premature wear. What it does:

• Cushions the motor to reduce vibration and minimize rattle and noise during operation
• Keeps the motor properly positioned to prevent rubbing or misalignment
• Helps protect motor and surrounding components from shock and movement
• Common symptom linkage: excessive vibration, loud noise during spin, or visible motor shifting

• Disconnect power to the appliance before starting any work.
• This part mounts between the motor and chassis; access typically requires tilting or removing the washer cabinet or accessing the underside.
• Inspect adjacent mounts and fasteners; replace any worn hardware and use the exact OEM part for proper fit.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This locknut is a small threaded retaining nut used to secure rotating and stationary appliance components, helping keep assemblies tight and stable during operation. It prevents parts from loosening and reduces vibration-related issues. What it does:

• Secures shafts, pulleys, or fittings to prevent axial movement
• Keeps assemblies fastened under normal vibration and load
• Helps stop wobble, grinding, or part separation caused by a loose connection
• Works with the matching threaded stud, shaft, or fitting for a proper hold

• Disconnect power and follow appliance safety procedures before servicing
• Use the matching thread size and engage threads fully; hand-start before tightening
• Tighten securely without overtightening; use the correct driver or socket for the nut
• Inspect mating threads and replace if damaged

The Suspension Spring is an OEM part for Whirlpool washing machines. This spring plays a vital role in supporting the washer tub, helping to absorb shocks and vibrations during the washing and spinning cycles, ensuring smooth and stable operation. Can also use Spring Kit (6) part number 12002773

Causes of a bad suspension spring can include wear and tear over time, excessive loads that overstress the spring, or corrosion and rust that weaken the spring’s integrity. Damage due to improper handling or installation can also affect its performance.

Symptoms of a bad suspension spring include:

• Excessive shaking or vibrating of the washing machine during operation
• The washer tub being off-balance
• Loud banging or thumping noises during the spin cycle
• The washing machine moving or "walking" during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This suspension spring hook connects a tub suspension spring to the washer frame, helping support and center the wash basket. Replacing a worn or missing hook can reduce shaking, banging, and off-balance interruptions during spin.

• Secures one end of a suspension spring to the cabinet/base
• Helps control tub movement and absorb vibration during agitation and spin
• Failure signs include excessive vibration or banging, tub leaning/sagging, or frequent out-of-balance stops

• Disconnect power and water; wear gloves and eye protection
• Access the suspension area per model; support the tub to relieve spring tension
• Use pliers or a spring tool to remove the old hook; note orientation and mounting location
• Seat the new hook fully and ensure the spring is engaged securely before reassembly and testing

A stabilizer bracket that secures and supports internal components to reduce movement and rattle during operation. Helps restore stable alignment so the appliance runs quieter and more reliably. What it does:

• Provides structural support to help keep assemblies aligned and reduce excessive movement
• Dampens vibration and minimizes knocking or rattling noises tied to loose components
• Restores proper fit where a worn or broken bracket allowed shifting or misalignment
• Works as a repair for symptoms like intermittent noise, excess vibration, or parts that sag or shift

• Disconnect power (and water if appliance-specific) before beginning any repair
• Basic hand tools are usually required; refer to your model's service manual for exact steps
• Inspect surrounding parts for wear while replacing the bracket

Replace a worn rear self-leveling leg to restore a stable, level appliance. This foot supports the back of the cabinet and automatically compensates for floor unevenness to help reduce vibration, rocking, and noise during operation.

• Supports and self-levels the rear of the cabinet to maintain stability on uneven floors
• Helps address wobbling/rocking, excessive vibration, rattling or "walking," and an appliance that won't sit level
• Replaces a rear leg that is missing, cracked, or worn
• Promotes smoother operation by helping the unit sit properly level

• Disconnect power; if applicable, turn off the water supply
• With assistance, carefully tilt the appliance to access the rear base
• Remove the damaged rear leg from its mount and install the new leg, ensuring it seats fully
• Lower the unit, verify level with a bubble level, and adjust front legs as needed for final leveling

Specs: 10 - 16 x .375

Screw: 8-16 x 3/8 inch.

Specs: 10 - 16 x .375

Includes leg, foot pad and locknut.

The Washer Drive Belt is an OEM part for Whirlpool washers. This belt connects the washer's motor to the drum, enabling the drum to rotate during the wash and spin cycles. It plays a crucial role in the washer's operation.

Causes of a bad washer drive belt can include wear and tear, stretching, or damage from overloading the washer.

Symptoms of a bad washer drive belt may include:

• Drum not spinning or agitating.
• Unusual noises coming from the washer during operation.
• Belt slipping or appearing worn.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Sound dampener for cabinet and front panel.
