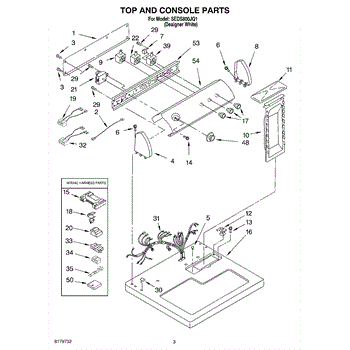

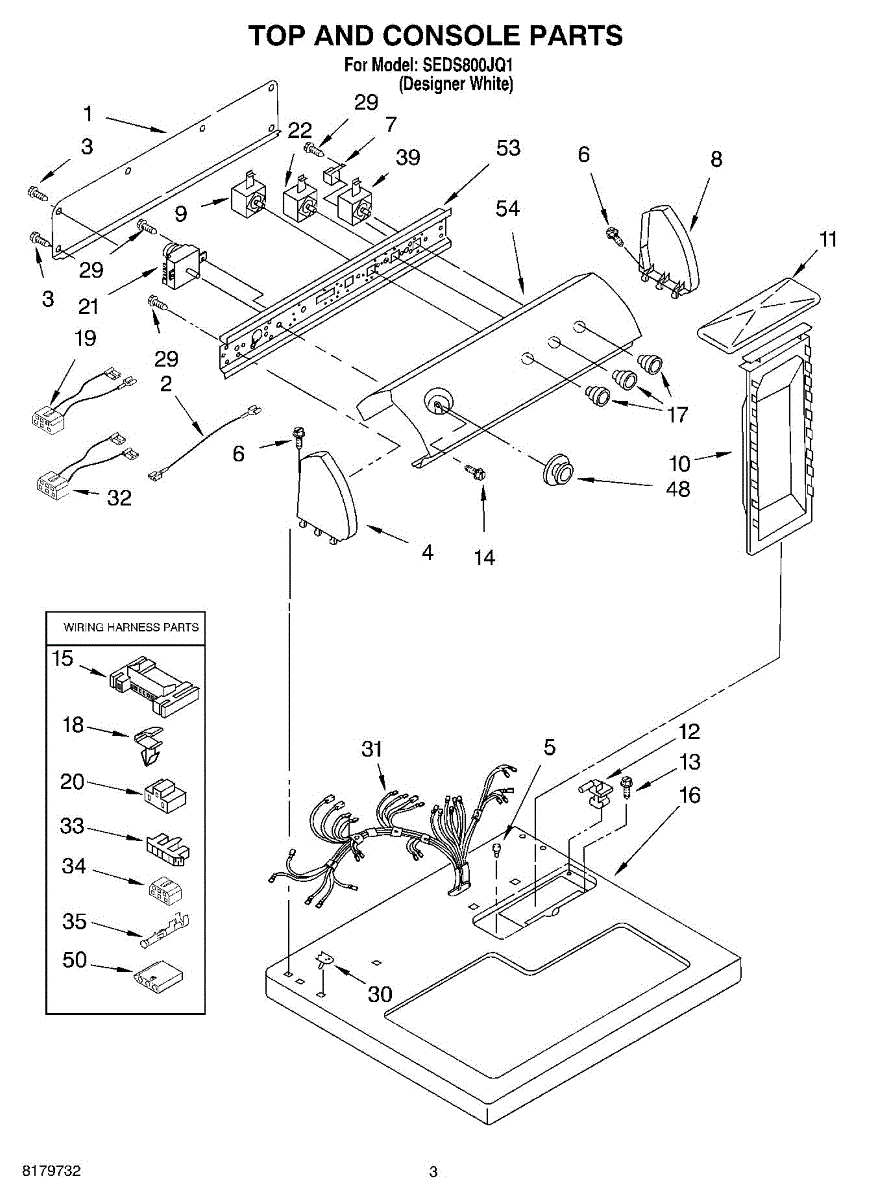

Parts for Whirlpool SEDS800JQ1: 02 - Section Parts

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

Note: END CAP KIT CONTAINS (1) RH. & (1) LH. CAP

This rubber bumper cushions and protects moving parts and panels, reducing noise and preventing metal-to-metal contact. It restores proper spacing and stops rattles so doors, drawers or panels close smoothly and quietly. What it does:

• Acts as a shock-absorbing cushion to prevent damage from impact or slamming
• Reduces vibration and rattling noise from doors, drawers or panels
• Maintains proper clearance and helps parts align during operation
• Commonly replaced when worn, flattened, missing or causing noise

• One rubber bumper

• Typically press-fits into a hole or onto a mounting post
• Clean the mounting surface of dirt and old adhesive or debris for best retention
• No special tools required for most installs; use gentle pressure or a blunt tool to seat the bumper
• Unplug the appliance or disconnect power before servicing

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

Note: END CAP KIT CONTAINS (1) RH. & (1) LH. CAP

This dryer temperature selector switch lets you choose between four heat settings for proper fabric care. Replacing a worn switch restores accurate temperature selection so loads dry evenly without overdrying delicate items.

• Controls the dryer's heat level across four selectable settings
• Faulty switch can cause incorrect temperatures or only one setting to work
• May lead to poor drying performance or fabric damage if not functioning
• Restores reliable temperature selection and consistent drying results

• Unplug dryer before servicing; shut off gas if applicable
• Pull control knob straight off to access the switch
• Transfer wires one at a time to the new switch to maintain correct positions
• Ensure switch shaft and flat align with the knob during reassembly

The Lint Screen is an OEM part for Whirlpool dryers. It is crucial for trapping lint and debris from clothes during the drying process, helping to prevent these materials from clogging the dryer vent or causing potential fire hazards. This lint screen measures approximately 20 1/2" x 7 1/2".

Symptoms of a bad Lint Screen include:

• Tearing or holes in the screen that allow lint to pass through
• Excessive lint accumulation in the dryer or vent
• The dryer taking longer than usual to dry clothes

Causes of a bad lint screen can stem from normal wear and tear, improper cleaning practices that lead to build-up and degradation, or accidental damage during handling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the 19 inch long filter order 339392V.

This lint screen lid hinge connects the dryer's lint lid to its mounting point, allowing smooth, aligned opening and secure closing. Replacing a bent or broken hinge restores proper lid operation and helps keep lint contained in the trap.

• Provides the pivot point for the lint screen lid/cover
• Helps the lid sit flush and stay aligned when closed
• Symptoms of a failed hinge can include a loose or misaligned lid, difficulty opening/closing, or squeaking/binding at the hinge
• Replace when the hinge is bent, cracked, or missing

• Disconnect power before servicing; sharp cabinet edges—wear cut-resistant gloves
• Support the lint lid to avoid bending or scratching
• Remove the mounting screws, note the hinge orientation, and transfer the new hinge in the same position
• After reassembly, cycle the lid open/closed to ensure smooth operation before restoring power

Right handed Hinge

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces, brackets or small components to prevent movement
• Helps stop rattling, vibration noise, or loose-fitting parts
• Replaces missing or damaged screws to restore proper alignment of panels or controls
• Used wherever an 8-18 x 7/32 machine screw is specified by the manufacturer

• Unplug the appliance or turn off power before servicing.
• Use the correct screwdriver or bit to avoid stripping the head; tighten snugly but do not over-torque.
• Replace any stripped inserts or mating hardware if threads are damaged.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

White

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

This connector buzzer wire harness links the appliance control to the buzzer/alert so the unit can emit audible tones for cycle completion and error warnings. Replaces a damaged or corroded buzzer connector to restore alert sounds. What it does:

• Provides the electrical connection between the control board and the buzzer/alert assembly.
• Restores audible beeps or tones when the original connector is loose, broken, or corroded.
• Helps prevent intermittent or no-sound conditions caused by poor connector contact.
• Fits into the existing harness and plugs into the buzzer/board mating connector.

• One connector buzzer wire harness (1 piece).

• Disconnect power to the appliance before inspecting or replacing the connector.
• Unplug the old connector from the buzzer/control; note orientation and routing before removing.
• Plug the replacement connector into the matching buzzer/control socket until it snaps into place.

The Timer is an OEM part for Whirlpool dryers. This part controls the dryer cycles, including the drying time and the various heat settings, ensuring the proper duration and sequence of the drying process.

Causes of a bad timer can include electrical failures, worn-out contacts or gears, or damage due to power surges or excessive use over time.

Symptoms of a bad timer include:

• The dryer not advancing through cycles
• Cycles ending too early or running too long
• The dryer not starting or stopping mid-cycle
• Inconsistent timing or cycle selection issues

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This rotary on/off switch controls the dryer's Finish Guard (also called Wrinkle Guard/Wrinkle Shield) feature. Replacing it restores proper control of the post-cycle intermittent tumbling that helps reduce wrinkles, preventing the feature from being stuck on or off.

• Provides 2-position on/off selection for the Finish Guard/Wrinkle Guard function
• Failure can cause the feature not to engage or to stay on after the cycle ends
• Knob may feel loose or fail to click when the switch is worn
• Mounts in the control console and interfaces with the external selector knob

• Disconnect power before servicing
• Access through the control console; remove paneling as needed
• Transfer wires one at a time or photograph connections for reference
• Reinstall using the existing knob and mounting hardware

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

Push-in.

For mating terminal use [AP31136300].

Color: White. This is a one piece dryer timer knob and dial assembly.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dryer Repair Kit is an OEM replacement part for Whirlpool 29-inch large capacity dryer models. It is a kit designed to provide various essential components and hardware needed for common dryer repairs or maintenance tasks.

The kit includes:

• One Dryer belt (341241)
• Drum support roller kit (349241T)
• One idler pulley (WP691366)
• Instructions.

Please note: Some parts in this kit may not fit your specific model. Use your model number to check for your specific parts.

Causes of needing a dryer repair kit can include worn-out or damaged components due to normal wear and tear, accidental impact or mishandling, or maintenance requirements after a certain period of use.

Symptoms that may indicate the need for a dryer repair kit include:

• Excessive noise or vibrations during operation
• Difficulty in opening or closing the dryer door
• Clothes becoming tangled or wrapped around the drum
• Leaks or air drafts affecting drying performance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.
