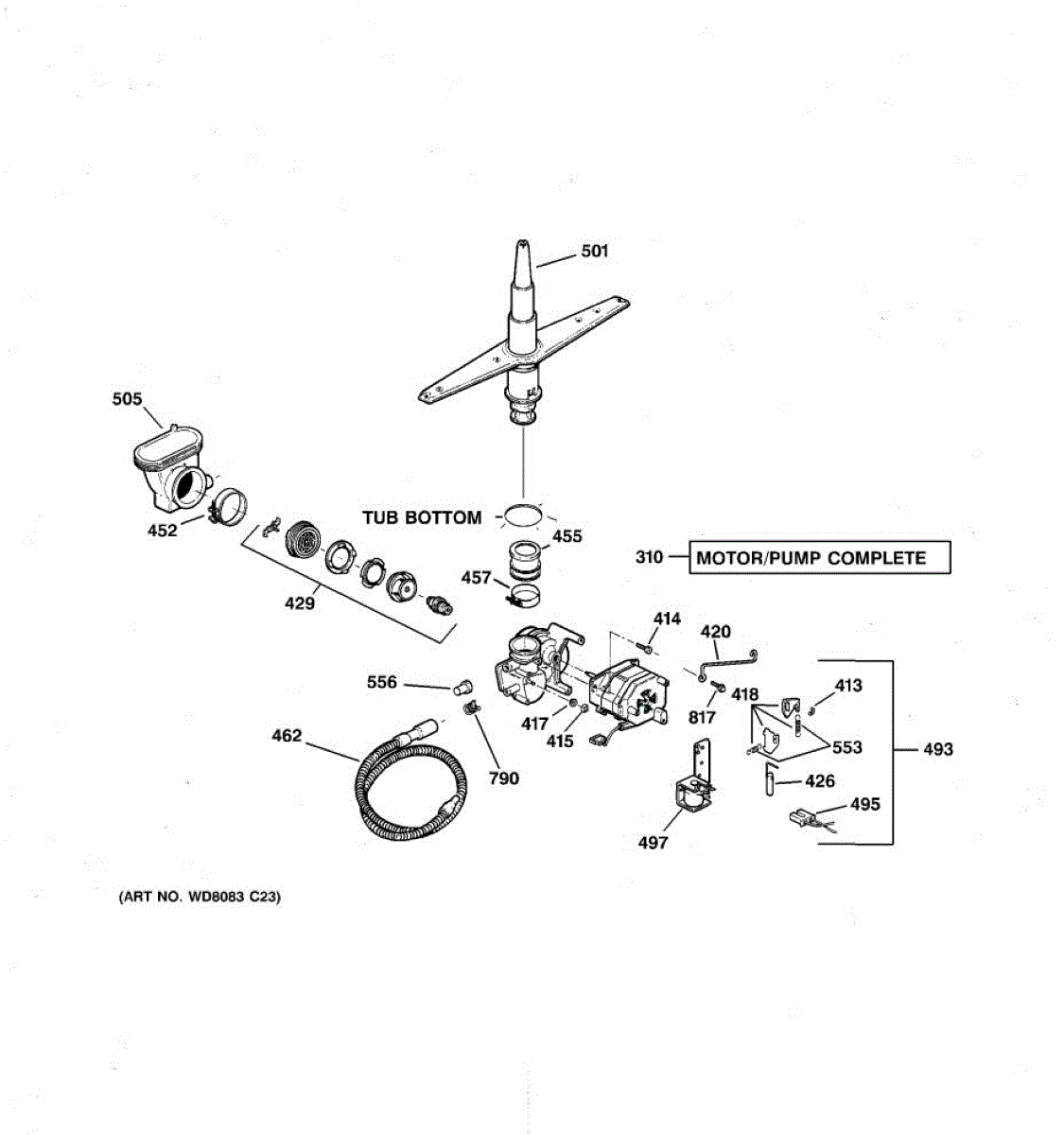

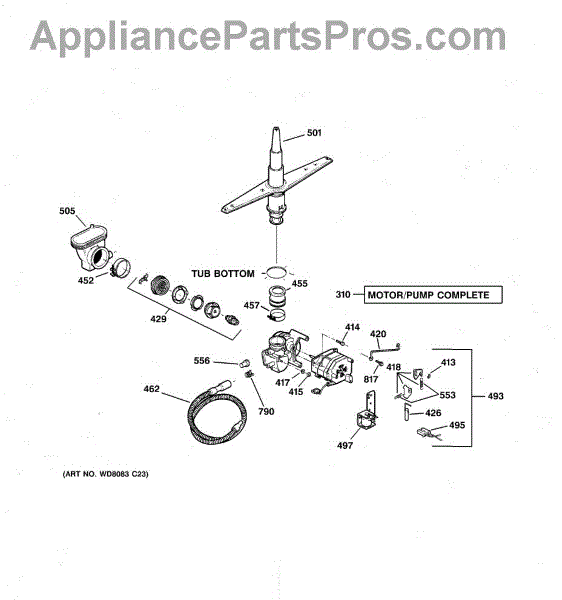

Parts for Ge HDA2000G02BB: 03 - Motor-Pump Mechanism Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Dishwasher not draining or leaving water in the bottom? This pump and motor assembly circulates and drains water. 2-hour DIY repair with video guide.

C-clip retainers secure components in your dishwasher or range. Replace when clips are loose, broken, or missing to prevent rattling and parts shifting. Verify fit with your model number.

Replacement mounting screw for dishwashers. Secures internal components, panels, and brackets. Needed when original screws are stripped, missing, or lost.

The Push-On Nut is an OEM part for GE appliances. This small component is typically used to secure various fittings and fastenings within appliances, ensuring they are tightly held and do not loosen over time. Its push-on design allows for easy installation, making it a straightforward solution for maintaining the structural integrity of your appliance components.

Symptoms of a failing Push-On Nut include:

• Loose components within the appliance
• Parts that seem to detach or move unexpectedly
• Unusual noises due to parts rattling or shaking
• Difficulty in securing components during repairs or maintenance

Causes of a bad push-on nut can include metal fatigue leading to loss of elasticity, corrosion from exposure to moisture, or general wear from repeated removal and installation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dishwasher Shaft Seal is an OEM part for GE dishwashers. This seal is located around the motor shaft and prevents water from leaking out of the dishwasher tub where the motor shaft enters.Seal for pump drain valve shaft. Instruction sheet included. Push-on nut may have to be cut off, order WR2X7054.

Over time, regular use can cause the seal to deteriorate, or debris and mineral deposits can lead to damage. A compromised shaft seal can result in water leaks, potentially causing damage to your kitchen floor and dishwasher components.

Symptoms of a bad dishwasher shaft seal include:

• Water leaking from the bottom of the dishwasher
• Puddles or water damage around the dishwasher area
• Unusual noises coming from the motor area due to water infiltration
• Visible wear or cracks on the seal

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This kit fits both D style and T style shafts.

Fix a dishwasher that won't drain or keeps draining during fill. This solenoid armature controls the drain valve. DIY repair in about 45 minutes.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

Secures dishwasher sump to tub, maintaining seal compression to prevent leaks. Replace if corroded or weak. Confirm fit with your model number.

Fix dishwasher leaks from cracks or tears in the pump connector. Requires removing dishwasher and pump access. Video guide available for DIY repair.

A replacement clamp that secures hoses or wiring to keep lines routed and stable, helping prevent rubbing, leaks and noise. Restores a reliable hold for tubing and harnesses so the appliance runs quietly and safely. What it does:

• Holds hoses, tubing or wire harnesses in place to reduce movement and chafing.
• Helps prevent leaks and water line abrasion caused by loose fittings.
• Reduces rattling or vibration from unsecured lines or cables.
• Keeps routing organized so adjacent components aren't stressed or worn.

• Disconnect power before servicing the appliance; shut off water supply when working on water or drain lines.
• Remove the old clamp and position the replacement so it fully engages the hose or harness, avoiding twists.
• Use appropriate hand tools (pliers or screwdriver) and secure the clamp evenly; avoid overtightening.
• Inspect surrounding hoses and wiring for damage while installing; replace any components that show wear.

Replaces cracked, kinked, or chewed drain hose that carries wastewater from your dishwasher to household plumbing. Essential for proper drainage function.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Note: This is the complete solenoid assembly kit. For armature & linkage assembly only, use WD1X1316.

The Solenoid Assembly is an OEM part for GE dishwashers. It plays a crucial role in controlling the flow of water into the dishwasher by activating or deactivating the drain valve. This assembly is essential for ensuring that the dishwasher fills and drains at the correct times during the wash cycle, which is pivotal for the overall efficiency and effectiveness of the appliance.

Common causes for a Solenoid Assembly to fail include wear and tear over time, mineral buildup from hard water, or electrical failures that prevent the solenoid from operating as intended.

Symptoms of a bad Solenoid Assembly include:

• Failure of the dishwasher to drain properly, leading to water accumulation at the bottom.
• The dishwasher not filling with water as it should, affecting the cleaning process.
• Unusual noises coming from the dishwasher, which may indicate the solenoid is failing to engage or disengage correctly.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Plastic housing that secures the drain solenoid to the pump assembly. Replace if cracked, broken, or missing to properly position the solenoid mechanism.

Note: This is the complete solenoid assembly kit. For armature & linkage assembly only, use WD1X1316.

The Solenoid Assembly is an OEM part for GE dishwashers. It plays a crucial role in controlling the flow of water into the dishwasher by activating or deactivating the drain valve. This assembly is essential for ensuring that the dishwasher fills and drains at the correct times during the wash cycle, which is pivotal for the overall efficiency and effectiveness of the appliance.

Common causes for a Solenoid Assembly to fail include wear and tear over time, mineral buildup from hard water, or electrical failures that prevent the solenoid from operating as intended.

Symptoms of a bad Solenoid Assembly include:

• Failure of the dishwasher to drain properly, leading to water accumulation at the bottom.
• The dishwasher not filling with water as it should, affecting the cleaning process.
• Unusual noises coming from the dishwasher, which may indicate the solenoid is failing to engage or disengage correctly.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Lower spray arm assembly for dishwashers. Rotates to distribute water throughout the tub. Replace if tabs are broken, arm is cracked, or threads are stripped.

Dishwasher leaking from the bottom? A cracked or worn inlet sump causes water leaks during wash cycles. Moderately difficult repair with video guidance.

This spring kit restores proper door tension so the appliance door opens and closes smoothly and stays in position. Use it to replace worn or broken springs that cause a sagging, loose, or hard-to-operate door. What it does:

• Replaces worn or damaged door tension springs to restore smooth opening and closing.
• Helps prevent the door from dropping, sagging, or not staying open.
• Reduces uneven or jerky door movement caused by lost spring tension.
• Matches OEM-design function for safe, reliable door operation when installed correctly.

• Disconnect power (and water, if applicable) before beginning any repair.
• Springs are under tension—use caution and proper tools to avoid injury.
• Follow the appliance's service manual or OEM instructions.

Secures dishwasher drain or inlet hoses to fittings to prevent leaks and slipping. Replace when loose, corroded, or during hose installation. Verify fit.

Secures washer hoses at pump, tub, and valve connections to prevent leaks and hose blow-offs. Replace worn or missing clamps for a tight seal. Confirm fit.

Replacement hex head screw for dishwasher component mounting. Secures solenoids, valves, and internal parts. Order when original is rusted, stripped, or missing.

Replacement mounting screw for dishwashers. Secures internal components and panels. Order a new screw if yours is stripped, missing, or damaged.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
