Parts for Caloric ESF31002W / P1130988N W: 04 - Electrical Components Parts

Parts for Caloric ESF31002W / P1130988N W: 04 - Electrical Components Parts

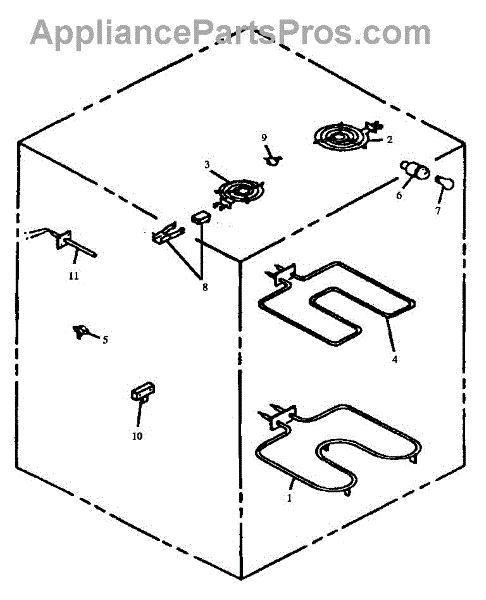

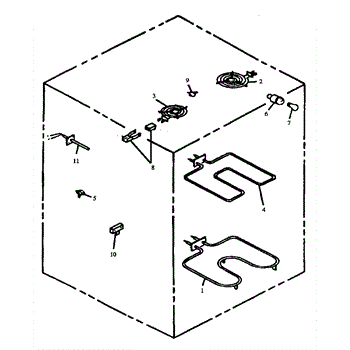

Location on Diagram
Part Description
Price & Availability
1
Best Seller
Product photo
5.0 (251)
By: Whirlpool
Part Number: WP77001094

The Oven Bake Element is an OEM replacement part for Whirlpool ovens. Located at the bottom of the oven cavity, it is responsible for providing the consistent heat necessary for baking and roasting. This element ensures even cooking by heating up uniformly and maintaining the set temperature throughout the cooking process.

Over time, the bake element can wear out or become damaged due to repeated exposure to high temperatures, spills, or power surges. Normal wear and tear, as well as accidental impacts during oven cleaning or rack adjustments, can also lead to the element malfunctioning.

Symptoms of a bad oven bake element include:

  • The oven not heating up or reaching the set temperature
  • Uneven baking or longer cooking times
  • Visible signs of damage such as burns, blisters, or breaks in the element
  • Sparking or unusual noises when the oven is in use
  • The element not glowing red-hot during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Please Note. Due to a manufacturer change element may appear physically different from the original.

More
$30.54

IN STOCK
Ships Today Guaranteed
Add to Cart
2
Product photo
5.0 (3)
By: Whirlpool
Part Number: WPY04000035

Range burner not heating? This 8-inch surface element restores even heating to your cooktop. Simple plug-in replacement takes under 10 minutes with no tools.

More
$80.95

IN STOCK
Ships Today Guaranteed
Add to Cart
3
Product photo
5.0 (3)
By: Whirlpool
Part Number: WPY04000036

Burner not heating or heating unevenly? This 6-inch surface coil element restores consistent heat to your electric range. Simple plug-in replacement.

More
$73.95

IN STOCK
Ships Today Guaranteed
Add to Cart
4
Product photo
5.0 (19)
By: Whirlpool
Part Number: WPY0063532

Broil element not heating or burned out? This top oven heating element restores direct radiant heat for even broiling. DIY repair in 15 minutes.

More
$58.37

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
8
Best Seller
Product photo
4.9 (247)
By: Whirlpool
Part Number: 330031

Burner not heating? This receptacle kit restores electrical connection to cooktop elements. Most DIYers complete this repair in under 30 minutes.

More
$15.95

IN STOCK
Ships Today Guaranteed
Add to Cart
9
Product photo
By: Whirlpool
Part Number: Y0065780
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10
Product photo
4.0 (3)
By: Whirlpool
Part Number: WP8203546

If your range has a strong burning smell or won't power on, the terminal block may be heat-damaged. This insulated connector restores safe power flow.

More
$24.68

IN STOCK
Ships Today Guaranteed
Add to Cart
NI

Nut

By: Maytag
Part Number: 25-6124
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI
Best Seller
Product photo
4.8 (36)
By: Whirlpool
Part Number: WPW10245259

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

  • Burnt or scorched connections
  • Intermittent power loss to the range
  • Difficulty in the range heating up properly
  • Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

More
$27.37

IN STOCK
Ships Today Guaranteed
Add to Cart
