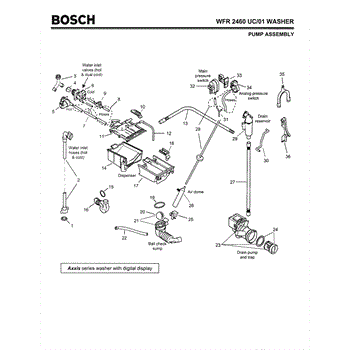

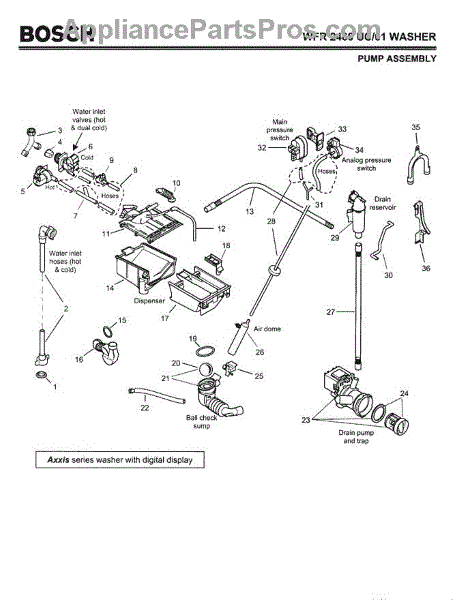

Parts for Bosch WFR2460 UC/01 (FD 8201-): 04 - Pump Assembly Parts

This water inlet hose gasket seals the connection between the supply hose and the appliance's inlet fitting. Replace a flattened or damaged washer to stop drips at the coupling and restore a reliable, watertight connection.

• Creates a watertight seal at the inlet hose-to-appliance connection
• Helps prevent drips, puddles, and water damage around the machine
• Replace if the old gasket is cracked, hardened, flattened, or missing
• Common symptoms: leaking at the hose coupling or needing to retighten the fitting to stop drips

• Disconnect power and turn off the water supply before servicing
• Place a towel to catch residual water, then detach the inlet hose from the appliance fitting
• Remove the old gasket from the hose coupling and seat the new gasket evenly
• Reattach and hand-tighten the coupling; open water supply and check for leaks—do not overtighten

This tee adapter connects water lines at the appliance inlet, letting the supply be split or routed where needed for proper water flow. Durable molded fitting designed to match OEM inlet connections and maintain a secure seal. What it does

• Joins or splits the appliance water inlet to accept two hoses or a hose and valve, restoring proper water routing.
• Helps fix symptoms like leaking at the inlet connection, loose hose fit, or interrupted water supply to the appliance.
• Fits into the inlet assembly to maintain a sealed water path and prevent drips when installed correctly.
• Works with compatible inlet fittings and hoses that match the OEM connection style.

• One tee adapter (water inlet) as shown

• Turn off water supply and unplug the appliance before attempting installation.
• Inspect hose ends and seals; replace damaged hoses or O-rings to ensure a watertight connection.
• Hand-start all fittings, then tighten securely—do not over-tighten plastic fittings to avoid cracking.

This is a valve magnet intended for use in washing machines. The valve magnet's purpose is to allow water to flow into the appliance during the different washing and rinsing cycles.Signs that indicate the valve magnet is malfunctioning or damaged include the washing machine shutting off before the cycle is over, water overfilling the machine, or water not shutting off at all. The replacement of the part is a simple process. Disconnect the appliance from its power source first. The water connections should also be shut off and removed from the washing machine. Wear gloves for safety. Ensure all connections are secure before reconnecting the device to the electrical outlet.This valve magnet is a genuine OEM replacement part. It is sourced from the manufacturer. The valve magnet is sold as an individual unit. The part is made of durable, high-quality materials. It can be installed in several models of washing machines. It is compatible with devices produced by Bosch, Thermador, and Gaggenau.

This valve magnet is the solenoid actuator used to open and close a dishwasher water/control valve, restoring proper water flow for filling and cycle operation. It replaces a failed or weak magnet to help the valve respond correctly. What it does:

• Converts electrical signal into linear motion to operate the dishwasher valve
• Restores valve opening and closing when a worn or stuck magnet causes fill or circulation issues
• Commonly used when dishwasher won't fill, stops mid-cycle, or shows related valve/fill errors
• Works with the valve body; does not include seals or the full valve assembly

• Disconnect power and shut off the water supply before beginning service
• Replace with the matching OEM magnet and ensure proper seating on the valve body
• Keep terminals dry and secure electrical connections; inspect gaskets and valve body for damage

This T-shaped water hose connector routes incoming water to separate internal hose lines, restoring proper water distribution inside the appliance. It replaces a worn or cracked hose tee to stop leaks and restore flow to internal components. What it does:

• Joins three water lines so water can be directed to multiple internal points
• Stops leaks caused by cracked or damaged tee fittings at hose junctions
• Restores reliable water flow to downstream parts that depend on the split connection
• Prevents hoses from separating at a failing junction

• Turn off and disconnect the appliance from the water supply before servicing
• Inspect hose ends and clamps; replace clamps or seals if worn
• Push hoses fully onto each barb and secure with appropriate clamps
• After installation, restore water and check all connections for leaks

This flow-through sensor monitors the dishwasher's water flow to help ensure correct water delivery during cycles, supporting consistent wash performance. Replaces a worn or failed sensor to restore proper flow detection. What it does:

• Detects and reports water flow to the control so cycles run with correct water movement
• Can cause wash performance issues or flow-related error codes when faulty
• Helps the appliance regulate fill and wash timing based on measured flow
• Works as part of the dishwasher's water-management system with wiring harness and mounting

• One flow-through sensor

• Disconnect power to the appliance before beginning any service
• Handle the sensor and wiring carefully; observe connector alignment when reinstalling
• Replace only with the identical part number

This dispenser hose routes water between the dishwasher inlet and the detergent dispenser so the dispenser can rinse and release detergent properly. It restores proper dispenser flow and helps prevent leaks when fitted correctly. What it does:

• Channels incoming water to the detergent/dispenser area for rinse and wash cycles
• Ensures the dispenser receives sufficient water to release detergent on schedule
• Helps prevent water from bypassing the dispenser and pooling in the detergent cup
• A worn, cracked or split hose can cause leaks or reduced dispenser performance

• Turn off power to the dishwasher and shut off the household water before starting
• Inspect and reuse or replace any clamp/retaining clips as needed; ensure secure connections
• Route the hose as shown in the service diagram to avoid kinks or pinching
• Test for leaks after reconnecting power and water; tighten fittings gently to avoid damage

This fastening ring secures mating appliance components by locking parts in place to prevent movement or separation during operation. It's a simple yet essential hardware piece that helps maintain proper alignment and reliable function. What it does

• Holds mating parts together to prevent wobble, vibration, or dislocation
• Keeps seals and assemblies properly seated to reduce noise and misalignment
• Helps maintain correct component spacing for smooth operation
• Commonly replaced when the original ring is bent, worn, or missing

• Designed for use with compatible OEM assemblies; follow for correct placement
• Inspect mating surfaces and replace any damaged clips, seals, or gaskets before reassembly
• Use proper tools to avoid deforming the ring during installation; do not force into place
• Disconnect power and follow safety procedures before servicing the appliance

This fill hose connects the detergent dispenser to the washing machine drum, allowing detergent and liquid additives to flow into the wash tub. Replaces a damaged or leaking hose to restore proper dispensing. What it does

• Channels detergent/softener from the dispenser into the drum during fill cycles
• Prevents leaks and water loss when intact and properly clamped
• Helps ensure detergent is delivered at the correct point in the wash cycle
• Common symptom fix: visible water under the machine, detergent pooling in the dispenser, or no detergent reaching the drum

• One fill hose

• Turn off and unplug the washer and shut off the water supply before beginning work
• Inspect and replace any worn clamps or the dispenser gasket when installing
• Route the hose as shown in the machine's service diagram and secure with proper clamps to prevent leaks
• After installation, restore power/water and run a short cycle to check for leaks and correct operation

This fastening ring secures a rotating or stationary component in place to help prevent movement and vibration. It restores proper fit and alignment so assemblies run quietly and components stay locked in position. What it does:

• Holds shafts, bearings or housings in position to prevent axial movement
• Helps stop rattling, wobble or misalignment caused by a loose retaining component
• Maintains a secure mechanical connection between mating parts
• Used wherever a snap/retaining ring is required to lock a component on a shaft or in a bore

• Disconnect power and water before beginning any repair
• Use the correct pliers or tools for snap/retaining rings to avoid deformation
• Verify the ring matches the OEM part number and seating location before installation

This dishwasher sump assembly houses the pump inlet and integrated ball check valve to route wash water to the drain while preventing backflow. Replaces worn or cracked sumps to restore proper draining and prevent leaks. What it does

• Collects and channels dishwasher wash water from the tub to the drain pump.
• Integrated ball check valve stops backflow into the sump, helping prevent standing water and odor.
• Restores proper drain function when the existing sump is cracked, clogged, or leaking.
• Compatible with common Bosch/BSH dishwasher pump systems that use a molded sump with ball valve.

• One sump with integrated ball check valve (single assembly only).

• Disconnect power and water supply before starting any repair.
• Access typically requires removing the dishwasher lower kickplate and possibly tilting the unit; support the unit and follow the OEM service manual.
• Inspect surrounding seals, hoses, and pump gaskets for wear and replace as needed.

This Drain Pump is an OEM part for Bosch Washers. It facilitates water drainage from the washer during the cycle. Continuous use and debris accumulation can affect the pump's performance.

What Causes a Bad Drain Pump:
Debris, foreign objects, or wear from continuous use can lead to clogs or mechanical issues with the drain pump.

Symptoms of a Bad Drain Pump:

• Standing water in the washer drum after the cycle
• Slow or incomplete drainage
• Unusual noises during the drainage cycle

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement hose-pressure chamber routes water to the dishwasher's pressure chamber so the machine can sense and control water level. Restores proper pressure sensing to help prevent overfilling and fill errors. What it does

• Connects the sump/water path to the pressure chamber so the water-level sensor can detect fill height.
• Replaces cracked, pinched, or collapsed hose that can cause inaccurate water-level readings.
• Commonly used when dishwasher shows overfill, won't fill correctly, or reports water-level or pressure-related errors.
• Flexible vinyl tubing designed for routing in tight spaces without kinking.

• Disconnect power and shut off the water supply before starting any repair.
• Inspect nearby fittings and the pressure chamber for wear; replace clamps if damaged.
• Push-fit or clamp the hose securely to both ports; ensure there are no kinks or sharp bends.

This drain reservoir is the dishwasher plumbing housing that collects and directs wastewater to the drain pump, helping prevent internal leaks and ensuring proper draining. Replace a cracked or clogged reservoir to restore reliable water flow and reduce water under the unit. What it does:

• Funnels wastewater from the tub to the drain pump so the machine can evacuate used water
• Helps contain minor spills and prevents water from reaching sensitive electronics
• Works with the drain pump and hoses to maintain proper drainage
• Commonly causes water pooling under the dishwasher, slow or no drain cycles, or visible leaks when damaged

• Disconnect power to the appliance before starting any repair
• Shut off water supply and remove lower access panels or kickplate as needed
• Handle with care to avoid damaging adjacent hoses, clips, or wiring; replace any worn seals

This holder is a replacement mounting bracket that secures a small internal component in place to restore proper alignment and support. It helps keep parts stable so the appliance operates as intended. What it does

• Secures and supports an internal component to prevent movement or misalignment
• Replaces cracked, broken, or worn mounting points that allow rattling or improper part position
• Restores stable contact where a loose component causes intermittent operation or noise
• Fits a specific OEM location; use the part number to confirm exact application

• One replacement holder/mounting bracket

• Disconnect power and water before starting any repairs
• Inspect surrounding clips or fasteners and reuse or replace as needed—this part typically snaps or screws into place
• Handle plastic mounting parts gently to avoid cracking during installation
