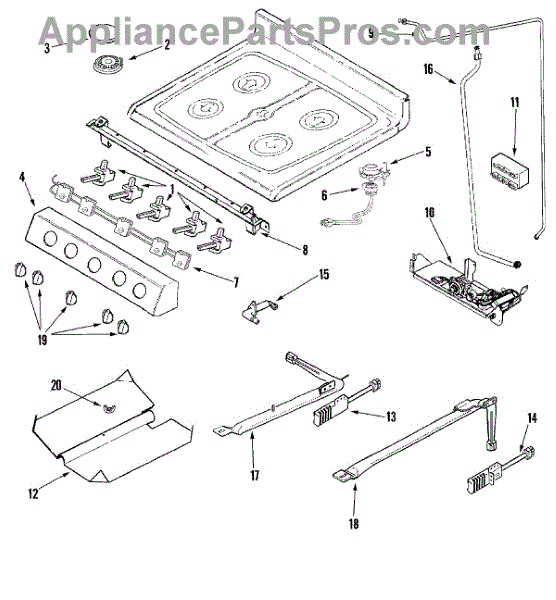

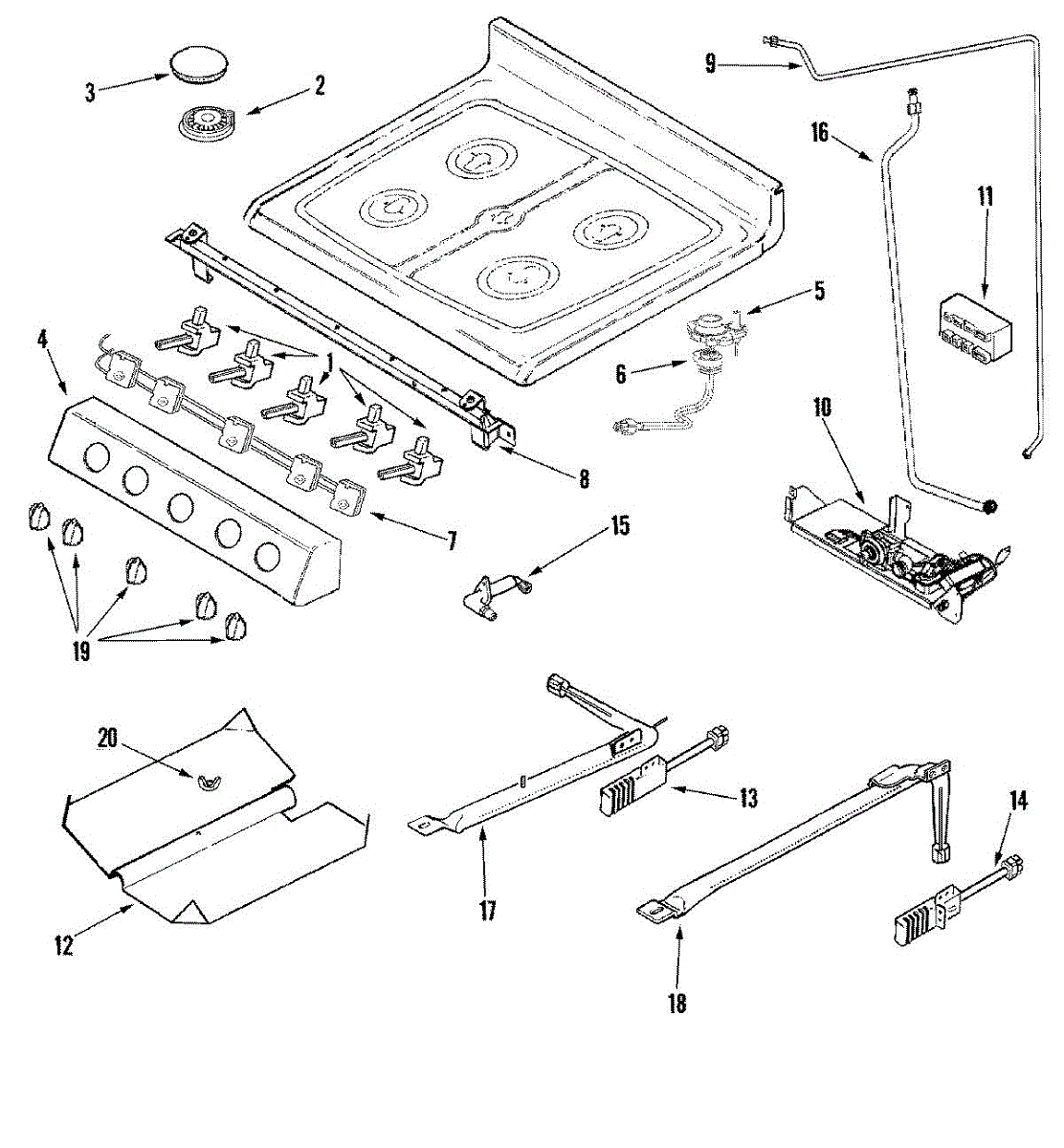

Parts for Maytag MGR5775QDB: 05 - Gas Controls Parts

Burner won't ignite or heat properly? This range top burner valve controls gas flow to your cooktop burner. Direct replacement part for gas ranges.

This is a gas surface burner valve that controls the flow of gas to a cooktop burner. It connects to the burner control knob and regulates flame size from high to low settings. Replace this valve if a burner won't light, has an uneven flame, won't turn off, or if you detect a gas smell when the knob is in the off position.

Burner won't ignite or flame is too high or low? This range top burner valve controls gas flow to surface burners. Moderate DIY repair.

Fixes burner that won't ignite or adjust properly. This valve controls gas flow to restore flame control from low to high heat for safe cooking.

This is a replacement thermostat mounting screw that secures the temperature control sensor for reliable positioning and consistent temperature sensing. A simple, low-cost fix when the existing screw is missing, stripped, or damaged. What it does:

• Secures the thermostat or temperature sensor to the appliance housing or bracket
• Keeps the thermostat sensor in correct contact/position for accurate temperature readings
• Prevents the sensor from shifting, which can cause temperature fluctuations or inconsistent operation
• Replaces stripped, corroded, or missing mounting hardware

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Use the correct screwdriver and match thread engagement; do not force or cross-thread the screw
• Tighten snugly but avoid overtightening to prevent damage to the thermostat or housing
• After installation, restore power and verify proper temperature control and operation

Fixes burner that won't light or clicks but doesn't ignite. This valve controls gas flow to restore reliable ignition and heat control on your range.

Burner head sits on the base and distributes gas through precision ports for even flame. Replace if cracked, clogged, or corroded for proper ignition.

Auxiliary burner head for gas ranges and cooktops. Mounts over the orifice to distribute gas through precision ports. Replace if clogged or damaged.

Burner head for gas ranges and cooktops. Distributes gas evenly to create a proper flame. Replace if cracked, damaged, or clogged with buildup.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

Burner cap covers the gas burner head to distribute flame evenly. Replace if chipped, cracked, or causing uneven heating. Verify fit by model number.

Replace your range burner cap when flames are uneven, discolored, or the cap is cracked or chipped. Ensures proper gas flow and even heating. Confirm fit with your model number.

Color: Black. Size: Large.

Color: black. Small size. Measures about 2-1/2 inches in diameter.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

Burner won't spark or light? This range top burner igniter creates the spark to ignite gas burners. Easy 15-minute DIY fix for cracked igniters.

Secures the burner orifice to the gas manifold on your range. Replace if the holder is cracked, broken, or missing to keep burner components aligned.

Orifice holder tube assembly for gas ranges. Secures and positions the burner orifice. Replace if cracked, damaged, or missing to restore proper fit.

Fix uneven flames or burner performance issues with this range orifice holder tube. Directs gas flow to burners. Moderate DIY repair, 30-45 minutes.

Burner orifice holder tube for gas ranges. Mounts to the burner assembly and holds the gas orifice in place. Replace if cracked, broken, or missing.

This switch harness links the five valve-mounted ignition switches to the spark system so the surface burners light when you turn a knob. Replacing a damaged harness restores consistent, reliable ignition across all burners.

• Provides the electrical path from the valve/knob-activated switches to the spark module to ignite the burners
• Failure can cause no click/spark on one or more surface burners
• Stuck or shorted switches may cause constant clicking even with knobs off
• Intermittent ignition or burners lighting only when the knob is positioned just right
• Visual clues include cracked switch bodies, brittle insulation, or burned/broken wires

• Disconnect power and shut off gas supply before servicing
• Remove grates and knobs; lift the cooktop or top panel to access the valve switches
• Note wire routing and valve order; seat each switch on its valve stem and connect leads securely away from heat
• Restore power and test each burner for proper spark before reassembly

Gas supply tube kit for ranges. Replace if you notice gas leaks, damaged tubing, or during range installation. Verify fit with your model number.

Fix continuous clicking or no-ignite issues on gas range burners. This spark module controls ignition timing and generates sparks to light surface burners.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Oven won't heat or takes too long to preheat? A weak or failed igniter is the most common cause. Easy DIY repair, typically completed in under 15 minutes.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

If your oven won't heat or igniter glows but gas won't light, the igniter is likely weak. This is a common DIY repair taking 15-30 minutes.

Connects the gas supply line to your range's broil burner. Replace this fitting if it's cracked, corroded, stripped, or causing gas connection issues.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Broil burner tube routes gas to your range's broil element. Replace if tube is rusted, cracked, or damaged to restore proper gas flow and broiling function.

Hand-tighten wing nut secures panels, brackets, and components in ranges and ovens for tool-free adjustment. Replace when lost, stripped, or broken.
