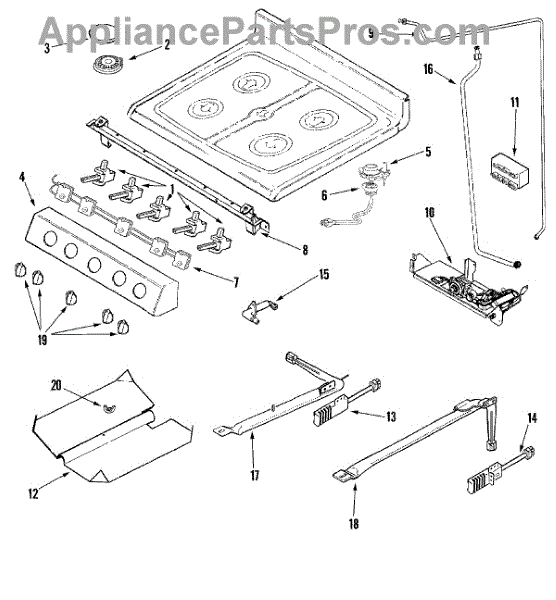

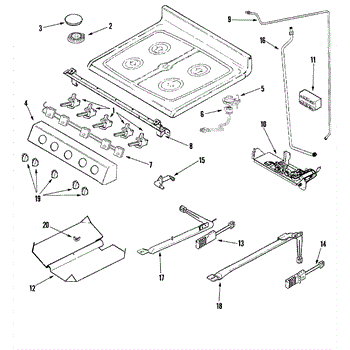

Parts for Maytag MGR5875QDS: 05 - Gas Controls Parts

This replacement burner valve controls gas flow to a single cooktop burner, restoring proper ignition and flame adjustment for safe cooking performance. What it does:

• Regulates gas flow to the burner so the flame can be adjusted from low to high
• Replaces a worn or damaged valve that causes a weak or uneven flame
• Can fix burners that will not light reliably or that sputter during operation
• Interfaces with the range's gas manifold and burner orifice for normal operation

• Turn off the appliance power and gas supply before starting work
• Use proper tools and follow OEM instructions
• Check all gas connections for leaks after installation using a leak-detection solution

This gas valve controls fuel flow to the range/oven burner, restoring reliable ignition and heat control. Precision operation helps maintain even cooking and safe burner performance when the valve is faulty. What it does:

• Regulates gas flow to the burner assembly so the oven/range heats correctly
• Works with the appliance's safety and ignition systems to enable reliable lighting
• Commonly replaced for symptoms like no heat, intermittent ignition, or gas smell during operation
• Designed as a direct-fit valve for compatible Whirlpool-built ranges using Copreci 16k valves

• Turn off gas supply and disconnect power before attempting service
• Follow the appliance service manual for proper valve removal and gas line reconnection
• Check all fittings for leaks after installation and before returning the appliance to service

This is a replacement thermostat mounting screw that secures the temperature control sensor for reliable positioning and consistent temperature sensing. A simple, low-cost fix when the existing screw is missing, stripped, or damaged. What it does:

• Secures the thermostat or temperature sensor to the appliance housing or bracket
• Keeps the thermostat sensor in correct contact/position for accurate temperature readings
• Prevents the sensor from shifting, which can cause temperature fluctuations or inconsistent operation
• Replaces stripped, corroded, or missing mounting hardware

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Use the correct screwdriver and match thread engagement; do not force or cross-thread the screw
• Tighten snugly but avoid overtightening to prevent damage to the thermostat or housing
• After installation, restore power and verify proper temperature control and operation

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

Color: Black. Size: Medium.

Color: Black

Color: Black. Size: Large.

Color: black. Small size. Measures about 2-1/2 inches in diameter.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This top burner igniter is a genuine Whirlpool part, sold individually. This top burner igniter can be used as a replacement part in a gas range. This part fits into the surface burner orifice holder to connect to the spark module such that the gas can be turned on to heat up the burner.A top burner igniter might have to be replaced at some point in the lifespan of a gas range. A top burner igniter can be subject to damage if the connection between the igniter and the spark module is severed or is malfunctioning. The primary symptom of a malfunctioning top burner igniter is a gas burner that will not start or ignite properly. If this occurs, the top burner igniter should be removed and replaced with this genuine OEM replacement part before using that burner of the gas range again.This is an OEM part sourced directly from the manufacturer. This top burner igniter is compatible with the following appliance brands: Whirlpool, Amana, Jenn Air, KitchenAid, Ikea, and Maytag.

This orifice holder secures the burner orifice to the gas manifold so the burner stays aligned and maintains proper gas flow. It helps keep burner assembly components positioned for consistent ignition and flame performance. What it does:

• Holds the burner orifice in place on the manifold to prevent misalignment
• Keeps the orifice correctly positioned for steady gas flow and stable flames
• Can address symptoms like uneven flame, intermittent ignition, or poor burner performance when the orifice is loose
• Works as a direct replacement part for the factory-mounted orifice support

• Turn off gas supply and electrical power before servicing any gas appliance
• Inspect surrounding gaskets and fittings; replace damaged parts as needed
• Tighten to manufacturer torque specs and check for gas leaks after installation

This switch harness links the five valve-mounted ignition switches to the spark system so the surface burners light when you turn a knob. Replacing a damaged harness restores consistent, reliable ignition across all burners.

• Provides the electrical path from the valve/knob-activated switches to the spark module to ignite the burners
• Failure can cause no click/spark on one or more surface burners
• Stuck or shorted switches may cause constant clicking even with knobs off
• Intermittent ignition or burners lighting only when the knob is positioned just right
• Visual clues include cracked switch bodies, brittle insulation, or burned/broken wires

• Disconnect power and shut off gas supply before servicing
• Remove grates and knobs; lift the cooktop or top panel to access the valve switches
• Note wire routing and valve order; seat each switch on its valve stem and connect leads securely away from heat
• Restore power and test each burner for proper spark before reassembly

Spark module that controls the ignition sequence for gas range surface burners, producing the spark needed to light burners. Replacing a faulty module restores proper sparking and helps eliminate persistent clicking or no-ignite conditions. What it does:

• Generates high-voltage sparks to the burner igniters so gas burners light reliably; failure can cause burners not to ignite.
• Directs spark timing for individual surface burners; symptoms of failure include continuous clicking, intermittent sparks, or one or more burners failing to light.
• Works with the range's ignition system to coordinate spark and valve operation; does not include igniters or valves.

• Disconnect electrical power (and gas supply where applicable) before beginning any repairs.
• Photograph wiring connections before removal to ensure correct reconnection; reconnect wires to matching terminals.
• Use the exact OEM part number and replace with the same module to ensure proper fit and operation.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Size: 10-24X5/16-NI

The Oven Igniter is an OEM part for Whirlpool ovens, designed to ignite the gas in the oven burner, allowing it to heat. This crucial component is responsible for creating the spark that starts the combustion process, enabling your oven to reach the desired temperature for baking or broiling.

Causes of a bad oven igniter include wear and tear from regular use, a buildup of residue that can inhibit the igniter's ability to heat properly, or electrical issues that prevent the igniter from drawing enough current.

Symptoms of a bad Oven Igniter include:

• Oven not heating up at all
• Oven takes longer than usual to heat up
• Gas smell when the oven is turned on, indicating gas is not igniting

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 10-24X5/16-NI

The Oven bake Igniter is an OEM part for Whirlpool ovens. It is a crucial component that ignites the gas to create the flame needed for baking and broiling. By heating up to the necessary temperature, it allows the gas valve to open and ignite the gas, ensuring the oven reaches and maintains the desired cooking temperature.

Causes of a bad igniter can include electrical failures, wear and tear over time, or damage due to repeated heating cycles. An igniter can also degrade if exposed to food spills or cleaning chemicals.

Symptoms of a bad igniter include:

• Oven not heating up
• Delayed ignition or no ignition at all
• Weak or intermittent flame
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This broil burner tubing routes gas/heat to the oven's broil element for consistent broiling performance. It replaces damaged or rusted tubing to restore proper broil operation and help maintain safe oven function. What it does:

• Channels the broil burner flame/heat toward the oven cavity for even broiling
• Replaces corroded, cracked, or bent tubing that can disrupt broil performance
• Helps prevent gas leaks and improper flame spread when installed correctly
• Works with the oven's broil assembly to maintain intended cooking results

• One broil burner tubing (single piece as pictured)

• Disconnect power and shut off gas supply before servicing; follow all safety procedures
• Inspect surrounding fittings, brackets, and gaskets and replace if worn to ensure a proper seal
• Tighten connections to manufacturer torque/spec recommendations and check for leaks after installation

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud
