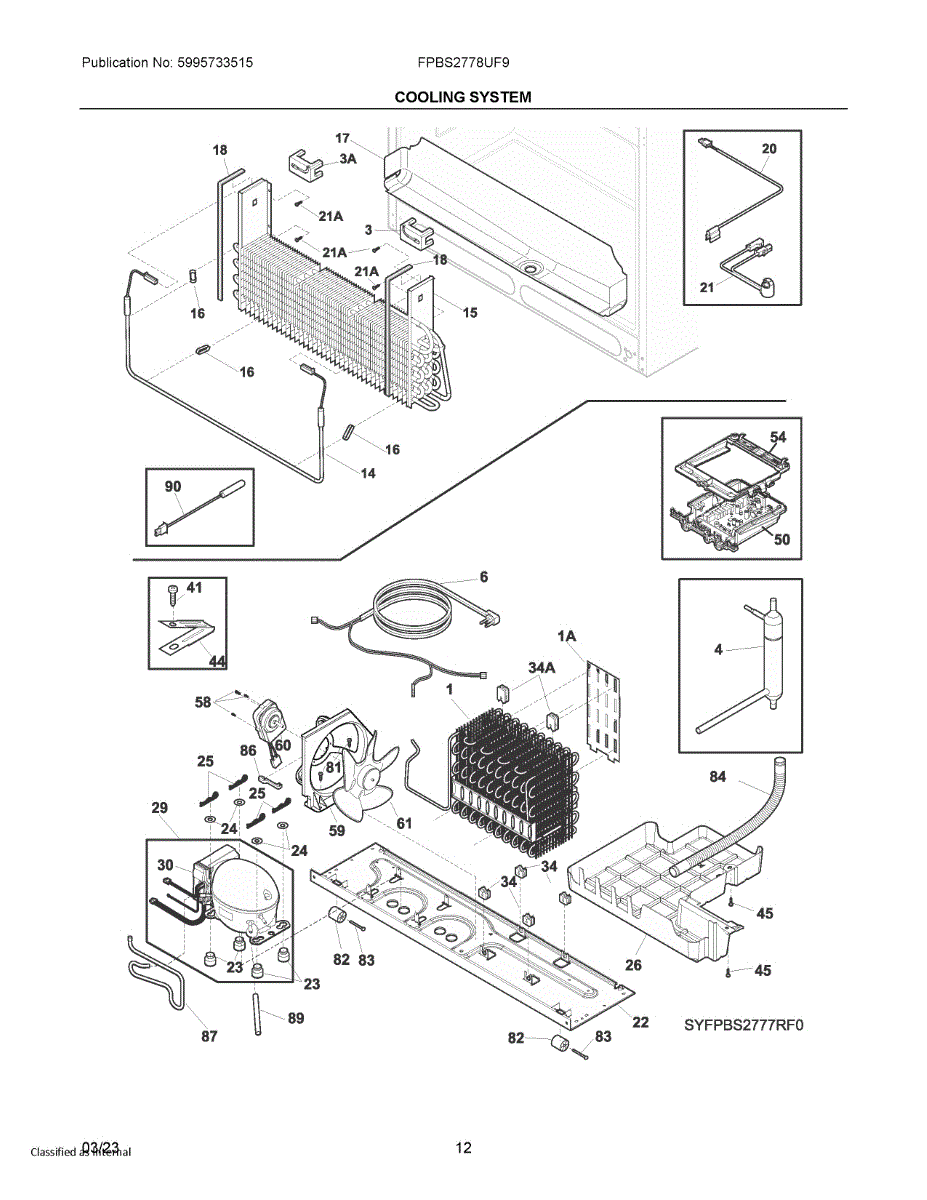

Parts for Electrolux FPBS2778UF9: 06 - Cooling System Parts

Molded plastic air deflector that directs cold airflow inside your refrigerator. Replace this part if cracked, broken, or missing to restore proper venting.

Refrigerator not cooling properly? This condenser coil assembly removes heat from refrigerant to restore cooling performance and improve efficiency.

This evaporator block is the refrigerator evaporator coil assembly that removes heat from the freezer/refrigerator compartment to help maintain proper cooling and reduce frost buildup. What it does:

• Circulates refrigerant through the evaporator to absorb heat from the compartment
• Promotes cold airflow across the freezer and fresh-food sections when paired with the evaporator fan
• Helps control frost and ice buildup on the evaporator surface
• Common symptoms: reduced cooling, excessive frost or ice buildup, or warm freezer temperatures

• Always disconnect power to the appliance before servicing
• Replacing the evaporator typically requires accessing sealed refrigerant areas;
• Allow components to fully defrost and drain before removal to avoid water damage
• Handle the coil gently to avoid bending fins or damaging tubing

Includes service line.

Connects your refrigerator to the wall outlet to supply electricity. Replace if the original cord is frayed, damaged, or has exposed wires from wear or moving.

Fix frost buildup on evaporator coils causing warm temps or freezer icing. This defrost heater melts accumulated ice. DIY repair in 30-40 minutes.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Fix inconsistent cooling or frost buildup with this refrigerator thermistor. Monitors compartment temperature and signals the control board. Straightforward DIY repair.

Mounting screw for refrigerator components and panels. Replaces lost, stripped, or damaged screws. Essential hardware for secure assembly.

Ice buildup in your freezer? This defrost thermostat monitors temperature and triggers defrost cycles. Fixes frost on rear panels and ice maker areas.

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures the compressor to the mounting bracket in your refrigerator. Replace if washer is missing, cracked, or worn to restore proper support.

Clip spring for refrigerator shelves and compartments. Replaces broken, missing, or worn clips that secure parts in place. Direct fit replacement.

Water pooling under your fridge? The defrost drain pan collects meltwater during defrost cycles. Moderate difficulty—may require tilting the fridge.

Refrigerator not cooling or running constantly? The compressor circulates refrigerant to maintain temperature. Professional installation recommended.

Fix warm fridge or inconsistent cooling caused by a failed compressor inverter. This module powers variable-speed compressors. Moderate DIY repair.

Rubber grommet that cushions and protects door components in your refrigerator. Replace if cracked, worn, or missing to restore proper door function.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

Replacement mounting screw secures panels, brackets, and trim inside refrigerators and freezers. Restores factory assembly when original fasteners are missing.

Positions the condenser fan and motor in the rear machine compartment. Replace if cracked, warped, or damaged to restore proper airflow direction.

Refrigerator not cooling or making loud grinding noise? The condenser fan motor drives airflow to cool refrigerant. DIY repair in 30-60 minutes.

Refrigerator not cooling properly? A damaged condenser fan blade prevents airflow over the condenser coils. Quick DIY fix—simply push into place.

Secures the evaporator or condenser fan shroud to the refrigerator cabinet. Replace this mounting screw if stripped, missing, or broken during repair.

Supports refrigerator crisper or bin drawers for smooth gliding. Replace when drawers stick or bind. Confirm fit with your model number listed.

Metal rivet fastener permanently secures panels, brackets, and internal components in refrigerators. Replace damaged, missing, or worn rivets to restore fit.

Channels defrost water from the evaporator to the rear drain pan. Replace this tube if it's cracked, clogged, missing, or has become brittle over time.

Positions and secures condenser tubing to maintain proper spacing. Replace if worn, broken, or missing to prevent vibration, rattling, and tube damage.

This tube connector is a small water-line fitting that joins refrigerator water and ice-maker tubing, restoring a secure path for water flow. It helps stop leaks and regain consistent water delivery to the dispenser or icemaker. What it does:

• Joins two sections of refrigerator water tubing to maintain a watertight connection
• Stops leaks at a damaged or worn tube joint
• Restores water flow to the ice maker or dispenser when a broken connector is the cause
• Compatible with rigid and soft tubing in typical refrigerator plumbing layouts

• One tube connector

• Shut off the refrigerator water supply before servicing
• Inspect tubing ends and replace damaged tubing or seals as needed
• Use proper fittings and tighten to manufacturer torque; avoid over-tightening

Refrigerator not cooling or freezer warming up? The heat exchanger manages refrigerant flow in the sealed system. Professional installation recommended.

Foam seal tape creates airtight barriers around refrigerator components. Replace when worn, compressed, or damaged to restore proper sealing and efficiency.

Connects dispenser controls and components in the refrigerator door. Replace if the wiring is damaged, frayed, or causing intermittent dispenser operation.

Refrigerator not cooling or lights flickering? This electrical wiring harness restores power connections between components. Moderate DIY repair in 1-2 hours.

Replacement mounting screw for refrigerator panels, handles, brackets, and internal fixtures. Order when original screws are stripped, lost, or damaged.
