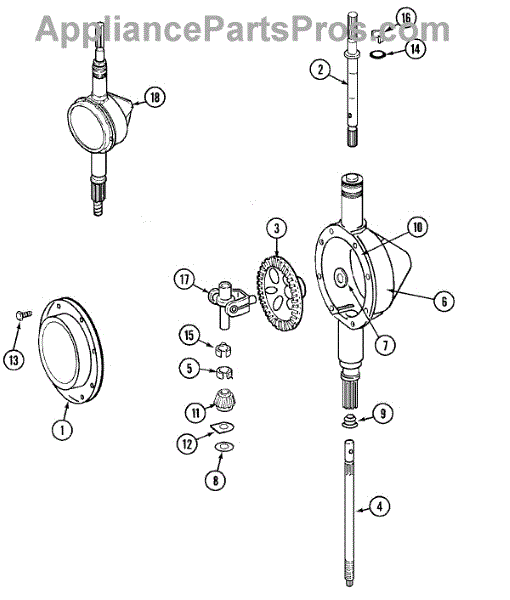

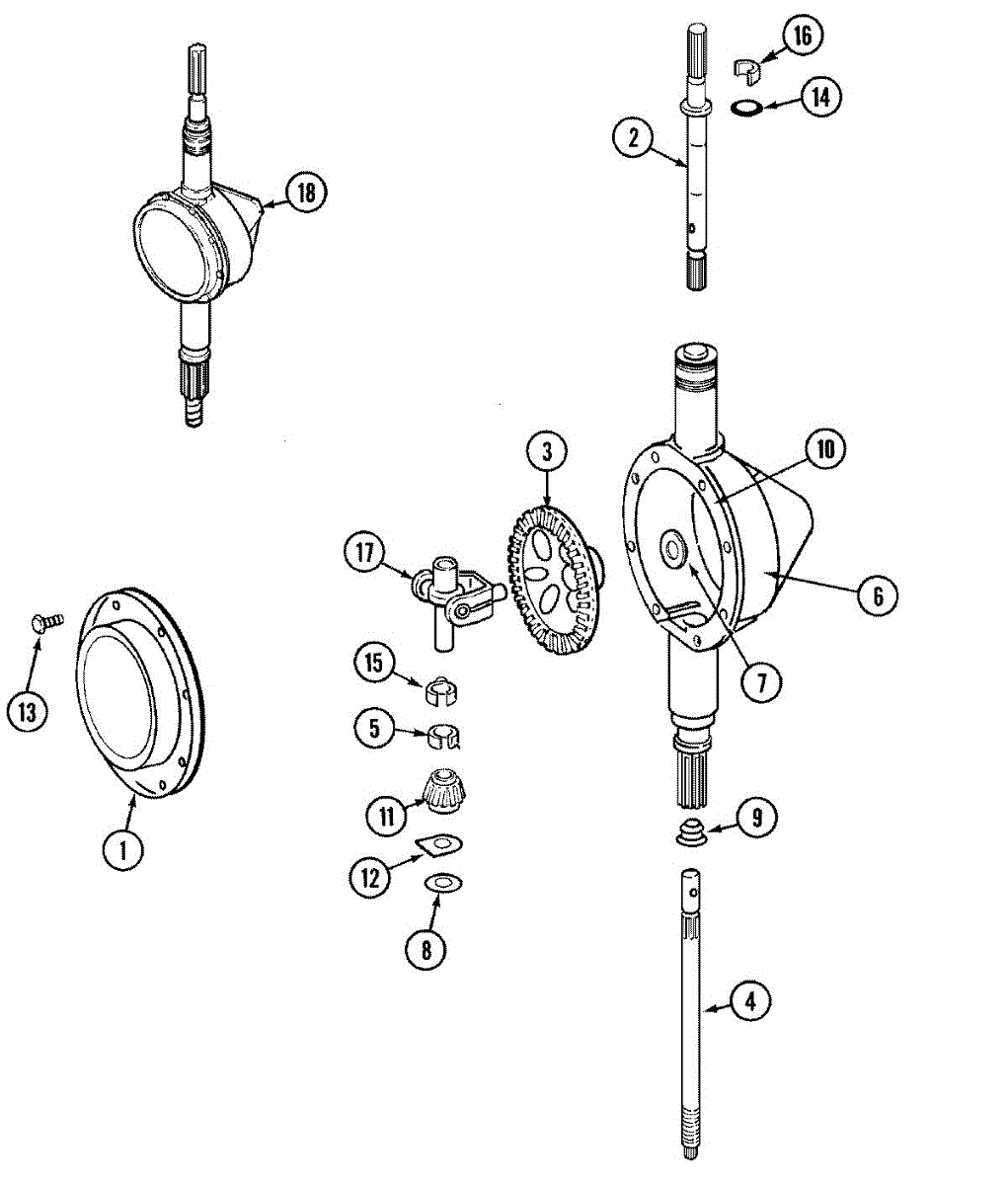

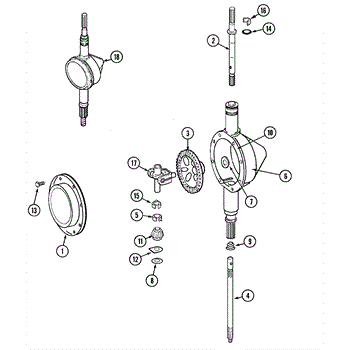

Parts for Maytag LAT2600AAE: 07 - Transmission Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This central shaft connects the motor to the washer transmission and includes a securing collar for proper alignment. Located at the bottom of the wash basket, it transfers power for agitation and spin cycles. Replace when the washer won't agitate, makes grinding noises, or the basket won't spin properly.

This small spacer washer fits in the washer's drive assembly to set the correct clearance between mating parts. Proper spacing helps components rotate smoothly and quietly while minimizing metal-to-metal contact and premature wear.

• Maintains the specified gap and alignment within the drive/brake or pulley stack
• Helps reduce friction, rubbing, and vibration
• A worn, distorted, or missing spacer can contribute to scraping or grinding noises and excess play
• Often replaced during service of related drive components to restore correct stack order

• Disconnect power before servicing; shut off water if moving the appliance
• Access and procedure vary by model—refer to your unit's service manual or parts diagram for the correct stack order
• Support the appliance if working from below; remove belt/pulley or related parts as required
• Reassemble in the exact order and orientation; verify free rotation before test-running

Prevents oil leaks from the transmission area. Replace if you see oil puddles under your washer. Confirm fit with your model number before ordering.

High-temperature adhesive secures gaskets, seals, and feet in hot zones. Replace when parts loosen or seals fail. Confirm fit with your model number.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Small drive gear inside the washer transmission gearcase that meshes with mating gears. Replace when worn, stripped, or damaged to restore power transfer.

Washer won't spin or spins weakly? A worn clutch plate causes slipping and shuddering during spin cycles. Moderate DIY repair restores reliable performance.

This rubber seal creates a tight barrier between mating components to keep water contained and stop drips. Replacing a flattened or cracked seal helps prevent leaks and protects nearby parts from moisture-related damage. What it does:

• Forms a watertight gasket between two parts in the assembly
• Helps prevent drips or seepage at the connection point
• Restores proper compression when the original seal hardens or deforms
• Common signs of failure: leaks, dampness, or visible cracking/flattening of the old seal

• 1 rubber seal

• Disconnect power; for water-bearing assemblies, shut off the water supply
• Access the seal location per your service information and note orientation/depth before removal
• Clean mating surfaces; lightly moisten the new seal with water or mild soap to ease installation
• Ensure the seal is fully seated, reassemble, and test for leaks

This lower plastic collar is a small retainer that keeps mating components aligned and secure within the assembly. Replacing a worn or broken collar restores proper fit, reduces play, and helps prevent rubbing or noise during operation. What it does:

• Acts as a keeper/retainer to hold parts in position on a shaft or hinge point
• Maintains spacing and alignment between moving components
• Helps reduce wobble, scraping, or squeaking caused by excess play
• Replaces collars that are cracked, deformed, or missing

• 1 lower plastic collar

• Disconnect power and, if applicable, shut off water before servicing
• Support the assembly to relieve load before removing the old collar
• Match the original orientation; press/seat the new collar fully and evenly
• After reassembly, check for proper alignment and smooth, quiet operation

Secures the agitator to the drive shaft in top-load washers. Replace this collar if it's cracked, worn, or missing to restore proper agitator alignment.

Located beneath the washer tub, this gear assembly transfers power from the motor to create the agitation and spin cycles. Replace when clothes aren't getting clean, the washer won't spin, or you hear loud grinding or clicking noises during operation.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
