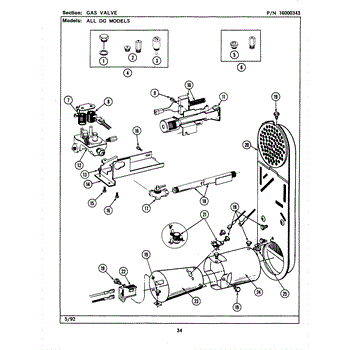

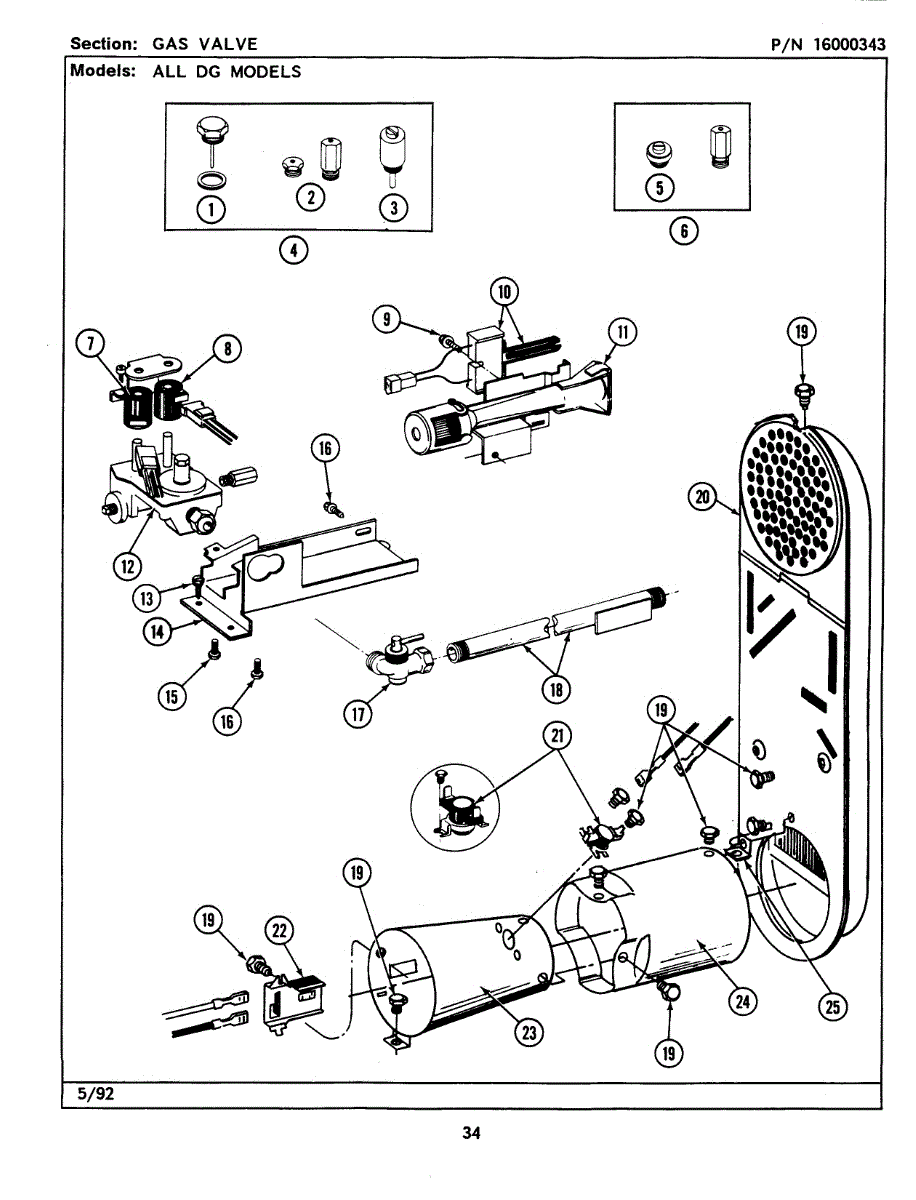

Parts for Maytag MDG27CSABL: 08 - Gas Valve Parts

This LP gas conversion orifice adjusts gas flow for compatible gas ranges and cooktops when converting from natural gas to liquid propane, helping the appliance run safely and correctly after conversion. What it does:

• Replaces the burner orifice to reduce gas flow for LP fuel pressure and correct flame size
• Helps restore consistent, stable burner flames after an authorized LP conversion
• Addresses symptoms like unusually large or yellow flames, poor ignition, or unstable burner performance after conversion
• Works with the appliance's existing valve and burner components as part of a proper conversion

• Follow the appliance manufacturer's LP conversion instructions and parts list exactly
• Turn off gas supply and disconnect power before servicing
• Use correct torque and fittings; do not force or cross-thread the orifice
• Always perform an approved gas leak test and check burner flames after installation

The LP Gas Conversion Kit is an OEM part for Whirlpool appliances. This kit allows for the conversion of natural gas appliances to use liquid propane (LP) gas. It includes all necessary components, such as orifices and instructions, to ensure a safe and efficient conversion.

Over time or due to specific needs, you might need to convert your appliance from natural gas to LP gas. Causes for needing this conversion include moving to an area where only LP gas is available or preferring LP gas due to its efficiency and environmental benefits.

Symptoms indicating the need for a gas conversion kit include:

• Moving to a location that only supplies LP gas
• Changing energy preferences for better efficiency
• Appliances set up for natural gas needing adaptation to LP gas

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Natural Gas Limiter is an OEM replacement part for Whirlpool dryers. Located where the gas supply connects, it regulates safe flow levels to fuel burners during heating cycles. Precise control prevents over-firing issues.

Symptoms of a faulty limiter include:

• Dryer not achieving proper temperatures or taking too long
• Yellow flames indicating abnormal gas-to-air ratios
• Fault codes showing problems with gas valve readings

Causes can range from debris accumulation reducing gas flow to mechanical wear of linkage components. This replacement restores optimized operation.

This OEM replacement part is compatible with select KitchenAid and Maytag brand models.

This Kit includes the Regulator Lock Limiter, the Main Orifice Spud and the instruction sheet.

The Dryer Gas Valve Coil Kit is an OEM replacement part for Whirlpool dryers, as well as Kenmore and Samsung dryers. It is a set of coils that control the flow of gas fuel to the burner. The gas valve regulates the precise amount of gas needed to properly combust and generate heat for drying clothes.

Causes of a bad gas valve coil can be wear and tear from regular use, lime or mineral buildup on the coils over time, or physical damage to the coils.

Symptoms of a bad gas valve coil kit include:

• Inconsistent or incomplete drying
• Slow or intermittent drying
• Burning smell from the gas dryer
• Improper burner ignition or non-ignition

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Gas Valve Coil Kit is an OEM replacement part for Whirlpool dryers, as well as Kenmore and Samsung dryers. It is a set of coils that control the flow of gas fuel to the burner. The gas valve regulates the precise amount of gas needed to properly combust and generate heat for drying clothes.

Causes of a bad gas valve coil can be wear and tear from regular use, lime or mineral buildup on the coils over time, or physical damage to the coils.

Symptoms of a bad gas valve coil kit include:

• Inconsistent or incomplete drying
• Slow or intermittent drying
• Burning smell from the gas dryer
• Improper burner ignition or non-ignition

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Flat Style Dryer Igniter is an OEM part for Whirlpool dryers. This essential component is responsible for igniting the gas in the burner, allowing the dryer to heat up and effectively dry your clothes. The igniter heats up to a high temperature to ignite the gas, starting the heating process necessary for drying.

Causes of a bad dryer igniter include wear over time due to repeated heating cycles, electrical failures that prevent the igniter from heating, and physical damage which can cause the igniter to break or malfunction.

Symptoms of a bad dryer igniter include:

• Dryer not heating up despite being turned on
• Gas smell indicating the gas is not being ignited
• No visible glow from the igniter area when the dryer is activated

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner assembly is the gas/air mixing and flame head for gas dryers. Replacing a warped or corroded burner restores reliable ignition and steady heat so loads dry evenly and cycle times return to normal.

• Mixes incoming gas with air and directs it to the igniter for proper light-off
• Produces a stable flame to heat the dryer's airflow
• Replaces burners that are bent, rusted, or clogged and affecting ignition
• Typical symptoms: no heat, burner won't light, intermittent heat, or long dry times

• Disconnect power, shut off gas, and allow the dryer to cool before servicing.
• Access the burner compartment; note component positions and wiring for reassembly.
• Protect the igniter and sensor mounted near the burner from impact.
• After reassembly, restore gas and check all connections with a leak-detection solution; verify proper ignition and flame.

This is a gas valve assembly designed to be used on gas dryers. This is the part that controls the gas supply for the burner assembly and heats the dryer.When this part has failed, the dryer may not start at all or may experience operational issues. If there is restricted airflow, it can cause the gas valve solenoids to fail. Check to make sure the air can flow freely. If the igniter is glowing red but still doesn't ignite the burner assembly, then the gas valve assembly will need to be replaced. It's important to disconnect the dryer from its power source and turn off the gas before starting this replacement process. The person performing the replacement may wish to wear work gloves to protect their hands during this procedure.This genuine OEM part is sold individually and is sourced directly from the manufacturer. This gas valve assembly is compatible with gas dryers that are manufactured by Whirlpool, International, and Maytag.

This gas valve includes the coils. For the coils alone use part number 279834

A single mounting screw designed to secure panels, brackets, or components on your appliance for reliable fit and reduced vibration. Use this genuine replacement when a fastener is missing, stripped, or rusted. What it does:

• Fastens panels, trim, or mounting brackets to restore proper alignment
• Helps eliminate rattling or vibration caused by loose or missing screws
• Replaces corroded or damaged hardware to maintain safe operation
• Restores secure attachment for parts that no longer hold in place

• Disconnect power to the appliance before starting any repair
• Use the correct driver bit to avoid stripping the screw head
• Tighten until snug; avoid overtightening which can strip threads or damage parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Specs: 10 - 16 x .375

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part has been discontinued and is no longer available

This high-limit thermostat is a safety temperature limiter that helps prevent overheating in electric dryers by cutting power to the heating circuit if temperatures get too high. It's a direct-replacement style part used where the dryer needs a reliable over-temp cutoff. What it does:

• Monitors dryer heater temperature and opens the circuit if the unit overheats
• Stops the heating element from running when unsafe temperatures are detected
• Helps protect internal components and reduce fire risk from sustained over-temp conditions
• Can be a factor when the dryer won't heat or the heater cycles off prematurely

• Disconnect power to the appliance before starting any repair
• Located on or near the heater assembly; access usually requires removing the dryer cabinet or rear panel
• Handle terminals and wiring carefully; note connector positions before removal
• Test continuity with a multimeter to confirm failure before replacing

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.
