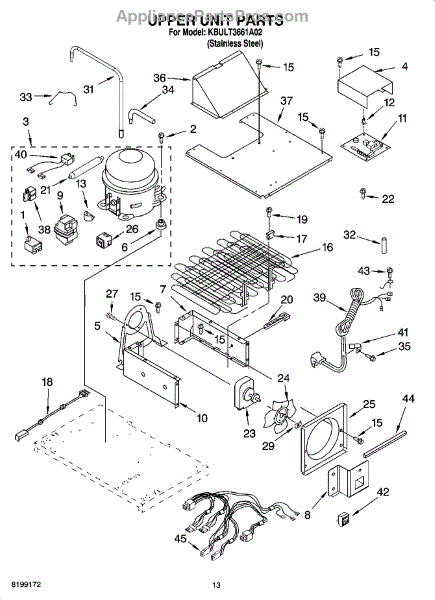

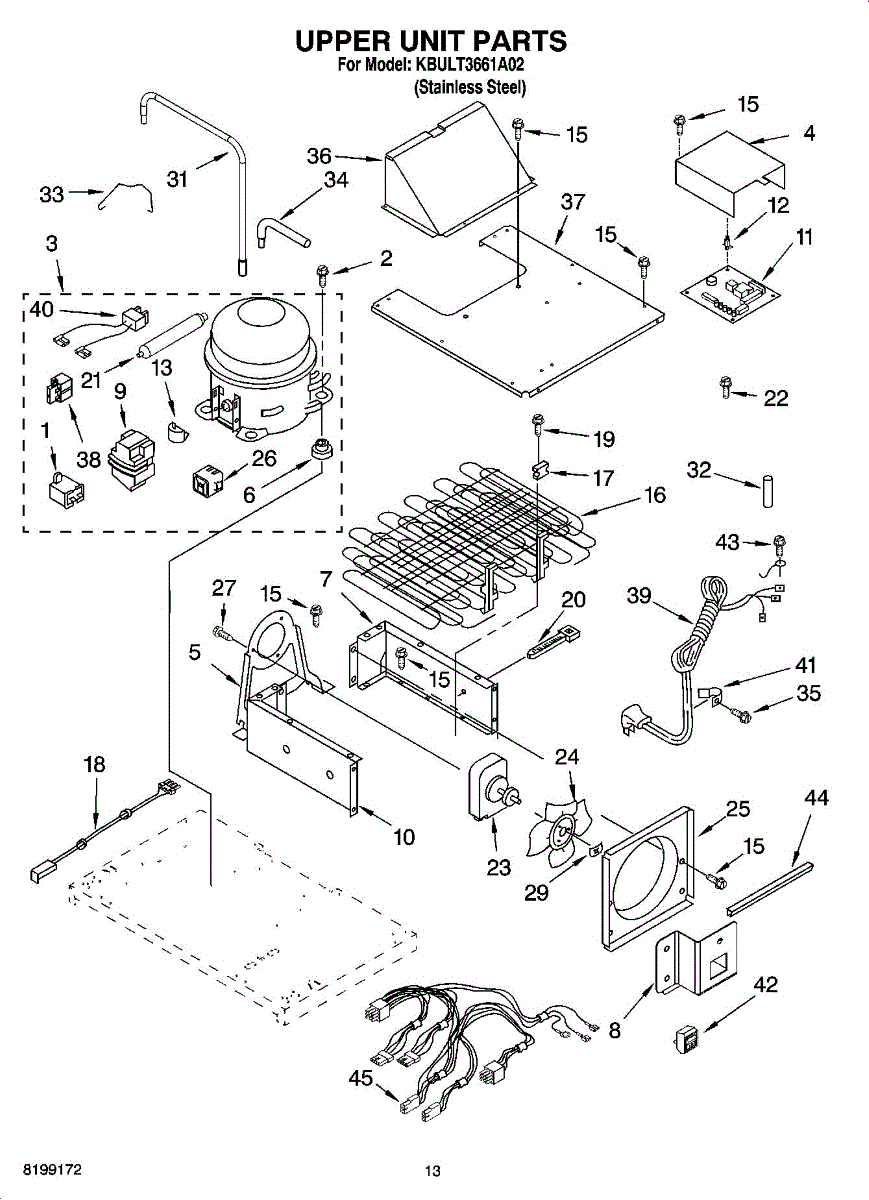

Parts for Kitchenaid KBULT3661A02: 08 - Upper Unit Parts

Replace your refrigerator water filter every 6 months for clean, fresh-tasting water and ice. Simple twist installation. Verify fit with your model number.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smoo

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Fix a refrigerator that won't cool or runs constantly with this compressor. Essential sealed system component. Professional installation recommended.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the pow

Plastic spacer that mounts between refrigerator door panels or hinges. Replace if cracked, broken, or missing to restore proper door alignment.

Compressor won't start or stops running? This thermal overload protector prevents motor overheating by cutting power when temperatures exceed safe limits.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Refrigerator not cooling properly? A faulty condenser fan jumper wire disrupts fan operation. This wire assembly restores electrical continuity.

Replacement screw that secures panels, brackets, and trim to appliance cabinets. Restores reliable hold when original hardware is stripped or missing.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Fix hot refrigerator walls or a non-spinning condenser fan. This motor drives airflow across coils to remove heat. Easy DIY install in 1-2 hours.

Refrigerator not cooling or compressor won't start? This start device assembly includes relay and overload. DIY-friendly 15-minute repair for most models.

Mounting screw for refrigerator assembly and component installation. Replace missing, stripped, or damaged screws to secure panels, shelves, or hardware.

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design en

This replacement water fill tube routes water to the appliance's dispenser/ice system so you get proper fill and reduced leaks. It restores reliable water delivery when the original tube is cracked or clogged. What it does:

• Directs water from th

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This fan cover protects the refrigerator's evaporator fan and helps direct cold air through the freezer/refrigerator compartments for consistent cooling. It restores proper airflow paths and keeps the fan area clear of ice and debris. What it does:

• Shields the evaporator fan and blade from contacts and debris
• Helps channel airflow for even cooling across compartments
• Prevents fan blades from striking ice or loose items
• Can reduce unusual fan noise caused by interference or obstruction

• Disconnect power to the appliance before starting any repair.
• Access typically requires removing interior panels or the evaporator cover; keep track of fasteners.
• Handle the evaporator and fan assembly carefully to avoid damaging fins or the motor.
• Fully defrost the evaporator area before reinstalling the cover.

The Compressor Start Relay is an OEM part for Whirlpool refrigerators. This part provides the necessary power boost to start the compressor.

Causes of a bad start relay can include electrical issues, wear and tear from regular use, or damage from power surges or overheating.

Symptoms of a bad compressor start relay include:

• The refrigerator not cooling properly
• The compressor not starting or frequently shutting off
• Clicking noises coming from the compressor area
• The refrigerator running but not reaching the desired temperature
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This wire assembly connects the capacitor to the appliance's motor or control, restoring a secure electrical path for reliable start/run operation. Replaces a damaged or worn harness to help resolve starting and intermittent power issues. What it does: <

Refrigerator won't turn on or stays running constantly? This power disconnect switch controls main power to your unit. Easy DIY replacement fix.

Screw: 8-16 x 3/8 inch.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.
