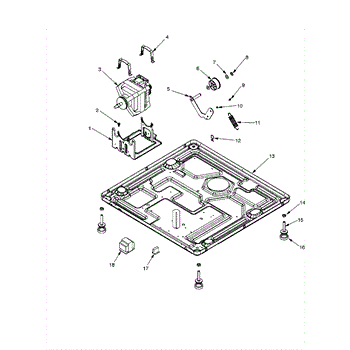

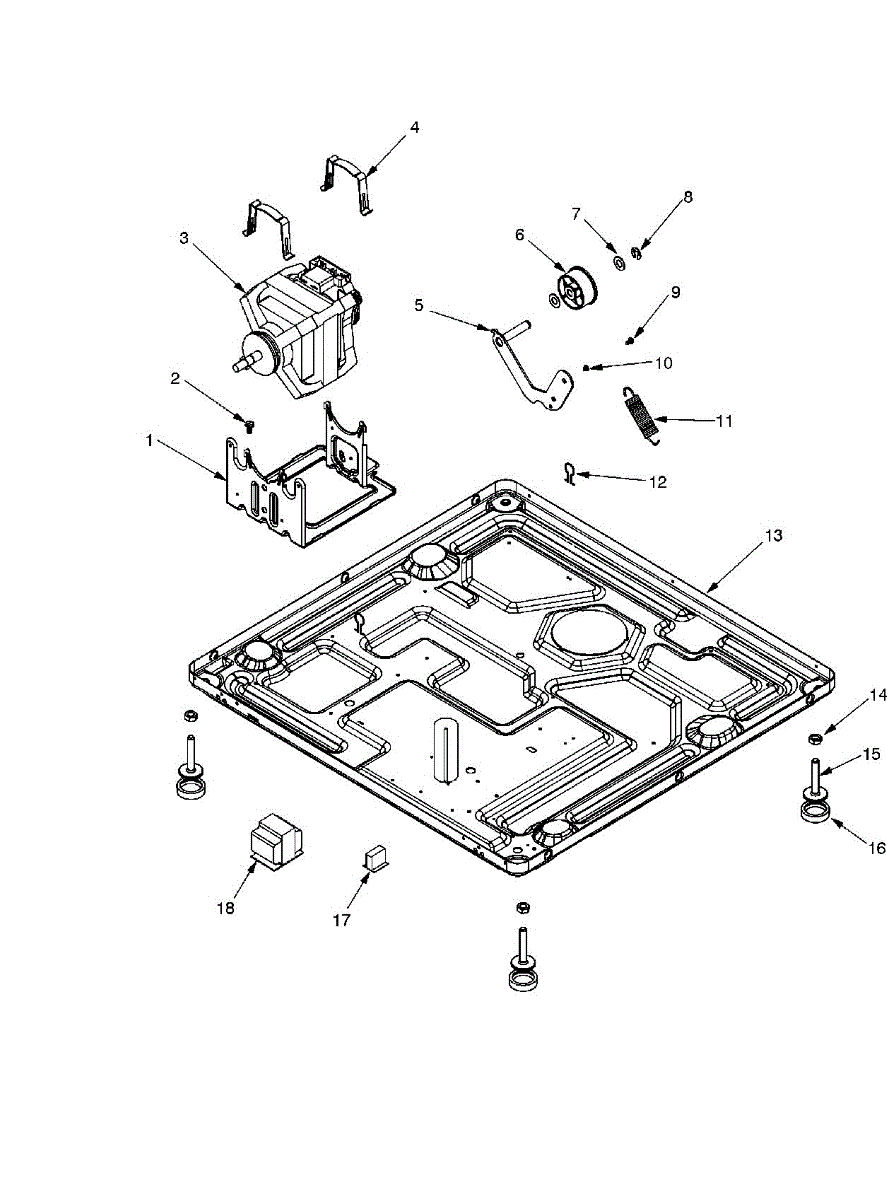

Parts for Maytag MLE23PDFGW: 09 - Base Parts

A single mounting screw designed to secure panels, brackets, or components on your appliance for reliable fit and reduced vibration. Use this genuine replacement when a fastener is missing, stripped, or rusted. What it does:

• Fastens panels, trim, or mounting brackets to restore proper alignment
• Helps eliminate rattling or vibration caused by loose or missing screws
• Replaces corroded or damaged hardware to maintain safe operation
• Restores secure attachment for parts that no longer hold in place

• Disconnect power to the appliance before starting any repair
• Use the correct driver bit to avoid stripping the screw head
• Tighten until snug; avoid overtightening which can strip threads or damage parts

This drive motor powers the rotating component in your appliance, restoring smooth, reliable motion when the original motor is worn, seized, or noisy. Use it to fix no-rotation issues and inconsistent operation.

• Converts electrical energy into torque to rotate the attached component as designed for your model
• Helps resolve symptoms like no movement, stalling, or slow/intermittent rotation
• Restores consistent, dependable rotation under normal load

• Disconnect power at the breaker before servicing; appliances may contain sharp edges and high-voltage components—use caution
• Note wire/connector orientation and transfer any mounting grommets or brackets from the old motor
• Ensure the driven component turns freely by hand before restoring power
• After installation, run a short functional test to confirm proper rotation

This motor clip secures a motor to its mounting bracket or housing, keeping it aligned and stable during operation. Replacing a bent, broken, or missing clip helps stop rattling and prevents the motor from shifting. What it does:

• Retains the motor on its mounting bracket or frame
• Helps maintain alignment to reduce vibration and noise
• Prevents movement that can cause rubbing or wire strain
• Direct replacement when the original clip is damaged or missing

• One motor clip

• Disconnect power before servicing; allow all moving parts to stop
• Access the motor area, note the clip's orientation, and remove the damaged clip
• Seat the motor fully, then install the new clip to secure it to the bracket
• Inspect related mounts/grommets and wiring for wear; verify clearances before restoring power

The Idler Pulley Arm is an OEM replacement part for Whirlpool dryers. As a connecting part, it works to route the drive belt and suspend the idler pulley. Mounted on a pivoting bracket, the durable arm positions the idler pulley to maintain proper belt tension over the lifter roll and drum.

Causes of a bad idler pulley arm can include fatigue from extended use, damage from overtightened belts, or broken welds impairing motion.

Symptoms of a bad idler pulley arm include:

• Slipping or prematurely worn drive belts
• Reduced or inconsistent drum rotation
• Grating noises or abnormal vibrations during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Belt Tension Pulley is an OEM part for Whirlpool dryers. It is crucial for maintaining the correct tension on the dryer belt, ensuring that it runs smoothly and the drum turns properly during operation. This pulley helps to keep the belt aligned and prevents it from slipping, which is essential for the efficient performance of your dryer.

Symptoms of a bad Belt Tension Pulley include:

• Unusual noises, such as squeaking or grinding, coming from the dryer when it is running.
• The dryer drum failing to turn, even though the motor is running.
• Excessive wear or damage to the dryer belt.

Causes of a bad belt tension pulley can include wear and tear from regular use, accumulation of lint and debris which may impede the pulley’s movement, or a failing bearing within the pulley assembly.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Idler Shaft Washer is an OEM part for Whirlpool dryers. This small but essential component fits on the idler pulley shaft, playing a crucial role in maintaining the alignment and tension of the dryer belt.

Symptoms of a bad Idler Shaft Washer include:

• Squeaking or squealing noises during operation, indicating misalignment or friction.
• The dryer drum failing to turn smoothly or at all.
• Excessive wear or damage to the dryer belt.
• Unusual vibrations during dryer operation.

Causes of a bad idler shaft washer can include wear and tear from regular use, loss of material integrity leading to thinning or breaking, or improper installation that may cause misalignment and increased friction.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Idler Shaft Retaining Ring is an OEM replacement part for Whirlpool dryers. Also called an "E" ring, it is a sealing gasket positioned between the front and rear housing omponents. Maintaining an airtight seal prevents gas leakage and promotes efficient drying performance.

Causes of a bad retaining ring commonly involve compression loss of the rubber gasket material over many years of heating cycles. Exposure to petroleum-based cleaners may prematurely deteriorate the seal as well.

Symptoms of a failed 'E' ring include:

• Gas leaks emitting foul odors around seams or vents
• Reduced heat conductivity hampering dryer functioning
• Moisture accumulation shortens fabric lifespan
•  Drafts compromising indoor air quality and energy bills

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

This factory fastener secures appliance components such as panels, brackets, and trim. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and helps keep assemblies aligned for reliable performance.

• Fastens appliance parts to maintain structural integrity and alignment
• Helps address symptoms like loose or vibrating panels, gaps, or hardware that won't stay tight
• Replaces lost, damaged, or corroded fasteners during repairs or reassembly
• OEM-matched thread and fit for the specified location

• Disconnect power; shut off gas or water supplies before servicing
• Replace one screw at a time to preserve alignment of parts
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver size/type specified for your model

This idler spring maintains proper tension on the dryer's drive belt by pulling the idler arm. Replacing a weak or broken spring restores consistent drum rotation and helps prevent belt slippage and noise.

• Applies tension to the idler pulley arm to keep the drive belt tight
• Helps the motor turn the drum smoothly without belt slip
• A worn, stretched, or broken spring may cause the drum not to turn or the belt to slip off
• Can contribute to squealing or chirping from the belt/pulley area

• Disconnect power; turn off gas supply for gas dryers
• Access the belt path; note belt routing and spring attachment points before removal
• Release belt tension, move the idler arm, attach the new spring, and re-tension the belt
• Rotate the drum by hand to verify belt tracking before reassembly and test run

A replacement 3/8-16 nut that secures fasteners and assemblies on compatible Whirlpool appliances. Restores proper fastening so panels, brackets and components stay tight and aligned during normal operation. What it does:

• Fastens and secures bolts, studs or threaded shafts in appliance assemblies.
• Prevents loose connections that can cause rattling, vibration or misalignment.
• Used where a 3/8-16 threaded nut is required for structural or mounting applications.
• Replaces missing, stripped or corroded nuts to restore reliable mechanical connection.

• Disconnect power and follow all appliance safety procedures before servicing.
• Inspect mating threads and remove debris; replace if threads are damaged.
• Thread onto bolt or stud by hand first, then snug with the correct wrench; avoid overtightening.
• Follow the appliance manufacturer's torque and assembly instructions.

Single unit. Includes foot pad.

The Leveling Leg Pad is an OEM replacement part for Whirlpool washing machines. This small but essential component fits beneath the leveling legs, providing stability and preventing the appliance from moving or vibrating excessively during operation. It also protects flooring surfaces from potential scratches or damage.

Symptoms of a bad Leveling Leg Pad include:

• Increased vibration or noise during the wash or spin cycle
• The washing machine wobbling or becoming unsteady
• Visible wear, cracks, or damage to the pad

Causes of a failing Leveling Leg Pad can include wear and tear from prolonged use, exposure to moisture, or excessive weight causing deformation. Replacing worn pads helps maintain the appliance's balance and efficiency.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For the leveling leg order 22003428.

This control transformer converts household line voltage to the low-voltage feed used by the appliance's control and components, restoring reliable power to timers, relays, and sensors. It's a direct-replacement electrical transformer designed for plug-and-play swap when the original is faulty. What it does:

• Steps down 120VAC line voltage to the appliance's low-voltage control circuit so controls and relays operate correctly.
• Commonly replaces a failed or intermittent transformer that causes control failures, no-power to timers, or unresponsive electronic components.
• Helps restore stable control voltage when the original transformer is noisy, overheats, or delivers inconsistent output.
• Fits the OEM mounting and wiring layout for a clean replacement without modifying existing harnesses.

• One replacement transformer

• Disconnect power at the breaker or unplug the appliance before any service—verify power is off.
• Match wiring colors and terminal positions to the original; secure all connections and use strain reliefs where present.
• Inspect mounting hardware and gaskets; replace any damaged fasteners for a secure fit.
