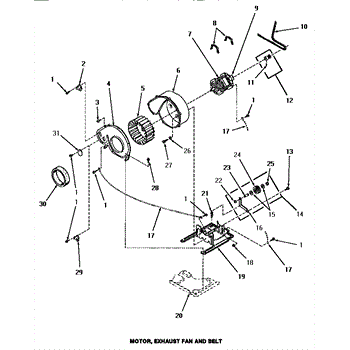

Parts for Amana HE3003: 09 - Motor, Exhaust Fan & Belt Parts

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part has been discontinued by the manufacturer and is no longer available.

The Dryer Blower Wheel is an OEM part for Whirlpool dryers. It is responsible for circulating air through the dryer drum and out the exhaust vent, ensuring efficient drying of clothes by maintaining proper airflow.

Causes of a bad blower wheel can include lint buildup, wear and tear over time, or damage from foreign objects that may have entered the dryer.

Symptoms of a bad blower wheel include:

• Reduced drying efficiency
• Unusual noises such as rattling or thumping during operation
• Overheating of the dryer
• Clothes taking longer than usual to dry

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued and is no longer available.

935J4-4 groove

This idler lever assembly tensions and guides the dryer drive belt so the drum turns smoothly. It restores correct belt routing and helps stop slipping or grinding for reliable tumbling. What it does

• Maintains proper tension on the dryer belt to enable drum rotation
• Guides the belt around the motor and drum to prevent mis-tracking
• Helps eliminate squealing or scraping noises from a worn or seized pulley
• Can cause the drum to stop tumbling or the belt to slip when failing

• One idler lever assembly

• Disconnect power (and gas supply if applicable) before starting any repair
• Access location varies by model; remove the dryer front or lower access panel per your model's service instructions
• Check belt routing and pulley spin while installing; replace belt if glazed or damaged
• Handle the return spring and sharp edges with care; wear gloves and eye protection

The Thrust Washer is an OEM part for Whirlpool washers and dryers, reduces friction between moving parts within the appliance. This small component is placed between rotating surfaces to ensure smooth operation and to extend the lifespan of those parts. The thrust washer can wear down or become damaged due to the constant pressure and movement.

Causes for replacement may include normal wear and tear, overloading the appliance, which puts extra stress on mechanical components, or a lack of regular maintenance.

Symptoms of a bad Thrust Washer include:

• Increased noise during operation
• The appliance vibrating more than usual
• A decrease in performance efficiency

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

This 1/4-20 nut secures related fasteners in appliance assemblies to keep components aligned and stable. It's a direct-fit replacement when the original nut is worn, stripped, or missing. What it does:

• Threads onto a 1/4-20 bolt or stud to lock parts together
• Restores tight mechanical connections that reduce vibration and noise
• Helps maintain proper alignment of panels, brackets, or linkage
• Commonly replaced when the original nut is rounded, corroded, or loose

• One 1/4-20 nut

• Use the correct 1/4-20 bolt or stud size and thread engagement
• Tighten to manufacturer torque if specified; avoid over-tightening
• Inspect adjoining parts (bolt, washer, bracket) for wear before reassembly
• Turn off and unplug the appliance before performing repairs

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

The Spring Idler is an OEM replacement part for Speed Queen residential clothes dryers. It works with the dryer drum to facilitate the controlled tumbling of laundry items during the drying cycle. Proper functioning is important for efficiency and effectiveness.

Causes of a bad spring idler can include material fatigue from years of repetitive use. It can also result from overloading the dryer with excessively heavy wet loads that put abnormal stress on the idler mechanism.

Symptoms of a failed spring idler include:

• The dryer drum not rotating smoothly
• Clothing failing to tumble freely and wrinkling instead
• Prolonged drying cycles and increased energy use
• Noisy squeaking or creaking emanating from inside the dryer

As the mechanism responsible for facilitating optimal tumbling, this OEM Speed Queen replacement idler spring restores smooth and efficient dryer operation.

This lock nut secures appliance components and resists loosening from vibration. Replacing a stripped, rusted, or missing nut restores a firm, reliable connection to reduce noise and prevent parts from shifting or backing off.

• Secures brackets, shafts, pulleys, panels, or other hardware as designed by the manufacturer
• Helps prevent fasteners from loosening due to vibration and thermal cycling
• Common fix for rattling/vibration noises and components that work loose over time
• Replaces damaged, rounded, or missing original nut to restore proper fit

• Disconnect power and shut off gas/water supplies before servicing
• Remove the worn nut with the appropriate wrench or socket
• Start the new nut by hand to avoid cross-threading; tighten securely—do not overtighten
• Inspect the mating bolt/stud and any washers; replace if worn or damaged

This idler pulley shaft serves as the axle the idler pulley rides on, helping maintain proper belt alignment and tension. Replacing a worn shaft can reduce squealing, wobble, and belt wear so the drive system runs smoothly. What it does:

• Acts as the pivot/axle for the idler pulley within the belt-tensioner assembly
• Helps keep the drive belt aligned and properly tensioned
• Wear or scoring can cause pulley wobble, squeaking/squealing, or belt fraying
• Can contribute to belt slippage and intermittent loss of drive

• One idler pulley shaft

• Disconnect power; shut off gas or water supply if applicable
• Relieve belt tension and access the idler assembly
• Note and transfer any spacers, washers, or retainers from the old shaft to the new one
• After reassembly, the pulley spins freely on the shaft and the belt tracks correctly

The Belt Tension Pulley is an OEM part for Whirlpool clothes dryers. It utilizes a tension mechanism to maintain precise alignment and contact between the drive belts and motor pulleys during operation.

Symptoms of a failed belt tension pulley include:

• Extended dry times or inability to dry clothes fully
• Abnormal noise or vibration coming from inside the dryer
• Premature belt wear requiring frequent replacement
• Error codes appearing or inability to start cycles

Causes of a bad pulley can include cracks, defects, or stiffness in the tension mechanism limiting its range of motion from years of operation. Lubricant breakdown within the pulley can also produce excessive friction or noise over time.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Retaining Ring is an OEM replacement part for Whirlpool dryers and washing machines. This retaining ring holds the rear wheels on the axels of the washer or dryer.

Symptoms of a bad retaining ring can include wear and tear over time, damage due to accident or impact, or corrosion affecting the structural integrity.

Causes of a bad retaining ring dryer include:

• Excessive vibration or movement of the drum during operation
• Noise or banging sounds from loose components
• Deformation or cracking of the retaining ring itself
• The dryer door not closing properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 12-14 x 1/2 screw is a factory fastener used to secure appliance panels, brackets, and components. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and keeps parts properly aligned for reliable operation.

• Secures panels, brackets, and internal components to their mounting points
• Replaces damaged, rusted, or missing hardware
• Helps stop vibration and rattling caused by loose fasteners
• Restores proper alignment and stability of covers or assemblies

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the original screw's location and length; replace one at a time
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Reinstall any original washers, clips, or spacers used with the screw

This 12-14 x 1/2 screw is a factory fastener used to secure appliance panels, brackets, and components. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and keeps parts properly aligned for reliable operation.

• Secures panels, brackets, and internal components to their mounting points
• Replaces damaged, rusted, or missing hardware
• Helps stop vibration and rattling caused by loose fasteners
• Restores proper alignment and stability of covers or assemblies

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the original screw's location and length; replace one at a time
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Reinstall any original washers, clips, or spacers used with the screw

This part has been discontinued by the manufacturer and is no longer available.
