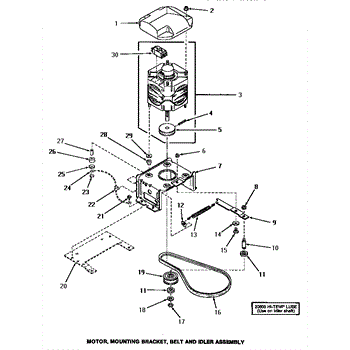

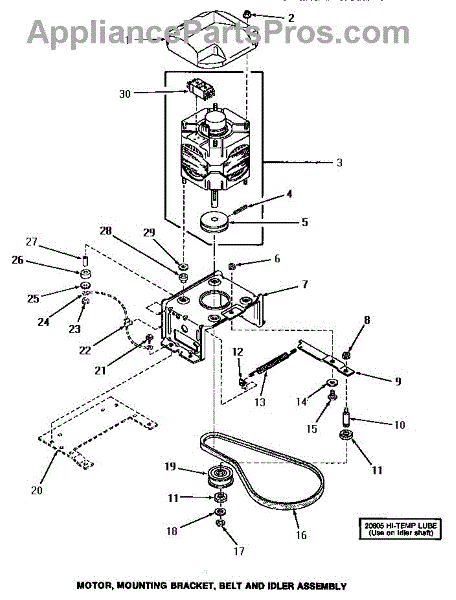

Parts for Amana UG8091: 16 - Motor, Mtg Bracket, Belt & Idler Assy Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This 1/4-20 nut secures related fasteners in appliance assemblies to keep components aligned and stable. It's a direct-fit replacement when the original nut is worn, stripped, or missing. What it does:

• Threads onto a 1/4-20 bolt or stud to lock parts together
• Restores tight mechanical connections that reduce vibration and noise
• Helps maintain proper alignment of panels, brackets, or linkage
• Commonly replaced when the original nut is rounded, corroded, or loose

• One 1/4-20 nut

• Use the correct 1/4-20 bolt or stud size and thread engagement
• Tighten to manufacturer torque if specified; avoid over-tightening
• Inspect adjoining parts (bolt, washer, bracket) for wear before reassembly
• Turn off and unplug the appliance before performing repairs

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

This idler tension spring restores proper tension to the dryer belt/idler assembly so the drum turns smoothly and the drive system runs quietly. Replaces a worn or broken idler spring to help prevent belt slippage and uneven drying. What it does:

• Provides tension for the idler pulley so the drive belt stays engaged with the motor and drum
• Helps prevent the belt from slipping, squealing, or coming off the pulley
• Reduces vibration and noise caused by a loose or broken spring
• Commonly replaced when the belt repeatedly slips or the dryer makes unusual noises

• One idler tension spring

• Disconnect power (and gas, if applicable) before servicing the appliance
• Works with the idler pulley assembly; access typically requires removing the dryer front or top panel
• Inspect the idler pulley and belt for wear and replace both if damaged

This agitate & spin drive belt transfers motor power to the washer's transmission and spin mechanism. Replacing a worn belt restores proper agitation and spin performance and helps prevent slipping noise or burning-rubber smells.

• Links the drive motor to the main pulleys to power both agitation and spin
• Replaces a broken, stretched, or glazed belt that slips under load
• Common symptoms: no spin or no agitation, weak/slow spin, squealing, burning-rubber odor, visible cracks or fraying
• Helps ensure smooth, consistent tub movement and complete cycles

• Disconnect power and water; wear cut-resistant gloves
• Access the belt from the bottom or rear, per your model's service procedure
• Release belt tension (motor carriage/idler), remove the old belt, and route the new belt around the motor and drive pulleys as shown on the unit
• Rotate by hand before restoring power and running a test cycle

The Retaining Ring is an OEM replacement part for Whirlpool dryers and washing machines. This retaining ring holds the rear wheels on the axels of the washer or dryer.

Symptoms of a bad retaining ring can include wear and tear over time, damage due to accident or impact, or corrosion affecting the structural integrity.

Causes of a bad retaining ring dryer include:

• Excessive vibration or movement of the drum during operation
• Noise or banging sounds from loose components
• Deformation or cracking of the retaining ring itself
• The dryer door not closing properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Thrust Washer is an OEM part for Whirlpool washers and dryers, reduces friction between moving parts within the appliance. This small component is placed between rotating surfaces to ensure smooth operation and to extend the lifespan of those parts. The thrust washer can wear down or become damaged due to the constant pressure and movement.

Causes for replacement may include normal wear and tear, overloading the appliance, which puts extra stress on mechanical components, or a lack of regular maintenance.

Symptoms of a bad Thrust Washer include:

• Increased noise during operation
• The appliance vibrating more than usual
• A decrease in performance efficiency

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)
