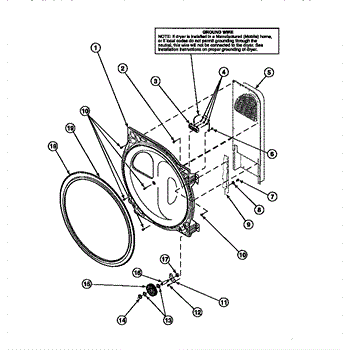

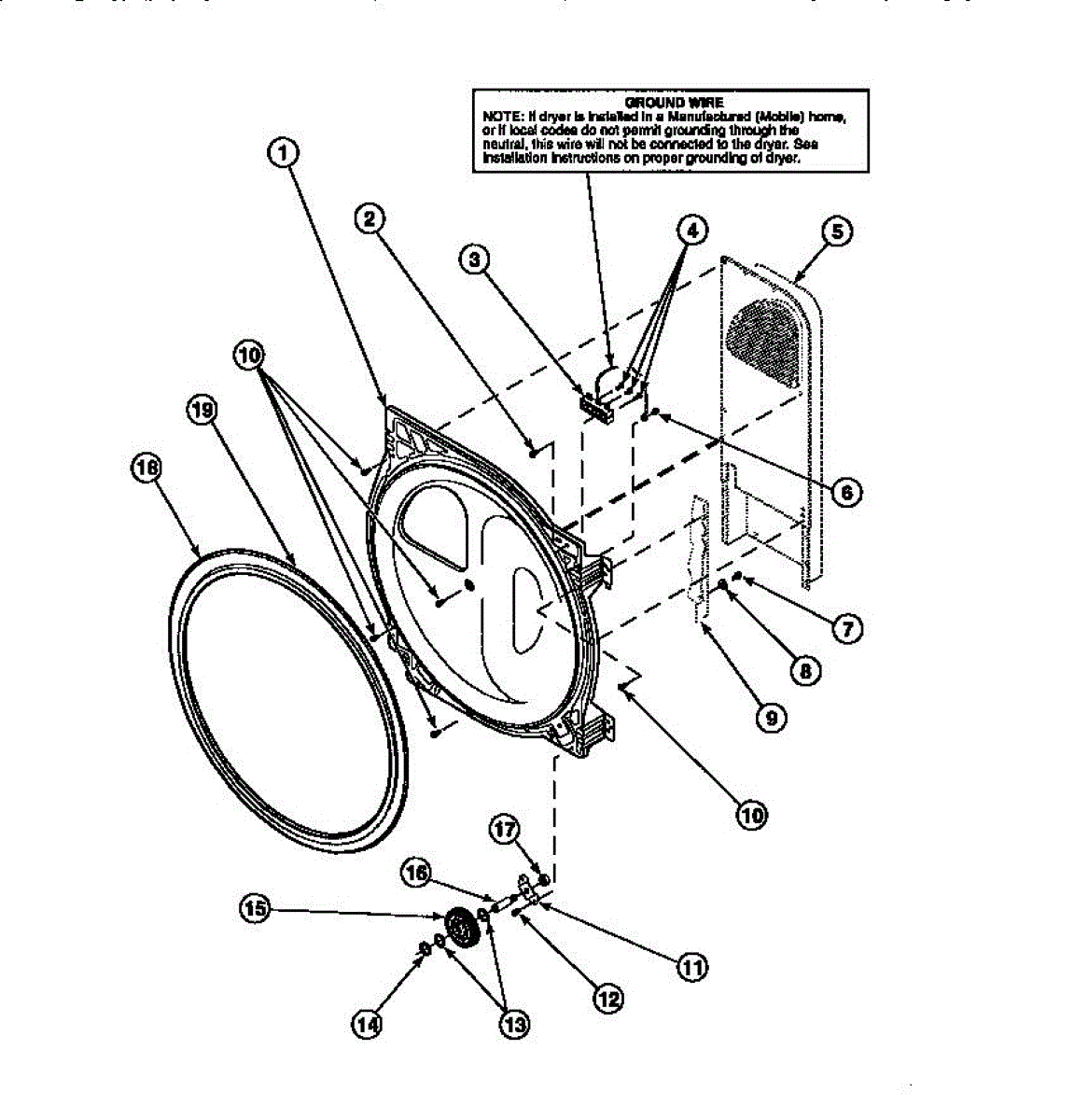

Parts for Amana LE8317L2 / PLE8317L2: 19 - Rear Blkhd / Seal / Cylinder Roller / Term Blk Parts

This terminal block provides a secure connection point for the appliance's main power and incoming wiring, restoring reliable electrical contact and preventing loose or arcing connections. What it does:

• Creates a stable, screw-down connection for incoming power wires and internal leads
• Helps prevent intermittent power, arcing, or burning at the connection point
• Used where the power cord or internal harness attaches to the appliance chassis
• Commonly replaced when terminals are loose, melted, corroded, or show signs of overheating

What's included:

• One terminal block

Install notes:

• Disconnect power at the breaker or unplug the appliance before starting any work
• Take a photo of existing wiring before removal to ensure correct reconnection
• Reuse existing screws or replace with equivalent hardware; tighten firmly but avoid overtightening
• If terminals show heat damage or corrosion on mating connectors, replace both the block and affected connectors

Machine screw fastens panels, brackets, and components inside appliances. Replace stripped, missing, or loose screws to restore secure assembly.

Size: 10-24 x 3/8 inch.

Size: 10-24 x 3/8 inch.

10 - 16 x 1/2

Dryer drum roller axle mounts to the rear panel and supports drum rollers. Replace if bent, worn, or wobbling. Helps eliminate noise from damaged axles.

10 - 16 x 1/2

The Thrust Washer is an OEM part for Whirlpool washers and dryers, reduces friction between moving parts within the appliance. This small component is placed between rotating surfaces to ensure smooth operation and to extend the lifespan of those parts

The Retaining Ring is an OEM replacement part for Whirlpool dryers and washing machines. This retaining ring holds the rear wheels on the axels of the washer or dryer.

Symptoms of a bad retaining ring can include wear and tear over time,

This roller supports and stabilizes the dryer drum as it rotates. Replace if worn, cracked, or causing noise during operation. Installs behind the drum.

Shaft that the idler pulley rotates on in your dryer. Replace if worn, wobbling, or causing squealing. Helps maintain proper belt tension and alignment.

This lock nut secures appliance components and resists loosening from vibration. Replacing a stripped, rusted, or missing nut restores a firm, reliable connection to reduce noise and prevent parts from shifting or backing off.

• Secures brackets,

Replace your dryer's drum felt seal to stop air leaks, reduce noise, and prevent clothing stains. Fits between drum and bulkhead. Confirm fit with model.
