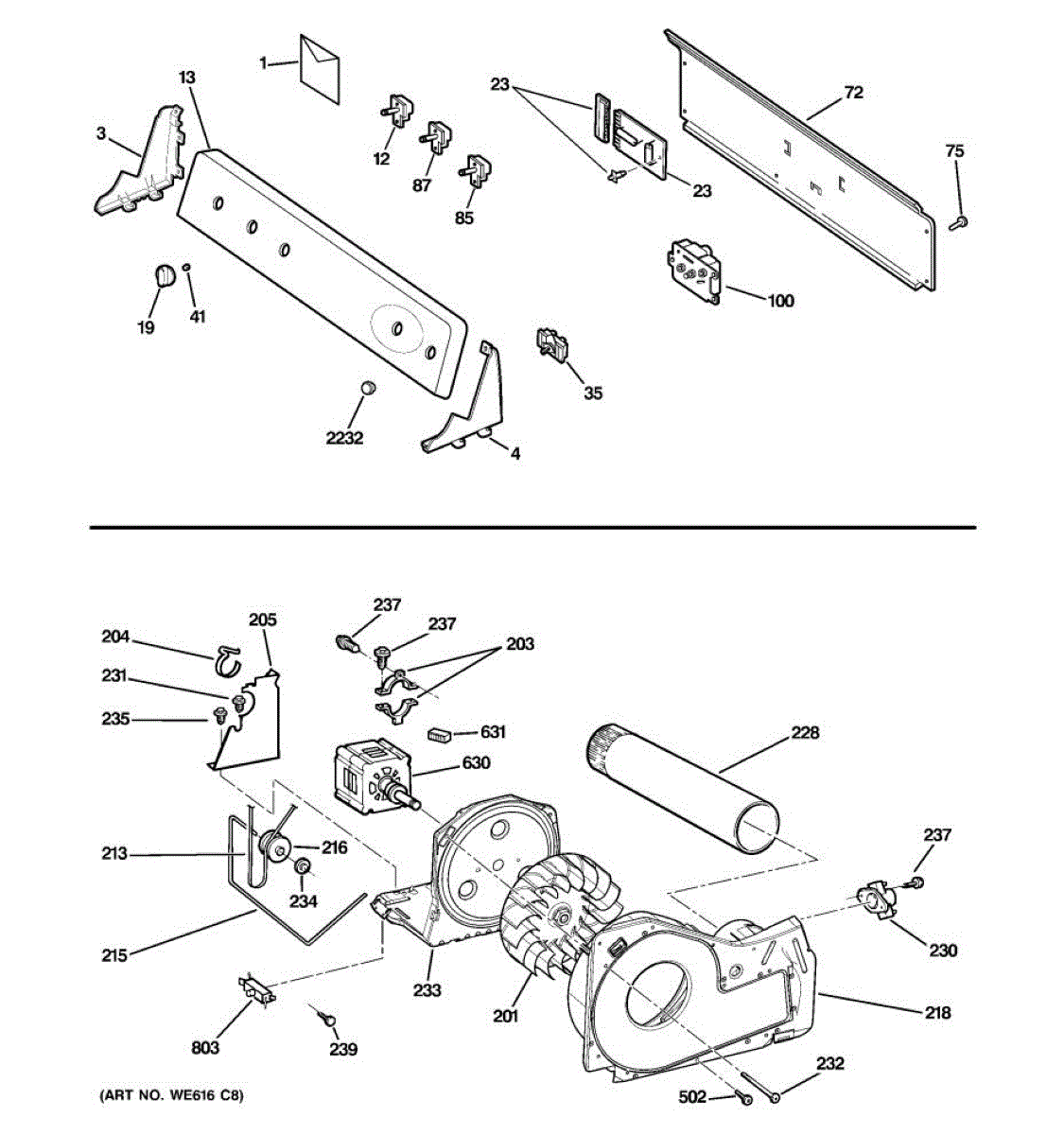

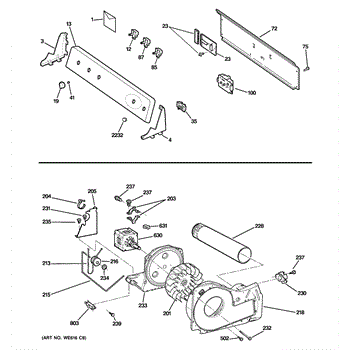

Parts for Ge GRDN510GM2WS: 01 - Backsplash, Blower & Motor Assembly Parts

Left-hand endcap for dryer drum assembly. Secures and supports the drum end. Replace if cracked, broken, or missing to restore proper drum support.

This replacement backsplash assembly restores the rear panel behind the cooktop for a clean, finished appearance and protects the wall and internal components from spills and heat. Designed to match original fit and finish on compatible ranges. What it does:

• Replaces a cracked, dented, warped, or heavily scratched backsplash to improve appearance and safety
• Shields internal wiring and cabinet wall from splashes, grease, and heat exposure
• Provides the mounting surface and openings for controls and trim where applicable
• Helps maintain proper alignment of the cooktop-to-backguard gap and seals edges against debris

What's included: One white backsplash assembly Install notes:

• Disconnect power to the range before beginning work; follow all lockout/tagout safety practices
• Remove the cooktop or control panel per factory instructions to access mounting screws
• Handle edges carefully — sheet metal can be sharp; wear cut-resistant gloves and eye protection
• Keep all original fasteners and trim; verify alignment and fit before tightening permanently

The Control Knob with Clip is an OEM part for GE washing machines and dryers. This knob allows users to select and control various settings and cycles on their appliance with ease.

Causes of a bad Control Knob with Clip can include constan

Protective plastic housing that secures the dryer control board. Replace if cracked, broken, or missing to properly support and shield electronics.

Support plate that mounts behind the dryer console to secure the electronic control board. Replace if cracked, broken, or missing to properly reinstall control.

Dryer won't start when you press the button, or stops when released? The push-to-start switch often fails. Easy 20-minute DIY repair with video.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement rear panel for dryers. Restores the cabinet's back surface when the original is dented, rusted, cracked, or damaged. Secures and protects internal wiring and components.

Replacement screw for securing dryer components like drum supports, panels, and housings. Needed when screws are lost, stripped, or damaged during repair.

Fix a dryer that won't cycle wrinkle care properly with this wrinkle care on/off switch. Simple 5-minute installation for most DIYers. Restores function.

Dryer won't shut off in auto dry or only heats on one setting? This temperature switch restores proper heat level control. DIY-friendly repair.

Dryer won't shut off or knob won't turn? Timer controls cycle operation and auto-shutoff. DIY-friendly repair, typically takes 10-15 minutes.

Dryer won't shut off or knob won't turn? Timer controls cycle operation and auto-shutoff. DIY-friendly repair, typically takes 10-15 minutes.

Dryer barely blowing air or taking forever to dry? A worn blower wheel fails to pull air through the drum. This wheel restores airflow for efficient drying.

Secures the drive motor to its mounting bracket. Replace if cracked, broken, or missing to keep the motor and blower aligned and stable during operation.

Secures your dryer motor to the cabinet to reduce vibration and noise. Replace if motor shifts or rattles during operation. Confirm fit with your model.

Metal bracket that secures the dryer motor and blower assembly in place. Replace if your mounting bracket is cracked, broken, or causing loose components.

Secures the ground wire to the dryer cabinet for safe electrical connection. Replace if missing, stripped, or corroded to restore proper grounding.

Transfers power from motor to drum in your dryer. Replace if squeaking, not spinning, or visibly worn. Confirm fit with your model number before ordering.

Supports the idler pulley to maintain proper belt tension in your dryer. Replace if the arm is warped, cracked, or causing belt tracking issues.

The Idler Pulley is an OEM part for GE dryers. This critical component helps to maintain the correct tension on the dryer's drive belt, ensuring smooth operation and preventing it from slipping.

Symptoms of a bad Idler Pulley include:

Seals the blower-to-exhaust duct connection in your dryer. Replace if torn, brittle, or causing heat loss and longer dry times. Confirm fit by model.

Replaces a cracked, rusted, or disconnected exhaust duct that routes hot air from your dryer to the home vent. Restores proper airflow and venting.

Dryer won't heat, overheats, or shuts off mid-cycle? A faulty cycling thermostat often causes these issues. Easy DIY fix with our video guide.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where

Replacement mounting screw for dryer panels and components. Needed when original screws are stripped, missing, or damaged during repair or maintenance.

This motor plate is the stamped metal mounting plate that secures the motor assembly and keeps it aligned for smooth operation. It restores proper motor positioning and reduces vibration-caused noise or wear. What it does:

• Provides a stable mounting surface for the motor assembly
• Maintains motor alignment to ensure smooth shaft rotation
• Helps reduce excess vibration and noise from a loose or damaged motor support
• Supports related components so belts and pulleys track correctly

• Disconnect power before starting any repair to avoid shock or injury
• Installation requires basic hand tools and access to the motor compartment
• Verify motor and surrounding hardware are undamaged; replace any worn fasteners

10-16 x 1/2 mounting screw secures panels, brackets, and internal components in your dryer. Replace when stripped, missing, or corroded for stable assembly.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where

This screw is a factory replacement fastener used to secure appliance panels and components. It restores lost or loose hardware so parts sit correctly and operate without rattling or movement. What it does

• Secures panels, brackets, and small com

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, cove

Dryer won't start, stops mid-cycle, or runs backward? The drive motor powers drum rotation. Moderate difficulty repair requires disassembly. Video guide.

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wi

Replace your dryer's push to start button if cracked, broken, or worn. This button installs on the control panel. Commonly needs replacement due to wear.
