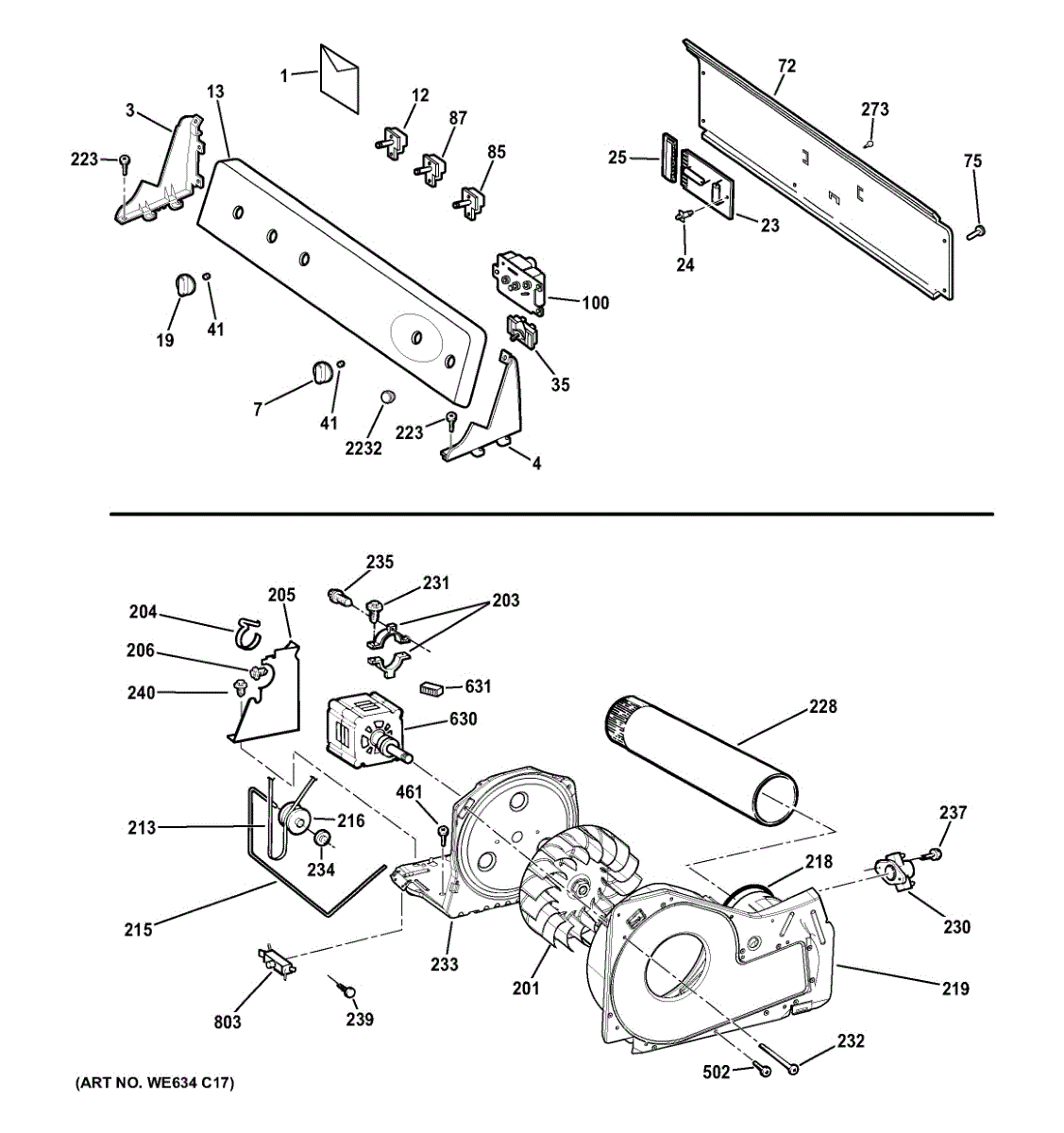

Parts for Ge GHDP490EF5WW: Backsplash, Blower & Motor Assembly Parts

This right-hand end cap replaces the factory cap that protects and finishes the outer edge of the appliance door or rail. It restores a secure fit and the original appearance where the end cap is cracked, damaged, or missing. What it does:

• Covers and protects the end of a door/rail to prevent sharp edges and wear
• Holds the rail/door trim in position to help maintain proper alignment
• Stops rattling or snagging caused by a broken or loose end cap
• Restores finished appearance to the appliance exterior

• Disconnect power to the appliance before beginning any repair.
• Installation typically requires basic hand tools; remove the old cap and snap or fasten the new cap into place.
• Handle parts carefully to avoid scratching the finish; verify right-hand orientation before installing.
• If mounting hardware is present on the original part, reuse only those pieces explicitly required for installation.

The Control Knob is an OEM replacement part for GE washing machines. This component allows you to select and control the various cycles, settings, and functions of your washer.

Symptoms that may indicate the need to replace the control knob include:

• The knob becoming loose, difficult to turn, or falling off entirely
• Cracks, damage, or excessive wear to the knob itself
• Inability to properly select or change wash cycles and settings

Causes of a faulty control knob can include physical impact or mishandling, general wear and tear over extended use, or issues with the internal mechanisms that connect the knob to the washer controls.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore washer models.

This backsplash graphic assembly restores the printed control console area on electric ranges and cooktops, improving appearance and readable labels for controls. It replaces a cracked, faded, or peeling backsplash graphic to restore a clean, finished look. What it does:

• Replaces the printed graphic on the back console so button/knob labels and markings are visible
• Covers cosmetic damage like scratches, fading, peeling, or delamination of the original graphic
• Helps make controls easier to read and gives the range a refreshed appearance
• Fits into the range backguard/console area and acts as the visual overlay for controls

• One backsplash graphic assembly (single graphic/overlay piece)

• Disconnect power to the appliance before beginning any service
• Removal typically requires removing console/backguard screws and carefully lifting the old graphic away
• Handle the new graphic by the edges to avoid fingerprints or damage to the printed surface

The Control Knob is an OEM replacement part for GE washing machines. This component allows you to select and control the various cycles, settings, and functions of your washer.

Symptoms that may indicate the need to replace the control knob include:

• The knob becoming loose, difficult to turn, or falling off entirely
• Cracks, damage, or excessive wear to the knob itself
• Inability to properly select or change wash cycles and settings

Causes of a faulty control knob can include physical impact or mishandling, general wear and tear over extended use, or issues with the internal mechanisms that connect the knob to the washer controls.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore washer models.

This electronic support control board replaces a failed dryer control module to restore proper cycle selection and electronic functions. It mounts behind the console and routes signals between user controls and the dryer's power components. What it does:

• Receives inputs from the user control and sends commands to the timer, heating element/valve, and motor circuits.
• Helps manage cycle selection, start/stop, and timed functions.
• Works as part of the dryer's control system—does not include service diagnostics or additional modules.

• One support pc board (single control board only)

• Unplug the appliance before starting; disconnect power at the breaker for hard-wired units.
• Handle the board by its edges and avoid touching components to reduce ESD damage.
• Transfer any mounting brackets, harnesses, or shields from the old board if not pre-attached.

This housing PC board is the protective plastic housing that secures and supports the appliance control (PC) board, helping keep the control electronics stable and protected from damage or moisture during operation. What it does:

• Holds and secures the control (PC) board in the appliance chassis to prevent movement and shorting.
• Protects the control board from incidental contact, dust, and minor moisture exposure.
• Restores proper board alignment when cracked, warped, or broken housing causes loose connectors or intermittent electronics.
• Can help resolve symptoms such as intermittent control operation, loose connectors, or visible board exposure.

• One housing PC board (1 each) as shown.

• Disconnect power to the appliance before beginning any work to avoid shock or damage.
• Handle the PC board and housing carefully; avoid touching circuit traces or components.
• Installation typically requires removing panels and unplugging wire harnesses; keep track of fasteners and connector locations.

The Dryer Push-to-Start Switch is an OEM replacement part for GE dryers. This component is responsible for initiating the drying cycle when pressed, serving as the primary control for starting the dryer's operation.

Symptoms of needing to replace the push-to-start switch include:

• The dryer failing to start or begin the cycle when the switch is pressed
• Intermittent or inconsistent starting issues
• Visible damage or deterioration of the switch itself

Causes of a faulty push-to-start switch can include mechanical wear and tear over time, electrical malfunctions, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dryer models.

This rear panel is the replacement cabinet back panel that restores the appliance's exterior enclosure and supports internal components. It provides a clean, secure rear surface and helps protect internal wiring and parts from damage. What it does

• Replaces a dented, rusted, or damaged rear cabinet panel to restore proper enclosure and airflow
• Shields internal components and wiring from dust, debris, and accidental contact
• Helps maintain proper venting clearance and appliance stability when mounted correctly
• Prevents sharp edges and gaps that can cause injury or allow pests into the cabinet area

• Disconnect power (and gas if applicable) before servicing; ensure appliance is fully de-energized
• Remove rear access screws and any attached components carefully to avoid damage
• Align panel, secure with manufacturer-specified fasteners, and verify there are no gaps or pinched wires

This replacement part is a screw, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. This screw is compatible with many different areas of the appliance. Screws are generally used for keeping parts of the machinery secure and in place during use. It is possible that screws can become loose over time and need to be replaced after years of normal wear and tear.A new screw might be needed if the user notices parts of the appliances are becoming loose or are even falling off. This can be due to screws becoming stripped over time or if the appliance is bumped during transport. The repair for this part is simple. Remove the old screw and replace it with a new part. The only tools needed for this repair are a screwdriver and possibly pliers if the damaged screw is stuck in place.This screw is sold individually and is a genuine OEM replacement part sourced from the manufacturer.

Wrinkle care on and off switch

This temperature switch mounts in the dryer control panel and lets you select the desired heat level. Replacing a failed switch restores accurate temperature selection so the dryer responds properly to the setting you choose.

• Selects the heat level for drying cycles
• Routes power through the appropriate heating circuit based on your selection
• Failure symptoms include no change in temperature when turning the knob, being stuck on one heat level, intermittent heat, or a loose/stripped switch shaft
• An internal short or open may contribute to a no-heat condition while the drum still runs

• Disconnect power before servicing; for gas dryers, also shut off the gas supply
• Remove the control knob and open the control console/back cover to access the switch
• Note wire positions; transfer connectors to the new switch one at a time to avoid miswiring
• Mount the new switch securely, reassemble the console, reinstall the knob, and test heat selection

The Dryer Timer is an OEM replacement part for GE dryers. It is a crucial component that controls the timing and sequence of the various cycles and functions within the dryer, ensuring proper operation and efficient drying performance. The timer measures approximately 2 3/4" H x 3" W x 4 1/4" D,

Symptoms of a faulty dryer timer can include:

• The dryer not starting or running at all
• The dryer failing to progress through cycles or shutting off prematurely
• Cycles running for an incorrect or inconsistent amount of time
• Error codes or indicators related to the timer or control system

Causes of a bad dryer timer can range from electrical issues, such as short circuits or failed components, to mechanical wear and tear over extended use, or physical damage from impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement blower wheel for a dryer mounts to the drive motor and pulls air through the drum, lint filter, and exhaust, restoring proper airflow so loads dry efficiently and the appliance runs as intended. What it does:

• Spins with the motor to move air through the drum, lint screen, and exhaust duct
• Maintains airflow needed for even drying and temperature control
• Wear, cracks, or a stripped hub can cause long dry times and weak vent airflow
• Damage or imbalance may produce rattling, scraping, or vibration noises from the blower area

• 1 blower wheel

• Disconnect power; turn off gas supply for gas models before servicing
• Access the blower housing and remove the old wheel from the motor shaft per your model's design
• Clean lint and debris from the blower housing and exhaust duct while open
• Seat the new wheel fully and verify free rotation without rubbing before reassembly

This replacement motor strap secures the dryer's drive motor to its mounting bracket so the motor and blower stay aligned and stable, helping reduce vibration and noise for smoother operation. What it does:

• Holds the drive motor firmly to the base/bracket
• Maintains proper alignment of the motor and blower wheel to prevent rubbing
• Helps reduce vibration, rattling, and related noise
• Typical signs of failure: increased vibration, rattling, scraping from the blower area, or a motor that feels loose inside the cabinet

• Includes 1 motor strap

• Disconnect power; for gas dryers, also shut off gas supply
• Access the motor assembly; note the strap's routing/orientation before removal
• Support the motor while releasing the strap to avoid stressing wiring and mounts
• After securing the strap, rotate the drum/blower by hand to verify free movement before reassembly

This motor strap secures the appliance motor to the cabinet, keeping the motor stable during operation to reduce vibration and noise. Use this replacement to restore proper motor positioning and support in compatible models. What it does:

• Holds the motor firmly in place to prevent movement or shifting during use
• Helps reduce vibration and associated noise caused by a loose motor
• Maintains correct motor alignment so belts and linkages run smoothly
• Commonly used when a worn or broken strap allows motor sag or misalignment

• One motor mounting/retaining strap

• Disconnect power to the appliance before beginning any work
• Inspect mounting points and fasteners; replace any damaged hardware as needed
• Secure strap to the motor and cabinet using the original mounting holes and recommended hardware

This motor support is the stamped metal bracket that secures the dryer motor and blower assembly, keeping components aligned for smooth operation. It restores proper motor mounting and reduces noise from loose or misaligned parts. What it does:

• Holds the dryer motor and blower housing in the correct position to prevent wobble or misalignment
• Helps maintain proper blower alignment for effective air movement
• Supports safe, reliable motor operation when the original bracket is bent, cracked, or worn

• Disconnect power (unplug electric or shut off gas and breaker) before beginning repair
• Access requires opening the dryer cabinet and removing the drum and/or front panel on many models
• Inspect related components (motor mounts, blower wheel, idler, belt) and replace if damaged

This ground screw secures the appliance chassis ground connection to the cabinet, restoring a reliable earth path for safe operation and reducing risk of electrical faults. Simple replacement keeps electrical components properly grounded. What it does

• Secures the ground wire or grounding strap to the appliance chassis to maintain a safe earth connection.
• Restores proper grounding when the original screw is missing, loose, or corroded.
• Helps prevent intermittent power/grounding issues and reduces risk of electrical arcing at the chassis connection.
• Works wherever a dedicated grounding point is required on the cabinet or frame.

• Single ground screw

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical connections.
• Verify chassis is de-energized and wear appropriate PPE when working on electrical parts.
• Use the correct driver bit and size to avoid stripping the screw; tighten securely but avoid over-torquing.
• Replace corroded grounding hardware and ensure the ground wire/strap has clean metal-to-metal contact.

The Belt Drive is an OEM replacement part for GE dryers. It is responsible for transferring power from the motor to the drum. A bad belt drive can be caused by normal wear and tear over time, as well as excessive load or strain on the dryer drum.

Symptoms of a bad belt drive include:

• The dryer drum not spinning or rotating.
• Unusual noises coming from the dryer during operation.
• The drum not tumbling smoothly or consistently.
• The belt appearing frayed, cracked, or broken.

Causes of a faulty Belt Drive can include normal wear and tear over time, excessive tension or stretching, or physical damage from improper installation or foreign objects.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This idler arm, also called a belt tensioner arm, supports the idler pulley that keeps the dryer's drive belt tight so the drum rotates smoothly. Replacing a worn arm helps eliminate noise and belt tracking issues.

• Maintains proper belt tension by positioning the idler pulley against the drive belt
• Helps prevent belt slippage, squealing, and premature belt wear
• Supports smooth, consistent drum rotation during cycles
• Typical failure symptoms include squeaking/chirping, burning rubber smell, belt coming off, or the drum not turning

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the idler assembly by removing the front or lower access panel
• Release belt tension and note the belt routing; reinstall pulley and spring as removed, then re-tension the belt
• Manually rotate the drum to verify belt tracking before reassembly and testing

The Idler Pulley is an OEM component specifically designed for GE dryers. As part of the drum assembly, the idler pulley helps drive the rotation of the drying drum. It works closely with the belt and motor pulley to spin the drum and tumble clothes during the drying cycle.

Causes of a bad idler pulley can include wear and tear of moving parts over time, loose or worn belts that cause added strain, or damage from sticking or jamming during operation.

Symptoms of a bad idler pulley include:

• The dryer drum not spinning or tumbling clothes
• Loud grinding or squealing noises coming from inside the dryer
• The belt slipping off the pulleys
• Vibration or shaking during use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This exhaust blower gasket seals the joint between the dryer's blower outlet and exhaust duct. It helps maintain proper airflow and contain lint and heat, supporting efficient drying and preventing leaks into the cabinet or laundry area. What it does:

• Seals the blower-to-exhaust connection to prevent air and lint leaks
• Helps maintain designed airflow through the drum and vent system
• Can reduce warm air or lint escaping inside the cabinet

• 1 gasket

• Disconnect power; for gas dryers, shut off gas and disconnect the supply. Allow the dryer to cool.
• Access the blower housing/exhaust duct; remove panels as needed.
• Remove the old gasket and any residue; clean mating surfaces and lint before installing.
• Seat the new gasket evenly and reassemble; avoid overtightening fasteners and ensure the home vent is clear.

This exhaust duct routes hot, moist air from the appliance to the home vent, helping maintain proper airflow and reduce lint buildup. It's a direct-fit replacement designed to restore correct venting and appliance performance. What it does:

• Channels exhaust air from the appliance to the external vent.
• Helps prevent reduced airflow that can lengthen cycle times or reduce drying/heating performance.
• Reduces lint accumulation in the appliance exhaust path when intact and properly connected.
• Replaces damaged, crushed or disconnected ducting that can cause air leakage or poor venting.

• Disconnect power to the appliance (and shut off gas supply for gas models) before starting.
• Use gloves to avoid sharp edges; secure connections with the original clamps or equivalent fasteners.

The Cycling Thermostat is an OEM replacement part for GE dryers. It regulates heating element output and drum temperature during drying cycles. Maintaining proper air and drum temperatures is key to achieving thorough moisture removal from fabrics within targeted cycle times.

Causes of failure typically involve defects developing over many heat exposure and cool-down cycles. Mineral deposits accumulating on the thermostat head can also impact heat-sensing precision over extended use.

Symptoms of a bad cycling thermostat include:

• Slow or inadequate drying times
• Excessively long cycles for normal loads
• The dryer turning on/off irregularly while operating
• Unpredictable or fluctuating drum temperatures

This OEM replacement thermostat is compatible with GE, Hotpoint, and some Kenmore models.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

This is a genuine GE replacement screw used to secure appliance panels and components, restoring proper fit and reducing vibration or rattling. A simple fastener that helps keep assemblies aligned and functioning safely. What it does:

• Secures panels, brackets, and small components in place
• Prevents noise from loose parts and maintains structural alignment
• Restores proper fastening after repairs or wear
• Matches OEM fit for reliable replacement

• Disconnect power to the appliance before accessing internal parts
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and tighten until snug; do not overtighten to prevent damage
• Replace any damaged or missing fasteners with the same OEM part for best results

This motor plate is the stamped metal mounting plate that secures the motor assembly and keeps it aligned for smooth operation. It restores proper motor positioning and reduces vibration-caused noise or wear. What it does:

• Provides a stable mounting surface for the motor assembly
• Maintains motor alignment to ensure smooth shaft rotation
• Helps reduce excess vibration and noise from a loose or damaged motor support
• Supports related components so belts and pulleys track correctly

• Disconnect power before starting any repair to avoid shock or injury
• Installation requires basic hand tools and access to the motor compartment
• Verify motor and surrounding hardware are undamaged; replace any worn fasteners

This is a 10-16 x 1/2 screw used to fasten small appliance components and panels; it restores secure attachment and helps stop rattling or loose parts for reliable operation. What it does:

• Secures panels, brackets, and small assemblies to the appliance
• Prevents movement that can cause noise, vibration or misalignment
• Restores proper fit where a worn or missing screw caused loose parts
• Matches OEM size so replacement fits original mounting points

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and do not overtighten—stop when snug to avoid damage
• Replace like-for-like; if corrosion or stripped threads are present, repair or replace the mating part as needed

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

Includes 12 screws.

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

The Drive Motor Kit is an OEM part for GE dryers. This part powers the drum rotation during the drying cycle, ensuring proper tumbling and airflow for efficient drying performance.

Causes of a bad part can include normal wear and tear over time, bearing failure, or electrical issues that prevent the motor from functioning correctly.

Symptoms of a bad Drive Motor Kit include:

• Failure of the dryer drum to rotate or tumble
• Loud grinding or squeaking noises from the motor area
• Overheating or burning smell from the motor
• Incomplete or prolonged drying times

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.
