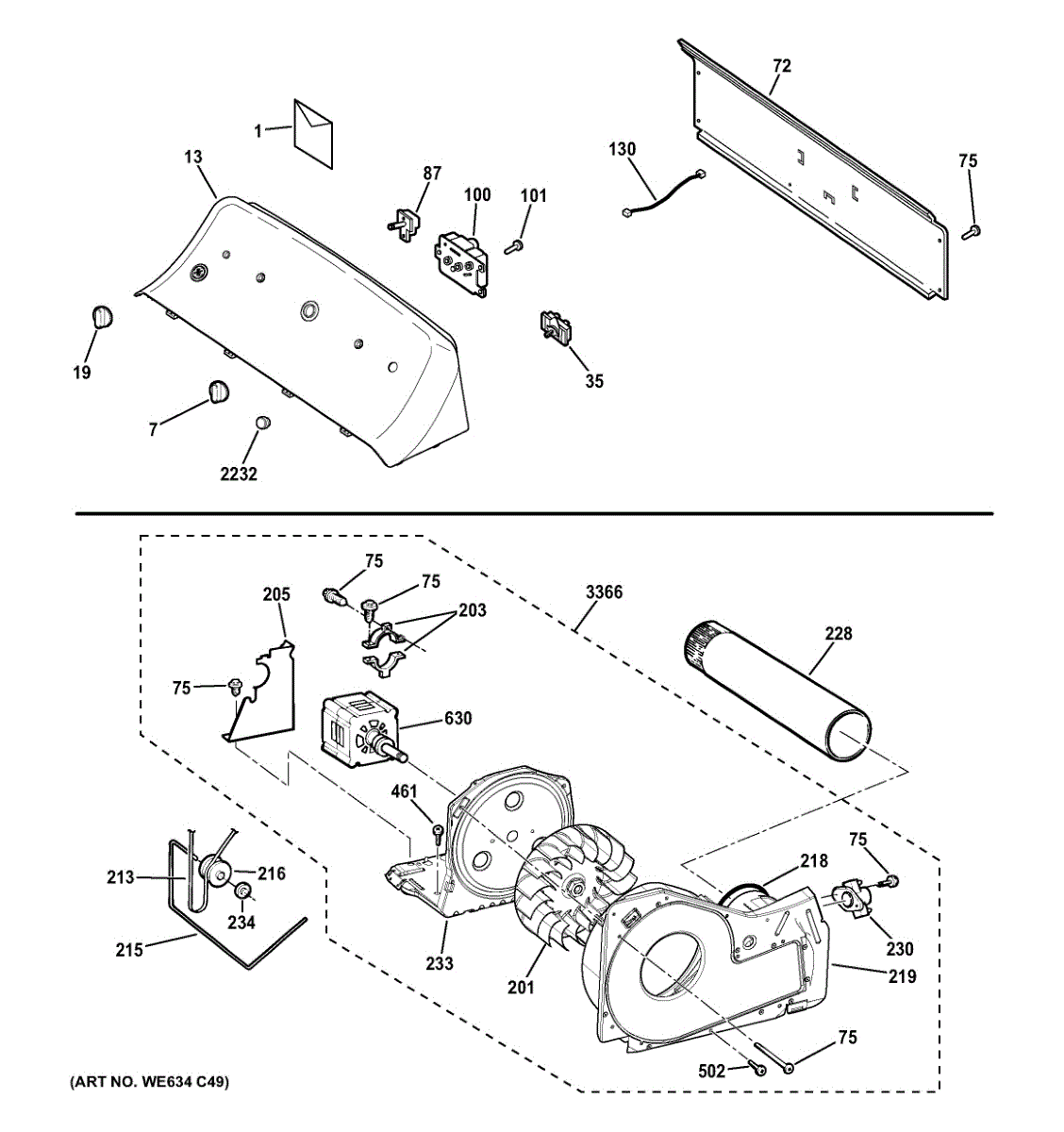

Parts for Hot Point HTX24EASK0WW: Backsplash, Blower & Motor Assembly Parts

The Dryer Control Knob is an OEM part for GE dryers. It's a part that allows users to select the desired settings and cycles for their drying needs. This knob is directly connected to the dryer's control panel, translating the user's input into action by the machine.

Causes of a bad dryer control knob can range from simple wear and tear from regular use, to physical damage from an impact or excessive force.

Symptoms of a bad dryer control knob include:

• Difficulty in turning the knob
• The knob not engaging with the control panel, leading to no response when turned
• Visual signs of damage or wear, such as cracks or fading
• The knob coming off completely when pulled or turned

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Backsplash Assembly for Dryer is an OEM replacement part for GE electric and gas dryers. It forms the wall at the back of the dryer cabinet, protecting internal components from water, dust, and impact damage. This structural piece is important for dryer integrity.

Causes of a bad backsplash assembly include normal wear and tear, accidental impacts, or rust forming behind the panel if moisture penetrates cracked seals.

Symptoms of a bad backsplash assembly include:

• Visible cracks, warping, or denting of the panel material
• Looseness allowing gaps or movement of the assembly
• Internal rust or component damage over many wash/dry cycles

This GE replacement part is compatible with Hotpoint, RCA, and Kenmore dryer models.

The Rotary Knob is an OEM replacement part for GE or Hotpoint washing machines. It provides the interface for selecting wash cycles and adjusting settings like temperature and spin speed.

Causes of a bad rotary knob include cracking, peeling, or damage to labeling from repeated use over time. The internal mechanisms can also wear out, preventing proper rotation.

Symptoms of a bad rotary knob are:

• Difficulty turning or clicking into set positions
• Loose, wobbly, or disconnected feel during use
• Faded or missing labels make settings unclear

It is also compatible with RCA, Westinghouse, Tappan, and some Kenmore models.

The Dryer Push-to-Start Switch is an OEM replacement part for GE dryers. This component is responsible for initiating the drying cycle when pressed, serving as the primary control for starting the dryer's operation.

Symptoms of needing to replace the push-to-start switch include:

• The dryer failing to start or begin the cycle when the switch is pressed
• Intermittent or inconsistent starting issues
• Visible damage or deterioration of the switch itself

Causes of a faulty push-to-start switch can include mechanical wear and tear over time, electrical malfunctions, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dryer models.

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

This rotary switch sits behind the control knob and lets you select dryer cycles. Replacing a worn switch restores accurate cycle selection when the knob turns but the dryer doesn't respond or only some settings work. What it does:

• Converts knob movement into specific switch contacts for each cycle position
• Sends the selected setting to the timer or electronic control
• Helps ensure the correct cycle is engaged when the knob is turned
• Failure signs include no response when turning the selector, only some cycles working, or an intermittent/loose selector feel

• 1 rotary switch

• Disconnect power; if gas, also shut off the gas supply before servicing
• Remove the control knob and open the control panel to access the switch
• Note wire positions (take a photo), then transfer wires one at a time to the new switch and secure it in place
• Reassemble the panel, reinstall the knob, and test all selector positions

The Timer is an OEM replacement part for GE dryers, essential for controlling the duration of drying cycles. This component ensures that your dryer operates efficiently, allowing for customizable drying times based on the type and volume of laundry being dried.

Causes of a bad timer can vary, including electrical issues that prevent the timer from advancing, physical damage from wear and tear, or a malfunction in the internal gears that control the timer's movement.

Symptoms of a bad Timer include:

• The dryer fails to start or stop at the designated times.
• Drying cycles that run too long or not long enough, leading to either under-dried or over-dried clothes.
• Inability to select or change drying cycles, affecting the dryer's versatility and efficiency.
• Unpredictable dryer behavior, which can include random starts or stops.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory screw fastens appliance panels, brackets, and internal components. Replacing missing or damaged hardware restores a secure fit, reduces vibration and rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, and assemblies as designed for your model
• Replaces missing, stripped, or corroded hardware
• Helps resolve loose panels, vibration/rattling, or misalignment
• Maintains proper fit and function of mounted components

• Disconnect power; shut off gas and water before service
• Match to the original screw and location; order the quantity your model requires
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Refer to your model's parts diagram or service information for exact placement

This wire group assembly routes electrical power and signals between oven components to restore proper operation and safety. Replacing a damaged harness helps stop intermittent power, faulty controls, or non-working elements. What it does:

• Connects control board, switches, heating elements and sensors so components receive correct power and signals.
• Replaces frayed, burned or broken wires that can cause intermittent operation or loss of function.
• Helps resolve symptoms like burners or oven elements not heating, controls not responding, or lights failing.
• Keeps wiring organized and secured to reduce stress and chafing that can lead to shorts.

• Disconnect all power (unplug or shut off breaker) before beginning any repair.
• Compare new harness to the original for connector types and routing before removing the old part.
• Route harness along original clips and fasteners; avoid contact with sharp edges or hot surfaces.
• If wires show heat damage at terminals, inspect connected components and replace as needed.

The Blower Wheel is an OEM component specifically designed for GE dryers. It is responsible for circulating air during the drying cycle, directing airflow through lint and clothes to remove moisture. The plastic blades of the blower wheel push air through the dryer and out the vent when the motor is running.

Symptoms of a bad blower wheel include:

• Slow or inefficient drying times even on low moisture loads
• Strange noises from inside the dryer cabinet
• Excessive vibrations felt through the dryer door or cabinet
• Bent or cracked blower wheel blades

Causes can include normal wear and tear over time, accidents that damage the blades, or failures in the secure mounting of the blower wheel.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement motor strap secures the dryer's drive motor to its mounting bracket so the motor and blower stay aligned and stable, helping reduce vibration and noise for smoother operation. What it does:

• Holds the drive motor firmly to the base/bracket
• Maintains proper alignment of the motor and blower wheel to prevent rubbing
• Helps reduce vibration, rattling, and related noise
• Typical signs of failure: increased vibration, rattling, scraping from the blower area, or a motor that feels loose inside the cabinet

• Includes 1 motor strap

• Disconnect power; for gas dryers, also shut off gas supply
• Access the motor assembly; note the strap's routing/orientation before removal
• Support the motor while releasing the strap to avoid stressing wiring and mounts
• After securing the strap, rotate the drum/blower by hand to verify free movement before reassembly

This motor support is the stamped metal bracket that secures the dryer motor and blower assembly, keeping components aligned for smooth operation. It restores proper motor mounting and reduces noise from loose or misaligned parts. What it does:

• Holds the dryer motor and blower housing in the correct position to prevent wobble or misalignment
• Helps maintain proper blower alignment for effective air movement
• Supports safe, reliable motor operation when the original bracket is bent, cracked, or worn

• Disconnect power (unplug electric or shut off gas and breaker) before beginning repair
• Access requires opening the dryer cabinet and removing the drum and/or front panel on many models
• Inspect related components (motor mounts, blower wheel, idler, belt) and replace if damaged

The Belt Drive is an OEM replacement part for GE dryers. It is responsible for transferring power from the motor to the drum. A bad belt drive can be caused by normal wear and tear over time, as well as excessive load or strain on the dryer drum.

Symptoms of a bad belt drive include:

• The dryer drum not spinning or rotating.
• Unusual noises coming from the dryer during operation.
• The drum not tumbling smoothly or consistently.
• The belt appearing frayed, cracked, or broken.

Causes of a faulty Belt Drive can include normal wear and tear over time, excessive tension or stretching, or physical damage from improper installation or foreign objects.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This idler arm, also called a belt tensioner arm, supports the idler pulley that keeps the dryer's drive belt tight so the drum rotates smoothly. Replacing a worn arm helps eliminate noise and belt tracking issues.

• Maintains proper belt tension by positioning the idler pulley against the drive belt
• Helps prevent belt slippage, squealing, and premature belt wear
• Supports smooth, consistent drum rotation during cycles
• Typical failure symptoms include squeaking/chirping, burning rubber smell, belt coming off, or the drum not turning

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the idler assembly by removing the front or lower access panel
• Release belt tension and note the belt routing; reinstall pulley and spring as removed, then re-tension the belt
• Manually rotate the drum to verify belt tracking before reassembly and testing

The Idler Pulley is an OEM component specifically designed for GE dryers. As part of the drum assembly, the idler pulley helps drive the rotation of the drying drum. It works closely with the belt and motor pulley to spin the drum and tumble clothes during the drying cycle.

Causes of a bad idler pulley can include wear and tear of moving parts over time, loose or worn belts that cause added strain, or damage from sticking or jamming during operation.

Symptoms of a bad idler pulley include:

• The dryer drum not spinning or tumbling clothes
• Loud grinding or squealing noises coming from inside the dryer
• The belt slipping off the pulleys
• Vibration or shaking during use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This exhaust blower gasket seals the joint between the dryer's blower outlet and exhaust duct. It helps maintain proper airflow and contain lint and heat, supporting efficient drying and preventing leaks into the cabinet or laundry area. What it does:

• Seals the blower-to-exhaust connection to prevent air and lint leaks
• Helps maintain designed airflow through the drum and vent system
• Can reduce warm air or lint escaping inside the cabinet

• 1 gasket

• Disconnect power; for gas dryers, shut off gas and disconnect the supply. Allow the dryer to cool.
• Access the blower housing/exhaust duct; remove panels as needed.
• Remove the old gasket and any residue; clean mating surfaces and lint before installing.
• Seat the new gasket evenly and reassemble; avoid overtightening fasteners and ensure the home vent is clear.

This blower housing assembly directs airflow from the dryer motor to the drum and exhaust, restoring proper venting and drying performance. It replaces a damaged or cracked housing to help the dryer move air efficiently. What it does:

• Channels airflow from the motor to the lint filter and exhaust duct
• Supports the blower wheel and maintains correct blower clearance
• Helps prevent air leaks that can cause poor drying or overheating
• Commonly replaced when the housing is cracked, warped, or excessively worn

• One blower housing assembly as shown

• Disconnect power before beginning any repair; ensure the dryer is unplugged or its breaker is off
• Removal may require access panels and disconnection of the blower wheel and motor mounting hardware
• Inspect and clean nearby lint and venting while the dryer is disassembled

This exhaust duct directs hot, moist air from the dryer's blower housing to the external vent. Replacing a cracked or leaking duct restores proper airflow, helps prevent lint leaks, and supports consistent drying performance. What it does:

• Routes exhaust air from the blower housing to the rear outlet and home vent
• Maintains a sealed airflow path for efficient drying and moisture removal
• Helps keep lint contained within the exhaust stream to the vent system
• Common failure symptoms: longer dry times, warm air or lint escaping, or visible cracks/damage to the duct

• 1 exhaust duct

• Unplug the dryer and shut off gas supply for gas models; allow the appliance to cool. Wear cut-resistant gloves.
• Remove the necessary panels to access the duct per your model's service information.
• Transfer and reuse existing screws and any foam seals/gaskets if not supplied; seat the duct fully and tighten fasteners evenly for an airtight fit.
• Vacuum lint from the cabinet and confirm the external vent hose is clear and securely attached before testing.

This dryer thermostat senses exhaust air temperature and opens or closes the heater circuit to keep drying temperatures consistent. Replacing a failed thermostat can restore proper heat control and help prevent overheating that can trip safety devices.

• Regulates dryer heat by cycling power to the heater based on sensed temperature
• Helps protect the appliance by interrupting heat if temperatures rise beyond its calibration
• Common symptoms: no heat or intermittent heat, long dry times, dryer runs too hot, temperature swings
• Replace if it fails continuity checks or is out of spec per your model's service information

• Disconnect power; for gas models, also shut off gas supply
• Allow the dryer to cool before servicing
• Access the thermostat on the blower or heater duct (varies by model); transfer wires one at a time and mount the thermostat flush to the surface
• Clear lint and verify vent airflow before testing operation

This plate motor drives the microwave/oven turntable, keeping the glass tray rotating for even cooking and heating. Replaces a worn or failed motor to restore tray rotation and reduce uneven heating. What it does:

• Turns the glass turntable so food cooks evenly
• Stops rotation or hesitates when motor fails or wears out
• May make buzzing, grinding, or intermittent noises before failing
• Prevents the turntable from rotating if the motor no longer engages

• One replacement plate (turntable) motor

• Disconnect power before servicing to avoid shock; verify unit is fully powered off
• Remove the turntable glass and roller guide to access the motor underneath the oven/microwave floor
• Typical install requires removing interior fasteners and unplugging the motor connector; retain hardware for reassembly

Size: 8-32 t. Includes 12 screws.

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

This GE Motor Drive and Pulley is an OEM part for GE dryers. The motor drive powers the drum, and the pulley system ensures proper tension and alignment of the belt.

The need for replacement can arise from various factors such as prolonged use, electrical issues, or mechanical wear and tear. A failing motor drive and pulley can significantly impact the dryer's performance.

Symptoms of a malfunctioning Motor Drive and Pulley include:

• The dryer drum struggles to turn or doesn't turn at all.
• Unusual noises like humming or grinding during operation.
• The dryer stops unexpectedly during a cycle.
• Overheating of the dryer motor.
• The dryer takes longer than usual to dry clothes.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Start Button is an OEM replacement part for GE dryers. It is the push interface that allows users to initiate wash cycles.

Causes of failure relate to cracks forming from chronic pressing, mineral buildup obstructing contacts, or loosened wires detaching connections over time.

Symptoms involve:

• Inability to activate the drying function regardless of settings
• Display lights functioning but drum failing to rotate
• Door remaining locked requiring manual override

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore model dryers.

The MOTOR & BLOWER ASSEMBLY is an OEM part for GE dryers. It contains both the drive motor that tumbles the dryer drum as well as the blower motor that circulates air through the heating system. This dual-component assembly works together to simultaneously tumble clothes while pushing heated air into the dryer cylinder.

Causes of a bad motor and blower assembly can include failures of either the drive motor or blower motor. Wiring issues or damaged components internal to the assembly housing can also impact performance.

Symptoms of a bad motor & blower assembly include:

• The dryer drum not spinning or tumbling clothes
• Inadequate or no airflow through the dryer
• Dryer not heating or cycles taking excessively long
• Loud buzzing or grinding noises from internal motors

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
