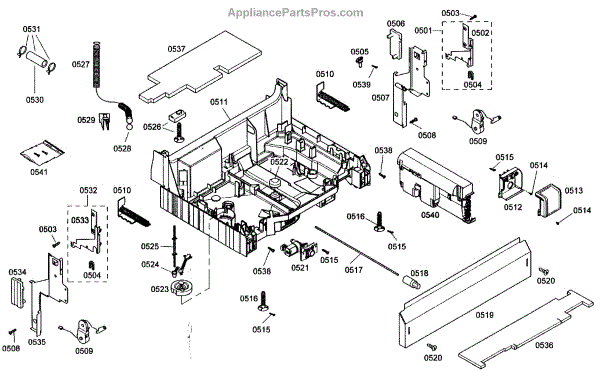

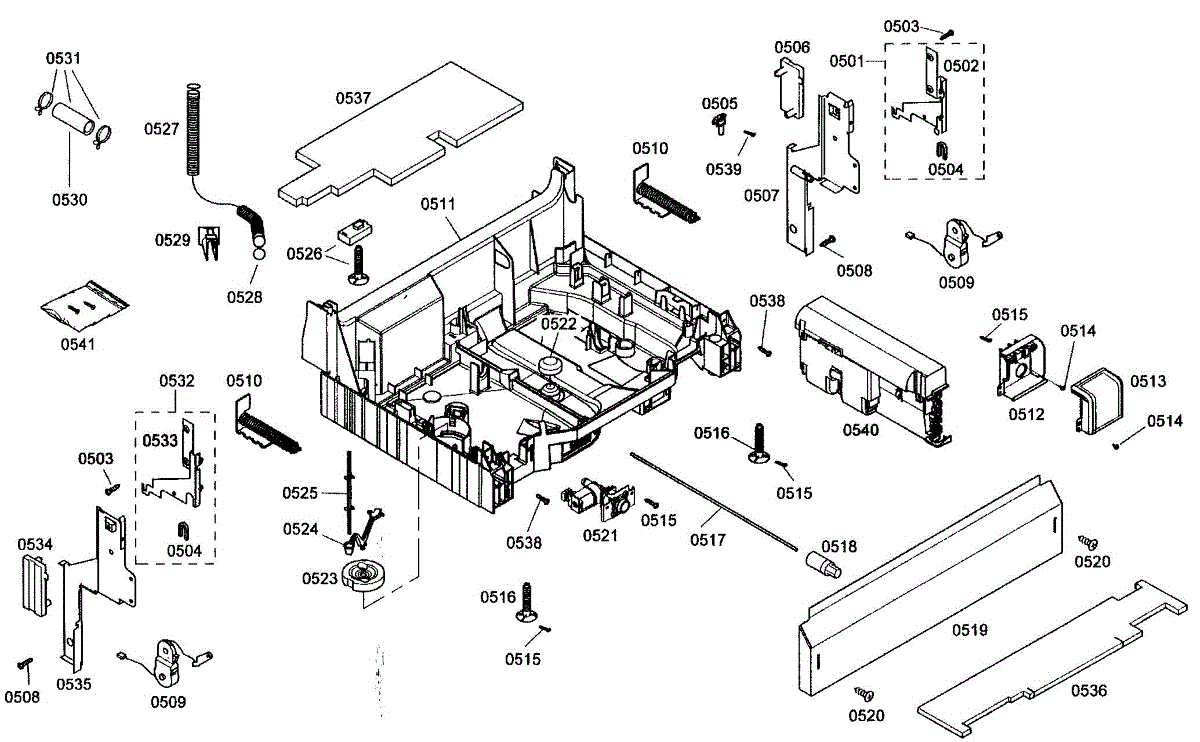

Parts for Thermador DWHD64EF46: Base Asy Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Hinge Lever (RH) is an OEM component specifically designed for Bosch dishwashers. This right-hand lever is a part of the dishwasher door hinge assembly, working to open and close the door during each use.

Causes of a bad hinge lever can include wear and fatigue over thousands of opening and closing cycles. Damage can also potentially occur from any impact or denting of the door surface near the lever mechanism.

Symptoms of an ineffective hinge lever include:

• The dishwasher door sagging or becoming misaligned
• Difficulty fully opening or closing the door
• Loud squeaks or grinding noises coming from the hinges
• The door potentially detach from the hinge if broken

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Hinge Lever (RH) is an OEM component specifically designed for Bosch dishwashers. This right-hand lever is a part of the dishwasher door hinge assembly, working to open and close the door during each use.

Causes of a bad hinge lever can include wear and fatigue over thousands of opening and closing cycles. Damage can also potentially occur from any impact or denting of the door surface near the lever mechanism.

Symptoms of an ineffective hinge lever include:

• The dishwasher door sagging or becoming misaligned
• Difficulty fully opening or closing the door
• Loud squeaks or grinding noises coming from the hinges
• The door potentially detach from the hinge if broken

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

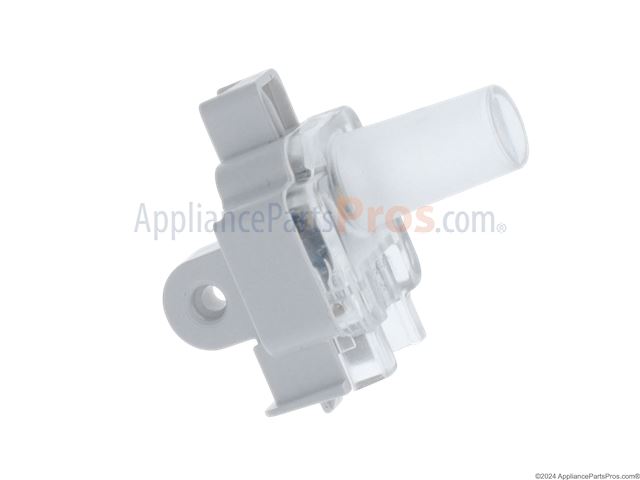

The Indicator Light is an OEM part for Bosch dishwashers. It serves as a visual cue, providing important status updates and notifications related to the dishwasher's operation.

Causes of a malfunctioning Indicator Light can stem from issues with the control board or wiring harness that powers the light, or the light itself burning out due to age or electrical surges.

Symptoms of a bad Indicator Light include:

• The light not illuminating at all, even when it should be on
• Flickering or dimming of the light during operation
• The wrong indicator light turning on or staying on inappropriately

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This hinge cover is a molded trim piece that protects and conceals a refrigerator door hinge for a clean finished look. It helps keep hinge hardware free of dust and reduces sharp edges while restoring appearance. What it does

• Covers the door hinge area to hide hardware and improve the appliance's appearance
• Helps block dust and debris from accumulating on hinge components
• Reduces the risk of clothes or fingers catching on exposed hinge parts
• Matches OEM fit and shape to maintain proper clearance and alignment

• One hinge cover

• High-level replacement: remove the old cover and snap or screw the new cover into place (specific fasteners vary by model)
• Use basic hand tools if required; for model-specific instructions
• Disconnect power (or follow appliance-specific safety steps) before working near electrical components
• Inspect hinge and hardware while replacing the cover; replace damaged hinge components as needed

This is the right side hinge plate. For left side use 00298567.

This factory screw secures select Bosch/BSH appliance components. Use it to replace a missing or damaged fastener so panels, brackets, or trim stay tight and rattle-free during operation.

• Tightens and holds appliance parts such as panels, brackets, or trim in place
• Helps correct issues like loose or vibrating panels caused by a missing/stripped screw
• Maintains proper fitment after service or disassembly
• Torx T20 drive head helps resist cam-out during tightening

• Unplug power and shut off any water supply before servicing
• Use a T20 Torx driver; hand-start to avoid cross-threading
• Do not overtighten—snug to manufacturer torque guidance if available
• Replace any additional missing or damaged fasteners for even clamping

The Roller and Cable Assembly is an OEM part for Bosch dishwashers. This assembly includes the roller and cable, which work together to facilitate the smooth operation of the dishwasher door, allowing it to open and close effortlessly.

Over time, the roller and cable can wear out or become damaged due to regular use, friction, or accidental mishandling. If either component fails, it can affect the balance and movement of the dishwasher door, making it difficult to operate.

Symptoms of a bad roller and cable assembly include:

• Difficulty in opening or closing the dishwasher door
• A sagging or misaligned door
• Unusual noises when operating the door
• The door not staying securely in place

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This dishwasher door spring counterbalances the door's weight for smooth, controlled opening and closing. Replacing a worn or broken spring restores proper door tension and helps prevent the door from dropping quickly or feeling heavy.

• Provides tension to counterbalance the dishwasher door during opening and closing
• Helps prevent the door from slamming open or feeling overly heavy
• A weakened or broken spring can cause uneven door movement, squeaks, or the door not staying in a partial-open position
• Restores smooth, even door operation when replaced

• Disconnect power and turn off water supply before servicing
• Remove the toe-kick and carefully slide the dishwasher out to access the side/frame area where the spring attaches
• Note the original spring attachment points and orientation; install the new spring in the same locations
• Springs are under tension—use caution and hand protection; many replace both springs together to maintain balanced tension

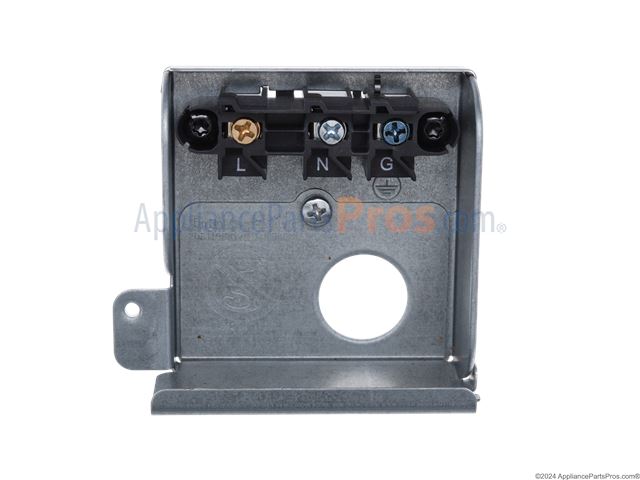

The Terminal Box is an OEM part for Bosch dishwashers. It serves as the central hub for connecting electrical wires within the appliance, ensuring a safe and organized electrical system.

Over time, the terminal box can become damaged due to electrical malfunctions, corrosion, or physical impact. Wear and tear from regular use can also affect its integrity, leading to potential electrical issues.

Symptoms of a bad terminal box include:

• The dishwasher not starting or failing to complete cycles
• Intermittent power issues
• Burning smells or visible burns around the terminal box
• Electrical shorts or tripped circuit breakers

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

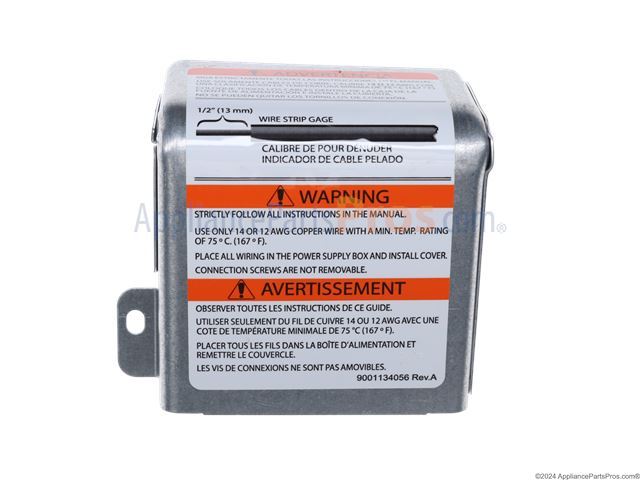

The Junction Box Cover is an OEM part for Bosch dishwashers. Located at the rear of the appliance, the junction box houses connections to the power supply and control board wiring. The junction box cover protects these internal electronic parts.

Symptoms of a bad junction box cover can include:

• Cracks, breaks or missing pieces of the plastic casing
• Exposed wires posing risk of electric shock
• Difficulties accessing internal components for service or repairs
• Potential water damage into electrical components

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement screw secures appliance panels and internal brackets so components stay tight and aligned during everyday use. Replacing missing or stripped hardware restores a solid fit and helps minimize vibration and rattling.

• Fastens covers, panels, and brackets to their mounting points
• Helps maintain alignment of the attached component
• Reduces movement that can cause noise or wear
• Typical reasons to replace: missing screw, stripped head/threads, loose panel or bracket

• Disconnect power and, if applicable, shut off water before servicing
• Use the driver bit specified for your model; hand start threads to avoid cross-threading
• Tighten snugly without over-torquing to prevent stripping
• Replace screws one at a time to maintain alignment

This front leveling leg supports and adjusts the appliance at the front, helping it sit stable and truly level. Replace a damaged or missing leg to restore proper height, stability, and smooth door alignment during everyday use.

• Provides height adjustment at the front to level the appliance
• Helps prevent rocking, vibration, and rattling
• Maintains correct cabinet/door alignment for proper operation
• Replace if the foot is cracked, stripped, missing, or won't adjust
• Common signs: unit wobbles, sits unevenly, or is difficult to level

• Disconnect power; if applicable, shut off water or gas. Pull the appliance forward and remove the toe-kick/access panel for clearance.
• Protect the floor; tilt or raise the front slightly to reach the leg.
• Unscrew the damaged leg; thread the new leg in by hand to avoid cross-threading.
• Adjust height until level front-to-back and side-to-side; verify stability before returning to service.

This adjuster socket is the replacement socket used with a cabinet/appliance leveling foot to adjust and stabilize the unit. It lets you raise or lower the appliance for a level installation and steadier operation. What it does:

• Engages the appliance leveling foot so you can turn and set the height
• Restores proper leveling to reduce rocking, uneven doors, and drainage issues
• Provides a secure interface between the leg and adjustment tool or nut
• Durable replacement for worn or damaged socket components

• One adjuster socket

• Turn power off and unplug the appliance before accessing leveling components
• Access may require tipping or partially removing the front grill or toe panel per your model's service manual
• Verify correct socket orientation and thread engagement before lowering appliance back to floor

The Base Panel is an OEM part for Bosch dishwashers. It serves as a protective cover for the bottom of the dishwasher, shielding internal components from debris, moisture, and damage while also contributing to the appliance's structural stability.

Causes of a bad base panel can include physical damage from impacts, corrosion due to prolonged exposure to moisture, or general wear and tear over time. A compromised base panel can lead to further issues by allowing dirt and water to infiltrate sensitive components.

Symptoms of a bad Base Panel include:

• Visible cracks or holes in the panel
• Water leaking from the bottom of the dishwasher
• Increased noise during operation
• Loose or misaligned panel

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Toe Panel Screw is an OEM replacement part for Bosch dishwashers. It secures the toe panel to the dishwasher.

Causes may involve normal wear and tear over time, improper installation, or damage from excessive force or impact. Replacing with this genuine OEM screw will reinforce your Bosch dishwasher's integrity for reliable performance.

Symptoms of a bad toe panel screw can include:

• The toe panel becoming loose, cracked, or removable
• Internal components visible underneath a loose toe panel
• Strange noises or vibration emanating from the toe panel area

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

The Water Valve Assembly is an OEM part for Bosch dishwashers. This assembly controls the flow of water into the dishwasher, ensuring that the correct amount of water is used during the wash cycle for optimal cleaning performance.

Causes of a bad water valve assembly can include mineral deposits from hard water, wear and tear over time, or electrical issues that prevent the valve from opening or closing properly. These issues can lead to improper water flow or leaks.

Symptoms of a bad water valve assembly include:

• Dishwasher not filling with water
• Insufficient water during the wash cycle
• Water leaks from the valve area
• Unusual noises when the valve is operating

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Float is an OEM part for Bosch dishwashers. This float senses water levels inside the dishwasher, signaling the inlet valve to refill when needed.

Causes of a float malfunctioning can be mineral deposits accumulating and weighing it down over time, or cracks in the plastic housing allowing water in.

Symptoms of a bad float include:

• The dishwasher not filling or filling slowly
• Error codes related to fill issues
• Improper water levels impacting wash results

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This float switch lever is the actuator that moves the dishwasher's tub float to operate the water-level/flood-sensing switch, helping the appliance detect overfill and control fill/drain cycles. Replaces a worn or broken lever to restore proper float activation. What it does:

• Transfers movement from the tub float to the float switch so the machine senses water level correctly
• Commonly needed when a cracked or detached lever prevents the float from engaging the switch
• Can stop overfill-safety trips or no-fill symptoms caused by a non-responsive float assembly
• Works with the existing float and float switch; restores mechanical linkage function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove lower access panels or tub components as required to reach the float assembly
• Inspect surrounding clips and the float for damage; replace any broken hardware
• Tighten securely but avoid over-torquing; test float movement and switch activation before reassembly

This shaft for the float switch is the replacement shaft that secures and guides the dishwasher float to accurately detect water level, helping the appliance fill and shut off properly. Direct-fit design replaces the worn or broken float shaft. What it does

• Guides the float so the level-sensing switch can detect low or high water levels.
• Prevents overfilling by ensuring the float actuates the water-level switch reliably.
• Commonly replaces a cracked, bent or missing shaft that causes inconsistent fill, continuous filling, or water-level errors.

• One replacement float switch shaft.

• Disconnect power to the appliance before starting any repair.
• Remove the access panels and float assembly per your model's service instructions to reach the shaft.
• Inspect the float and switch for damage; replace only the failed components as needed.
• Reassemble carefully and test fill/stop operation before returning the appliance to service.

Drain hose clamp

This drain hose adapter connects the appliance's drain hose to another hose or a compatible fitting, providing a secure, leak-resistant joint so wastewater can be routed to the household drain. Replace when the original adapter is cracked or loose.

• Couples the drain hose to another hose or to a sink/disposal/standpipe fitting
• Helps seal the joint to reduce leaks and hose slippage
• Restores a tight fit when the original adapter is worn, brittle, or missing
• Symptoms of a bad adapter: leaking at the connection, hose won't stay attached, visible cracks

• Disconnect power and turn off water before servicing
• Place a towel or pan to catch residual water from the hose
• Fully seat hose ends over the adapter barbs and secure with appropriate hose clamps
• Run a short test cycle and inspect all connections for leaks

2 clamps included.

The Hinge Lever (LH) is an OEM part for Bosch dishwashers. This left-hand lever is responsible for assisting in the opening and closing of the dishwasher door through a pivoting motion. The hinge lever works with other door components like springs and cables to provide smooth, balanced movement of the door.

Symptoms of a bad Hinge Lever include:

• Difficulty opening or closing the dishwasher door
• The door not staying securely closed during the cycle
• Excessive noise or creaking coming from the door area
• Misalignment of the door

Causes of a bad Hinge Lever can include normal wear and tear over time, damage from excessive force or weight on the door, or loose mounting hardware.

Note: Left hinge lever

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


The Hinge Lever (LH) is an OEM part for Bosch dishwashers. This left-hand lever is responsible for assisting in the opening and closing of the dishwasher door through a pivoting motion. The hinge lever works with other door components like springs and cables to provide smooth, balanced movement of the door.

Symptoms of a bad Hinge Lever include:

• Difficulty opening or closing the dishwasher door
• The door not staying securely closed during the cycle
• Excessive noise or creaking coming from the door area
• Misalignment of the door

Causes of a bad Hinge Lever can include normal wear and tear over time, damage from excessive force or weight on the door, or loose mounting hardware.

Note: Left hinge lever

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


This is the left side hinge plate. For right side use 00298570.

This insulating part is a small thermal insulator used to reduce heat transfer and protect nearby components in the appliance. It helps maintain proper internal temperatures and limits heat-related wear on surrounding parts. What it does

• Provides thermal separation between hot components and adjacent panels or wiring
• Helps reduce heat-related failure of nearby parts by slowing heat transfer
• Can reduce localized hot spots that cause odor or premature component wear
• Can help dampen minor vibration noise when fitted correctly

• Disconnect power to the appliance before accessing internal panels
• Remove outer panels or components as needed to reach the old insulating piece
• Handle gently; insulation materials can be fragile or have adhesive backing
• Reassemble panels securely and verify normal operation after installation

This M6 x 26 screw secures the dishwasher door tension/adjusting assembly so the door opens and closes smoothly. Replacement helps restore proper door alignment and reduces sagging, rattling, or uneven closing. What it does:

• Fastens the door tension/adjusting mechanism to the door assembly
• Maintains correct tension so the door stays level during use
• Helps stop door sag, uneven closing, or vibration noises related to a loose fastener

• Disconnect power and water supply before beginning any repair
• Use the correct M6 driver/socket and avoid stripping the head
• Thread the screw in straight and tighten until secure; do not overtighten

This replacement screw secures internal components and panels on compatible Bosch appliances, restoring proper mounting and preventing loose parts. Simple hardware that helps stop rattles and ensures panels stay aligned for safe operation. What it does:

• Fastens panels, brackets, or small components in appliance assemblies
• Replaces stripped, missing, or corroded screws to restore secure mounting
• Helps eliminate rattling or vibration caused by loose hardware
• Keeps internal parts properly aligned to maintain normal appliance function

• Disconnect power and water before servicing the appliance
• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Confirm thread size and length match the original part before installation

This installation set provides the mounting hardware needed to secure and finish appliance installation, helping ensure a stable fit and clean appearance. Ideal for use during initial installation or when replacing damaged fasteners. What it does:

• Provides necessary mounting hardware and brackets to secure the appliance in its cabinet or enclosure
• Helps maintain proper alignment and prevents movement or vibration during operation
• Supports safe routing and attachment of panels or trim for a finished look
• Addresses loose or missing mounting components that can cause rattle or poor fit

• Follow the appliance installation instructions and local codes; turn off power and water before beginning
• Use proper tools and fasteners for your cabinet and countertop material
• Tighten hardware snugly but avoid over-torquing which can strip threads or damage parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
