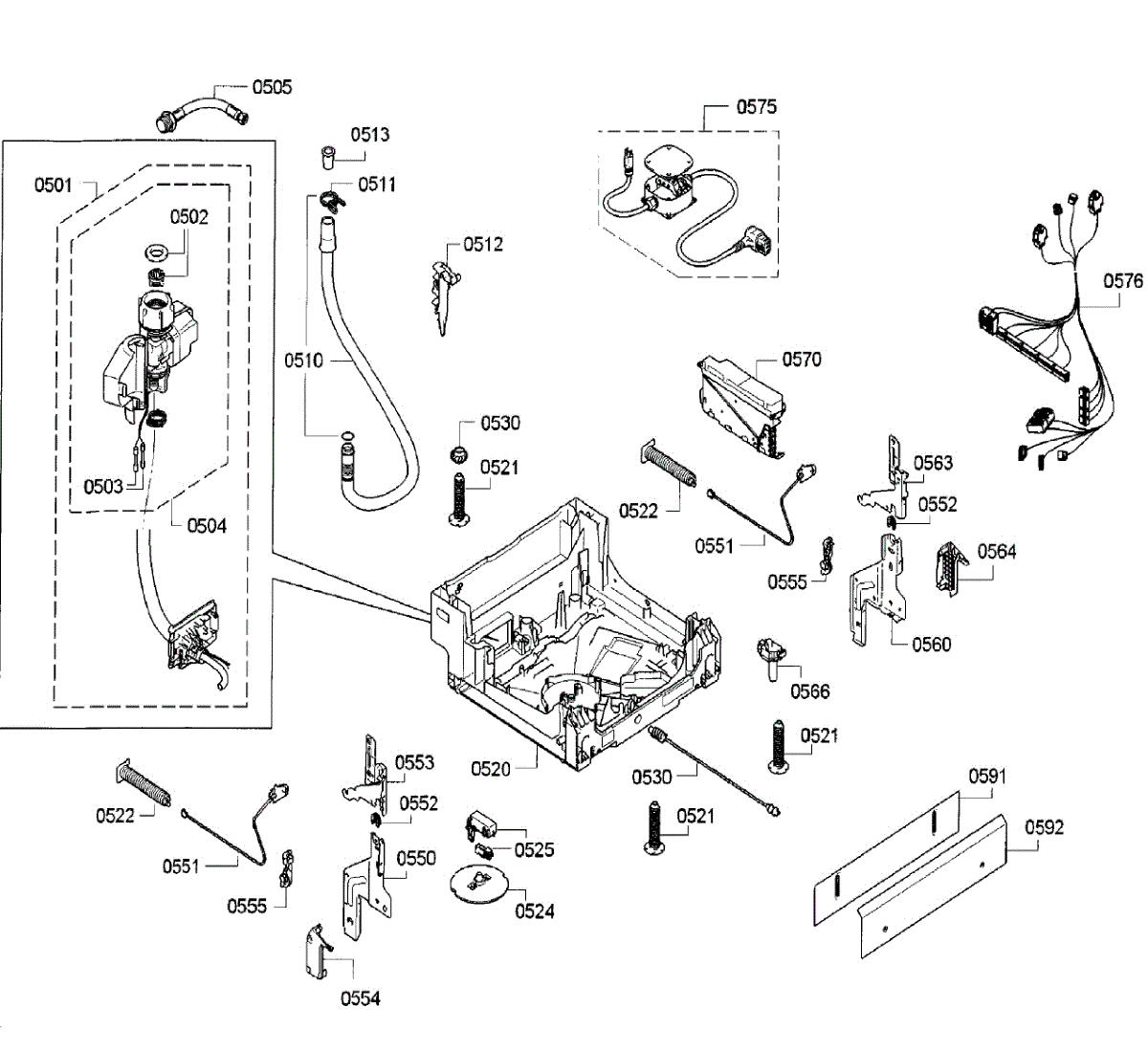

Parts for Bosch SPV5ES53UC/28: Base Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

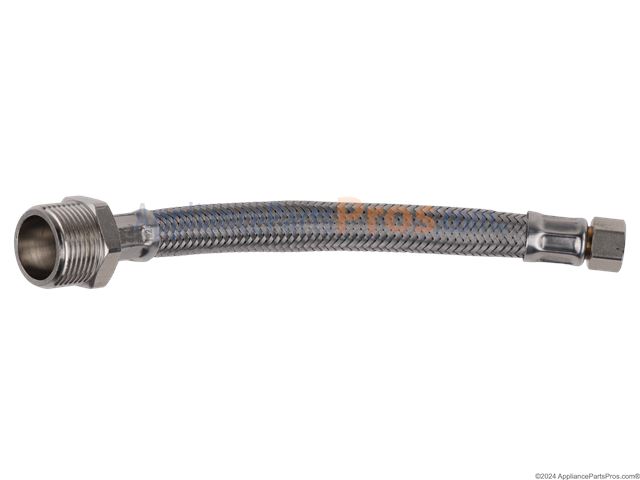

The Prolongation is an OEM replacement part for Bosch dishwashers that connects the dishwasher to the water supply, allowing for the proper filling of water during the wash cycles. It ensures a secure and leak-free connection between your dishwasher and the water source. It is designed to withstand the water pressure and temperature variations, providing a reliable and consistent water supply for your dishwasher.

A bad prolongation can occur due to wear and tear, damage, or improper installation. Signs of a faulty fill hose include leaks, cracks, or a decrease in water flow.

Symptoms of a bad prolongation include:

• Water leaks around the connection points
• Reduced water flow or inadequate water supply
• Visible cracks or damage to the fill hose

Replace your worn-out or damaged prolongation with this genuine OEM Bosch part to restore your dishwasher. This Bosch part can also be used on Thermador and Gaggenau appliances.

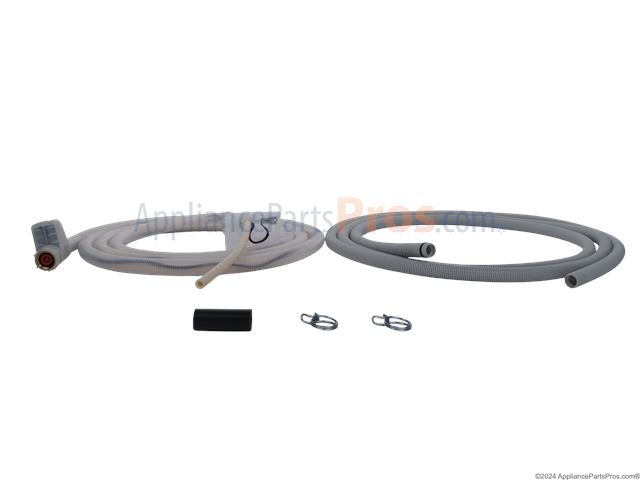

The Aquastop is an OEM part for Bosch dishwashers. This part prevents water leaks and flooding by automatically shutting off the water supply in case of a leak or malfunction.

Causes of a bad Aquastop can range from normal wear and tear over time to physical damage or clogging due to debris or sediment buildup in the water supply line.

Symptoms of a bad Aquastop include:

• Water leaks or puddles around the dishwasher
• Failure of the dishwasher to fill with water
• Error codes or indicators related to water supply issues
• Visible damage or deterioration of the Aquastop component

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This inlet seal is a small rubber gasket that creates a watertight connection at the dishwasher's water inlet. Replacing a worn seal helps stop leaks and ensures the inlet valve can fill the appliance properly. What it does:

• Seals the water inlet connection to prevent drips or steady leaks underneath the dishwasher
• Maintains a tight seal at the inlet valve so the fill cycle can operate normally
• Commonly replaced when there is visible wear, cracking, or persistent water on the floor
• Helps avoid water damage and the nuisance of repeated drainage or fill errors tied to leaking

• One inlet seal

• Turn off the water supply and disconnect power before servicing
• Remove the inlet valve or access panel as needed to reach the seal; replace with the old seal removed
• Make sure the new seal is seated evenly and the mating surfaces are clean before reassembly

The Adapter is an OEM part for Bosch dishwashers. It is used to connect the dishwasher water inlet hose to the internal water supply component. Proper sealing and connections are critical for leak-free dishwasher operation.

Causes of a bad hose adapter can include mineral buildup interfering with the seal, cracks developing from repeated heating and cooling cycles, or accidental damage during hose handling.

Symptoms of a bad hose adapter include:

• Water leaks at the hose connection point
• Mineral deposits or residue left around the area
• Reduced water pressure or flow to internal components
• Inability to establish a tight seal when connecting the hose

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This drain hose channels wastewater from your dishwasher to the household drain. Replacing a brittle, cracked, or clogged hose restores proper draining and helps prevent under-sink leaks and water backup. What it does:

• Provides a sealed path for wastewater from the dishwasher's drain outlet to the home's drain system
• Common failure signs include slow or no draining, water left in the tub, or water backing up
• Drips or leaks at hose joints, behind the unit, or under the sink
• Visible kinks, cracks, or deterioration; possible blockage leading to odors or strain on the drain pump

• 1 drain hose

• Disconnect power at the breaker and shut off the water supply; pull the dishwasher forward for access
• Place a towel or pan to catch residual water when removing the old hose
• Reuse existing fittings/clamps; route the new hose with a proper high loop/air gap as required, avoiding sharp bends and kinks
• Run a drain/rinse cycle and inspect all connections for leaks

This small insert is a precision-fit piece that helps secure and align a mating component so it fits and functions properly. Replacing a worn or missing insert restores a solid connection and dependable operation. What it does:

• Provides a snug mounting/locating point for the related part
• Helps prevent looseness, rattling, or misalignment
• Restores proper fit after cracking, wear, or loss
• Common signs include a cracked or missing insert and parts that no longer stay in place

• 1 insert

• Disconnect power (and water supply, if applicable) before servicing
• Compare the new insert to your original to match and orientation
• Remove any broken fragments and clean the area before installation
• Press or snap into place carefully; do not force or overtighten any fasteners

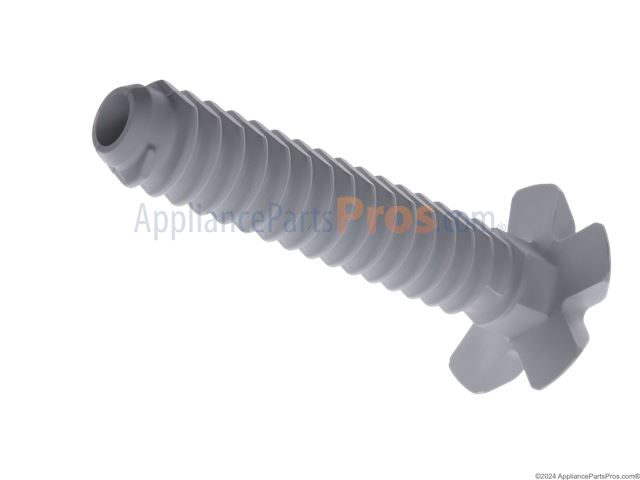

This replacement foot is the leveling support at the base of your appliance. It helps set the height and keep the unit stable and level, reducing wobble, vibration, and noise for smoother, quieter operation.

• Supports the appliance base and provides solid floor contact
• Allows height/leveling adjustment as designed by the unit
• Helps correct rocking, vibration, walking, or door misalignment caused by an unlevel appliance
• Replace if the foot is cracked, missing, worn, or stripped and won't hold adjustment

• Disconnect power; shut off water supply if applicable
• Protect flooring and have a helper steady or move the unit
• Remove the damaged foot; install the new foot per the mounting style (threaded or push-in)
• Adjust height to level the cabinet and stability at all corners

The Levelling Foot is an OEM replacement part designed specifically for Bosch dishwashers. It works to properly position and stabilize the appliance for balanced and smooth operation. Causes of a bad levelling leg/foot can include general wear and tear over time.

Symptoms of a bad levelling foot include:

• An unbalanced or unstable dishwasher during use
• Rocking or shifting of the unit on an uneven surface

This genuine OEM Bosch part restores proper alignment and support of the dishwasher to ensure optimal performance and noise reduction. This Bosch part can also be used on Thermador and Gaggenau appliances.

The Spring is an OEM part for Bosch dishwashers. It is used in the door mechanism to provide tension and balance, ensuring the door opens and closes smoothly and stays securely in place during operation.

Over time, the spring can wear out or become damaged due to repeated use, exposure to moisture, or accidental impacts. If the spring fails, the door may not operate correctly.

Symptoms of a bad spring include:

• The door not staying open or closed
• Difficulty in opening or closing the door
• The door dropping too quickly or not staying in position
• Unusual noises when operating the door

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Note: One spring only. For the spring/cable kit, order 00754866

The Water Level Float is an OEM part for Bosch dishwashers. It is a component inside the dishwasher which detects the water level during fill cycles. The float activates sensors to allow for controlled water intake at the proper levels.

Causes of a bad float can include mineral or biofilm buildup affecting mobility, cracks that compromise sealing integrity, or damage to the sensors in the sump area.

Symptoms of a bad water level float include:

• Incorrect or uneven water level filling the tub
• Longer cycle times to fill water to proper heights
• Drain issues or water collecting in the bottom of the tub
• Error codes displayed related to water level sensing

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau, and select Kenmore models.

This replacement door switch completes the appliance's door-sensing circuit so the unit only runs when the door is closed. It restores proper door-detection and helps the appliance start and stop reliably. What it does

• Detects door open/closed state and completes the electrical circuit when closed
• Prevents the appliance from running with the door open
• Can resolve symptoms like controls not responding, cycle not starting, or the unit stopping unexpectedly when the door is closed
• Works as the direct electrical interface between the door/latch and the control system

• One switch

• Disconnect power before servicing to avoid electrical shock
• Access may require removing the control panel or door trim depending on model
• Handle wiring and connectors carefully; match wire locations before removal

This spindle is the rotating shaft that transfers motion between the motor/gearbox and the appliance's moving components, restoring proper rotation and alignment for reliable operation. Fits as a direct replacement when the original spindle is worn or broken. What it does:

• Connects and transmits rotational force from the drive assembly to the appliance's moving part
• Maintains alignment and smooth rotation for consistent performance
• Can stop wobble or intermittent movement caused by a bent or damaged shaft
• Helps restore normal operation if the original spindle is cracked, worn, or seized

• Intended for users comfortable with appliance repair; unplug appliance and shut off water before starting
• Inspect related seals, bearings, and mounting hardware; replace if damaged
• Use correct tools and torque per manufacturer guidance; avoid forcing components to prevent damage

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This door cable links the door hinge to the tension spring to counterbalance your dishwasher door, helping it open smoothly and stay under control. Replace a worn or broken cable to restore proper door action.

• Connects the door hinge to the spring to counterbalance door weight
• Helps prevent the door from dropping open or slamming
• Common symptoms: door feels heavy, drops quickly, or won't stay in position
• Uneven or crooked door movement can indicate a failed cable on one side
• Visible fraying or a snapped cord near the spring/pulley area

• Disconnect power at the breaker and shut off water before servicing
• Support the door and carefully relieve spring tension before removing the cable
• Route the new cable exactly as the original over the pulley; attach to hinge and spring
• Inspect both sides, springs, and pulleys; replace any worn components for balanced operation

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Dishwasher Hinge Lever is an OEM replacement part for Bosch dishwashers. This hinge lever is crucial for the operation of the dishwasher door, supporting smooth movement as it opens and closes. It works alongside the door springs to provide balanced tension, ensuring that the door stays securely in place when opened or closed.

Over time, hinge levers may wear out due to regular use, strain from overloading the door, or corrosion from prolonged exposure to moisture. A damaged hinge lever can disrupt the door’s movement, leading to issues with opening, closing, or improper sealing of the dishwasher door.

Symptoms of a bad Dishwasher Hinge Lever include:

• Difficulty opening or closing the dishwasher door
• The door dropping open without resistance
• A loose or sagging door that won’t stay securely in place
• Unusual noises when moving the door

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Door Cable Guide is an OEM part for Bosch dishwashers. This guide ensures the door cables are properly aligned and move smoothly when opening and closing the dishwasher door, helping to maintain the door's balance and functionality.

Causes of a bad door cable guide can include regular wear and tear from frequent use, damage from improper handling, or accumulation of debris that hinders smooth movement. A damaged guide can lead to improper door operation and potential strain on the door cables.

Symptoms of a bad door cable guide include:

• Difficulty opening or closing the dishwasher door
• The door not staying open or closed as intended
• Unusual noises when the door is in motion
• Visible wear or damage to the guide

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

A replacement door hinge that restores smooth, stable door movement and proper alignment. Designed to replace the factory hinge so the appliance door opens, closes and stays aligned as intended. What it does:

• Supports and pivots the appliance door for normal opening and closing.
• Keeps the door aligned to prevent rubbing, gaps, or uneven sealing.
• Helps eliminate sagging or misaligned doors that make closing difficult.
• Works with original mounting points to maintain correct door motion.

• Use basic hand tools; for model-specific instructions.
• Disconnect power and/or gas and empty the appliance as required before servicing.
• Handle glass or insulated doors with care—use an assistant for heavy or awkward doors.

Replacement door hinge that restores proper door alignment and smooth opening/closing for compatible Bosch appliances. Simple, direct support for the door pivot to reduce sagging, uneven closing, and noisy operation. What it does:

• Supports the appliance door pivot and maintains correct door alignment during use.
• Helps stop door sagging, uneven gaps, and doors that don't close or latch reliably.
• Restores smooth opening and closing and reduces hinge-related noise.
• Works as the mechanical pivot/connection between the door and cabinet frame.

• Turn off power and disconnect the appliance (and water supply if applicable) before starting any repair.
• Support the door while removing/installing the hinge to prevent damage or injury.
• Use the original mounting hardware or manufacturer-recommended fasteners; tighten securely but avoid overtightening.
• After installation, check door alignment and operation; adjust as needed per manufacturer instructions.

The Indicator Light is an OEM part for Bosch dishwashers. It serves as a visual cue, providing important status updates and notifications related to the dishwasher's operation.

Causes of a malfunctioning Indicator Light can stem from issues with the control board or wiring harness that powers the light, or the light itself burning out due to age or electrical surges.

Symptoms of a bad Indicator Light include:

• The light not illuminating at all, even when it should be on
• Flickering or dimming of the light during operation
• The wrong indicator light turning on or staying on inappropriately

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Power Cord is an OEM replacement part for Bosch dishwashers. It supplies electrical current that allows the dishwasher to properly perform cycles. Located at the rear of the appliance, it plugs into a standard three-prong outlet.

Causes for power cord replacement include cracking, splitting, or breaks in the protective insulation over time from repeated bending and stress.

Symptoms of a faulty power cord include:

• Unresponsive or failed cycles indicating no power to operate
• Melted, blackened, or charred areas along the cord housing
• Visible frayed wires or exposed copper filaments

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
