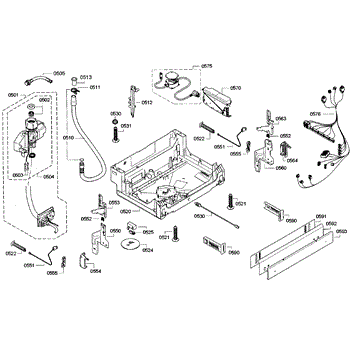

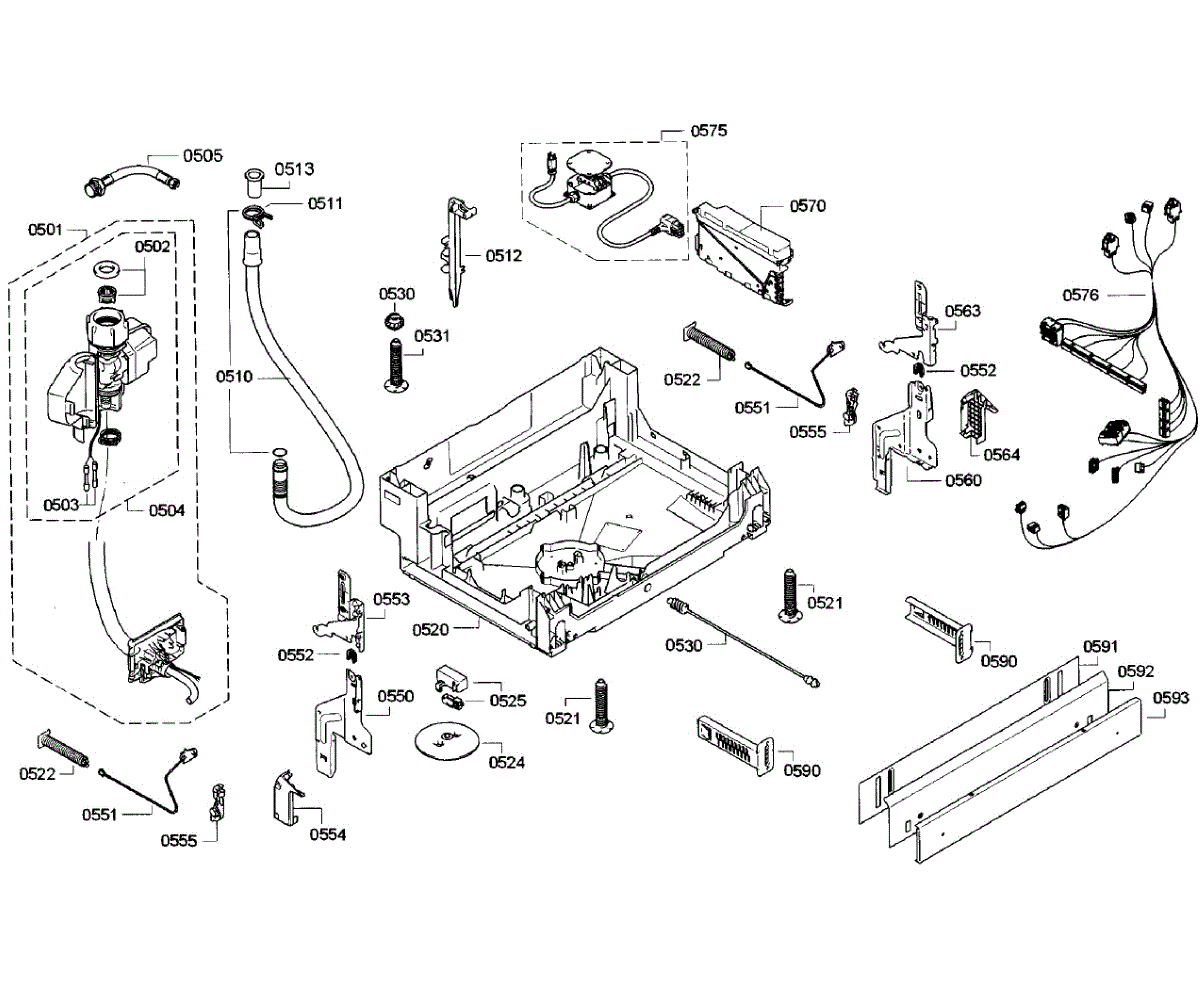

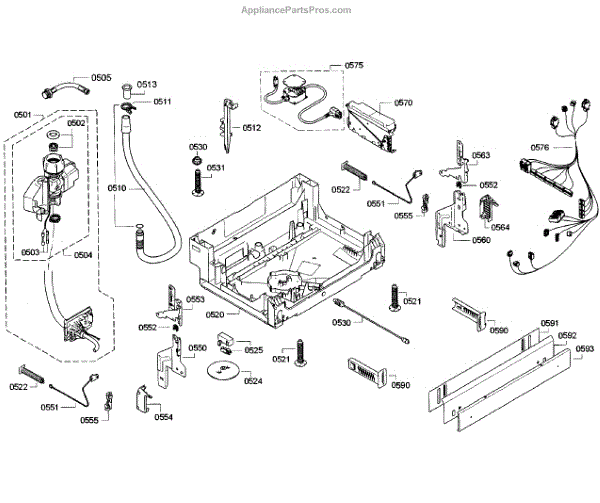

Parts for Bosch SHE9PT55UC/B3: Base Section Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Aquastop is an OEM part for Bosch dishwashers. This part prevents water leaks and flooding by automatically shutting off the water supply in case of a leak or malfunction.

Causes of a bad Aquastop can range from normal wear and tear over time to physical damage or clogging due to debris or sediment buildup in the water supply line.

Symptoms of a bad Aquastop include:

• Water leaks or puddles around the dishwasher
• Failure of the dishwasher to fill with water
• Error codes or indicators related to water supply issues
• Visible damage or deterioration of the Aquastop component

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This inlet seal is a small rubber gasket that creates a watertight connection at the dishwasher's water inlet. Replacing a worn seal helps stop leaks and ensures the inlet valve can fill the appliance properly. What it does:

• Seals the water inlet connection to prevent drips or steady leaks underneath the dishwasher
• Maintains a tight seal at the inlet valve so the fill cycle can operate normally
• Commonly replaced when there is visible wear, cracking, or persistent water on the floor
• Helps avoid water damage and the nuisance of repeated drainage or fill errors tied to leaking

• One inlet seal

• Turn off the water supply and disconnect power before servicing
• Remove the inlet valve or access panel as needed to reach the seal; replace with the old seal removed
• Make sure the new seal is seated evenly and the mating surfaces are clean before reassembly

The Adapter is an OEM part for Bosch dishwashers. It is used to connect the dishwasher water inlet hose to the internal water supply component. Proper sealing and connections are critical for leak-free dishwasher operation.

Causes of a bad hose adapter can include mineral buildup interfering with the seal, cracks developing from repeated heating and cooling cycles, or accidental damage during hose handling.

Symptoms of a bad hose adapter include:

• Water leaks at the hose connection point
• Mineral deposits or residue left around the area
• Reduced water pressure or flow to internal components
• Inability to establish a tight seal when connecting the hose

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This drain hose channels wastewater from your dishwasher to the household drain. Replacing a brittle, cracked, or clogged hose restores proper draining and helps prevent under-sink leaks and water backup. What it does:

• Provides a sealed path for wastewater from the dishwasher's drain outlet to the home's drain system
• Common failure signs include slow or no draining, water left in the tub, or water backing up
• Drips or leaks at hose joints, behind the unit, or under the sink
• Visible kinks, cracks, or deterioration; possible blockage leading to odors or strain on the drain pump

• 1 drain hose

• Disconnect power at the breaker and shut off the water supply; pull the dishwasher forward for access
• Place a towel or pan to catch residual water when removing the old hose
• Reuse existing fittings/clamps; route the new hose with a proper high loop/air gap as required, avoiding sharp bends and kinks
• Run a drain/rinse cycle and inspect all connections for leaks

Spring-style hose clamp that secures flexible water hoses to fittings on select appliances, helping maintain a leak-tight connection at hose joints. Keeps hoses seated to reduce leaks and ensure reliable water flow. What it does:

• Holds flexible inlet, drain, or circulation hoses tightly on barbed fittings and nipples.
• Prevents leaks and water loss at hose connections by maintaining steady clamp pressure.
• Common signs it needs replacement: dripping or pooling near hose connections, a loose or wobbly hose, or visible clamp corrosion or deformation.
• Small, inexpensive part that restores a secure hose connection when the original clamp has failed.

• Always disconnect power and shut off the water supply before servicing appliance plumbing.
• For spring-style clamps, use pliers to open the clamp, position it over the hose, and release slowly so it seats properly; ensure the hose is fully pushed onto the fitting.
• Inspect the hose and fitting for damage; replace the hose if cracked or excessively worn before installing a new clamp.
• Wear eye protection when compressing or releasing spring clamps to avoid injury from sudden release.

This small insert is a precision-fit piece that helps secure and align a mating component so it fits and functions properly. Replacing a worn or missing insert restores a solid connection and dependable operation. What it does:

• Provides a snug mounting/locating point for the related part
• Helps prevent looseness, rattling, or misalignment
• Restores proper fit after cracking, wear, or loss
• Common signs include a cracked or missing insert and parts that no longer stay in place

• 1 insert

• Disconnect power (and water supply, if applicable) before servicing
• Compare the new insert to your original to match and orientation
• Remove any broken fragments and clean the area before installation
• Press or snap into place carefully; do not force or overtighten any fasteners

This bottom case is the dishwasher base assembly that protects internal components and helps contain leaks, keeping the wash system stable and secure. It's a direct-fit replacement that restores the appliance's lower enclosure. What it does

• Forms the appliance's lower enclosure to shield the pump, motor and wiring from debris
• Helps direct and contain water in the event of minor leaks to protect surrounding components
• Provides mounting surfaces for lower hardware and supports correct alignment of internal parts
• Can reduce rattles or vibration caused by a damaged or cracked lower shell

• One bottom case

• Disconnect power and water supply before beginning any repair
• Handle the part carefully to avoid damaging edges, clips or mounting tabs
• Keep fasteners and any hardware from the original unit; verify fit and alignment before tightening
• If you see water or corrosion, dry and inspect surrounding components for damage before reassembly

The Levelling Foot is an OEM replacement part designed specifically for Bosch dishwashers. It works to properly position and stabilize the appliance for balanced and smooth operation. Causes of a bad levelling leg/foot can include general wear and tear over time.

Symptoms of a bad levelling foot include:

• An unbalanced or unstable dishwasher during use
• Rocking or shifting of the unit on an uneven surface

This genuine OEM Bosch part restores proper alignment and support of the dishwasher to ensure optimal performance and noise reduction. This Bosch part can also be used on Thermador and Gaggenau appliances.

This factory replacement spring restores the correct return force in the original mechanism so parts move, hold, and release as designed—bringing back smooth, reliable operation and preventing premature wear on related components.

• Provides controlled tension/return force within the intended assembly
• A weak, stretched, or broken spring can cause sticking, weak action, or failure to hold/release
• Replace if the original is deformed, missing, corroded, or broken
• Designed to fit and function like the original for consistent performance

• Disconnect power (and shut off water supply if applicable) before service
• Springs can release suddenly—use eye protection and needle-nose pliers
• Photograph the original routing/orientation before removal to match placement
• Access points and procedures vary by model; refer to the service manual

This is the appliance's main power on/off switch. It restores reliable control of electrical power to the unit so you can turn it on and off consistently.

• Controls AC power to the appliance's user interface and electronics
• Worn or stuck switch can cause no power, intermittent power, or inability to shut off
• Spongy or loose button feel may indicate internal switch failure

• Disconnect power before service to avoid electrical shock
• Access typically requires removing the control panel or console
• Note wire positions or take a photo before disconnecting
• Do not force tabs; transfer any clips or boots from the old switch if present

This is the appliance's main power on/off switch. It restores reliable control of electrical power to the unit so you can turn it on and off consistently.

• Controls AC power to the appliance's user interface and electronics
• Worn or stuck switch can cause no power, intermittent power, or inability to shut off
• Spongy or loose button feel may indicate internal switch failure

• Disconnect power before service to avoid electrical shock
• Access typically requires removing the control panel or console
• Note wire positions or take a photo before disconnecting
• Do not force tabs; transfer any clips or boots from the old switch if present

This spindle is the rotating shaft that transfers motion between the motor/gearbox and the appliance's moving components, restoring proper rotation and alignment for reliable operation. Fits as a direct replacement when the original spindle is worn or broken. What it does:

• Connects and transmits rotational force from the drive assembly to the appliance's moving part
• Maintains alignment and smooth rotation for consistent performance
• Can stop wobble or intermittent movement caused by a bent or damaged shaft
• Helps restore normal operation if the original spindle is cracked, worn, or seized

• Intended for users comfortable with appliance repair; unplug appliance and shut off water before starting
• Inspect related seals, bearings, and mounting hardware; replace if damaged
• Use correct tools and torque per manufacturer guidance; avoid forcing components to prevent damage

This replacement foot is the leveling support at the base of your appliance. It helps set the height and keep the unit stable and level, reducing wobble, vibration, and noise for smoother, quieter operation.

• Supports the appliance base and provides solid floor contact
• Allows height/leveling adjustment as designed by the unit
• Helps correct rocking, vibration, walking, or door misalignment caused by an unlevel appliance
• Replace if the foot is cracked, missing, worn, or stripped and won't hold adjustment

• Disconnect power; shut off water supply if applicable
• Protect flooring and have a helper steady or move the unit
• Remove the damaged foot; install the new foot per the mounting style (threaded or push-in)
• Adjust height to level the cabinet and stability at all corners

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Pulley Rope is an OEM part for Bosch dishwashers. It works with the door latch mechanism, allowing smooth opening and closing of the dishwasher door.

Causes of a bad door pulley rope can include fraying or breakage due to repeated use over time. Exposure to heat and chemicals may also damage synthetic fibers prematurely.

Symptoms of a bad dishwasher door pulley rope include:

• Difficulty latching or sealing the dishwasher door
• Sliding or squeaking noises coming from the door
• The door not sitting flush or properly aligned
• The door is unable to stay fully open for loading/unloading

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Dishwasher Hinge Lever is an OEM replacement part for Bosch dishwashers. This hinge lever is crucial for the operation of the dishwasher door, supporting smooth movement as it opens and closes. It works alongside the door springs to provide balanced tension, ensuring that the door stays securely in place when opened or closed.

Over time, hinge levers may wear out due to regular use, strain from overloading the door, or corrosion from prolonged exposure to moisture. A damaged hinge lever can disrupt the door’s movement, leading to issues with opening, closing, or improper sealing of the dishwasher door.

Symptoms of a bad Dishwasher Hinge Lever include:

• Difficulty opening or closing the dishwasher door
• The door dropping open without resistance
• A loose or sagging door that won’t stay securely in place
• Unusual noises when moving the door

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Door Cable Guide is an OEM part for Bosch dishwashers. This guide ensures the door cables are properly aligned and move smoothly when opening and closing the dishwasher door, helping to maintain the door's balance and functionality.

Causes of a bad door cable guide can include regular wear and tear from frequent use, damage from improper handling, or accumulation of debris that hinders smooth movement. A damaged guide can lead to improper door operation and potential strain on the door cables.

Symptoms of a bad door cable guide include:

• Difficulty opening or closing the dishwasher door
• The door not staying open or closed as intended
• Unusual noises when the door is in motion
• Visible wear or damage to the guide

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

A replacement door hinge that restores smooth, stable door movement and proper alignment. Designed to replace the factory hinge so the appliance door opens, closes and stays aligned as intended. What it does:

• Supports and pivots the appliance door for normal opening and closing.
• Keeps the door aligned to prevent rubbing, gaps, or uneven sealing.
• Helps eliminate sagging or misaligned doors that make closing difficult.
• Works with original mounting points to maintain correct door motion.

• Use basic hand tools; for model-specific instructions.
• Disconnect power and/or gas and empty the appliance as required before servicing.
• Handle glass or insulated doors with care—use an assistant for heavy or awkward doors.

Replacement door hinge that restores proper door alignment and smooth opening/closing for compatible Bosch appliances. Simple, direct support for the door pivot to reduce sagging, uneven closing, and noisy operation. What it does:

• Supports the appliance door pivot and maintains correct door alignment during use.
• Helps stop door sagging, uneven gaps, and doors that don't close or latch reliably.
• Restores smooth opening and closing and reduces hinge-related noise.
• Works as the mechanical pivot/connection between the door and cabinet frame.

• Turn off power and disconnect the appliance (and water supply if applicable) before starting any repair.
• Support the door while removing/installing the hinge to prevent damage or injury.
• Use the original mounting hardware or manufacturer-recommended fasteners; tighten securely but avoid overtightening.
• After installation, check door alignment and operation; adjust as needed per manufacturer instructions.

This control module is the main program board that manages wash cycles, user inputs and timed functions for compatible Bosch dishwashers. Replacing a faulty module restores proper cycle control and response to touchpad commands. What it does:

• Runs and times dishwasher wash, rinse and drain cycles based on selected programs
• Interprets signals from the user interface and sensors to start and advance cycles
• Activates relays and outputs for pumps, valves and heaters when commanded
• Prevents or reports errors when the control logic detects faults

• One control module/program board (as shown)

• Disconnect electrical power at the breaker before beginning any work
• Handle the board carefully to avoid static discharge or damage to components

The Power Cord is an OEM replacement part for Bosch dishwashers. It supplies electrical current that allows the dishwasher to properly perform cycles. Located at the rear of the appliance, it plugs into a standard three-prong outlet.

Causes for power cord replacement include cracking, splitting, or breaks in the protective insulation over time from repeated bending and stress.

Symptoms of a faulty power cord include:

• Unresponsive or failed cycles indicating no power to operate
• Melted, blackened, or charred areas along the cord housing
• Visible frayed wires or exposed copper filaments

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Fixing kit supplies the replacement mounting hardware needed to secure appliance panels and components during repairs. It restores proper support to reduce vibration, rattling and misalignment for a stable, quiet installation. What it does:

• Provides the mounting fasteners and clips that hold panels, trim or internal brackets in place.
• Replaces missing or damaged hardware that can cause loose or rattling panels.
• Restores proper alignment to help eliminate noise and improve fit between parts.
• Used when securing components during reassembly after repair or service.

• Disconnect power (and water if applicable) before beginning any repair.
• Retain and compare new hardware to original parts to ensure correct fit before installation.
• Hand-start screws and fasteners, then tighten securely—do not overtighten to avoid stripping.

This base panel is the lower kickplate that covers and protects the underside of the dishwasher, restoring the appliance's finished appearance and shielding internal components from dust and debris. It provides a simple cosmetic and protective repair. What it does:

• Covers the dishwasher's lower front area to protect base components and conceal internal parts
• Restores the appliance's original look when the kickplate is dented, cracked, or missing
• Helps reduce dust and debris entering the washer cavity and base assembly
• Stops drafts or light entry under the door when the original panel is damaged

• One base panel

• Remove power to the appliance before beginning work to avoid injury
• Typically secures with screws or clips at the base; keep fasteners from the original panel for reinstallation
• Handle carefully to avoid scratching the finish; alignment may require slight adjustment

This base panel is the lower front trim that covers and protects the appliance kick area while giving a finished look. It restores the cabinet's appearance and shields internal components from dust and debris. What it does:

• Covers the appliance lower front to hide internal frame and hardware
• Protects kick area from scuffs, dust, and pet access
• Helps maintain a finished, factory appearance after repair
• Stops drafts or light entering under the appliance when fitted

• Install with the factory fasteners or clips; avoid forcing or bending the panel
• Turn off and unplug the appliance before removing lower access pieces to avoid contact with electrical components
• Check alignment and fastener fit before tightening to prevent cracking the trim
• Replace any missing or broken clips or screws with OEM parts for proper fit

This base panel is the lower kick plate that finishes the front bottom of the appliance and helps protect internal components from debris while keeping the cabinet appearance consistent. It replaces a worn, bent, or damaged lower panel. What it does:

• Covers and protects the appliance's lower cavity and components from dust, debris and accidental contact
• Restores proper fit and appearance when the original panel is dented, cracked, or loose
• Helps reduce drafts and keeps the oven/range base sealed from the front
• Can stop rattling caused by a damaged or misaligned lower panel

• One base panel

• Disconnect power to the appliance before starting work and follow manufacturer safety instructions
• Typically accessed from the front by removing the kick plate or bottom drawer; keep track of fasteners
• Handle edges carefully — metal panels can be sharp

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
