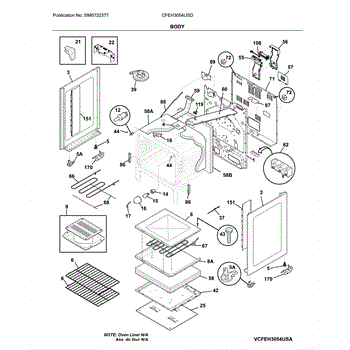

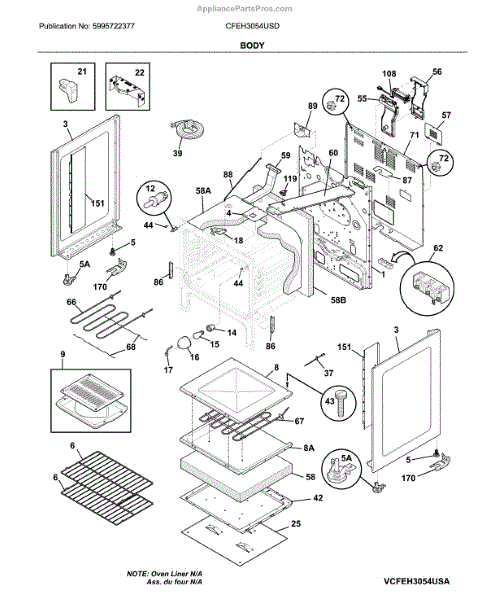

Parts for Frigidaire CFEH3054USD: Body Parts

This control panel is the exterior trim that houses and protects the oven/range user interface and display, restoring a clean, functional front for the appliance. It keeps buttons and indicators secure and visible for reliable operation. What it does:

• Covers and protects the appliance control buttons, touchpad, and display from spills and damage
• Provides the visible interface for selecting oven functions and viewing status
• Restores a finished appearance to a damaged, cracked, or worn control area
• Helps ensure buttons and indicators align properly for correct operation

• One control panel

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Some models require removing screws or snap clips and gently lifting the old panel from the console
• Handle the panel carefully to avoid scratching the visible finish or bending mounting tabs
• If the panel attaches to electronic components, take care not to damage ribbon cables or connectors; take care not to damage ribbon cables or connectors.

This factory screw secures panels, brackets, and other components in your cooking appliance. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and keep parts properly aligned during use.

• Fastens components to maintain proper alignment and stability
• Helps prevent vibration, rattling, and loose parts during operation
• Replace if threads are stripped, the head is damaged, or the screw is missing
• Commonly used to mount internal or exterior parts in ranges and wall ovens

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Use the correct driver bit to avoid stripping the screw head
• Install in the original location and do not overtighten
• If the receiving threads are damaged, repair or replace the mating part before installation

The Leveling Leg Assembly is an OEM part for Frigidaire ranges. This part provides stability by allowing users to adjust the height of the range, ensuring it is level and balanced on the floor.

Causes of a bad leveling leg assembly can include wear from frequent adjustments, damage due to heavy loads, or breakage from accidental impacts.

Symptoms of a bad leveling leg assembly include:

• The range being uneven or wobbling
• Difficulty in leveling the range using the legs
• Noise or movement when the range is in use
• Doors not aligning properly

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Frigidaire Oven Rack is an OEM part for Frigidaire ranges and wall ovens. It provides an elevated surface for baking sheets, casserole dishes, and other cookware during the heating process. The rack measures approximately 24 inches wide by 16 inches deep.

Causes of a bad oven rack could be cracks, bends, or breaks that develop from repeated expansion and contraction during heating. Normal wear from years of use can impact the integrity of welds or supports.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in or out
• The rack not sitting level or securely in the oven
• Warping or bending of the rack
• Rust or discoloration on the rack surface

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Oven Bottom Panel is an OEM component for Frigidaire oven models. Located on the base of the oven interior, this metal panel provides structure and support.

Causes of a bad oven bottom panel include warping or damage due to exposure to high heat over time. Small nicks or cuts could allow heat to escape and reduce the oven's efficiency. Intentional or accidental impact during cleaning can also weaken the material.

Symptoms of a bad oven bottom panel include:

• Uneven or inefficient heat distribution within the oven
• Visible warping or damage to the panel surface
• Reduced heat retention leading to longer cook times
• Potential safety hazards if the metal is weakened

This OEM Frigidaire part is also compatible with some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This oven light lens retainer secures the glass light cover to the oven cavity so the bulb area stays protected during cooking. Replacing a damaged or missing retainer keeps the lens firmly in place and prevents nuisance loosening.

• Holds the glass light lens securely inside the oven cavity
• Helps shield the bulb area from splatters and debris
• Direct replacement for a bent, warped, or missing retainer ring
• Common symptoms: lens won't stay in, cover rattles, or difficulty securing the lens after service

• Disconnect power at the breaker and allow the oven to cool completely
• Remove oven racks for easier access to the light cover area
• Support the glass lens while positioning the retainer to avoid drops or chipping
• Secure the retainer per your model's design; do not overtighten

This oven door latch assembly locks the door during self-clean and reports lock status to the control. Restores proper door locking and unlocking so bake and clean cycles can run safely and without interruptions. What it does:

• Secures the oven door during self-clean and when commanded by the control
• Provides locked/unlocked position feedback to the electronic control
• Helps resolve issues such as a door that won't lock or unlock
• Can address self-clean cycles that won't start or complete and lock-related error messages

• 1 latch assembly

• Disconnect power at the breaker and allow the oven to cool completely
• Access varies by model; you may need to pull the unit and remove the rear or top/control panel
• Photograph wire connections and linkage before removal; transfer any mounting hardware from the original
• After installation, test the lock operation before final reassembly

A small replacement retainer clip that secures trim, panels or components in place to restore proper alignment and stop rattles or loosening. Fits original mounting points for a factory-style repair. What it does:

• Secures refrigerator trim, panels or small components to prevent movement and noise
• Keeps parts aligned so doors and drawers fit and operate smoothly
• Helps maintain grille, kickplate or interior trim attachment where clips are used
• Simple, non-electrical part — no wiring or calibration required

• Basic hand tools usually required; access the clip location before removal
• Remove any panels gently to avoid damaging surrounding trim or fasteners
• Replace only the worn or broken clip; align part fully before snapping into place
• Disconnect power to appliances with electrical components before starting work

The Oven Probe is an OEM replacement part for Frigidaire electric ranges. As an essential safety device, it monitors internal temperatures accurately during baking and roasting cycles.  This probe measures approximately 8 inches.

Causes of a bad oven probe can include normal wear from continual high heat usage. Exposure to splatters or spills may damage fragile connection wires or compromise sensor accuracy over many years.

Symptoms of a bad oven probe are:

• Inability to selectcooking modes like bake, roast or broil requiring temperature control
• Faulty or inconsistent temperature readings during heating
• Error messages regarding probe malfunctions
• Premature heating element burnouts without regulating feedback

This part is also compatible with Electrolux and select Kenmore models.

Note: ONE screw only, order as needed.

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

This outer housing cover replaces a damaged or missing trim piece to protect internal components and restore the appliance's finished appearance. It fits as the exterior cover piece found on the original unit. What it does:

• Protects internal components from dirt, spills and accidental contact
• Conceals wiring and mounting points for a clean, finished look
• Prevents small items from entering sensitive areas that could cause faults
• Restores appearance after panel damage or wear

• One outer housing cover

• Disconnect power to the appliance before starting any service
• Follow the manufacturer's service instructions and keep track of fasteners
• Use basic hand tools; avoid flexing the part to prevent cracking

This cabinet insulation helps reduce heat transfer inside the refrigerator, supporting stable temperatures and efficient cooling. Replacing damaged or missing insulation can improve temperature control and reduce frost buildup. What it does:

• Fills gaps between the cabinet and liner to slow heat transfer and maintain internal cold
• Helps the appliance reach and hold set temperatures more consistently
• Reduces condensation and excess frost on interior surfaces
• Can improve compressor run-time and overall energy efficiency when intact

• Disconnect power before starting
• Remove food and shelving from the compartment before accessing the insulation
• Handle insulation carefully to avoid tearing; secure per manufacturer routing and adhesive points
• Dispose of old insulation per local regulations

This insulation panel fits inside the refrigerator cabinet to help maintain interior temperatures and reduce heat transfer to the outer shell, supporting more consistent cooling and helping limit frost buildup. What it does:

• Forms a thermal barrier between the interior liner and outer cabinet to help hold cold air inside.
• Helps reduce frost and moisture buildup around the liner when intact.
• Worn, torn, or missing insulation can contribute to longer run times, uneven cooling, or more frequent defrost cycles.
• Replaces damaged insulation to restore proper temperature retention and improve appliance efficiency.

• Always disconnect power to the appliance before starting any repair.
• Panel may be secured with clips, adhesive, or foam sealant; remove and install carefully to avoid damaging the liner.
• Inspect surrounding seals, gaskets, and fasteners while accessing the cavity; replace any damaged components.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Broil Element is an OEM part for Frigidaire ovens. This element provides the intense heat necessary for broiling, ensuring that food is cooked evenly and thoroughly from above. It's essential for tasks such as broiling meats, melting cheese, and toasting bread. The element measures 15 3/8 inches from the front to the mounting bracket. It measures 12-1/4 inches wide, and 3 1/4 inches from the bracket to the terminal end. The mounting holes are 11-1/2 inches apart.

You should replace the broil element if it becomes faulty or damaged. Causes of a bad broil element can include regular wear and tear, overheating, or electrical issues that prevent it from heating up properly.

Symptoms of a bad broil element include:

• The broil element not heating up
• Uneven heating during the broiling process
• Visible damage or burn marks on the element
• Sparking or unusual noises when the broil function is used

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Bake Element is an OEM replacement part for Frigidaire ovens and ranges. Located at the bottom of the oven cavity. This fundamental component produces the heat needed for baking, roasting, and heating functions.

Causes of bake element problems involve normal wear from repeated heat cycles and heavy-duty use over many years. Extended exposure to high oven temperatures can degrade fragile coil filaments.

Symptoms of a faulty bake element include:

• Uneven or inadequate heating for baking/roasting recipes
• Slow or inefficient preheating of oven interior
• Oven temperature failing to reach desired settings
• Element coil is visibly discolored or deteriorated

This OEM Frigidaire replacement element is also compatible with Electrolux, Gibson, and Kelvinator appliance brands.

This evaporator cover shield protects the refrigerator evaporator and related components from debris and helps direct airflow for efficient cooling. It's a direct-replacement exterior cover used behind the freezer liner. What it does:

• Protects the evaporator coil and fan from damage and debris
• Helps channel airflow across the evaporator for proper cold-air distribution
• Prevents accidental contact with cold or moving parts during service
• Can reduce frost buildup by maintaining proper airflow paths

• One evaporator cover shield

• Designed for straightforward replacement; remove interior liner or access panel per your model's service instructions
• Handle carefully to avoid bending tabs or cracking plastic; align mounting tabs before securing
• Disconnect power to the appliance before beginning any service to avoid electrical shock or injury
• If you find additional damaged or missing fasteners, replace them with OEM-specified hardware

This electrical receptacle is the small connector that secures a wiring plug to an appliance component, restoring a reliable electrical connection and preventing intermittent operation or arcing. What it does:

• Provides a secure plug-in connection between a wire harness and a component
• Restores power to a component when the original connector is cracked, melted, or corroded
• Helps prevent loose connections that can cause intermittent operation or sparks
• Fits the OEM-style wiring configuration for a direct replacement

• Disconnect power to the appliance before starting any repair
• Remove the damaged connector and match the replacement to the harness before installing
• Use basic hand tools; avoid forcing terminals to prevent damage

The Door Lock Motor and Switch Assembly is an OEM component specifically designed for Frigidaire ranges. This locking system safely secures oven doors during cleaning or self-clean cycles through the electromagnetic operation.

Symptoms of a defective assembly include:

• Failure to engage or release the door lock function
• Loud buzzing or grinding noises from internal mechanisms
• Error codes related to door lock detection problems

Causes relate to wear from continual operation of locking solenoids over extended use. Exposure to cooking residues and cleaning chemicals can deteriorate switches.

This OEM Frigidaire part is also compatible with some Kenmore and GE appliance brands. Replacing worn components restores reliable door locking to automatically secure during high-heat cycles. Timely maintenance preserves safety functionality.


The Fan Assembly is an OEM part for Frigidaire ranges. Located inside the oven cavity, it works with the heating elements to evenly circulate hot air throughout the cooking chamber.

Causes of failure can include wear and tear on the fan blades or bearings ceasing proper rotation over many heating cycles. Damage to the motor windings or wiring from moisture is also common.

Symptoms of a faulty fan assembly involve:

• Improper or uneven cooking due to inconsistent temperature distribution
• Burnt or undercooked spots on food from hot or cold spots
• Loud grinding noises emanating from the oven

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Thermostat is an OEM replacement part for Frigidaire ranges. It monitors the oven's temperature and cuts power if temperatures surpass safe levels. The high-limit thermostat allows protection against overheating.

Causes of a bad thermostat include wear and tear over time, damage due to exposure to extreme heat, or malfunctioning electronic components.

Symptoms of a bad thermostat include:

• Oven does not start at all.
• Excessive temperature fluctuations
• Risk of overheating as thermostat fails to shut off gas or electric coils
• Smoking or burning smells from the oven

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

The Anti-Tip Bracket Kit is an OEM part for Frigidaire ranges and ovens. This part secures the appliance to the floor or wall, preventing it from tipping over when the oven door is opened or when heavy cookware is placed on an open door or extended rack. The kit typically includes a metal bracket, screws, and installation instructions.

Over time, or during instances of moving or remodeling, the anti-tip bracket may become dislodged or may not be reinstalled correctly, which can compromise the safety of the appliance.

Symptoms of a missing or improperly installed Anti-Tip Bracket include:

• The range or oven tilts forward when pressure is applied to an open door
• The appliance moves more easily than expected when nudged or cleaned
• Visible absence of a bracket at the lower back portion or floor area behind the appliance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a replacement mounting screw used to secure the appliance power/control board, restoring a solid electrical board connection and preventing vibration or loose contacts. Ideal for repairs where the original screw is missing or damaged. What it does:

• Fastens the power/control board to the appliance chassis to keep connections stable
• Helps prevent board movement that can cause intermittent electrical issues or noise
• Restores proper mounting after service or component replacement

• Turn off and unplug the appliance before starting any repair
• Use appropriate screwdriver and avoid over-tightening to prevent board or thread damage
• Wear eye protection and keep small parts away from children and pets

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

Size: 8-18ab x 0.5 inch.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

This wiring harness connects your appliance's electrical components, restoring reliable power and signal paths to controls and motors. A direct-fit replacement when the original harness is damaged, burnt, or has broken wires. What it does:

• Provides the main electrical connections between controls, switches, and motors
• Replaces frayed, burnt, or disconnected wires that cause intermittent power or component failure
• Helps restore proper operation of affected circuits and control signals
• Reduces risk of shorts caused by exposed or damaged wiring

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Inspect connectors and mounting points for damage; secure harness with existing clips or fasteners
• Route wires away from sharp edges and moving parts to prevent chafing

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and keep parts aligned for safe, reliable operation. What it does:

• Secures panels, brackets, and trim to prevent rattling or loosening
• Restores proper fit where a damaged or missing screw caused gaps or movement
• Helps maintain component alignment for smooth operation
• Simple hardware replacement that supports overall appliance stability

• Disconnect power and gas before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Keep small parts away from children and dispose of old fasteners responsibly

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

Size: 8-32t x 0.500 inch. Color: Black.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
