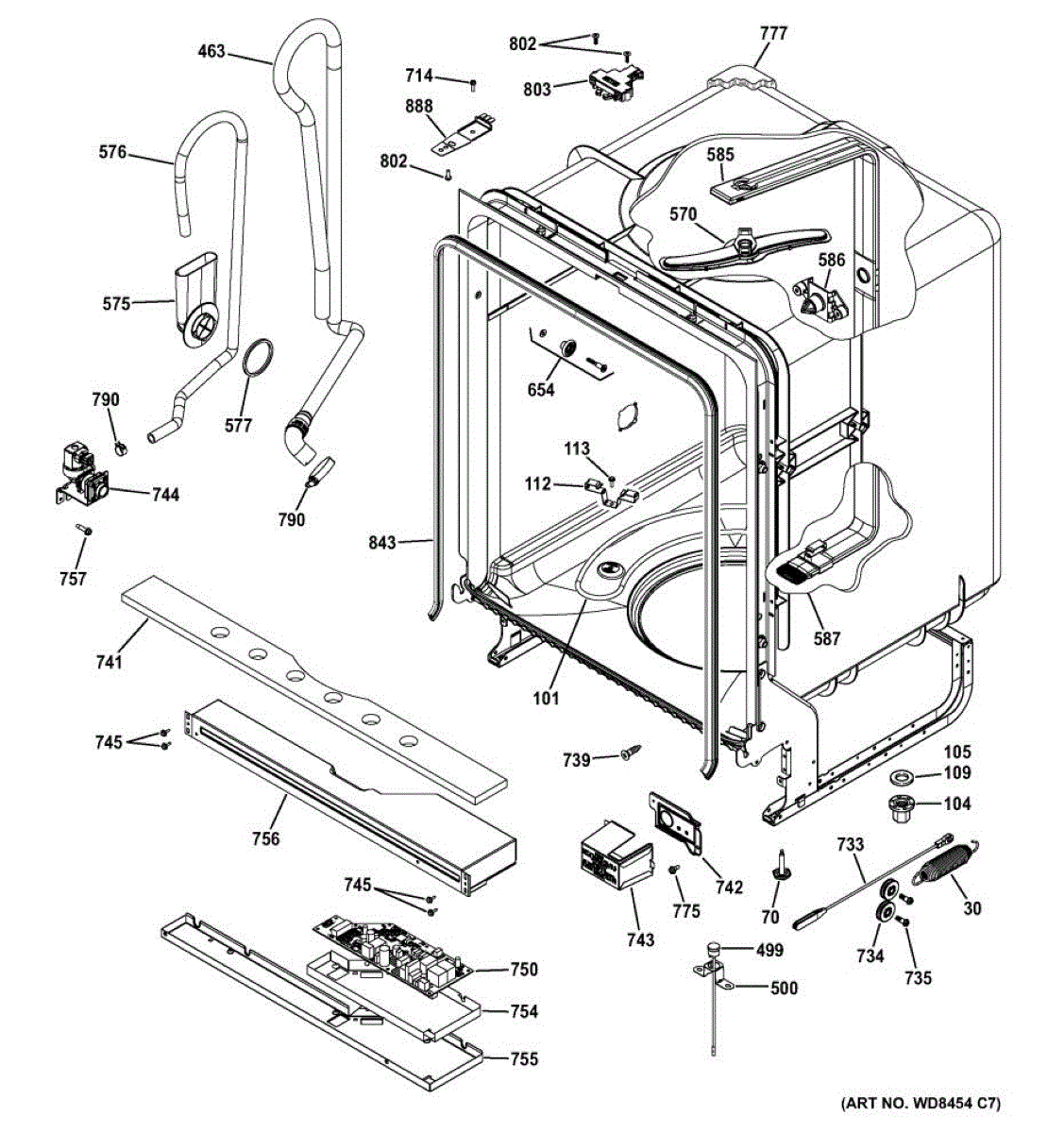

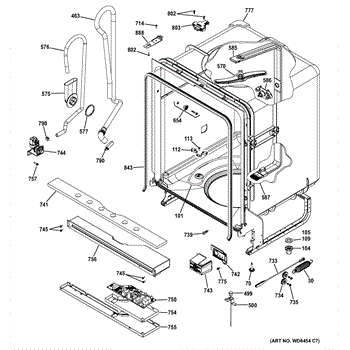

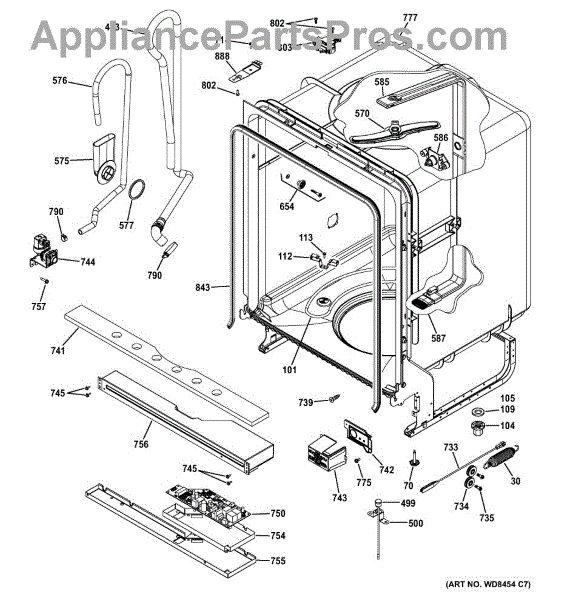

Parts for Ge GDF510PGD0BB: 02 - Body Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This dishwasher door spring counterbalances the door so it opens smoothly and doesn't drop. Replacing a fatigued or broken spring restores proper door action, prevents sudden slamming, and reduces stress on the hinges and link components.

• Provides the tension that counterbalances the door's weight during opening and closing
• Helps prevent the door from dropping quickly or feeling unusually heavy
• Supports smooth, even movement within the door hinge/counterbalance system
• Common signs of failure: door falls open, won't stay partially open, or binds/squeaks while moving

• Disconnect power and shut off water before servicing; wear gloves and eye protection
• Remove the toe-kick to access the spring and hinge area
• Support the door; carefully relieve spring tension and transfer the spring to the same anchor points as the original
• Test door balance and motion before reinstalling the toe panel

This leveling leg adjusts the dishwasher's height at the base, helping you level and stabilize the unit inside the cabinet. Proper leveling reduces rocking and vibration and promotes a tight door seal and smooth rack operation.

• Screws into the base frame to set height and level the dishwasher
• Supports the unit to prevent rocking or wobbling
• Helps maintain door alignment and sealing; poor leveling can contribute to leaks
• A worn, bent, or missing leg can make leveling difficult and increase vibration/noise

• Disconnect power and shut off water; slide the dishwasher out if needed for access
• Turn the leg with a wrench or pliers to adjust height; replace by threading the new leg into the base
• Use a bubble level to set side-to-side and front-to-back level before re-securing the unit
• Do not overtighten; ensure both legs carry weight evenly on a solid floor surface

The Heating Element is an OEM part for GE dishwashers. It is responsible for heating the water during the wash cycles and for drying the dishes after the rinse cycle. Proper functioning of the heating element ensures optimal cleaning and drying performance.

Causes of a bad heating element can include mineral buildup from hard water, electrical faults, or general wear and tear over time. Damage to the heating coil or connections can also impair its functionality.

Symptoms of a bad heating element include:

• Dishes not drying properly
• Dishwasher cycles taking longer than usual
• Water not heating during the wash cycle
• Error codes related to heating issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Note: This kit contains both the Circulation Pump and Drain Pump along with a harness and clamps. Due to a factory revision, the pumps are no longer offered individually.

The Upper Spray Arm is an OEM part for GE dishwashers. It is designed to distribute water evenly throughout the upper rack during the wash cycle, ensuring that all dishes are thoroughly cleaned. The spray arm rotates to provide coverage and spray patterns that reach every dish and utensil. The arm measures about 10 inches by 2.5 inches

Over time, the upper spray arm can become clogged with food particles or mineral deposits, which can impede its function. Physical damage or wear and tear can also cause it to fail.

Symptoms of a bad upper spray arm include:

• Dishes on the upper rack not getting clean
• Reduced water pressure from the upper arm
• Spray arm not spinning or moving properly
• Visible cracks or damage to the spray arm

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fill funnel assembly mounts inside the dishwasher tub at the water inlet. It directs incoming water into the tub and helps prevent splashing or leaks at the fill area for reliable fills and cleaner operation.

• Channels water from the inlet opening directly into the tub
• Helps control splash and seal the fill port to reduce drips
• Damage, cracks, or a missing funnel can cause leaks near the fill area during the fill cycle or unusual spraying sounds
• Restores proper water entry path for consistent filling

• Disconnect power and shut off the water supply before servicing
• Remove the lower rack and locate the fill inlet on the tub wall
• Remove retaining fastener(s) or tabs, replace the funnel, and ensure any seal is properly seated
• Reassemble and run a brief fill/rinse to check for leaks at the inlet area

This fill funnel assembly mounts inside the dishwasher tub at the water inlet. It directs incoming water into the tub and helps prevent splashing or leaks at the fill area for reliable fills and cleaner operation.

• Channels water from the inlet opening directly into the tub
• Helps control splash and seal the fill port to reduce drips
• Damage, cracks, or a missing funnel can cause leaks near the fill area during the fill cycle or unusual spraying sounds
• Restores proper water entry path for consistent filling

• Disconnect power and shut off the water supply before servicing
• Remove the lower rack and locate the fill inlet on the tub wall
• Remove retaining fastener(s) or tabs, replace the funnel, and ensure any seal is properly seated
• Reassemble and run a brief fill/rinse to check for leaks at the inlet area

This SCR 8-18 silicon-controlled rectifier replaces the control semiconductor that switches and regulates power to heating or motor circuits in compatible appliances, restoring proper power delivery and control. It's a direct-fit electrical replacement part. What it does

• Acts as a switching device on control boards to allow or block current flow when signaled.
• Regulates power delivered to heating elements or motor circuits to enable proper operation.
• Commonly linked to symptoms like no heat or intermittent heating, motors that won't start, or erratic control-board behavior.
• Helps restore reliable on/off control when a failed SCR is causing open or shorted conditions.

• One SCR 8-18 silicon-controlled rectifier (WD02X10160).

• Always disconnect power before servicing the appliance to avoid shock.
• Handle the part carefully; avoid touching leads and use anti-static precautions if available.
• Inspect surrounding connectors and wiring for damage; replace any corroded terminals.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Cable is an OEM part for GE dishwashers, designed to support and assist in the smooth and controlled opening and closing of the dishwasher door. This cable connects the door to the spring mechanism, providing the necessary tension to balance the door's weight during operation.

Signs that you might need to replace the Door Cable include the door suddenly dropping open or being difficult to raise, indicating a break or excessive wear.

Symptoms of a bad Door Cable include:

• The dishwasher door slamming open or requiring extra force to close.
• Unusual noises when opening or closing the door, suggesting the cable is not running smoothly.
• Difficulty in keeping the door partially open, affecting loading and unloading dishes.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-32 t. Includes 12 screws.

This dishwasher junction box cover encloses the power-connection compartment at the base of the unit. Replacing a damaged or missing cover helps protect wiring from debris and accidental contact, restoring a safe, secure connection area. What it does:

• Covers and secures the dishwasher's electrical junction box
• Helps shield wire splices from moisture, dust, and accidental contact
• Restores proper fit when the original cover is cracked, broken, or missing
• Useful if the junction box won't stay closed or the cover no longer secures properly

• Includes 1 junction box cover

• Disconnect power at the circuit breaker before servicing
• Remove the lower access/kick panel to reach the junction box
• Remove the old cover and screw, position the new cover, and secure with the existing hardware
• Ensure all wiring and the strain relief are fully inside the box before closing; restore power and test

The Water Valve is an OEM part for GE dishwashers. It controls the flow of water into the dishwasher during the wash and rinse cycles.

You should replace the water valve if it becomes defective or worn out. Over time, mineral deposits can build up, or the internal components can fail, leading to improper water flow. This can affect the dishwasher's performance and water efficiency.

Symptoms of a bad water valve include:

• The dishwasher not filling with water
• Low water pressure during the cycle
• Leaking water from the valve area
• Dishes remaining dirty due to insufficient water

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-16 ab.

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

Size: 10-32 GXTT FLP.595 S

The Door Latch is an OEM replacement part for GE dishwashers. It serves the critical function of securely keeping the door closed during wash cycles through its engaging bolt design.

Over extended use, aspects of the latch can degrade such as worn plastic catch areas, loosened screws, or a faulty latch hook mechanism. Causes are generally normal wear and tear.

Symptoms of a bad latch include:

• The door not closing fully or popping open accidentally
• Inability to fully lock or latch no matter how hard the door is pressed
• Damaged or stripped screws holding the mechanism

This OEM replacement part is compatible with Hotpoint, RCA and some Kenmore models as well.

The Tub Gasket is an OEM part for GE dishwashers. It is installed around the perimeter of the dishwasher door to create a water-tight seal during operation, effectively preventing water leaks. This gasket ensures that the dishwasher can maintain the necessary water level and pressure to clean dishes effectively, while also protecting your kitchen from water damage.

Causes of a bad Tub Gasket can include natural wear and tear from regular use, exposure to harsh cleaning chemicals that can degrade the rubber material, or improper installation leading to gaps or loosening.

Symptoms of a bad Tub Gasket include:

• Water leaking from around the dishwasher door
• Signs of mold or mildew on the gasket
• The gasket becoming hard or cracked
• Visible gaps between the gasket and the dishwasher door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Mounting Bracket is an OEM replacement part for GE dishwashers. This bracket secures the dishwasher in place underneath the kitchen countertop.

Causes of failure relate to stresses of a heavy dishwasher pushing down against the countertop edges combined with constant machine vibration over extended service life.

Symptoms of a cracked or damaged mounting bracket include:

• Excessive movement play or sloshing of the installed dishwasher
• Strange noises when the dishwasher is running
• Difficulty removing or installing the dishwasher
• Visible bending of bracket components out of intended position

This genuine GE bracket is compatible with Hotpoint and RCA dishwashers.
