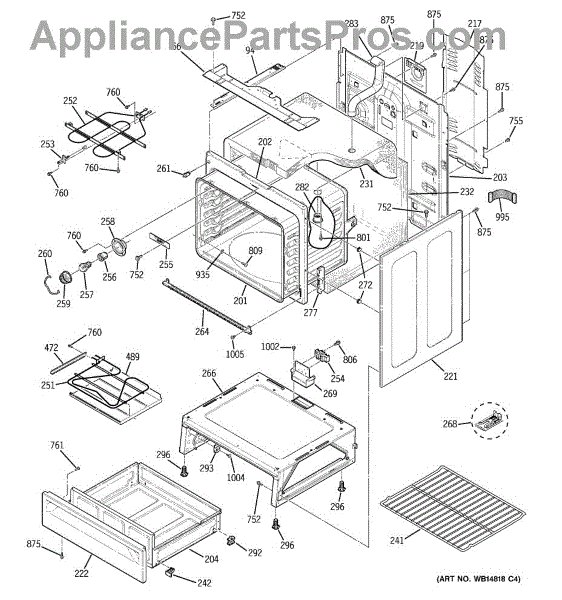

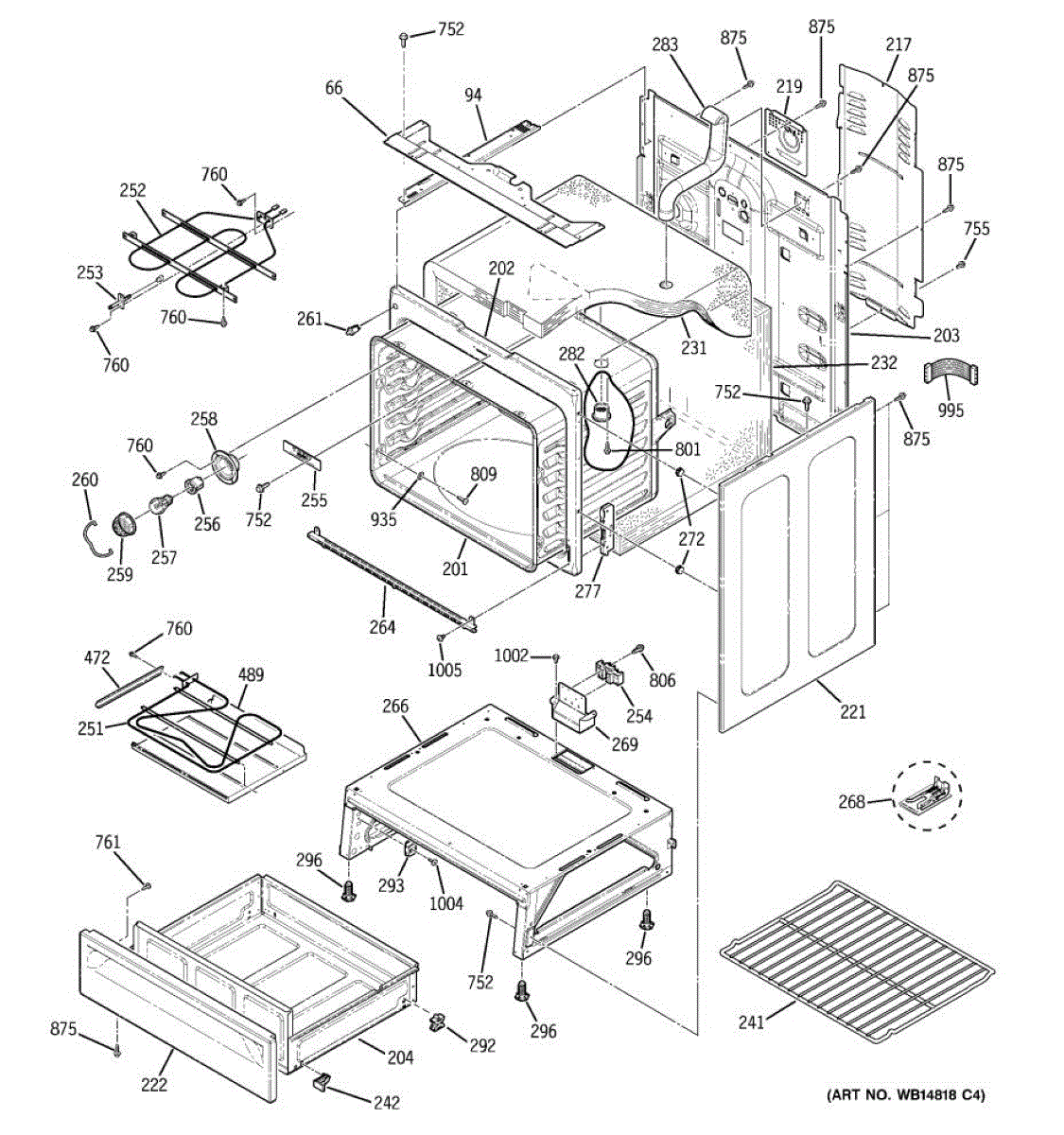

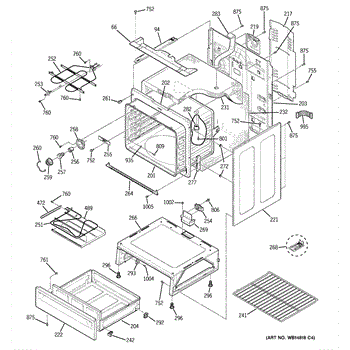

Parts for Ge JB400DP2BB: 03 - Body Parts

Rangetop enclosure housing for ranges. Covers and protects internal components beneath the cooktop surface. Replace if cracked, warped, or damaged.

Replace your damaged range oven cavity body assembly. Restores the structural integrity of your oven compartment when the interior is cracked or chipped.

Replacement front frame for your range. This structural component forms the outer cabinet edge. Order a new frame if yours is damaged, cracked, or warped.

Replacement storage drawer lining for range drawers. Protects drawer floor and keeps items stable. Replace worn, stained, or missing liners.

The receptacle cover is a protective plastic or metal plate that snaps over an electrical outlet or port on your appliance. It shields the connection from dust, moisture, and accidental contact. Replace this part if the original cover is cracked, missing, or no longer snapping securely into place.

Black side panel for slide-in electric ranges. Replaces cracked, chipped, or missing exterior side panels. Restores finished appearance on range.

White side panel for electric ranges. Replaces cracked, scratched, or rusted exterior panels. Restores cabinet appearance and protects internal parts.

White

Insulation wrap that surrounds the oven cavity to retain heat and protect components. Replace if damaged, missing, compressed, or contaminated.

Thermal insulation installs behind the oven liner to retain heat and protect surrounding surfaces. Replace when burned, contaminated, or damaged.

Oven rack for electric ranges. Slides into oven cavity to hold cookware during baking. Replace if cracked, bent, warped, or missing a second rack.

Drawer wedge guide aligns and stabilizes your range's lower drawer for smooth operation. Replace if cracked, broken, worn, or missing to eliminate wobble.

Oven slow to heat or not heating at all? This hidden bake element delivers consistent bottom heat for proper baking. Moderate DIY, about 1 hour.

Broiler quit heating? This upper broil element restores intense top heat for fast, even browning and searing. Easy DIY replacement in about 20 minutes.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Interior housing that supports and shields the oven lamp and lens assembly. Replace if cracked, broken, or damaged to keep the light secure and aligned.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Black front trim frame for electric range. Covers gaps and restores finished edge around door or control panel. Replaces cracked, scratched, or missing trim.

Range base rivet assembly that secures internal components. Replace if rivets are broken, missing, or causing loose structural connections in your range.

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.

Secures and organizes high-voltage wiring connections on your range chassis. Replace if cracked, broken, or missing to restore stable power contact points.

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

Secures the oven door hinge to the range cabinet frame. Replace if cracked, bent, or damaged to restore proper door alignment and closure fit.

This vent tube directs heat and venting from the oven/radiant element to help maintain proper airflow and protect surrounding components. It's a direct-fit replacement designed to restore proper venting performance. What it does:

• Channels heat and vent airflow away from the radiant element and oven cavity
• Helps prevent hot spots and protect adjacent components from excess heat
• Replace when bent, cracked, corroded or blocking airflow
• Can resolve venting-related cooking issues and uneven broiling

• Vent tube

• Disconnect power to the appliance before starting any repair
• Remove oven panels and allow all components to fully cool before handling
• Handle carefully to avoid damaging ends or mounting tabs; use basic hand tools

The Rear Door Support is an OEM replacement part for GE ranges. Located at the base of the range, this bracket provides weight-bearing support for the lower oven drawer. It facilitates smooth extension and retraction of the drawer.

Causes of faulty support can include cracks or fractures developing over extended use, worn joints unable to sustain drawer weight, or misalignment from repeated opening/closing stress.

Symptoms of a bad support include:

• Loose or sagging lower oven drawer
• Grinding or binding noises when operating the drawer
• Difficulty fully extending or retracting the drawer
• The drawer not sitting securely in a closed position

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges.

Replaces a cracked or broken front drawer support on your range. This plastic guide installs on the front of the warming drawer to stabilize movement.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Reflector pan sits under the bake element in your electric range oven cavity. Replace if cracked, warped, or rusted to restore proper heat direction.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

ST10-16 X 7/16"

8-18 AB IHW 5/8 S

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Black. 8-18 AB HXW 3/8

Replacement screw secures panels, brackets, and trim inside your oven or range. Restores tight fit when original hardware is missing, stripped, or damaged.

Package of 12

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
