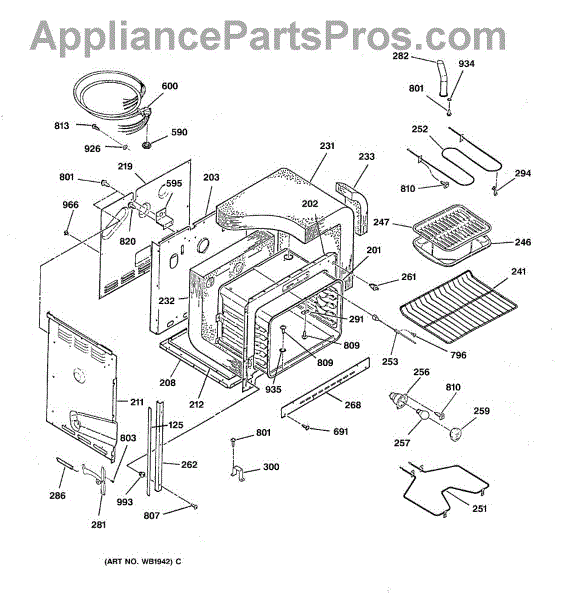

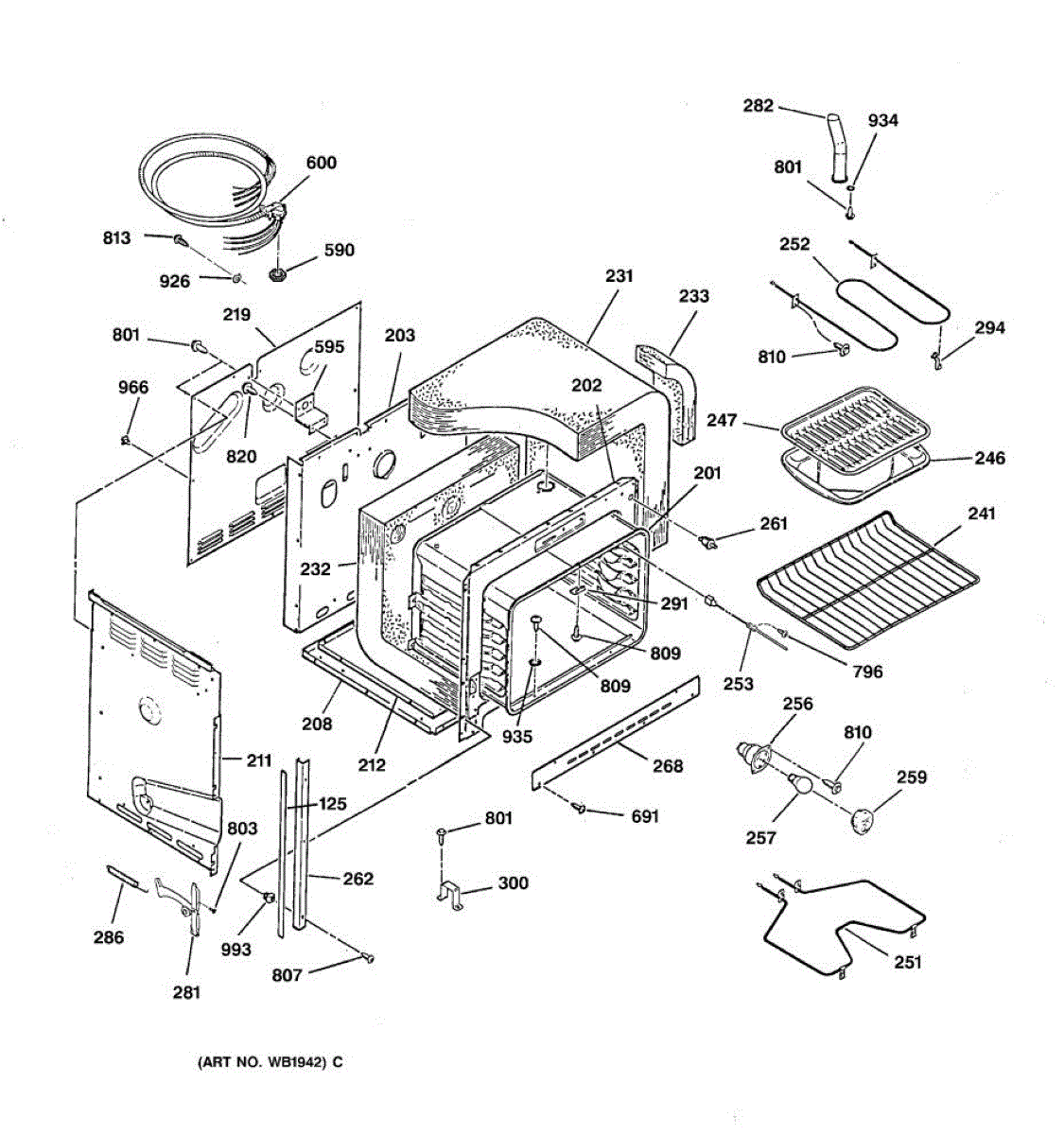

Parts for Ge JDP39WT1WW: 03 - Body Parts

Main bottom panel for electric ranges and wall ovens. Replaces cracked, damaged, or missing bottom chassis component. Structural support piece.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? A failed bake element is often the cause. Located at the bottom of the oven, this part is a straightforward DIY fix.

Broiler not heating or browning food? A faulty broil element is often the cause. Located at the top of the oven, this part restores even heat for broiling.

Fix oven not reaching set temperature or F2/F3 error codes. This temperature sensor monitors internal heat for accurate cooking. Easy DIY repair.

NOTICE: Part has been redesigned. Wire terminals are no longer straight off the the back they are from the side. Depending on your model you may have to make changes to make it fit.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

This panel conceals and protects internal freezer components while providing a finished interior appearance. Located inside the freezer compartment, replace it when cracked, warped, or allowing moisture and cold air to reach sensitive mechanical parts.

This metal bracket provides structural support for range components like burner assemblies or control panels. It securely holds parts in their proper position during normal cooking operations. Replace when range components become loose, sag, or don't align properly.

Spacer component for ranges and ovens. Provides proper spacing between parts during installation. Replace if missing, cracked, or damaged during repair.

Spacer for cooktop installation. Replaces worn, cracked, or missing spacers that maintain proper clearance between components during mounting.

White trim screw for ovens and ranges. Secures trim panels and decorative components. Replace missing, stripped, or damaged screws during repairs.

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

ST10-16 X 7/16"

White mounting screw for ovens and ranges. Secures panels, brackets, and internal components. Replace if stripped, missing, or discolored during repairs.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Package of 12

Replace a cracked, worn, or missing washer in your oven or range. This small metal component ensures secure fastening of internal parts and panels.
