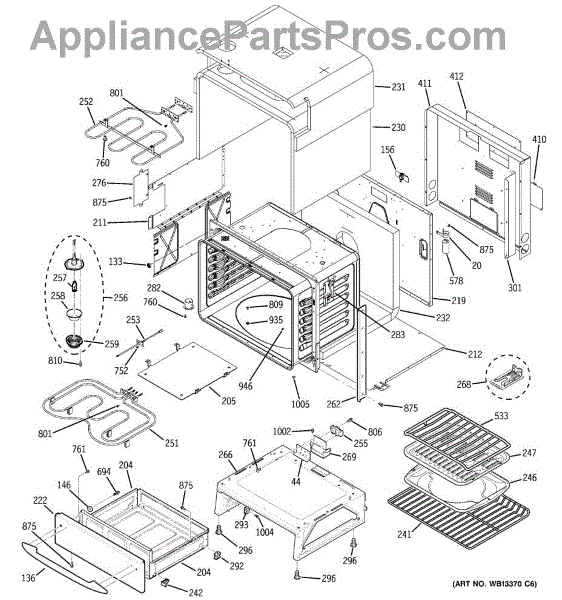

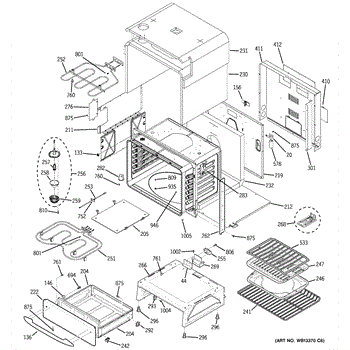

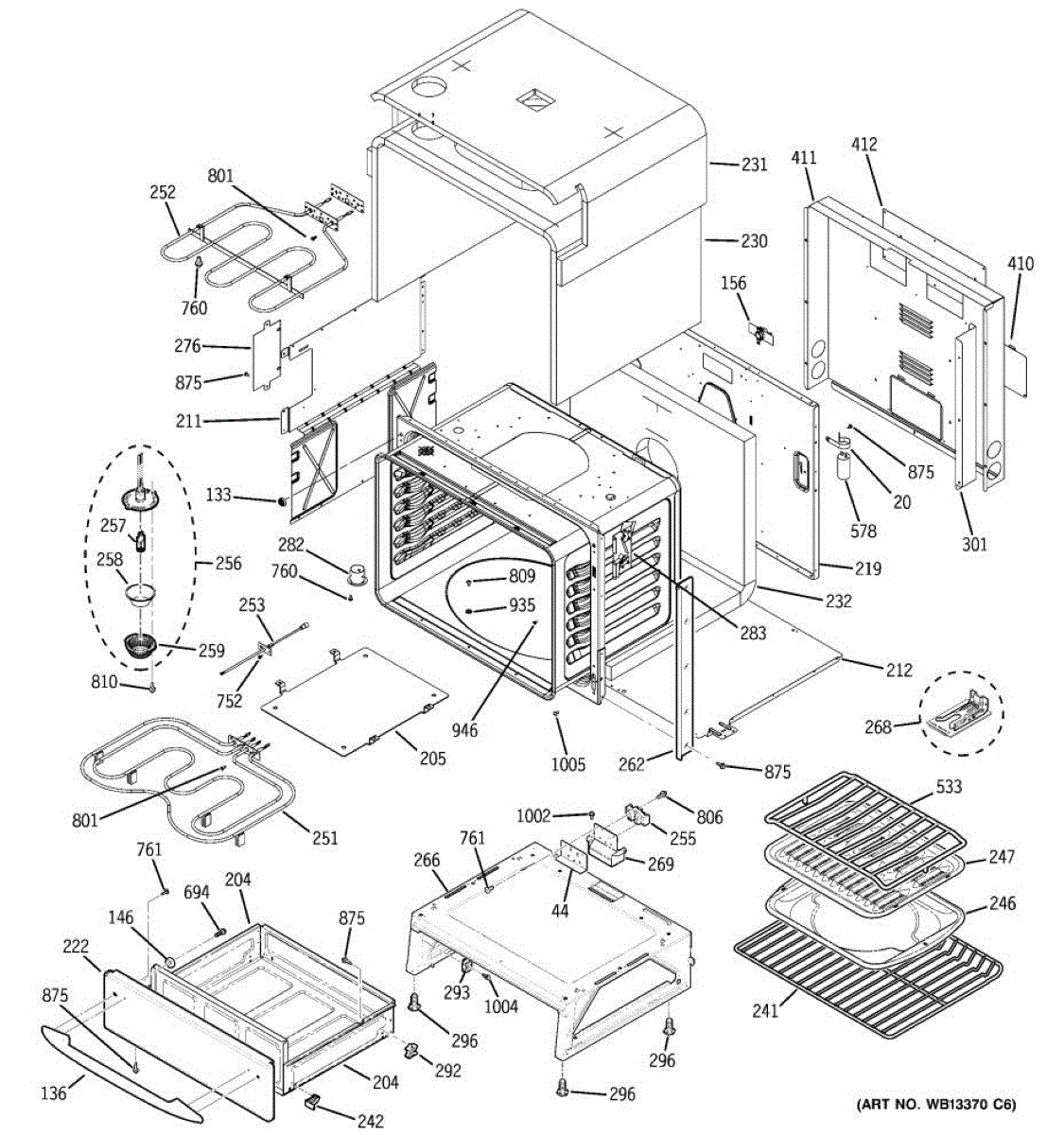

Parts for Ge JS998TK3WW: 04 - Body Parts

Secures the capacitor inside your oven. Replace if the bracket is bent, broken, or missing to properly mount and protect the electrical capacitor component.

Mounting bracket for your range. Secures components in place during operation. Replace if bracket is bent, cracked, or missing for proper installation.

Seals and cushions your oven door to reduce vibration and rattling. Replace when worn to restore proper spacing and eliminate air leaks. Verify fit.

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Oven won't heat or shuts off after preheating? This thermal cutoff fuse opens the heating circuit when temperatures exceed safe limits. Direct fit part.

Replacement storage drawer lining for range drawers. Protects drawer floor and keeps items stable. Replace worn, stained, or missing liners.

This side cabinet is the outer refrigerator cabinet panel that restores the unit's exterior structure and appearance. It replaces a cracked, dented, or missing outer side panel to help protect internal components and improve cosmetic look. What it does

• Covers and protects the refrigerator's side area and internal components from damage and debris.
• Restores a smooth, finished exterior surface when the original panel is dented, cracked, or missing.
• Helps maintain proper airflow around sealed sections by keeping the cabinet enclosure intact.
• Common symptom: visible dents, cracks, holes, or loose/missing side panel affecting appearance and protection.

• One (1) side cabinet panel as pictured.

• Disconnect power and empty nearby shelves before beginning work.
• Removal/installation may require removing trim, doors, or adjacent panels—use proper tools and follow the service manual.
• Handle edges carefully; panels and sheet metal can be sharp.

Back insulation retainer panel for ovens and ranges. Secures insulation to the rear cabinet. Replace if cracked, broken, or missing to restore proper fit.

Drawer wedge guide aligns and stabilizes your range's lower drawer for smooth operation. Replace if cracked, broken, worn, or missing to eliminate wobble.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

This dual bake element restores even, reliable heat in your range or wall oven's bake cycle. Replace a burned-out or damaged element to recover proper preheat times and consistent cooking performance.

• Produces heat during the Bake cycle to reach and maintain set temperature
• Works with the companion element to promote even baking results
• Replace if the oven won't heat, preheats slowly, or bakes unevenly
• Signs of failure include blisters, breaks, or a section that won't energize

What's included: 1 dual bake heating element Install notes:

• Disconnect power at the breaker before servicing; allow the oven to cool completely
• Remove racks, take out mounting screws, and gently pull the element forward
• Support and label wires to prevent them from retracting; transfer connections securely
• Reinstall element so it doesn't contact the cavity; restore power and test Bake

Oven not heating on broil or broiling unevenly? This broil element restores high-heat cooking. Common repair for failed broiler performance.

Fix inaccurate oven temperatures or error codes with a new temperature sensor. Restores consistent heat regulation and reliable preheating performance.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Halogen light bulb illuminates your oven interior. Replace when burned out or if flickering. Push-in style bulb for easy installation. Confirm fit with your model.

Clear glass lens that protects your oven light bulb from heat, grease, and debris. Replace when cracked, discolored, or missing to restore visibility.

Range base rivet assembly that secures internal components. Replace if rivets are broken, missing, or causing loose structural connections in your range.

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.

Secures and organizes high-voltage wiring connections on your range chassis. Replace if cracked, broken, or missing to restore stable power contact points.

Vent tube for electric ranges and ovens. Connects oven cavity to exhaust system. Replace if cracked, broken, or missing to restore proper ventilation.

Oven won't start or door won't lock during self-clean? This interlock assembly ensures proper door locking function. Moderate DIY repair in 30-45 minutes.

The Rear Door Support is an OEM replacement part for GE ranges. Located at the base of the range, this bracket provides weight-bearing support for the lower oven drawer. It facilitates smooth extension and retraction of the drawer.

Causes of faulty support can include cracks or fractures developing over extended use, worn joints unable to sustain drawer weight, or misalignment from repeated opening/closing stress.

Symptoms of a bad support include:

• Loose or sagging lower oven drawer
• Grinding or binding noises when operating the drawer
• Difficulty fully extending or retracting the drawer
• The drawer not sitting securely in a closed position

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges.

Replaces a cracked or broken front drawer support on your range. This plastic guide installs on the front of the warming drawer to stabilize movement.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

This divider duct routes cold air inside the refrigerator, directing airflow between compartments to help maintain consistent temperatures. It replaces a cracked or damaged duct to restore proper air distribution and reduce uneven cooling. What it does:

• Channels cold air from the evaporator to the correct compartment for balanced cooling
• Prevents unwanted mixing of freezer and fresh-food airflow
• Helps reduce localized warm spots and inconsistent temperatures
• Can reduce visible frost buildup caused by misdirected airflow

• Disconnect power to the appliance before starting any repair.
• Access may require removing interior shelves, bins, or the evaporator cover—keep parts organized.
• Handle plastic duct carefully to avoid cracking; use appropriate fasteners or clips as shown in the service manual.

This cover motor slide protects the appliance motor assembly and helps keep moving parts aligned for smooth operation. It replaces a damaged or missing slide to reduce noise and prevent debris contact with the motor. What it does:

• Shields the motor and related components from debris and contact
• Keeps the motor properly positioned to reduce rubbing and vibration
• Helps maintain correct airflow around the motor area
• Commonly replaced when you see noise, rubbing, or a damaged/missing cover

• One cover motor slide

• Disconnect power before beginning any repair
• Handle carefully; edges and clips can be sharp or fragile

Replacement roasting rack for ovens. Elevates roasts and pans above oven floor for better air circulation and even browning. Replaces broken or missing racks.

Hex washer head screw secures panels, brackets, and shields inside your appliance. Replace missing, stripped, or corroded fasteners for proper fit.

Hex washer head screw secures oven panels, brackets, and door handles. Replace missing, stripped, or damaged screws to eliminate looseness and rattling.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

White screw secures panels and trim on ovens and ranges. Replace stripped, corroded, or missing fasteners to restore proper fit and stop rattles.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

ST10-16 X 7/16"

8-18 AB IHW 5/8 S

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Black. 8-18 AB HXW 3/8

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Truss head screw for fastening oven panels, trim, and brackets. Replace if missing, stripped, or corroded to secure loose components and panels.

Replacement screw secures panels, brackets, and trim inside your oven or range. Restores tight fit when original hardware is missing, stripped, or damaged.

Package of 12

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
