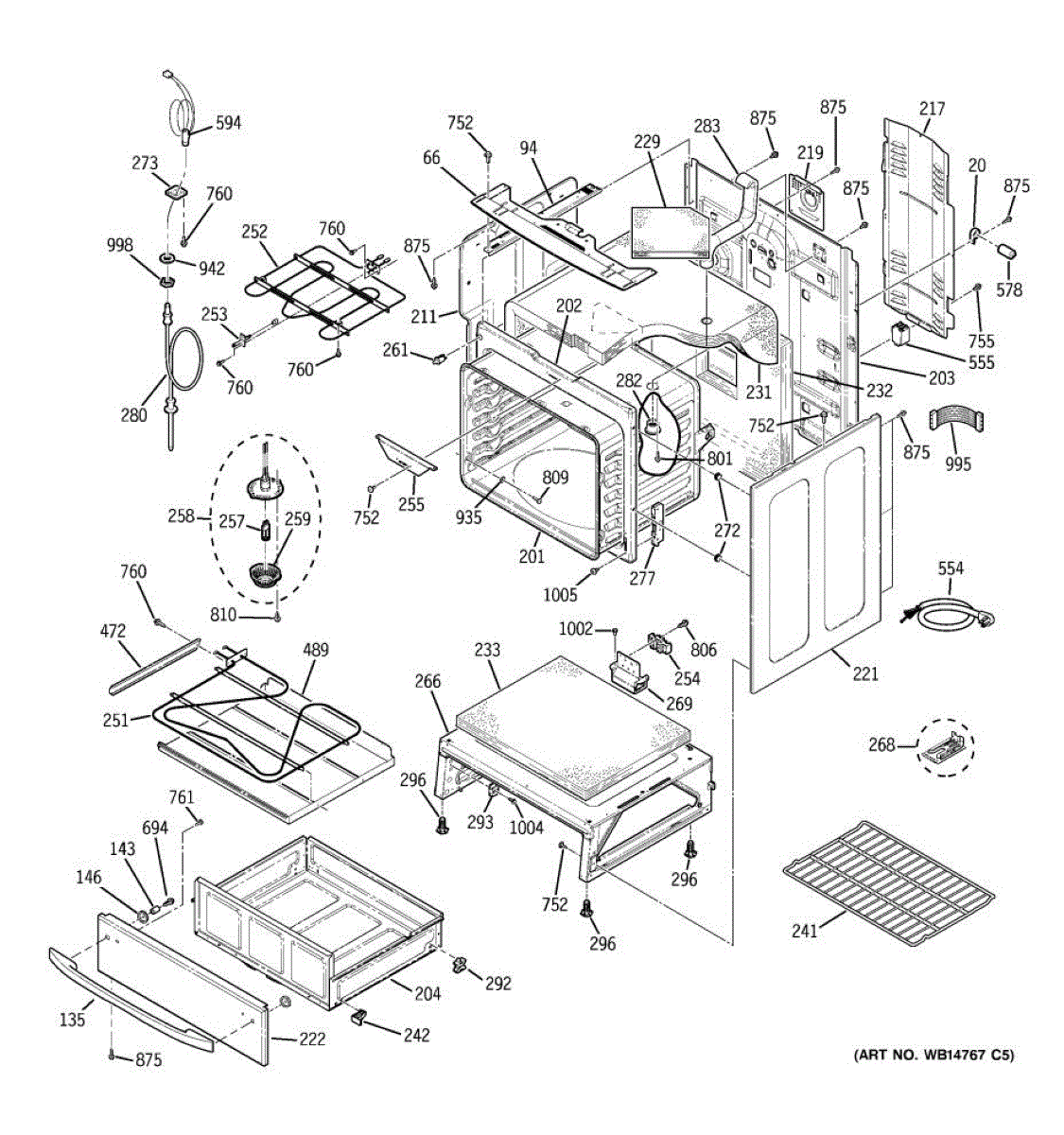

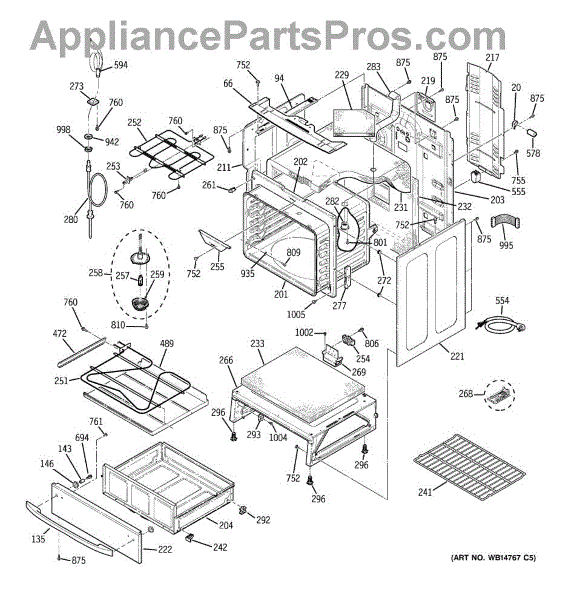

Parts for Ge PCB909DP3BB: 03 - Body Parts

Mounting bracket that secures the capacitor to your range frame. Replace if bent, broken, or missing to properly support and position the capacitor.

White range door handle that mounts on the front of your oven door. Replace if your handle is cracked, broken, discolored, or missing for a complete look.

Replace your range's oven body frame assembly if the main structural cabinet is cracked, damaged, or compromised. Restores the oven's outer housing.

Replacement storage drawer lining for range drawers. Protects drawer floor and keeps items stable. Replace worn, stained, or missing liners.

Black side panel for slide-in electric ranges. Replaces cracked, chipped, or missing exterior side panels. Restores finished appearance on range.

White side panel for electric ranges. Replaces cracked, scratched, or rusted exterior panels. Restores cabinet appearance and protects internal parts.

Replace your range's damaged or discolored drawer front panel. This cosmetic trim piece covers the drawer face and restores the appliance's appearance.

Insulation wrap for range vent tubes. Prevents heat transfer to cooktop surface. Replace if damaged, torn, or missing after rodent damage or wear.

Insulation blanket that installs behind the oven cavity liner to retain heat and reduce cabinet heat transfer. Replace if worn, damaged, or missing.

Wire oven rack restores shelf space inside your electric range. Replaces missing, bent, or worn racks. Slides on factory supports for stable cookware placement.

Drawer wedge guide aligns and stabilizes your range's lower drawer for smooth operation. Replace if cracked, broken, worn, or missing to eliminate wobble.

Oven slow to heat or not heating at all? This hidden bake element delivers consistent bottom heat for proper baking. Moderate DIY, about 1 hour.

Broiler quit heating? This upper broil element restores intense top heat for fast, even browning and searing. Easy DIY replacement in about 20 minutes.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Replace a broken range trim latch that won't secure trim panels properly. This latch keeps decorative trim aligned and in place on your range exterior.

Replace your oven's halogen bulb when the interior light burns out or dims. Illuminates the oven cavity so you can monitor cooking without opening the door.

Oven won't heat or fan won't run? This high-amp SPDT switch routes power to locks, relays, and fans. Fixes intermittent operation. Moderate DIY fix.

Range base rivet assembly that secures internal components. Replace if rivets are broken, missing, or causing loose structural connections in your range.

Secures and organizes high-voltage wiring connections on your range chassis. Replace if cracked, broken, or missing to restore stable power contact points.

Secures and aligns the side panel of your range cabinet. Replace if the original bracket is broken, missing, or no longer holds the panel firmly in place.

Secures the oven door hinge to the range cabinet frame. Replace if cracked, bent, or damaged to restore proper door alignment and closure fit.

Oven meat probe not working or wire exposed? This thermistor monitors interior temperature for accurate cooking. Common DIY fix, installs in minutes.

Vent tube that channels hot air from your electric range oven to the exhaust path. Replace if cracked, warped, or missing to restore proper ventilation.

This vent tube directs heat and venting from the oven/radiant element to help maintain proper airflow and protect surrounding components. It's a direct-fit replacement designed to restore proper venting performance. What it does:

• Channels heat and vent airflow away from the radiant element and oven cavity
• Helps prevent hot spots and protect adjacent components from excess heat
• Replace when bent, cracked, corroded or blocking airflow
• Can resolve venting-related cooking issues and uneven broiling

• Vent tube

• Disconnect power to the appliance before starting any repair
• Remove oven panels and allow all components to fully cool before handling
• Handle carefully to avoid damaging ends or mounting tabs; use basic hand tools

Rear drawer support bracket mounts at the base of your range to provide weight-bearing support for the lower oven drawer. Replace if cracked or missing.

Replaces a cracked or broken front drawer support on your range. This plastic guide installs on the front of the warming drawer to stabilize movement.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Reflector pan sits under the bake element in your electric range oven cavity. Replace if cracked, warped, or rusted to restore proper heat direction.

Replace your electric range's power cord if damaged, frayed, or missing. This cord connects your range to the wall outlet for electrical power.

Fix burners that won't heat or cycle properly with this infinite switch. Controls surface element temperature by regulating power flow. Easy DIY fix.

Convection fan won't run or oven bakes unevenly? This wall oven fan motor circulates hot air for even cooking. Moderate DIY repair, 1-2 hours.

Hex washer head screw secures oven panels, brackets, and door handles. Replace missing, stripped, or damaged screws to eliminate looseness and rattling.

Replacement mounting screw for electric ranges, ovens, and wall ovens. Secures panels, brackets, and components. Replace if stripped, missing, or broken.

Replacement mounting screw for dishwashers. Secures panels, brackets, and internal components. Order if original is stripped, missing, or damaged.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Hex head mounting screw for ranges and ovens. Secures elements, panels, and internal components. Replace if stripped, missing, or damaged during repairs.

Mounting screw for ovens and ranges. Secures internal components and panels. Replace if stripped, missing, or damaged during repairs or maintenance.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw hardware for electric ranges and ovens. Used to secure various panels and components. Order this part if original screws are missing, stripped, or damaged during appliance maintenance.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Replacement washer for ranges and ovens. Used to secure components and provide even fastening. Replace if cracked, worn, or missing during repairs.

Replacement mounting nut for ovens and ranges. Secures internal components and panels. Order a new nut if yours is stripped, missing, or damaged.

Replacement screw secures panels, brackets, and trim inside your oven or range. Restores tight fit when original hardware is missing, stripped, or damaged.

Package of 12

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
