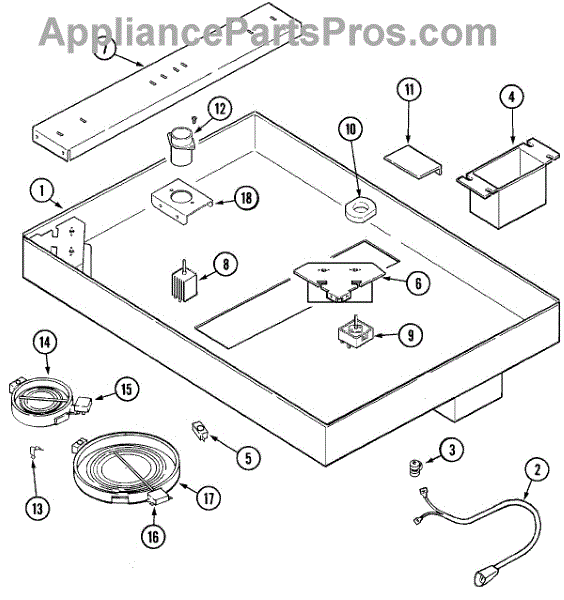

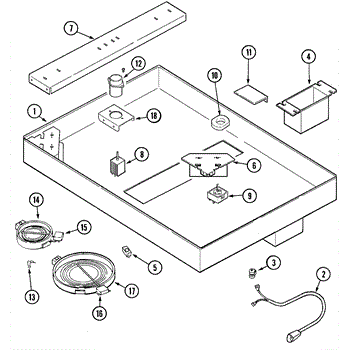

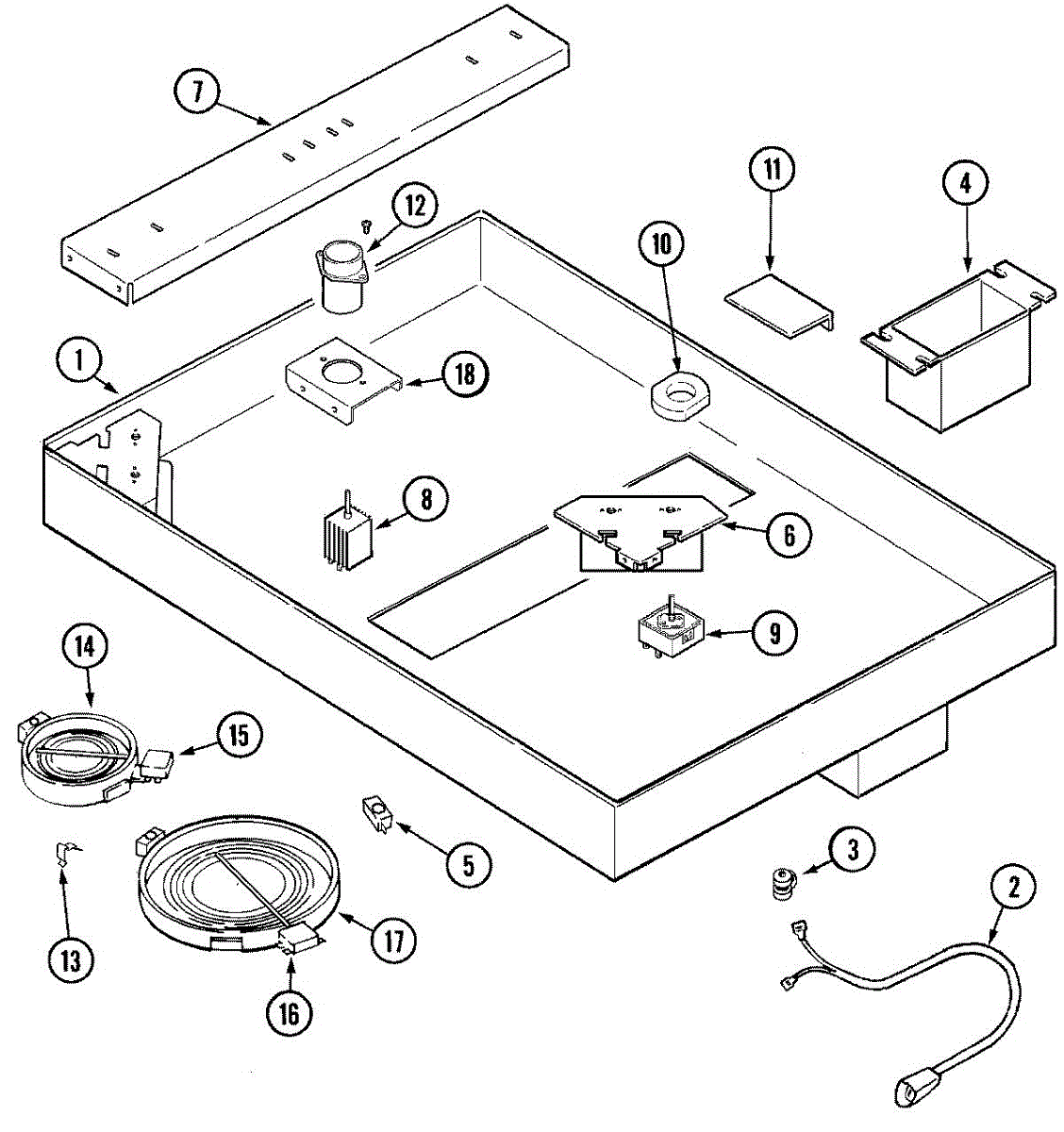

Parts for Jenn-Air CVE3401B: 02 - Body Parts

This part has been discontinued and is no longer available.

The fan control switch is the panel-mounted switch that sends power to the appliance's fan motor. Replacing a worn switch restores reliable on/off control and proper airflow so the fan starts and stops when it should.

• Provides user-operated on/off power to the fan/blower motor
• Helps regulate airflow for cooling, venting, or convection depending on model
• Typical symptoms: fan won't run, runs continuously, intermittent operation, or a loose/broken switch shaft
• Mounts behind the control panel and is actuated by the exterior knob/lever

• Disconnect power at the breaker before servicing
• Remove the control knob/actuator and panel trim to access the switch
• Note wire positions or take a photo; transfer wires one at a time to the new switch
• Secure with the original hardware, restore power, and test operation

This infinite switch controls the power level to an electric surface element, letting you adjust burner heat smoothly from low to high for consistent cooking performance.

• Regulates power cycling to the surface element to maintain set heat
• Replaces a failed control that leaves a burner stuck on high or won't heat
• Helps resolve issues like no heat, uneven or erratic heating, or a burner that won't shut off
• Restores precise temperature control to the affected cooktop burner

• Disconnect power to the range before servicing
• Note wire locations or take a photo before removing the old switch
• Transfer knob and mounting hardware from the original if required
• After installation, restore power and test burner operation through the full heat range

The Infinite Switch Kit (Dual) is an OEM part for Whirlpool ranges and cooktops. This kit includes the dual infinite switch, which allows for the independent control of two heating elements on the same burner. It provides precise control over the temperature settings for cooking surfaces, ensuring optimal performance.

Causes of a bad infinite switch can include wear and tear from frequent use, electrical surges, or exposure to moisture and spills. These issues can affect the switch's ability to regulate the burner temperature effectively.

Symptoms of a bad infinite switch include:

• One or both burners not heating up or heating inconsistently
• Burners staying at a fixed heat level regardless of the setting
• Difficulty in adjusting the burner temperature
• The switch feeling loose, stuck, or unresponsive

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Infinite Switch is an OEM part for Whirlpool ranges. It controls the power levels of the surface heating elements, allowing users to adjust the heat intensity for cooking.

Causes of a bad infinite switch can include electrical malfunctions, wear and tear from regular use, or damage due to overheating.

Symptoms of a bad infinite switch include:

• Inconsistent heating of the burner
• The burner not turning on or off
• The burner staying at one heat level regardless of adjustment
• Sparking or unusual noises from the switch area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

This spring element support secures and stabilizes a range or oven heating element to keep it properly positioned for consistent heating and safe operation. It replaces a worn or broken support that allows an element to sag or vibrate. What it does:

• Holds the bake/broil heating element in the correct position so it heats evenly
• Prevents the element from sagging, touching the oven cavity, or rattling during use
• Helps maintain correct element clearance to reduce arcing and uneven cooking
• Addresses symptoms like a loose or wobbly element, unusual noises, or intermittent heating

• One spring element support

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the heating element and support carefully to avoid bending or damaging the element
• Verify correct part orientation against the oven's wiring diagram during installation

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

This surface heating element powers one of your range's top burners, restoring steady, responsive heat for everyday cooking. Replace a failed element to bring your cooktop back to consistent performance when boiling, simmering, or sautéing.

• Provides heat to the selected surface burner when the control is turned on
• Works with the burner switch to reach and maintain set temperatures
• Common symptoms of failure: burner won't heat, heats unevenly or intermittently, or shows visible damage/hot spots
• Helps resolve long heat-up times and inconsistent cooking results

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing.
• Access and mounting vary by model; note wire locations and transfer any brackets/clips from the original element.
• Inspect terminals and connectors; replace any heat-damaged wiring or receptacles before reconnecting.
• Handle by the frame and avoid stressing the element; ensure secure electrical connections before testing.

Restore reliable heat to your electric range or cooktop with this surface heating element. Replacing a failed top-burner element brings back consistent, even heating so pots and pans heat up properly at your chosen setting.

• Supplies electric heat to a cooktop burner zone when turned on
• Common fix for a burner that won't heat or only partially glows/heats
• Helps address uneven or slow heating on the affected element
• Replace if the element shows visible breaks, blisters, or has shorted

• Disconnect power at the breaker and allow the cooktop to cool completely before service
• Access varies by model; support and protect glass tops when lifting/removing
• Photograph wiring; transfer any original brackets, insulators, or limiter/thermostat if present
• Ensure clean, tight terminal connections; fully reassemble before restoring power

The Surface Heating Element is an OEM part for Whirlpool cooktops and ranges. It provides the heat necessary for cooking. This element is designed to deliver consistent and even heat distribution, ensuring your cooking results are optimal every time.

Causes of a bad surface heating element can include wear and tear from regular use, damage due to spills or impacts, and electrical issues such as short circuits or burned-out connections.

Symptoms of a bad surface heating element include:

• The element not heating up or taking longer to heat
• Inconsistent heating or hot spots
• Visible damage or burns on the element
• The element not responding to temperature controls

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.
