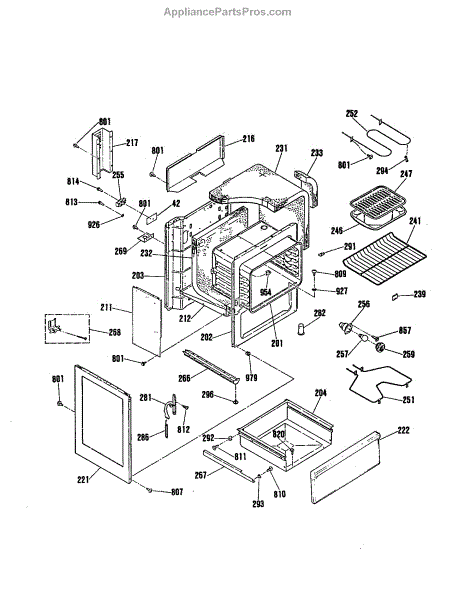

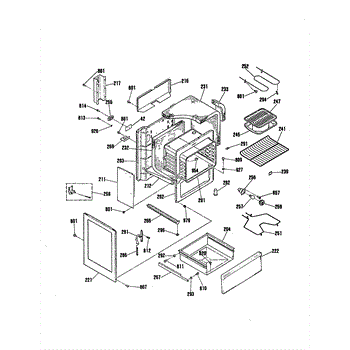

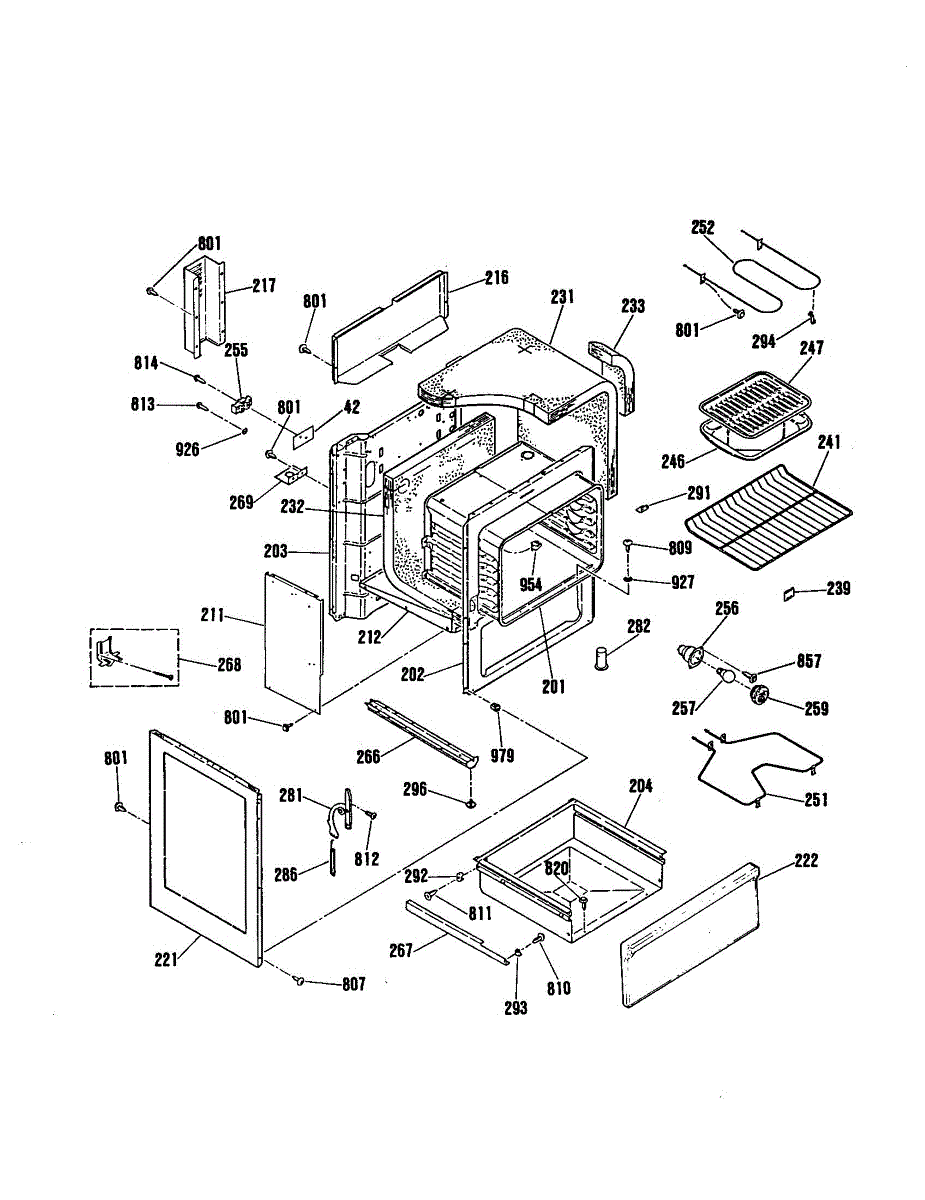

Parts for Kenmore 911.9332590 (9119332590, 911 9332590): Body Parts

This front frame assembly restores the oven's outer trim and support for the control area, returning a finished appearance and proper alignment. It's a direct-fit exterior trim component used when the front casing or bezel is dented, cracked, or warped. What it does

• Replaces damaged or bent front trim to improve the appliance's appearance and panel alignment
• Provides structural support for the control area and helps maintain a proper seal between the door and console
• Can stop rattling or misalignment caused by a warped or loose front frame
• Matches OEM fit and mounting points for a direct replacement where specified

• One front frame assembly as shown

• Basic removal of the oven/range front panel or trim is required; follow for specific disassembly steps
• Power off and disconnect the appliance before starting work to avoid electrical shock or injury
• Keep fasteners and small parts organized during disassembly to ensure proper reassembly
• If trim damage affected adjacent components (buttons, switches, or fascia), inspect and replace those parts separately as needed

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? A failed bake element is often the cause. Located at the bottom of the oven, this part is a straightforward DIY fix.

Broil element broken or not heating? This top heating element restores high-heat broiling in electric ovens. DIY-friendly repair, typically done in under 30 minutes.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

NOTICE: Part has been redesigned. Wire terminals are no longer straight off the the back they are from the side. Depending on your model you may have to make changes to make it fit.

Chain from floor to range design

Left side oven door hinge provides smooth opening and closing operation. Replace if cracked, seized, worn, or binding. Mounts to oven cavity interior.

Replaces a cracked, worn, or broken oven door hinge. Installs on the right side, allowing the door to open and close smoothly and securely.

This is a protective cover used inside a cooking appliance such as a range or oven. It shields internal components from heat, grease, and debris during normal operation. Replace this cover if it is warped, cracked, corroded, or damaged, which can expose sensitive parts and affect cooking performance.

The range rear drawer glide is a sliding mechanism that allows smooth operation of your oven's storage drawer or warming drawer. It provides support and guidance for the drawer as it opens and closes. Replace this glide if your drawer sticks, won't slide smoothly, or has become misaligned or damaged.

This metal bracket provides structural support for range components like burner assemblies or control panels. It securely holds parts in their proper position during normal cooking operations. Replace when range components become loose, sag, or don't align properly.

ST10-16 X 7/16"

This replacement screw fastens panels, brackets, or trim inside your appliance. Swapping in a new screw restores a tight, secure fit and helps stop rattles, looseness, or misalignment caused by missing or damaged hardware.

• Secures panels, brackets, or trim to the appliance chassis
• Helps maintain proper alignment and spacing of components
• Replaces missing, rusted, or stripped hardware
• Helps resolve loose panels/handles, vibration, or rattling noises

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location; start threads by hand to avoid cross-threading
• Use the appropriate driver and tighten snugly without overtightening
• Inspect the mounting hole or clip for damage and address as needed before reassembly

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Replacement screw for securing components inside your range or oven. Needed when original fasteners are stripped, lost, or damaged during repairs.

Package of 12

Includes 12 washers.

Expansion nut spacer for electric ranges and ovens. Secures components and maintains proper spacing. Replace if cracked, stripped, or missing.

Color: chrome. Measures about 9 inches wide by 19 inches deep.
