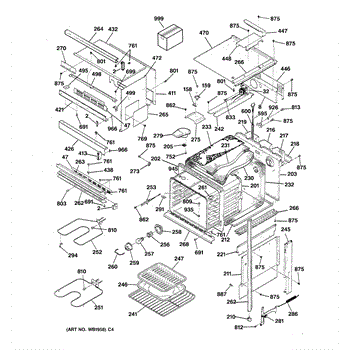

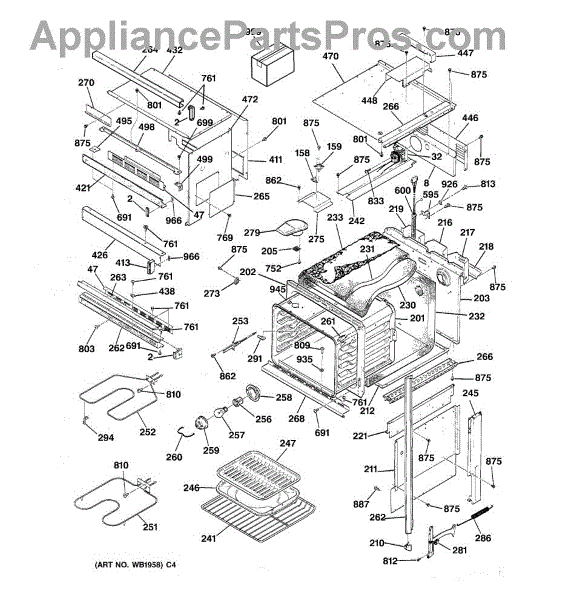

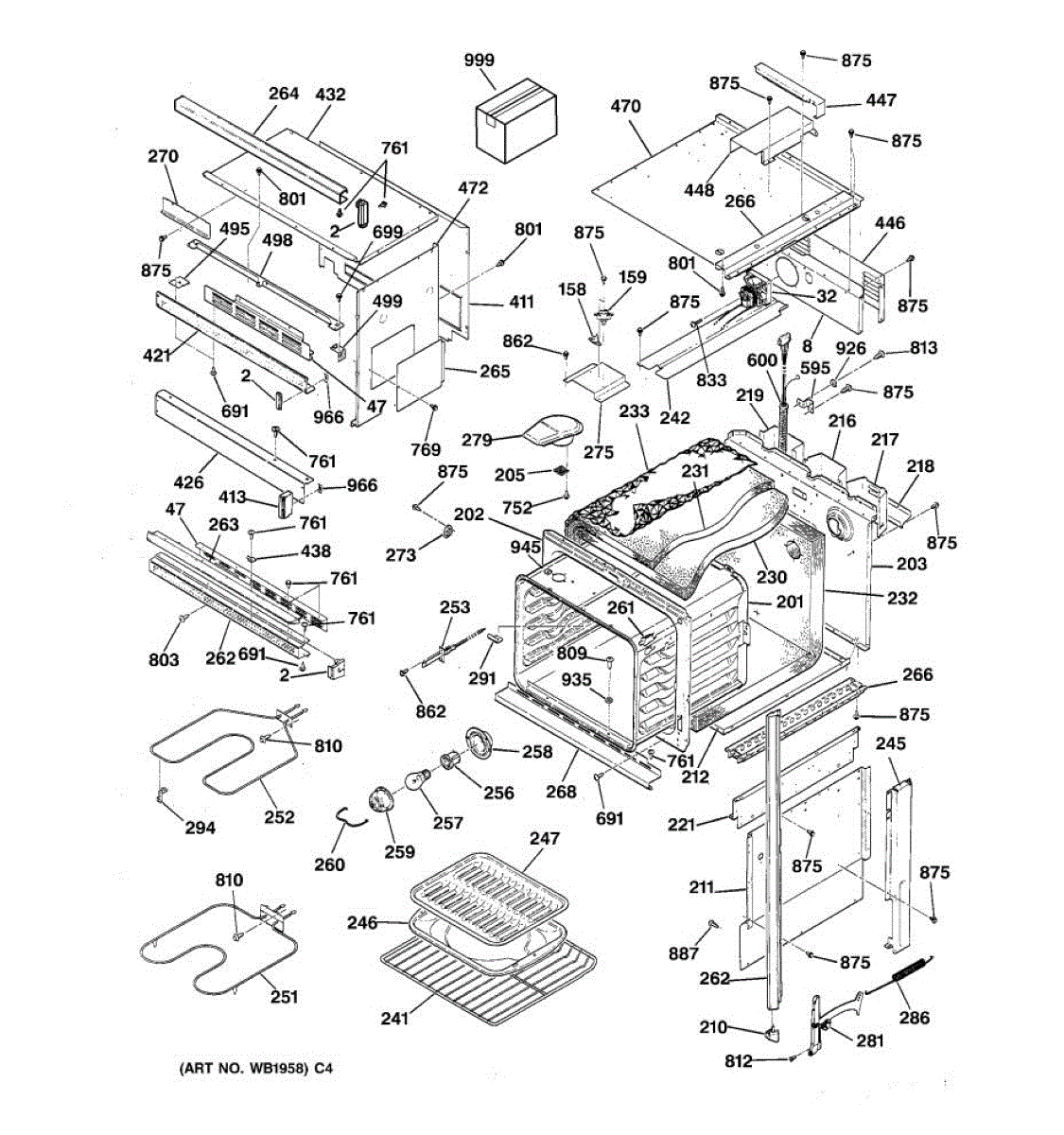

Parts for Ge JKP69BY1BB: 04 - Body Section With Microwave Enclosure Parts

Oven overheating or running loud? This cooling fan motor assembly circulates air to prevent overheating and reduce noise. Direct-fit replacement part.

Oven won't heat after self-clean cycle? A faulty limit switch prevents operation when stuck open. Tests quickly with a multimeter for continuity.

Oven won't heat or trips during self-clean? This limit switch cuts power when temperature exceeds safe limits. Simple plug-in installation in 30 minutes.

Rear chassis panel for ovens. Supports internal components and protects wiring. Replace if your panel is cracked, corroded, damaged, or missing.

This side cabinet is the outer refrigerator cabinet panel that restores the unit's exterior structure and appearance. It replaces a cracked, dented, or missing outer side panel to help protect internal components and improve cosmetic look. What it does

• Covers and protects the refrigerator's side area and internal components from damage and debris.
• Restores a smooth, finished exterior surface when the original panel is dented, cracked, or missing.
• Helps maintain proper airflow around sealed sections by keeping the cabinet enclosure intact.
• Common symptom: visible dents, cracks, holes, or loose/missing side panel affecting appearance and protection.

• One (1) side cabinet panel as pictured.

• Disconnect power and empty nearby shelves before beginning work.
• Removal/installation may require removing trim, doors, or adjacent panels—use proper tools and follow the service manual.
• Handle edges carefully; panels and sheet metal can be sharp.

Replacement bottom panel for oven cabinets. Restores structural integrity when original is damaged, rusted, or missing. Direct fit for select models.

Insulation panel that installs on the top and side of your oven cavity. Replace if cracked, compressed, missing, or damaged to restore heat retention.

Insulation panel that installs on the bottom or back of your oven cavity. Replace if cracked, torn, compressed, or missing to maintain proper heat retention.

Metal oven rack installs inside your oven cavity to hold cookware during baking and roasting. Replace if cracked, warped, rusted, or missing.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? The bake element generates heat at the bottom of your oven cavity. DIY-friendly repair, typically 30-40 minutes.

Broiler stopped heating or burned through? This top heating element replacement takes 10-30 minutes with basic tools. Disconnect power, remove brackets, and swap wires.

Heat-resistant socket that secures and powers your oven's interior light bulb. Replace if light fails or socket shows burn marks or bare wires. Verify fit.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Rail base support plate for ovens and ranges. Mounts underneath oven racks to provide stable support. Replace if cracked, broken, or missing.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Right hand side. For left hand use WB14K5007

Left hand side. For right hand use WB14K5006

This panel conceals and protects internal freezer components while providing a finished interior appearance. Located inside the freezer compartment, replace it when cracked, warped, or allowing moisture and cold air to reach sensitive mechanical parts.

This metal bracket provides structural support for range components like burner assemblies or control panels. It securely holds parts in their proper position during normal cooking operations. Replace when range components become loose, sag, or don't align properly.

Wire harness assembly that routes and protects electrical wiring inside your wall oven. Replace if cracked, damaged, or connections are loose or worn.

Replacement trim screw for securing exterior trim pieces and panels on ovens and ranges. Restores proper fit when original screw is missing or stripped.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

ST10-16 X 7/16"

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Mounting screw for ranges and ovens. Secures internal components and panels. Replace if screw is stripped, missing, or no longer holds parts firmly in place.

Black. 8-18 AB HXW 3/8

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Lead wire harness for electric ranges and wall ovens. Connects internal electrical components. Replace if wire is frayed, damaged, or connection is loose.
