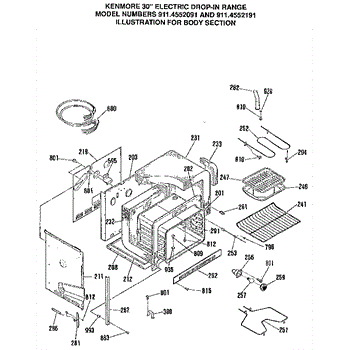

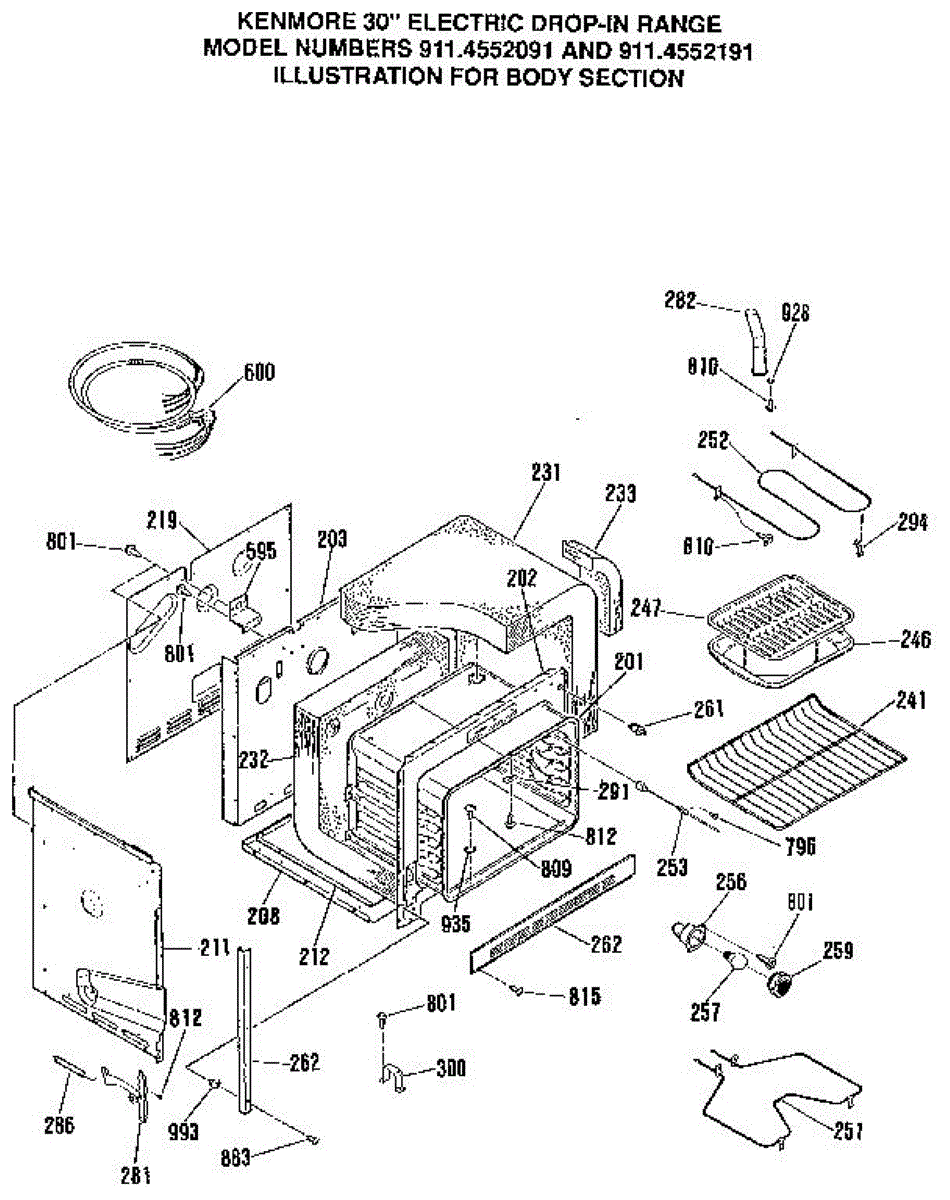

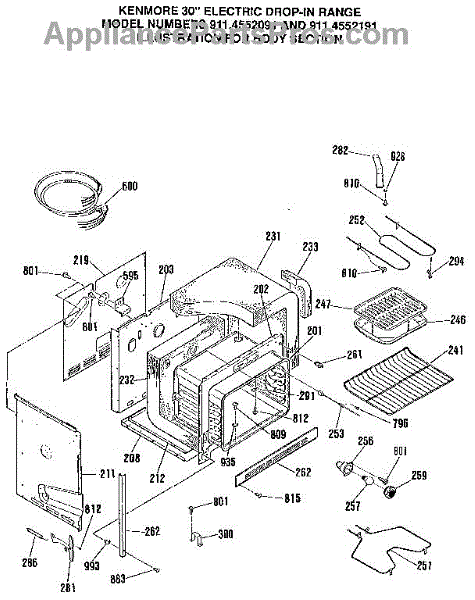

Parts for Kenmore 911.4552091 (9114552091, 911 4552091): Body Section Parts

Main bottom panel for electric ranges and wall ovens. Replaces cracked, damaged, or missing bottom chassis component. Structural support piece.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? A failed bake element is often the cause. Located at the bottom of the oven, this part is a straightforward DIY fix.

Broiler not heating or browning food? A faulty broil element is often the cause. Located at the top of the oven, this part restores even heat for broiling.

Fix oven not reaching set temperature or F2/F3 error codes. This temperature sensor monitors internal heat for accurate cooking. Easy DIY repair.

NOTICE: Part has been redesigned. Wire terminals are no longer straight off the the back they are from the side. Depending on your model you may have to make changes to make it fit.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

This replacement screw fastens panels, brackets, or trim inside your appliance. Swapping in a new screw restores a tight, secure fit and helps stop rattles, looseness, or misalignment caused by missing or damaged hardware.

• Secures panels, brackets, or trim to the appliance chassis
• Helps maintain proper alignment and spacing of components
• Replaces missing, rusted, or stripped hardware
• Helps resolve loose panels/handles, vibration, or rattling noises

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location; start threads by hand to avoid cross-threading
• Use the appropriate driver and tighten snugly without overtightening
• Inspect the mounting hole or clip for damage and address as needed before reassembly

Replace a cracked, worn, or missing washer in your oven or range. This small metal component ensures secure fastening of internal parts and panels.
