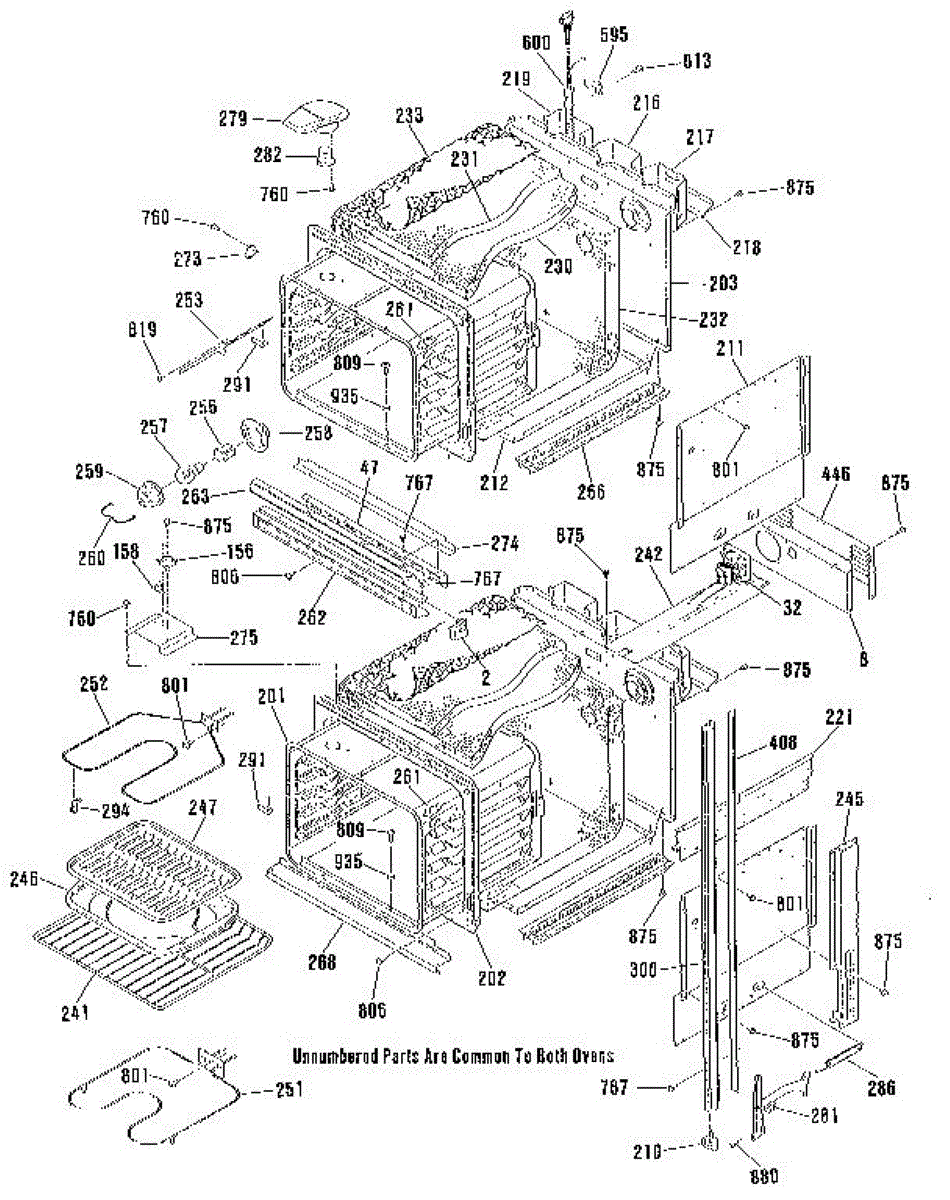

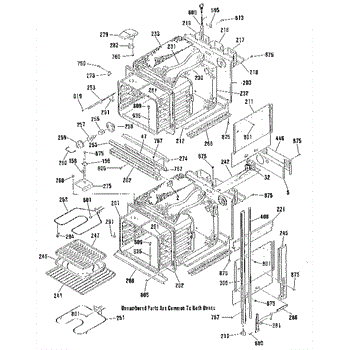

Parts for Kenmore 911.4842590 (9114842590, 911 4842590): Body Section Parts

Oven won't heat or trips during self-clean? This limit switch cuts power when temperature exceeds safe limits. Simple plug-in installation in 30 minutes.

Oven won't heat after self-clean cycle? A faulty limit switch prevents operation when stuck open. Tests quickly with a multimeter for continuity.

This full oven cavity wrapper assembly replaces the metal liner that surrounds and supports the oven interior, restoring structural integrity and proper heat enclosure for baking and broiling. Fits as the oven's inner/outer cavity wrapper. What it does:

• Replaces a damaged, warped, or corroded oven cavity wrapper that can affect heat distribution and door alignment
• Restores the oven's sealed cooking cavity to help maintain even temperatures during use
• Provides the mounting surface for insulation and internal components that attach to the oven shell
• Helps prevent heat and grease from reaching external cabinet surfaces

• 1 oven wrapper cavity assembly

• Disconnect power (and gas if applicable) before starting any repair
• Handle the wrapper carefully — edges may be sharp and insulation may shift during removal
• Verify fastener locations and panel alignment during reassembly to ensure proper door fit and seal

This trim end cap replaces a damaged or missing decorative end cap on the appliance trim, restoring a finished look and protecting the trim edge from further wear and gaps. Simple cosmetic repair that improves appearance and fit. What it does:

• Covers and protects the exposed end of the trim to prevent sharp edges and dirt buildup
• Restores the appliance's finished appearance after cracks, chips, or missing trim pieces
• Helps keep adjacent trim panels aligned and reduces visible gaps
• Works as a direct cosmetic replacement where the original end cap is broken or worn

• One trim end cap

• Disconnect power to the appliance and follow all safety precautions before starting work
• Installation typically requires removing a few screws or clips; keep hardware for reassembly
• Handle trim carefully to avoid scratching surrounding finishes and watch for sharp edges

A replacement trim end cap that restores the finished edge of the appliance trim and helps secure trim pieces for a clean, safe appearance. Designed to replace a worn, cracked, or missing end cap and improve panel fit. What it does:

• Covers and protects the exposed end of the trim for a finished look
• Helps hold trim pieces in place to reduce rattling or shifting
• Replaces cracked, chipped, or otherwise damaged end caps
• Prevents sharp edges from being exposed around the trim area

• Disconnect power to the appliance before starting any work.
• Typically installed by removing the adjacent trim fasteners and sliding or snapping the cap into place; basic hand tools may be required.
• Handle trim carefully to avoid scratching adjacent panels.
• If you encounter broken fasteners or clips, inspect and replace them as needed for a secure fit.

Insulation panel that installs on the top and side of your oven cavity. Replace if cracked, compressed, missing, or damaged to restore heat retention.

Insulation panel that installs on the bottom or back of your oven cavity. Replace if cracked, torn, compressed, or missing to maintain proper heat retention.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? The bake element generates heat at the bottom of your oven cavity. DIY-friendly repair, typically 30-40 minutes.

Size: 6 inches long. Includes ceramic wire connectors.

Heat-resistant socket that secures and powers your oven's interior light bulb. Replace if light fails or socket shows burn marks or bare wires. Verify fit.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Right hand side. For left hand use WB14K5007

Right hand side. For left hand use WB2K5300

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Nickel

Mounting screw for ranges and ovens. Secures internal components and panels. Replace if screw is stripped, missing, or no longer holds parts firmly in place.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.
