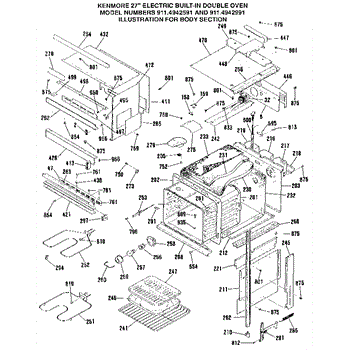

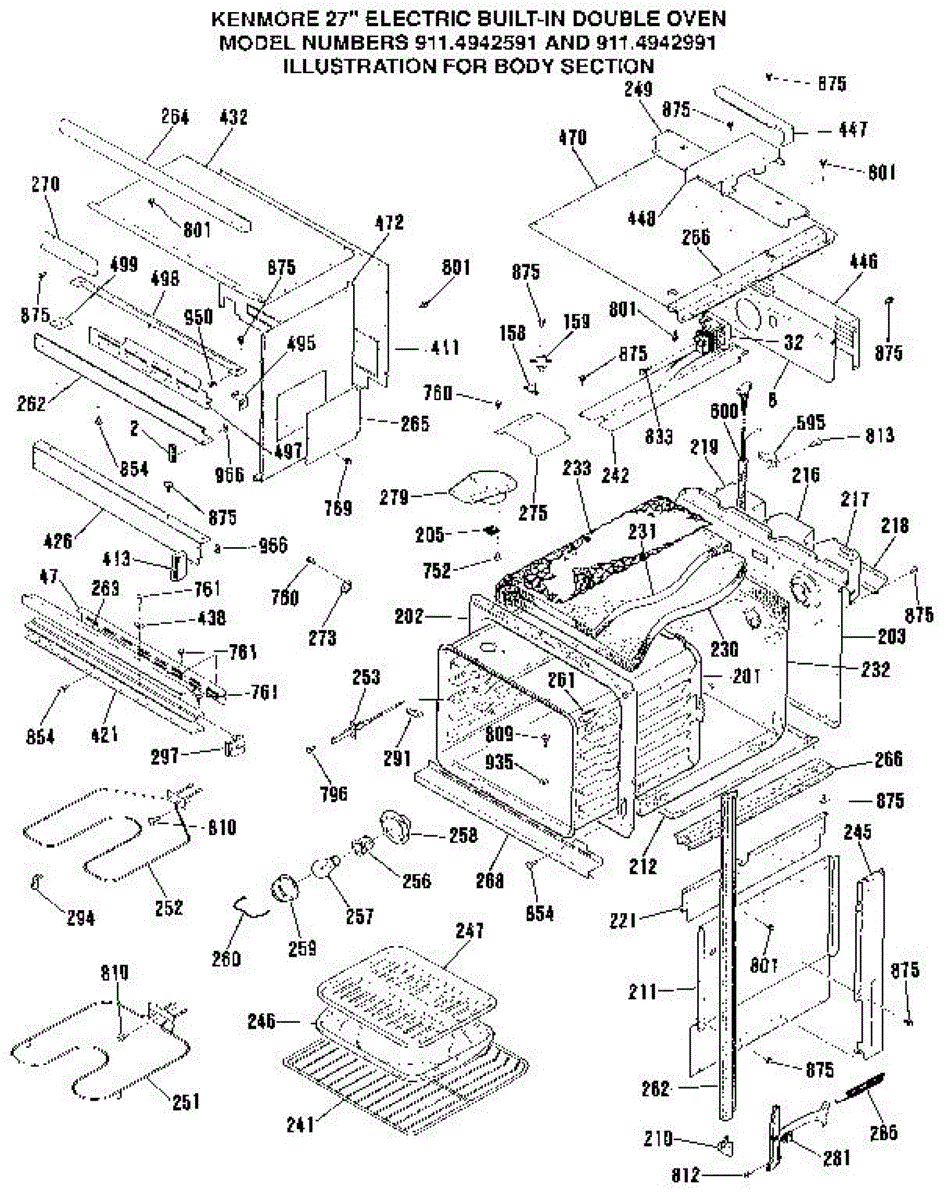

Parts for Kenmore 911.4942991 (9114942991, 911 4942991): Body Section Parts

Oven won't heat after self-clean cycle? A faulty limit switch prevents operation when stuck open. Tests quickly with a multimeter for continuity.

Oven won't heat or trips during self-clean? This limit switch cuts power when temperature exceeds safe limits. Simple plug-in installation in 30 minutes.

This full oven cavity wrapper assembly replaces the metal liner that surrounds and supports the oven interior, restoring structural integrity and proper heat enclosure for baking and broiling. Fits as the oven's inner/outer cavity wrapper. What it does:

• Replaces a damaged, warped, or corroded oven cavity wrapper that can affect heat distribution and door alignment
• Restores the oven's sealed cooking cavity to help maintain even temperatures during use
• Provides the mounting surface for insulation and internal components that attach to the oven shell
• Helps prevent heat and grease from reaching external cabinet surfaces

• 1 oven wrapper cavity assembly

• Disconnect power (and gas if applicable) before starting any repair
• Handle the wrapper carefully — edges may be sharp and insulation may shift during removal
• Verify fastener locations and panel alignment during reassembly to ensure proper door fit and seal

A replacement trim end cap that restores the finished edge of the appliance trim and helps secure trim pieces for a clean, safe appearance. Designed to replace a worn, cracked, or missing end cap and improve panel fit. What it does:

• Covers and protects the exposed end of the trim for a finished look
• Helps hold trim pieces in place to reduce rattling or shifting
• Replaces cracked, chipped, or otherwise damaged end caps
• Prevents sharp edges from being exposed around the trim area

• Disconnect power to the appliance before starting any work.
• Typically installed by removing the adjacent trim fasteners and sliding or snapping the cap into place; basic hand tools may be required.
• Handle trim carefully to avoid scratching adjacent panels.
• If you encounter broken fasteners or clips, inspect and replace them as needed for a secure fit.

This trim end cap replaces a damaged or missing decorative end cap on the appliance trim, restoring a finished look and protecting the trim edge from further wear and gaps. Simple cosmetic repair that improves appearance and fit. What it does:

• Covers and protects the exposed end of the trim to prevent sharp edges and dirt buildup
• Restores the appliance's finished appearance after cracks, chips, or missing trim pieces
• Helps keep adjacent trim panels aligned and reduces visible gaps
• Works as a direct cosmetic replacement where the original end cap is broken or worn

• One trim end cap

• Disconnect power to the appliance and follow all safety precautions before starting work
• Installation typically requires removing a few screws or clips; keep hardware for reassembly
• Handle trim carefully to avoid scratching surrounding finishes and watch for sharp edges

Replacement bottom panel for oven cabinets. Restores structural integrity when original is damaged, rusted, or missing. Direct fit for select models.

Insulation panel that installs on the bottom or back of your oven cavity. Replace if cracked, torn, compressed, or missing to maintain proper heat retention.

Metal oven rack installs inside your oven cavity to hold cookware during baking and roasting. Replace if cracked, warped, rusted, or missing.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? The bake element generates heat at the bottom of your oven cavity. DIY-friendly repair, typically 30-40 minutes.

Broiler stopped heating or burned through? This top heating element replacement takes 10-30 minutes with basic tools. Disconnect power, remove brackets, and swap wires.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

This trim piece covers the exterior edges of your wall oven or range. Replace yours if it's cracked, broken, or missing to restore a finished look.

Rail base support plate for ovens and ranges. Mounts underneath oven racks to provide stable support. Replace if cracked, broken, or missing.

This trim end cap replaces a damaged or missing decorative end cap on the appliance trim, restoring a finished look and protecting the trim edge from further wear and gaps. Simple cosmetic repair that improves appearance and fit. What it does:

• Covers and protects the exposed end of the trim to prevent sharp edges and dirt buildup
• Restores the appliance's finished appearance after cracks, chips, or missing trim pieces
• Helps keep adjacent trim panels aligned and reduces visible gaps
• Works as a direct cosmetic replacement where the original end cap is broken or worn

• One trim end cap

• Disconnect power to the appliance and follow all safety precautions before starting work
• Installation typically requires removing a few screws or clips; keep hardware for reassembly
• Handle trim carefully to avoid scratching surrounding finishes and watch for sharp edges

Lower front frame trim for wall ovens. Installs along the bottom front edge of the oven frame. Replace if cracked, broken, or missing to restore appearance.

Replace your range's jack cover plate if it's cracked, broken, or missing. This cover plate protects the electrical jack connection on your appliance.

Right hand side. For left hand use WB14K5007

Left hand side. For right hand use WB14K5006

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White. Left hand side. For right hand use WB36K5108

Color: White. Right hand side. For left hand use WB36K5107

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Nickel

Mounting screw for ranges and ovens. Secures internal components and panels. Replace if screw is stripped, missing, or no longer holds parts firmly in place.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Replace a cracked, worn, or missing washer in your oven or range. This small metal component ensures secure fastening of internal parts and panels.

This printed user manual provides the original operating instructions, safety information, and basic troubleshooting tips so owners can set up, use, and maintain their appliance correctly. Keeps model-specific guidance handy for reference. What it does:

• Supplies step-by-step operating instructions and control descriptions
• Lists safety warnings and handling precautions to reduce risk of misuse
• Offers basic troubleshooting steps and maintenance recommendations
• Helps clarify settings, cycles, and care procedures for proper performance

• No tools required; store the manual near the appliance for quick reference
• Read all safety and operating sections before first use
• Follow manufacturer service instructions
• Recycle or dispose of packaging and old manuals according to local regulations

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
