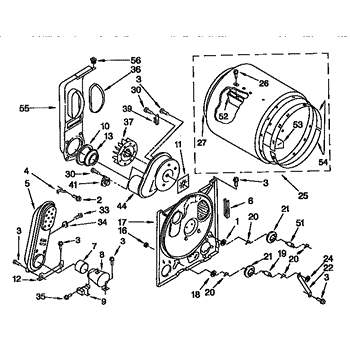

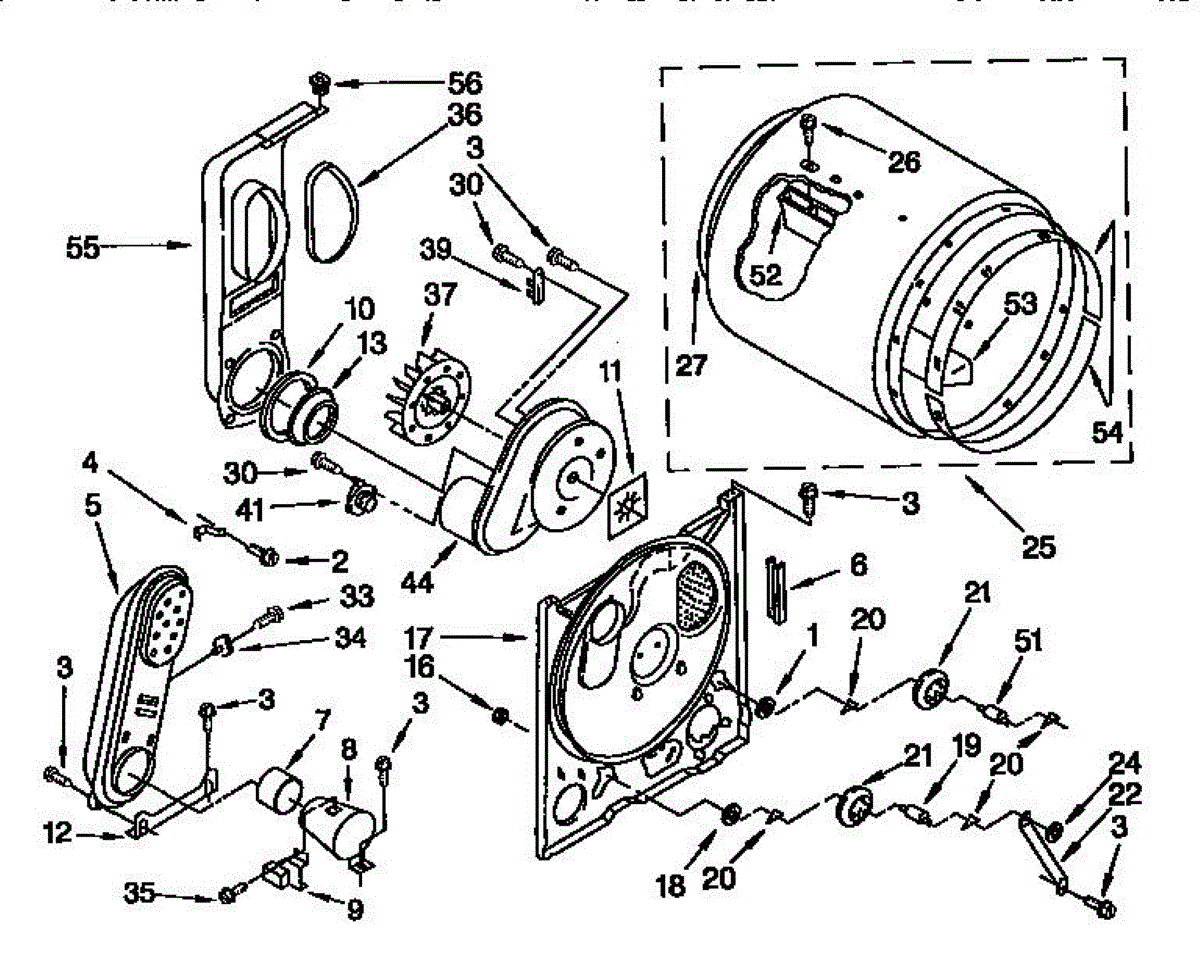

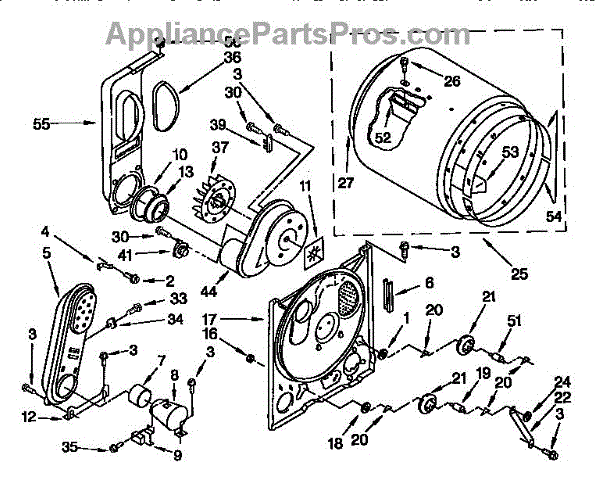

Parts for Sears 11097573910: Bulkhead Parts

This flat support washer provides a stable bearing surface under a fastener. Its 1-1/2-in diameter helps distribute load, maintain spacing, and keep components aligned so hardware stays tight and assemblies operate smoothly. What it does:

• Distributes clamping force to prevent pull-through and gouging
• Maintains proper spacing and alignment between mating parts
• Helps reduce vibration, rubbing, or wobble from a loose assembly
• Replaces a cracked, deformed, or missing support washer

• One support washer

• Disconnect power and shut off water/gas before servicing.
• Note the order and orientation of any washers/spacers during disassembly.
• Inspect mating hardware and surfaces; replace any worn or damaged parts.
• Tighten fasteners to manufacturer specifications—do not over-tighten.

This factory fastener secures appliance components and panels, helping keep assemblies properly aligned and tight. Replace worn, stripped, or missing hardware to eliminate looseness and vibration and maintain safe, reliable operation.

• Fastens brackets, panels, trim, and internal assemblies to the cabinet/frame
• Helps maintain alignment of doors, consoles, or covers
• Restores a tight fit to reduce rattling, vibration, or shifting
• Common symptoms: missing screw, stripped head/threads, loose panel or handle, recurring vibration/noise

• Disconnect power (and shut off gas/water if applicable) before servicing
• Match thread and length to the original fastener for proper fit
• Start threading by hand to avoid cross-threading; use the correct driver
• Do not overtighten into plastic or thin sheet metal

This retainer clip secures a component in place to prevent movement and maintain proper alignment during appliance operation. Replacing a damaged or missing clip helps restore safe, reliable performance.

• Holds the mating part firmly to reduce vibration and noise
• Helps prevent intermittent operation caused by loose fitment
• Common fix when a component feels loose, rattles, or won't stay seated

• Disconnect power and shut off gas/water before servicing
• Note original clip orientation and location before removal
• Use needle-nose pliers to carefully release and install the clip
• Do not over-bend the clip; replace if deformed or fatigued

This replacement box/housing restores the appliance's original enclosure where internal components mount, protecting wiring and parts from damage. It helps maintain safe operation and prevents loose components from shifting. What it does:

• Provides a protective enclosure for internal components and wiring
• Keeps parts properly positioned to prevent rubbing or disconnection
• Helps reduce vibration-related noise caused by loose components
• Restores a secure mounting point for associated hardware

• Disconnect power to the appliance before beginning any work
• Remove panels as needed to access the original box; keep fasteners for reuse
• Inspect surrounding wiring and components while installing the new box

This blower-housing pad is a replacement foam/rubber seal that cushions the blower assembly and helps maintain proper airflow and fit. It restores the original fit between the blower housing and cabinet to reduce vibration and air gaps. What it does:

• Cushions and supports the blower housing to reduce noise and vibration during operation
• Helps seal the blower housing to prevent air leaks that can reduce performance
• Maintains proper alignment and spacing of the blower assembly inside the cabinet
• Common symptom: excessive vibration, rattling, or airflow leakage near the blower area

• Designed for direct replacement; part number matches your unit before ordering
• Turn off power to the appliance at the breaker before beginning repair
• Handle foam/rubber parts gently to avoid tearing; ensure pad seats fully around the housing
• If other blower components are worn or damaged, inspect and replace as needed

This replacement box/housing restores the appliance's original enclosure where internal components mount, protecting wiring and parts from damage. It helps maintain safe operation and prevents loose components from shifting. What it does:

• Provides a protective enclosure for internal components and wiring
• Keeps parts properly positioned to prevent rubbing or disconnection
• Helps reduce vibration-related noise caused by loose components
• Restores a secure mounting point for associated hardware

• Disconnect power to the appliance before beginning any work
• Remove panels as needed to access the original box; keep fasteners for reuse
• Inspect surrounding wiring and components while installing the new box

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

The Seal is an OEM part for Whirlpool dryers. This specific seal is designed to fit around the blower housing, ensuring a tight seal that prevents air leaks within the dryer. The blower housing is a critical component of the dryer's air circulation system, which moves air through the drum to dry clothes efficiently.

Causes of damage to the Seal can include wear and tear from regular use, excessive heat degrading the material over time, or improper maintenance practices that can cause physical damage to the seal.

Symptoms of a bad Seal include:

• Longer drying times than usual
• Excessive heat buildup in the dryer
• Unusual noises from the dryer, such as rattling or buzzing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This locking nut is used for many purposes on a range of machines including household appliances. This nut is often used for leg leveling for machines. It will help with vibrations from washers and dryers. If the nut is used for this purpose and goes missing or becomes damaged, it could cause the machine to vibrate more and seem louder.Nuts are made from metal and are built to last a long time. However, there can still be issues that arise. In some cases, the nuts might go missing if they become loose and the machine is moved. They could also corrode over time and need to be replaced. The replacement of the nut is typically a fast and simple repair.The nut is a genuine OEM replacement part sourced from the manufacturer. It can work with washers, dryers, and combo machines, and is compatible with models from Whirlpool, Kenmore, Maytag, and Roper. The part is sold individually. Owners may want to have several on hand.

This bulkhead is the front tub housing that supports the washer drum and seals the washer cabinet to help contain water. Replaces a cracked or corroded housing to restore proper drum alignment and help prevent leaks. What it does:

• Provides structural support for the washer tub and drum assembly
• Forms the front seal surface to help keep water inside the washer
• Helps maintain correct drum alignment to reduce noise and wobble
• A failing bulkhead can cause visible leaks, excessive vibration, or rubbing noises

• Disconnect power and water supply before starting any repair
• Inspect surrounding seals, gaskets, and mounting hardware when replacing the bulkhead
• Replacement may require partial disassembly of the washer cabinet and drum; follow OEM instructions

This support washer is a flat spacer used within the mechanism to support and separate mating parts, maintaining alignment and smoother movement. Replacing a worn washer helps reduce friction and wear so components operate properly. What it does:

• Maintains proper spacing and support between adjoining parts
• Helps prevent metal-to-metal contact, reducing scraping or grinding noises
• Addresses wobble or excess play when the original washer is worn, deformed, or missing
• Restores smoother movement and alignment in the assembly

• One support washer

• Disconnect power and water supply before servicing; for gas combos, also shut off gas
• Refer to your model's parts diagram for location and orientation
• Track the order of any shims/spacers during disassembly and reinstall in the same sequence
• Tighten fasteners to manufacturer guidance to avoid deforming the washer or binding parts

The Drum Support Roller Shaft - Left is an OEM part for Whirlpool dryers. It is specifically designed to support the drum roller, ensuring smooth rotation of the dryer drum during operation. This shaft is essential for maintaining the drum's alignment and stability, allowing for effective and efficient drying of clothes.

Causes of a bad drum support roller shaft can include wear and tear from regular use, accumulation of lint and debris, or damage from overloading the dryer. These factors can lead to the shaft becoming worn out or bent, impairing the dryer’s performance.

Symptoms of a bad drum support roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The dryer drum not rotating smoothly or being off-balance
• Increased drying times or incomplete drying of clothes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Rear Drum Support Roller Kit is an OEM replacement part for  Whirlpool dryers, as well as Kenmore, Samsung and other brands. This kit includes the rear support rollers that are crucial for maintaining proper drum alignment and smooth rotation during the drying cycle. Matching belt 341241 and idler pulley WP691366.

Symptoms of a faulty Rear Drum Support Roller Kit include:

• Excessive vibration or shaking during drying cycles
• Loud grinding or squeaking noises from the rear of the dryer
• Uneven wear or visible damage to the rollers
• Potential drum misalignment, rubbing against the drum casing, or leaks

Causes of a bad Rear Drum Support Roller Kit can include wear and tear over time, excessive load imbalances, or physical damage from impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

Replace a cracked or missing bracket to keep appliance components securely mounted and aligned. Restoring this support helps prevent movement, vibration, and premature wear, so the connected part operates as intended.

• Provides a rigid mounting point for an associated component or assembly
• Maintains correct alignment and spacing within the appliance
• Helps reduce vibration, rattling, or shifting during operation
• Replaces brackets that are cracked, bent, or broken
• Common signs: loose or wobbly parts, misalignment, rattling noises, or visible bracket damage

• Disconnect power; also shut off the water supply before servicing
• Wear cut-resistant gloves—bracket edges can be sharp
• Reuse original screws/clips unless replacements are specified
• Hand-start fasteners, align parts, and tighten evenly without overtightening

The Rear Drum Felt Seal with Adhesive is an OEM part for Whirlpool dryers. This part creates a tight seal at the rear of the dryer drum. This seal prevents hot air from escaping the drum during cycles, ensuring efficient and even drying of clothes.

Causes of a deteriorating rear drum felt seal can range from normal wear and tear, excessive heat exposure, to mechanical issues that cause misalignment or excessive wear on the seal itself.

Symptoms of a bad Rear Drum Felt Seal include:

• Clothes taking longer to dry or not drying thoroughly
• Increased lint outside the dryer or in the venting system
• Unusual noises during operation, indicating a gap or friction issue
• Heat escaping from the rear of the dryer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

10 - 16 x 1/2

The Lint Screen Housing Foam Seal is an OEM part for Whirlpool dryers. This seal is placed around the lint screen housing to prevent air leaks and ensure that the dryer operates efficiently by directing airflow properly through the lint screen. By maintaining a tight seal, this foam helps to optimize the dryer’s performance, reduce drying times, and prevent lint from escaping into the internal parts of the dryer, which can lead to potential maintenance issues and decreased efficiency.

Symptoms of a failing lint screen housing foam seal include:

• Increased lint buildup inside the dryer beyond the lint screen
• Longer drying times due to inefficient air circulation
• Excessive heat and humidity within the dryer

Causes of foam seal deterioration typically involve normal wear and tear, exposure to high heat which can degrade the material, or improper maintenance that can tear or dislodge the foam.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Blower Wheel is an OEM part for Whirlpool dryers. This component is crucial for the proper circulation of hot air within the dryer drum, ensuring efficient drying of clothes by directing airflow through the drum and out the exhaust.

Common causes of a bad blower wheel include accumulated lint and debris obstructing the wheel, physical damage from foreign objects, or general wear from prolonged use. A faulty blower wheel can significantly reduce drying efficiency and may cause the dryer to overheat.

Symptoms of a bad blower wheel include:

• Longer drying times for clothes
• Unusual noises during the drying cycle
• Overheating of the dryer
• Poor airflow from the dryer vent

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This internal-bias thermostat regulates dryer drum temperature by cycling the heat on and off, helping maintain consistent drying performance and protect against overheating.

• Controls the cycling temperature of the heating circuit to prevent underheating or overheating
• Helps resolve symptoms like no heat, not enough heat, long dry times, or temperature swings
• A faulty thermostat may cause overheating that can trip the thermal fuse
• Located on the blower housing on many models

• Disconnect power and shut off gas (for gas dryers) before servicing
• Access the blower housing; note wire positions and transfer one at a time
• Mount the thermostat flush to the housing for proper sensing
• After installation, run a test cycle to verify proper heating

This blower housing assembly directs airflow from the dryer's drum to the exhaust, helping the appliance vent properly for efficient drying. It replaces a damaged or cracked housing to restore correct air path and reduce airflow loss. What it does:

• Guides air from the drum to the blower wheel and exhaust vent for proper drying performance
• Supports and locates the blower wheel and related seals to maintain airflow integrity
• Can reduce or stop airflow issues like poor drying or extended cycle times when cracked or broken
• May resolve abnormal noise caused by a loose or damaged housing contacting the blower wheel

• One blower housing assembly

• Disconnect electrical power (and gas supply for gas dryers) before servicing
• Access typically requires removing the dryer cabinet or back panel; follow the OEM service manual
• Inspect the blower wheel and motor while replacing the housing; replace any worn components
• After installation, check for proper wheel clearance and exhaust airflow and quiet operation

The Drum Support Roller Shaft - Right is an OEM part for Whirlpool dryers. This shaft provides support for the drum roller, allowing the dryer drum to rotate smoothly and efficiently during drying cycles.

You should replace the drum support roller shaft if it becomes worn, bent, or damaged. Causes of a bad drum support roller shaft can include regular wear and tear, overloading the dryer, or exposure to high temperatures, which can affect its structural integrity.

Symptoms of a bad drum support roller shaft include:

• Unusual noises such as squeaking or grinding during operation
• The dryer drum not rotating smoothly or becoming stuck
• Excessive vibration or wobbling of the dryer drum
• Visible wear or damage on the roller shaft

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Drum Baffle is an OEM replacement part designed for Whirlpool dryers. The baffle, located inside the drum, helps lift and tumble clothes during the drying cycle, ensuring even and efficient drying. It agitates the clothing, allowing air to circulate freely and preventing tangling.

Note: This is the tall baffle.

Over time, the drum baffle can become loose or damaged due to frequent use and contact with clothing or objects left in pockets. Physical wear or repeated impacts might cause it to crack, detach, or warp, reducing its ability to tumble clothes properly.

Symptoms of a faulty Drum Baffle include:

• Clothes not drying evenly or efficiently
• Unusual noises coming from the drum, such as rattling or banging
• Loose or detached baffle within the drum

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Short baffle

This replacement ice chute directs ice from the bucket to the dispenser opening, helping prevent jams and stray cubes. If the original chute is cracked, warped, or obstructed, replacing it restores smooth, consistent ice dispensing. What it does:

• Guides cubed or crushed ice through the dispenser opening into your glass
• Helps prevent ice from scattering or missing the glass
• Reduces ice jams and clogs caused by damaged or misaligned parts
• Common symptoms: ice not dispensing properly, ice spilling at the dispenser, frost or ice buildup in the chute area, broken plastic pieces

• 1 dispenser ice chute

• Unplug the refrigerator and turn off the water supply before servicing
• Access the dispenser area per your model's service instructions
• Note orientation; transfer any gaskets/seals and reuse original hardware if applicable
• Ensure the chute seats and aligns correctly with the ice door before reassembly and test

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

The Terminal Block is an OEM replacement part for Whirlpool dryers. It is responsible for distributing electricity to key components that control drying operations.

Symptoms of a bad terminal block include:

• The dryer not heating up properly or failing to achieve the desired temperature
• Components like lights or timers not functioning
• Strange buzzing or humming noises coming from the dryer

Causes of terminal block failure can be worn or damaged wiring terminals, loose connections due to normal vibration, or corrosion buildup over several years of use.

This terminal block is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore dryer models.

Please note: Please note that this part does not include the wires, screws, and nuts. They must be ordered separately. For the complete block assembly use 279320.
