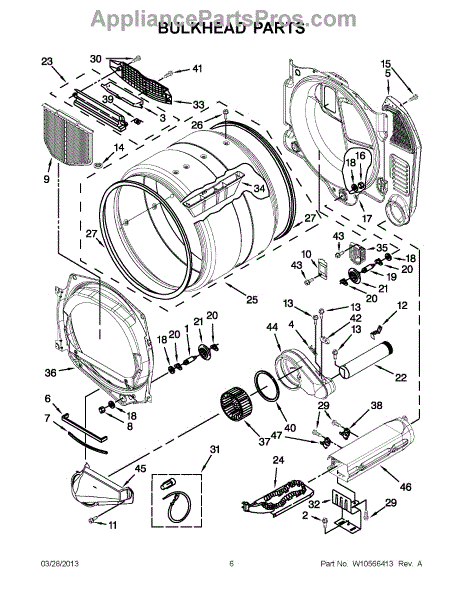

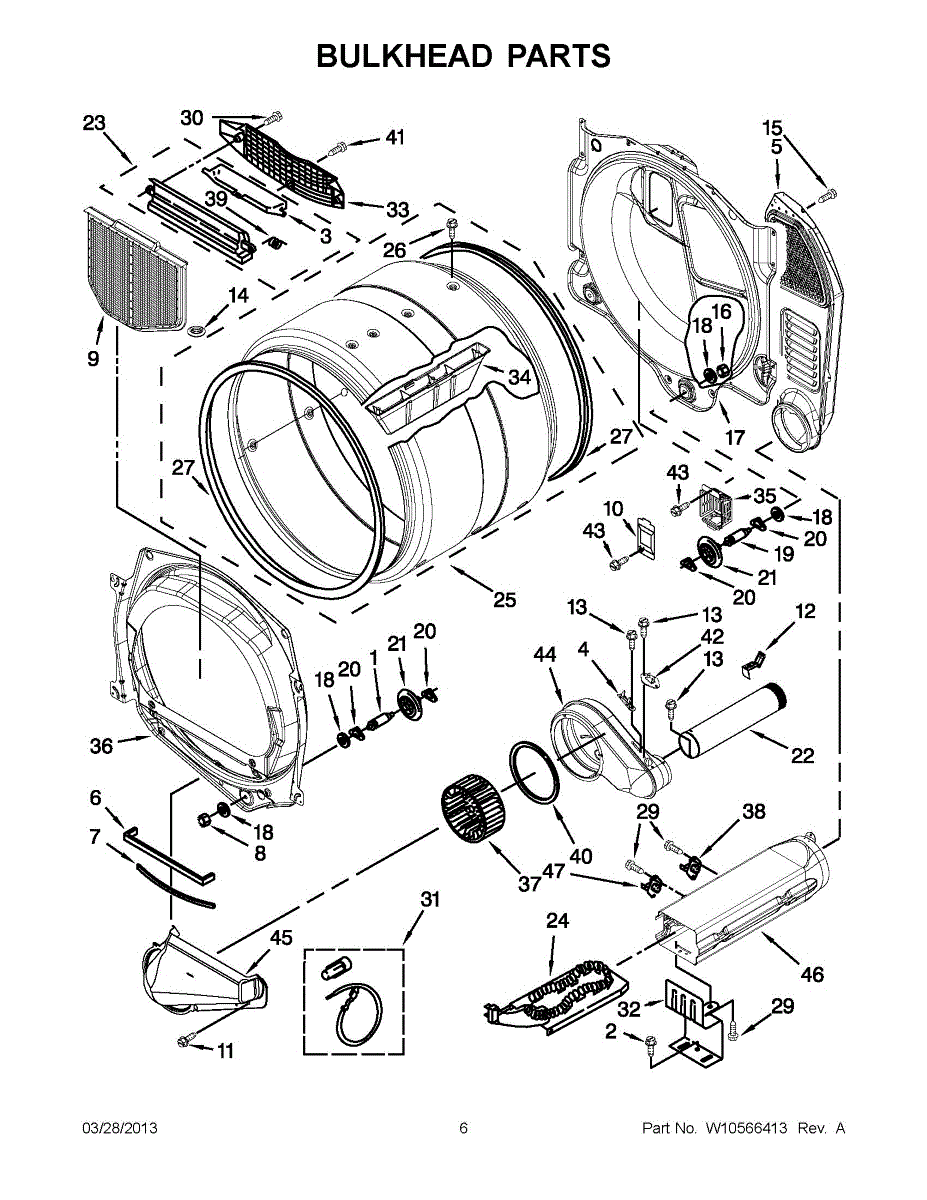

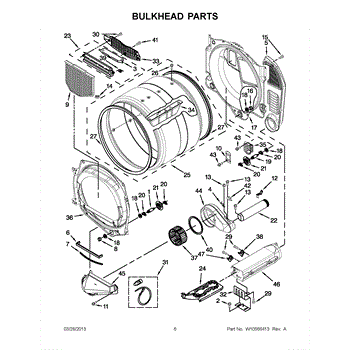

Parts for Whirlpool 3LCED9100WQ2: 03 - Bulkhead Parts

Shaft that secures front drum support rollers in your dryer. Replace if worn, scored, or damaged to restore proper drum alignment and support.

This outer refrigerator door restores the appliance's sealed front and appearance so the fridge closes properly and keeps food cold. It replaces a damaged or dented exterior door panel to regain proper sealing and look. What it does

• Replaces a cracked, dented or warped outer door panel that affects appearance or sealing
• Helps the door close evenly to maintain internal temperature and prevent cold air loss
• Restores attachment points for handles and trim so hardware functions correctly
• Reduces drafts, moisture buildup, and increased energy use caused by a damaged door

• Recommended for experienced DIYers; door panels are heavy and may require a second person to handle safely
• Disconnect power to the appliance and remove contents before starting work
• Keep track of fasteners and trim; align door on hinge pins before securing to avoid misalignment
• Check gasket and hinge condition while replacing the door; replace any worn parts for a complete repair

Dryer won't heat or start? This thermal fuse cuts power when the dryer overheats. Common fix for no-heat issues. Basic DIY repair in 30 minutes.

Channels dryer exhaust to external vent connection. Replace if rusted, leaking, or screen is damaged to restore proper airflow and drying performance.

Seals the dryer outlet housing to prevent air leaks and maintain venting efficiency. Replace if lint accumulates in cabin or moisture escapes. Verify fit.

Seals the dryer outlet housing to prevent air leaks and maintain venting efficiency. Replace if lint accumulates in cabin or moisture escapes. Verify fit.

The Dryer Lint Filter is an OEM replacement part for Whirlpool electric dryers. This essential screen traps lint and debris released from tumbling clothes. Consistent filtration is key for safety and performance. This filter measures approximately 12 1/2 inches wide and 10 1/2 inches deep.

Causes of a clogged lint filter can be an accumulation of lint from regular drying cycles plugging ventilation holes. Neglecting filter cleaning allows fluff to build up rapidly.

Symptoms of a dirty lint filter include:

• Extended drying times as airflow is restricted
• Overheating problems or melted slots in the filter housing
• Risk of dryer or clothing fires from unvented lint buildup

This OEM replacement part is also compatible with Kenmore and Maytag models too, it removes the fire hazard of neglected cleaning.

Covers and protects your dryer's light bulb from heat and debris while diffusing illumination. Replace if cracked, yellowed, or missing. Confirm fit.

Fastener secures panels, brackets, and internal assemblies in washers, dryers, and refrigerators. Replace stripped, missing, or worn screws.

Replacement retainer clip that secures panels and internal components in your dryer. Install when the original clip is broken, worn, or missing.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This 3/8-16 nut secures appliance components and helps prevent loosening and vibration. Replace a worn, stripped, or missing nut to restore a tight, reliable connection and consistent operation.

• Provides a 3/8-16 threaded fastener connection for applicable bolts or studs
• Helps keep brackets, panels, and other parts firmly in place
• Replaces damaged or missing hardware that can cause looseness or rattling
• Signs of failure include rounded corners, stripped threads, corrosion, or inability to tighten securely

• Disconnect power and, if applicable, shut off water and gas before servicing
• Match thread size to the original part; start threading by hand to avoid cross-threading
• Reinstall any washers/spacers in the original order; tighten securely without over-tightening
• If the original used a locking feature or threadlocker, reinstall per your product's service information

Dryer bulkhead assembly connects the drum to the blower housing. Replace if cracked, warped, or causing air leaks. Verify fit with your model number.

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Replacement drum support roller for dryers. Mounts on the drum frame to support and guide the drum as it rotates. Replace if cracked, worn, or damaged.

Molded duct housing that channels airflow from the dryer assembly to the outlet path. Replace if cracked, warped, or broken to restore proper sealing.

Dryer not heating or taking multiple cycles to dry clothes? The heating element generates warmth during the drying cycle. DIY-friendly repair.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Seals the drum perimeter to prevent abrasion and maintain temperature. Replace when worn, torn, or causing marks on clothes. Verify fit by model number.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Connects power to your dryer's heating element. Replace this wire if it's frayed, burned, corroded, or broken to restore the electrical connection.

Secures the heater housing to the dryer cabinet. Replace if your bracket is bent, cracked, or missing to restore stable mounting and alignment.

Plastic grille that covers and secures the lint screen in your dryer. Replace if cracked, broken, or damaged from regular use or impact.

Replace your dryer's drum baffle if it's cracked, broken, or fallen off. This internal drum component lifts clothes during tumbling. Installs inside drum.

Mounting bracket secures interior panels and components in your dryer. Replace when worn, cracked, or broken to restore proper fit and stability.

Front bulkhead assembly for dryer drum. This structural component supports the drum's front rotation. Replace if cracked, warped, or damaged.

Fix odd rattling noises or no airflow from vents with a new dryer blower wheel. Common issue: lint buildup or wheel separation. Moderate DIY repair.

Dryer won't heat or keeps tripping the breaker? The thermal cutoff cuts power when temps get too high. Common fix for overheating dryers, easy install.

Restores proper tension to your dryer's lint screen door for smooth opening and closing. Replace if the cover is loose or won't stay closed securely.

Seals the blower housing to prevent air leaks that reduce drying efficiency. Replace if worn, cracked, or missing to restore optimal airflow.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Fix E1 error codes or overheating issues with this dryer thermistor. Monitors temperature to prevent shutdowns. DIY repair takes about 30 minutes.

Blower housing assembly that directs airflow from the drum to the exhaust vent. Replace if cracked, damaged, or causing excessive noise in your dryer.

Dryer not heating? A warped or damaged heater box lets heat escape, reducing efficiency. This housing secures the element and protects components.

Dryer won't heat or overheats? This high-limit thermostat opens the heating circuit at preset temperatures to prevent overheating and restore safe operation.
