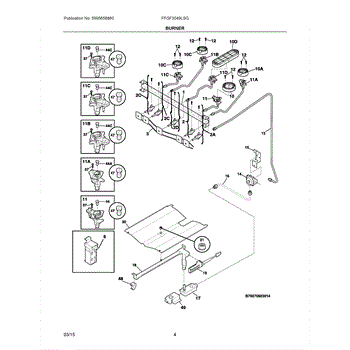

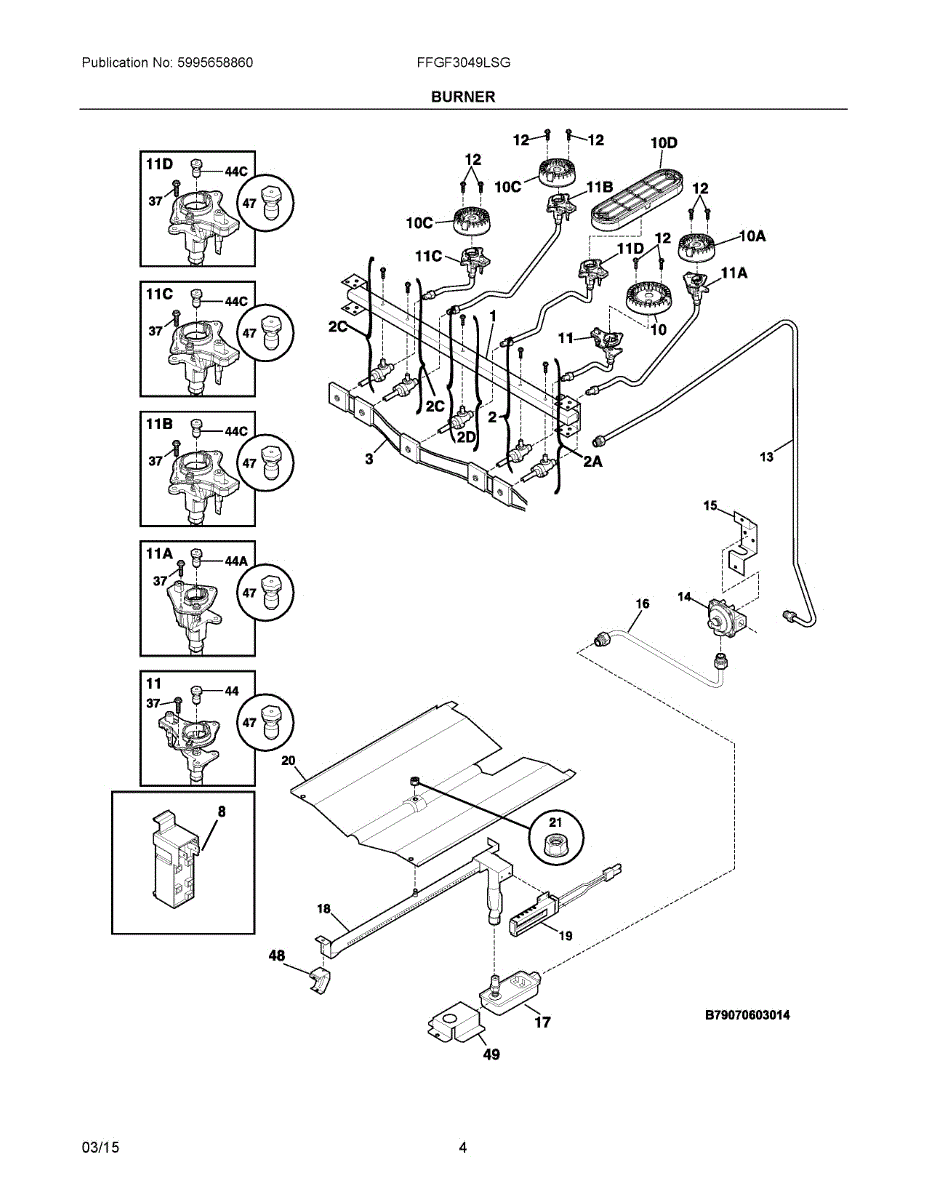

Parts for Electrolux FFGF3049LSG: 03 - Burner Parts

This top burner valve is a direct-replacement surface burner control that regulates gas flow to a single cooktop burner, restoring proper ignition and flame adjustment for safe cooking. What it does

• Controls gas flow from the manifold to one surface/top burner for normal ignition and flame modulation
• Common fix when a burner won't light or has a weak, inconsistent flame
• Replaces a valve that is stiff, damaged, or does not respond correctly to the control knob
• Works with the corresponding oven/range gas manifold and burner assembly

• Turn off the appliance gas supply and electrical power before beginning any service
• Only install the exact replacement valve that matches your range's part number and orientation
• Use proper tools and fittings; avoid overtightening tubing connections and threads
• After installation, check for correct operation and perform a leak test per local codes

This safety valve controls gas flow to the oven burner, opening only when the ignition system calls for heat. Replacing a weak or stuck valve restores reliable ignition and consistent oven temperatures for safe, dependable baking and roasting. What it does:

• Regulates and shuts off gas to the oven burner circuit
• Works with the igniter; opens only when proper current is present
• Fails closed to help prevent unlit gas from entering the oven
• Common symptoms may include: oven won't heat, intermittent heating, very long preheat, or a weak/unstable flame

• 1 safety valve

• Disconnect power and shut off gas supply before servicing
• Label and transfer all tubing and wires from the original valve one-for-one
• Support flare fittings with two wrenches; use thread sealant only on NPT threads (never on flare connections)
• After installation, restore gas and check every joint for leaks with an approved leak-detection solution

This replacement valve controls gas flow to a cooktop/range surface burner, restoring smooth, dependable flame control through the burner knob. Replace a worn or leaking valve to improve safety and consistent burner performance.

• Regulates and shuts off gas to a single surface burner when you turn the control knob
• Helps resolve issues like a burner that won't light or won't adjust flame properly
• Can address a stiff/hard-to-turn knob or gas odor/leak at the valve stem area
• Supports steady, even flame when the original valve is worn or inconsistent

• Disconnect power and shut off gas supply before servicing
• Match the valve to the correct burner position per your model's parts diagram
• Transfer any required fittings/orifice from the original valve
• Use approved sealant where specified and check all connections with a leak-detection solution before use—never an open flame

This is the gas control valve for a surface burner. It regulates gas flow to the burner head so you can ignite the flame and adjust heat output safely and smoothly.

• Controls and meters gas to an individual cooktop/range burner
• Worn or leaking valves can cause hard-to-adjust flames, no flame, or gas odor
• A sticking or stripped valve stem can make the knob hard to turn or fail to shut off fully
• Helps restore precise flame control and reliable ignition

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; work in a well-ventilated area
• Transfer any mounting hardware or orifice components from the old valve
• Check for leaks with an approved leak-detection method after reassembly and gas restoration

The Spark Ignition Switch & Harness Assembly is an OEM part for Frigidaire gas ranges. It is responsible for igniting the burner to produce a flame when the burner knob is turned on.

Causes of ignition failure include worn contact points, damaged wiring, cracked ceramic insulators, and loose connections.

Symptoms of a faulty spark ignition switch and harness include:

• Burners not igniting
• Burners igniting with delay
• Burners igniting but flame is low or uneven
• Ticking noises near the burner area

This OEM replacement assembly is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas range models that use the same ignition system.

The Spark Module Kit is an OEM part for Frigidaire ranges. This kit includes the spark module and necessary components for installation, responsible for providing the electrical spark needed to ignite the gas burners on the stove.

Common causes of a bad spark module include electrical faults, wear and tear from regular use, or damage from power surges.

Symptoms of a bad spark module include:

• Burners not igniting
• Weak or inconsistent sparks
• Clicking sound without burner ignition
• Only some burners igniting

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This surface burner channels gas through its ports to create an even, controllable flame on your cooktop. Replacing a worn or clogged burner restores reliable ignition, proper flame shape, and consistent heating performance.

• Directs gas from the orifice through burner ports to produce the cooking flame
• Interfaces with the spark electrode for fast, consistent ignition
• Helps maintain even heat across the pan
• Common symptoms: burner won't light, weak or uneven flame, yellow tips, delayed ignition or popping

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove grate and burner cap; detach mounting hardware as applicable and lift off the old burner
• Align the new burner with the orifice and igniter; reinstall hardware and cap
• Restore gas and power, then check for leaks and verify proper ignition and flame quality

This is a surface burner head for a gas range/cooktop. It distributes gas from the orifice to the burner ports, helping deliver an even flame and reliable ignition when the original head is clogged, damaged, or corroded.

• Channels gas through precision ports to create a stable, even cooking flame
• Works with the burner cap and igniter for quick, consistent lighting
• Typical symptoms: burner won't light or takes multiple clicks, uneven/yellow flames, weak flame, or popping/flare-ups
• Physical issues may include blocked ports, heavy corrosion, or a warped/stripped casting

• Disconnect power and shut off gas; let the cooktop cool completely
• Lift off the burner cap; remove mounting screw(s) if present and lift off the old head
• Clean mating surfaces/orifice area; set the new head squarely and secure with existing hardware
• Restore gas and power; verify proper ignition and flame pattern

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This gas burner orifice meters the flow of fuel to a burner on your range or cooktop. Replacing a clogged, damaged, or wrong-size orifice helps restore correct flame characteristics for safer, efficient cooking performance.

• Precisely meters gas through a calibrated jet to the burner
• Supports proper flame size and color for the specified fuel (natural gas or LP)
• Symptoms to address can include weak/uneven flame, yellow or sooty flame, delayed ignition, or no flame if the jet is blocked
• Replace if the jet is stripped, damaged, drilled out, or cannot be cleared of debris

• Disconnect electrical power and shut off the gas supply; allow the appliance to cool before service.
• Use the correct orifice for the specific burner position and fuel type; do not over-tighten the brass fitting.
• After installation, verify regulator setting and adjust air shutters (if applicable) for the correct fuel.
• Leak-test disturbed connections with a soap-and-water solution and confirm proper flame before use.

This ignitor orifice assembly sits under the cooktop and both routes gas to a surface burner and provides the spark to light it. Replace a damaged or clogged assembly to restore fast, reliable ignition at that burner.

• Feeds gas from the valve to the burner and houses the spark igniter electrode for ignition
• Common fix for a surface burner that won't light, has no or weak spark, or only lights with a match
• Also called an igniter/orifice holder assembly

• Disconnect power and shut off the gas supply before servicing.
• Raise or lift the cooktop per your model's service information; support it to avoid strain on gas lines.
• Note wire routing; set the electrode gap to the burner head per service specs and keep the lead away from heat/sharp edges.
• After reassembly, check all gas connections with an approved leak-detection solution and verify proper spark and flame.

The Igniter and Orifice Assembly is an OEM part for Frigidaire ranges. This part ignites the gas burners and regulates the flow of gas through the orifices.

Causes of a bad Igniter and Orifice Assembly can range from electrical issues or corrosion affecting the igniter to clogs or obstructions in the gas orifices.

Symptoms of a faulty Igniter and Orifice Assembly include:

• Difficulty igniting or relighting burners
• Uneven or inconsistent flame patterns
• Burners not staying lit or extinguishing spontaneously
• Clicking or sparking noises during ignition attempts

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This surface burner ignitor/orifice assembly directs gas through a calibrated orifice and provides the spark to ignite it. Replacing a worn or damaged assembly restores consistent lighting and an even flame on the affected rangetop burner.

• Routes gas from the valve through the orifice to the burner head
• Positions the ignitor for reliable sparking and quick ignition
• Helps maintain correct flame size and pattern on that burner
• Common symptoms: burner won't light, clicks without flame, delayed ignition, weak or uneven flame

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner heads; lift the cooktop to access the assemblies
• Note wire routing and original orifice location; transfer any reusable hardware from the old part
• After installation, restore gas and check connections for leaks, then test spark and flame

The Igniter Orifice Assembly is an OEM component for Frigidaire gas ranges. It is an integrated assembly housing both the electric ignition wire and adjustable gas orifice or restrictor needed for controlled gas flow.

Symptoms of a bad ignitor orifice assembly include:

• Burners failing to light or requiring multiple igniter clicks
• Flames that are irregularly shaped, oversized, or yellow-tipped
• Burners ignite but flame size is not adjustable across settings
• Gas smells were detected without an obvious leak at the connections

Over time, normal use can cause an orifice to deteriorate or crack while ambient gases degrade igniter wires.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Regulator is an OEM replacement part for Frigidaire gas ranges and cooktops. It is a valve component that regulates gas flow from the supply line into the appliance burners. Carefully controlling fuel input maintains proper and safe burner flame sizes.

Symptoms of a bad regulator include:

• Burners producing uneven or excessively high flames
• Inability to reduce burner flames properly
• Gas leaks at the regulator connections

Causes of failure involve wear of internal sealing parts over extended use. Corrosion or debris clogging gas passages can also disrupt flow regulation.

This OEM Frigidaire replacement regulator ensures optimal and reliable burner performance. Compatible with some Amana, Electrolux, and KitchenAid models as well, regular replacements prevent dangerous gas line issues from developing.

This is a replacement refrigerant/line connection tube that links the service valve to the regulator line, restoring a sealed pathway for proper cooling system operation. It fits systems using a 3/8" tube connection. What it does:

• Connects the service/stop valve to the regulator/line, maintaining a sealed refrigerant path
• Restores proper flow and pressure routing when the original tube is damaged, cracked, or leaking
• Commonly replaced for visible leaks, hissing at the valve area, or loss of cooling tied to a line break
• Works as a direct, single-piece tubing connector where a 3/8" connection is specified

• One tube to valve connector (3/8" tube)

• Installation requires appliance access and basic refrigeration line handling; tighten fittings to OEM torque specs and verify leak-free with an appropriate leak detector
• Wear safety glasses and gloves; avoid breathing refrigerant vapors and follow manufacturer service documentation

The Oven Safety Valve is an OEM replacement part for Frigidaire gas ranges. This valve controls gas flow to the oven burner.

Causes of a faulty oven safety valve can include wear of sealing surfaces due to prolonged heating and cooling during cooking cycles. Exposure to food or liquid residues over time may also affect valve function.

Symptoms of a bad oven safety valve include:

• The oven not heating up despite the igniter working correctly
• A smell of gas indicates a leak or uncontrolled release
• Inconsistent oven temperatures or heating patterns
• The oven failed to maintain the set temperature

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

Restore reliable ignition and even oven heat. This oven burner channels gas from the safety valve and mixes air to produce an even flame across the bake area, helping your range preheat properly and maintain steady baking temperatures.

• Distributes the gas/air mixture for the bake cycle and ignites along the burner ports for a consistent flame
• Supports even heat across the oven cavity to reduce hot and cold spots while baking
• Common signs of failure: no bake flame or intermittent ignition, long preheat times, uneven baking, visible rust or holes in the burner
• Works in conjunction with the oven igniter; inspect the igniter if weak ignition persists

• Disconnect power and shut off the gas supply before servicing
• Remove oven racks, bottom panel, and flame spreader to access the burner
• Unfasten the burner, lift it off the orifice, and transfer the existing igniter and hardware to the new burner if needed
• Reinstall, ensure proper alignment over the gas orifice, restore gas/power, and verify a stable blue flame

The Oven Burner Ignitor is an OEM replacement part for Frigidaire ovens and ranges. This essential component is responsible for igniting the gas burners within the oven cavity, allowing for proper heating and cooking operations.

Causes of a faulty oven burner ignitor can include normal wear and tear over time, exposure to excessive heat or debris buildup, or electrical malfunctions preventing proper ignition.

Symptoms of needing to replace the oven burner ignitor include:

• Failure of the oven burners to ignite or light consistently
• Delayed ignition or inconsistent burner lighting
• Visible damage, deterioration, or discoloration of the ignitor element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ovens and ranges.

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Burner Orifice is an OEM part for Frigidaire ranges. This part regulates the flow of gas to the burners, ensuring proper combustion and heat output.

Causes of a bad burner orifice can include clogging from debris or food particles, corrosion or damage to the orifice opening, or improper installation or misalignment.

Symptoms of a bad burner orifice include:

• Uneven or flickering flames on the burners
• Yellow or orange-colored flames instead of a steady blue flame
• Burners producing excessive noise or popping sounds
• Difficulty in igniting the burners or keeping them lit
• Inconsistent heat output or hot and cold spots on the cooking surface

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Burner Orifice is an OEM replacement part for Frigidaire gas ranges and cooktops. It controls the mixture of gas and air delivered to each burner element.

Symptoms of a faulty orifice can include:

• Inconsistent or unpredictable burner flame heights
• Yellow flames that create excess soot or carbon buildup
• Potential risk of flashback into gas lines

Causes may involve gradual damage from normal usage, such as cracks developing. Improper cleaning can deposit residue that changes flame characteristics as well.

This OEM Frigidaire replacement restores balanced gas flow regulation. Compatible with ranges from Electrolux, Gibson, and select Kenmore models.

The Burner Orifice is an OEM part for Frigidaire cooktops and ranges. It is a critical component that controls the flow of gas to the burner, ensuring a consistent and stable flame for cooking. The orifice regulates the amount of gas released to the burner, which in turn affects the size and intensity of the flame.

Causes of a bad burner orifice can include food debris or grease build-up, corrosion from prolonged exposure to gas, or physical damage from cleaning or handling.

Symptoms of a bad burner orifice include:

• Uneven or irregular flame
• Burner not igniting
• Weak or yellow flame
• Gas smell near the burner

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The LP Conversion Kit is an OEM part for Frigidaire gas ranges. This kit allows for the conversion of the range's fuel type from natural gas to LP (liquefied petroleum) gas. It ensures the safe and efficient operation of the gas range when using LP gas as the fuel source.

Causes of a bad LP conversion kit can include incorrect installation, missing components, or damaged parts.

Symptoms of an improper fuel conversion or a bad LP conversion kit may include:

• Uneven flame
• Improper heating
• Unusual gas smells

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18ab x 0.5 inch.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

This wiring harness connects the appliance's electrical components to restore reliable power and signal routing. It replaces a damaged or worn harness to help resolve power loss and intermittent electrical issues. What it does:

• Transfers power and control signals between components so controls and motors can operate
• Replaces frayed, burned, or broken wiring that can cause intermittent operation
• Helps stop failures that lead to no-start or loss of specific functions
• Restores secure connector fit to reduce arcing or poor connections

• Always disconnect power before servicing the appliance
• Match connectors and wire routing to the original harness; avoid stretching or pinching wires
• Secure fasteners and strain reliefs; verify all connections are fully seated
• If you find heat or burn damage at terminals, inspect adjacent components for root cause

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
